Front Fender Liner: Service and Repair

Front Fender Liner Replacement


Removal Procedure

1.Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

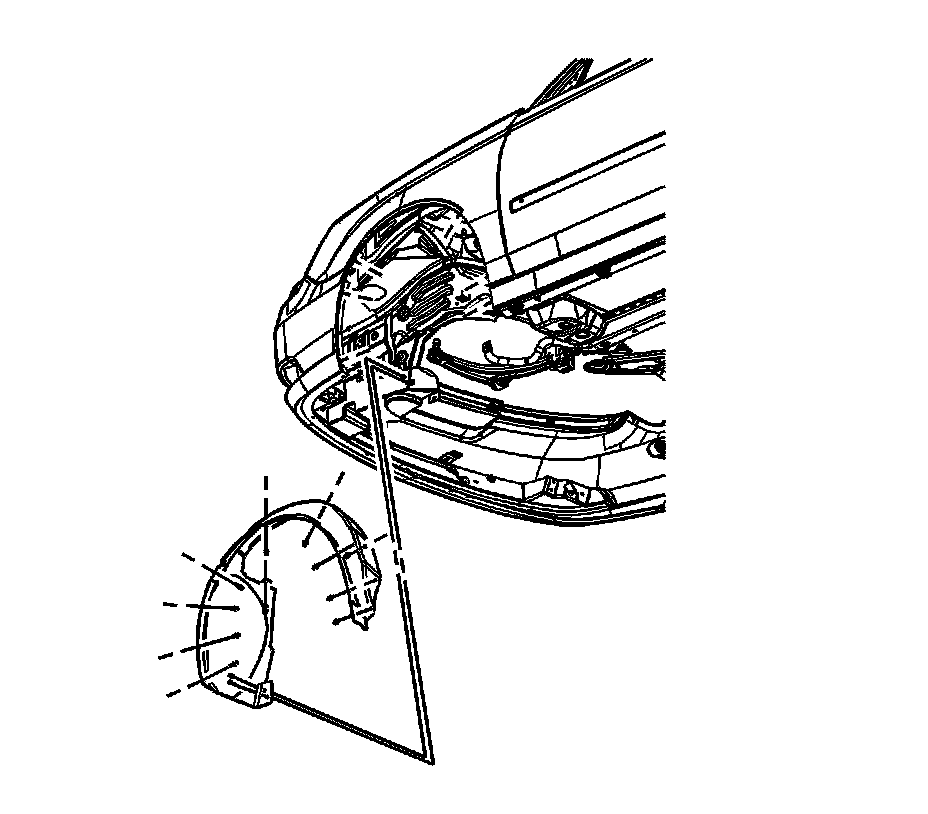

2.Remove the push-in retainers from the front fender liner.

3.Remove the fender liner.

Installation Procedure

1.Position the front fender liner to the fender.





2.Install the front fender liner with the push-in retainers.

3.Lower the vehicle.
