Rear Fender Liner: Service and Repair

Rear Wheelhouse Panel Liner Replacement


Removal Procedure





1.Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

2.Remove the rear tires and wheels. Refer to Tire and Wheel Removal and Installation .

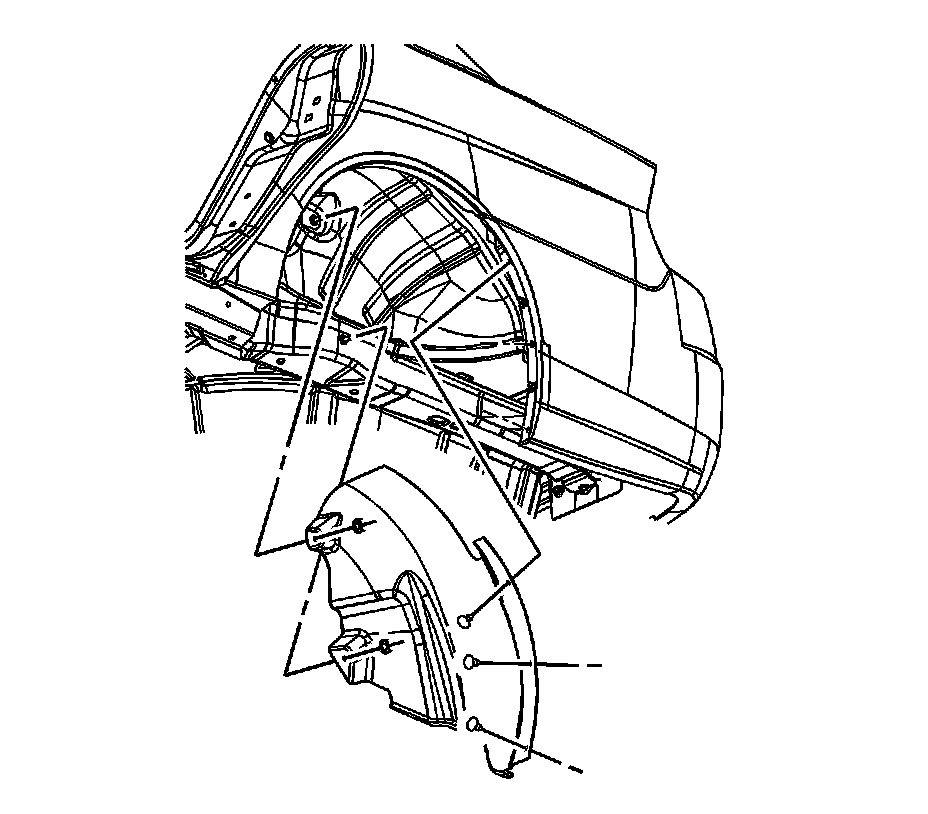

3.Remove the rear wheelhouse liner-to-rear wheelhouse retainers.

4.Remove the rear wheelhouse liner from the vehicle.

Installation Procedure





1.Install the rear wheelhouse liner to the vehicle.

2.Install the rear wheelhouse liner fasteners.

3.Install the rear tires and wheels. Refer to Tire and Wheel Removal and Installation .

4.Lower the vehicle.
