Instrument Panel Compartment Door Latch Replacement

Instrument Panel Compartment Door Latch Replacement

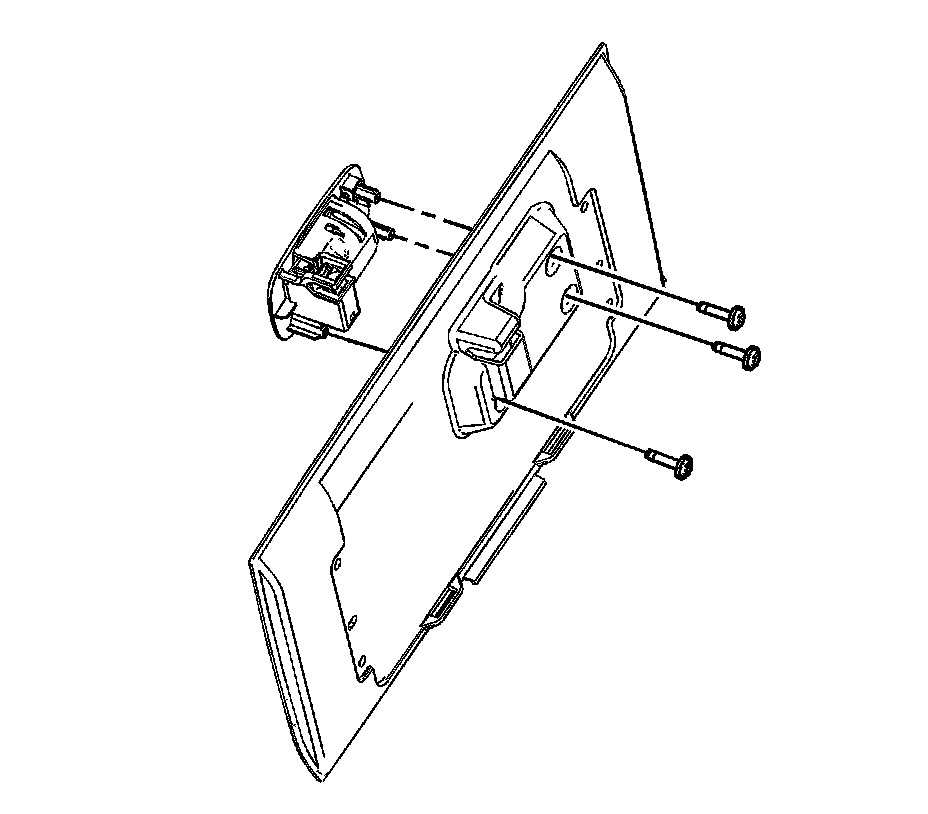

Removal Procedure





1. Remove the instrument panel (I/P) compartment latch screws.
2. Remove the I/P compartment latch.



Installation Procedure





1. Install the I/P compartment latch.

Notice: Refer to Fastener Notice (Fastener Notice) .

2. Install the I/P compartment latch screws.

Tighten the screws to 2.5 N.m (22 lb in).
