Body Rear Corner Upper Garnish Molding Replacement

Body Rear Corner Upper Garnish Molding Replacement

Removal Procedure

1. Disable the roof rail SIR system, if equipped. Refer to SIR Disabling and Enabling (Service and Repair) .

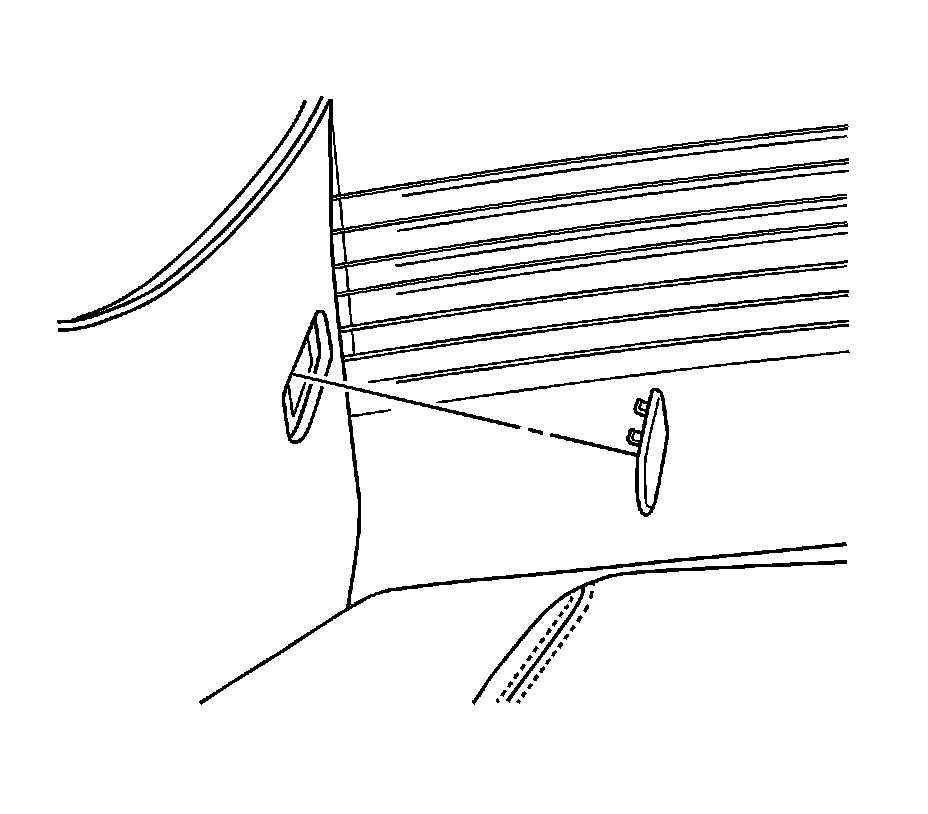

2. Remove the garnish trim fastener cover.
3. Remove the garnish trim fastener.

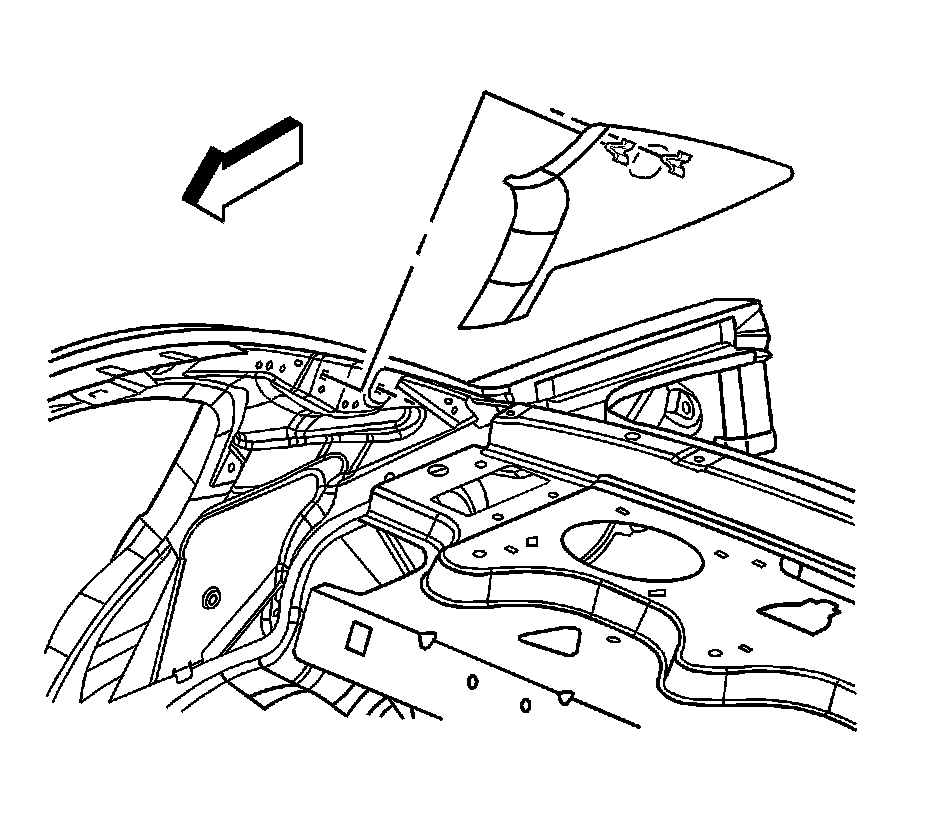

4. Starting at the top, remove the garnish trim by pulling straight out.



Installation Procedure





1. Starting at the bottom, install the garnish trim into the vehicle.

Notice: Refer to Fastener Notice (Fastener Notice) .

2. Install the garnish trim fastener.

Tighten the fastener to 3 N.m (26 lb in).





3. Install the trim fastener cover.
4. Enable the roof rail SIR system. Refer to SIR Disabling and Enabling (Service and Repair) .
