Rear Window Shelf Trim Panel Replacement (Sedan)

Rear Window Shelf Trim Panel Replacement (Sedan)

Removal Procedure

1. Disable the roof rail SIR system. Refer to SIR Disabling and Enabling (Service and Repair) .
2. Remove the upper rear garnish molding. Refer to Body Rear Corner Upper Garnish Molding Replacement (Service and Repair) .
3. Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement (Sedan) (Rear Seat Cushion Replacement (Sedan)) .
4. Remove the seat back bolster assembly. Refer to Rear Split Folding Seat Back Bolster Replacement (Rear Split Folding Seat Back Bolster Replacement) .

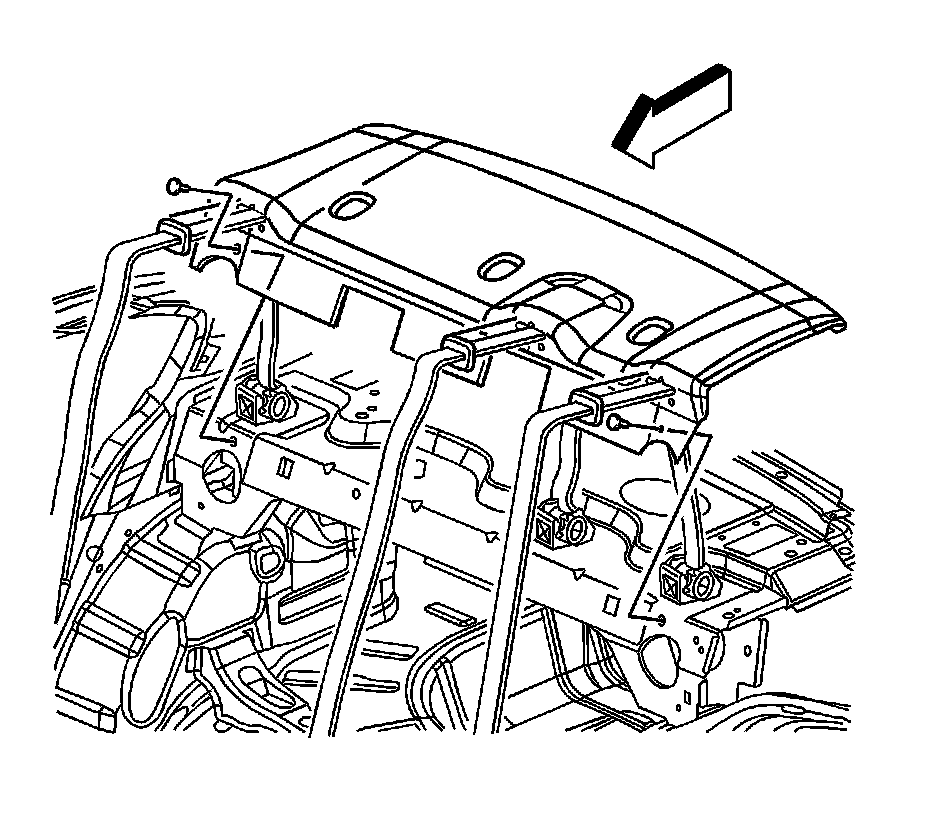

5. Remove the shelf trim panel fasteners.
6. Remove the shelf trim panel.



Installation Procedure





1. Install the shelf trim panel.




2. Install the shelf trim panel fasteners.
3. Install the rear seat back bolster assembly. Refer to Rear Split Folding Seat Back Bolster Replacement (Rear Split Folding Seat Back Bolster Replacement) .
4. Install the rear seat cushion. Refer to Rear Seat Cushion Replacement (Sedan) (Rear Seat Cushion Replacement (Sedan)) .
5. Install the upper rear garnish molding. Refer to Body Rear Corner Upper Garnish Molding Replacement (Service and Repair) .
6. Enable the roof rail SIR system. Refer to SIR Disabling and Enabling (Service and Repair) .
