Sunroof Sunshade Guide Replacement

Sunroof Sunshade Guide Replacement

Removal Procedure





1. Remove the sunroof sunshade panel. Refer to Sunroof Sunshade Replacement ([1][2]Service and Repair) .

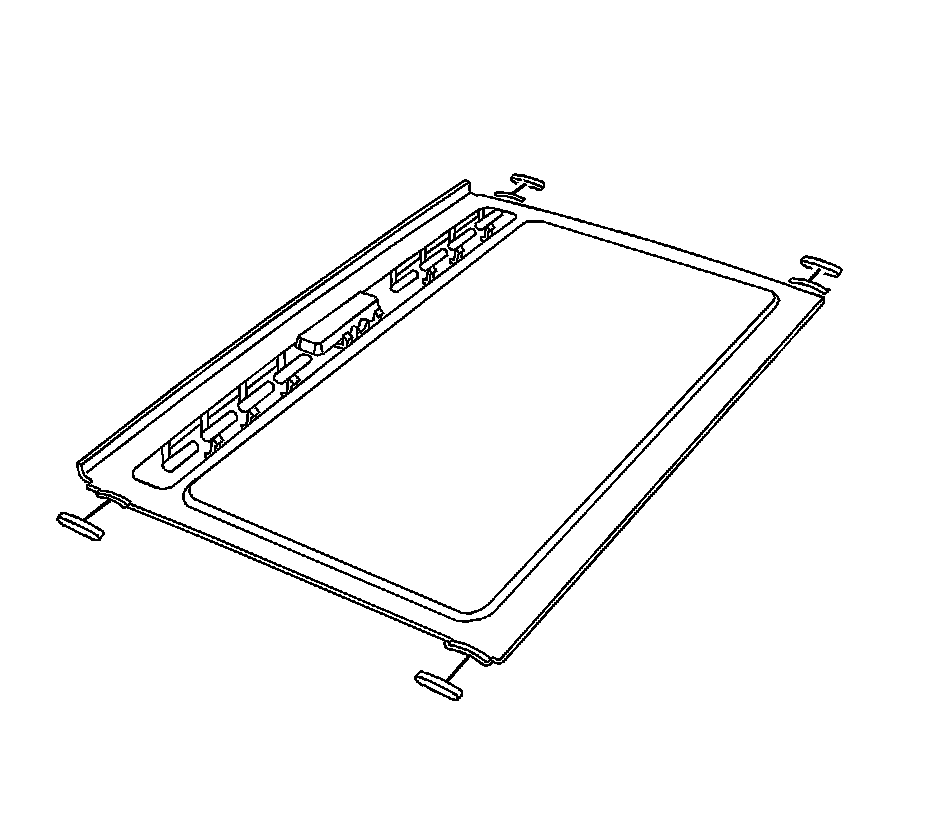

2. Pulling outward, remove the sunshade guide from the sunshade panel.



Installation Procedure

1. Position the guides to the sunshade panel. The spring feature should face upward.




2. Push the sunshade guides onto the sunshade panel until fully seated.
3. Install the sunshade panel. Refer to Sunroof Sunshade Replacement ([1][2]Service and Repair) .
