Rear Door Opening Weatherstrip Replacement

Rear Door Opening Weatherstrip Replacement

Removal Procedure





1. Remove the carpet retainer. Refer to Rear Carpet Retainer Replacement (Service and Repair) .
2. Remove the upper center pillar trim panel from the vehicle. Refer to Center Pillar Upper Garnish Molding Replacement (Service and Repair) .
3. Remove the rear lower quarter trim panel. Refer to Rear Quarter Lower Trim Panel Replacement (Service and Repair) .

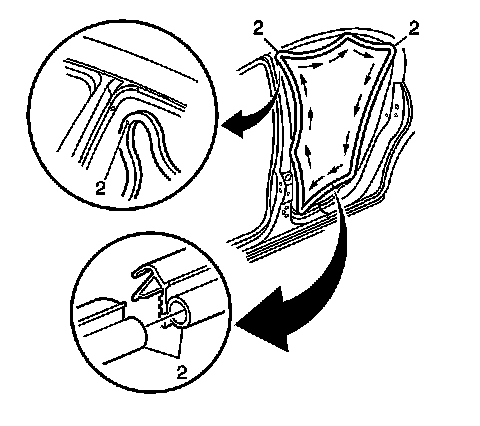

4. Pull the rear door opening weatherstrip (2) loose.
5. Remove the weatherstrip (2) from the vehicle.



Installation Procedure





1. Apply weatherstrip (2) adhesive GM P/N 12345096 (Canadian P/N 993365) or equivalent, to the rear door opening weatherstrip.
2. Press the rear door opening weatherstrip (2) onto the rear door opening flange.
3. Install the carpet retainer. Refer to Rear Carpet Retainer Replacement (Service and Repair) .
4. Install the upper center pillar trim panel in the vehicle. Refer to Center Pillar Upper Garnish Molding Replacement (Service and Repair) .
5. Install the rear lower quarter trim panel. Refer to Rear Quarter Lower Trim Panel Replacement (Service and Repair) .
