Powertrain Component Views

Powertrain Component Views

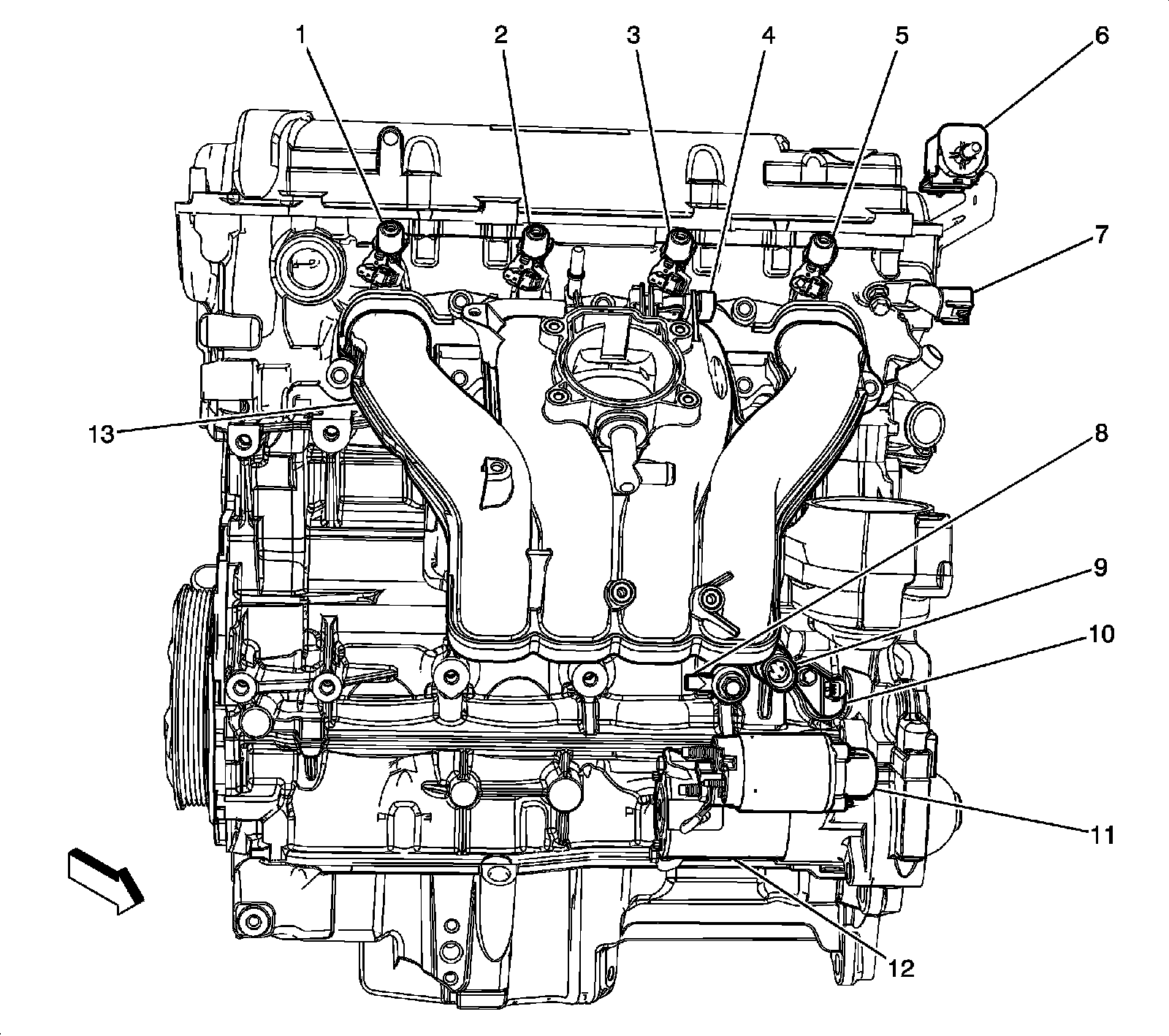

Front of the Engine Components (L61)




1 - Fuel Injector 1
2 - Fuel Injector 2
3 - Fuel Injector 3
4 - Manifold Absolute Pressure (MAP) Sensor
5 - Fuel Injector 4
6 - Evaporative Emission (EVAP) Canister Purge Solenoid
7 - Camshaft Position (CMP) Sensor - Intake
8 - Knock Sensor (KS)
9 - Engine Oil Pressure (EOP) Switch
10 - Crankshaft Position (CKP) Sensor
11 - Starter Solenoid
12 - Starter
13 - Intake Manifold

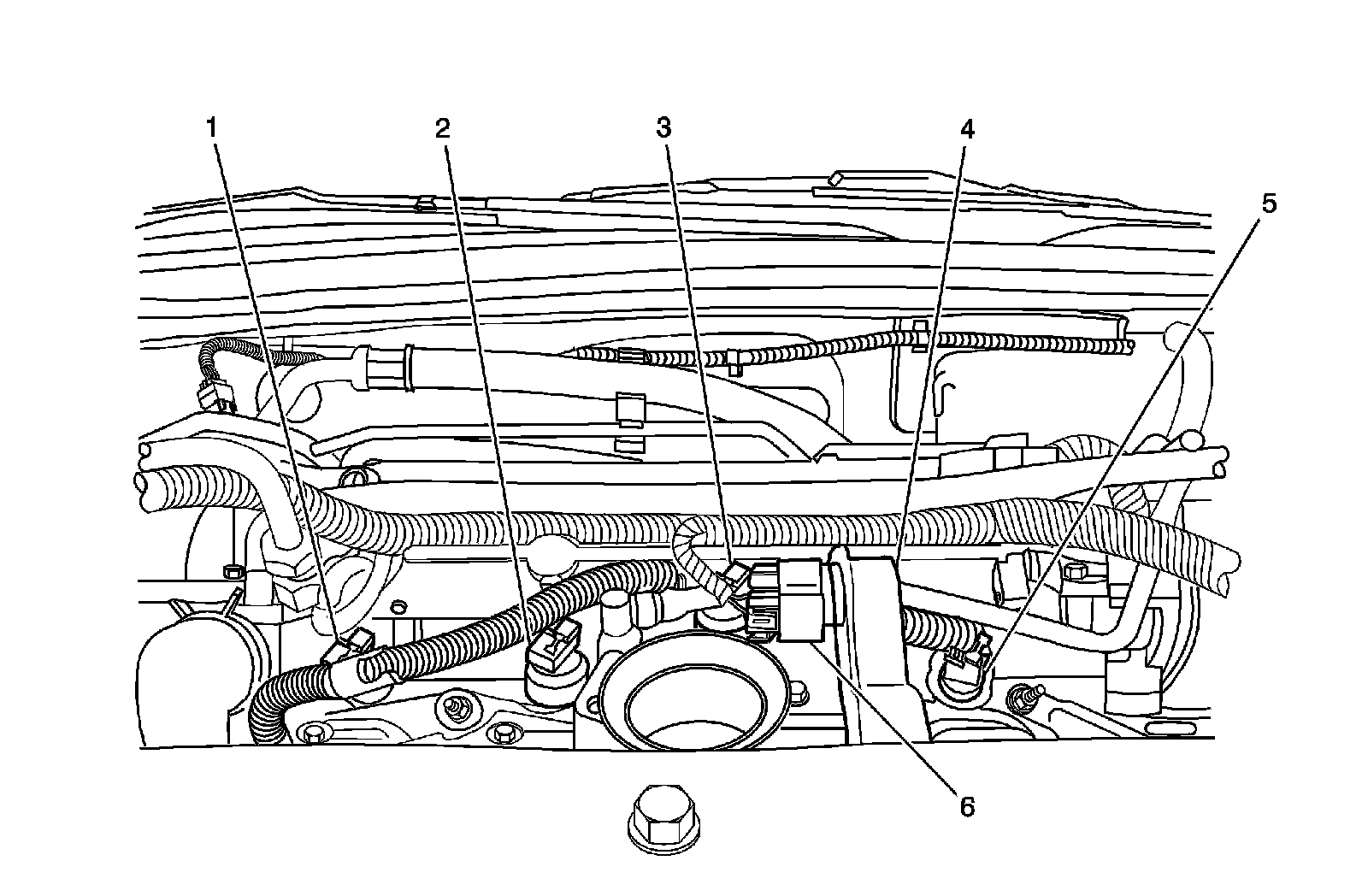

Top Front of Engine (L61)




1 - Fuel Injector 1
2 - Fuel Injector 2
3 - Fuel Injector 3
4 - Throttle Actuator Control (TAC) Module
5 - Fuel Injector 4
6 - Manifold Absolute Pressure (MAP) Sensor

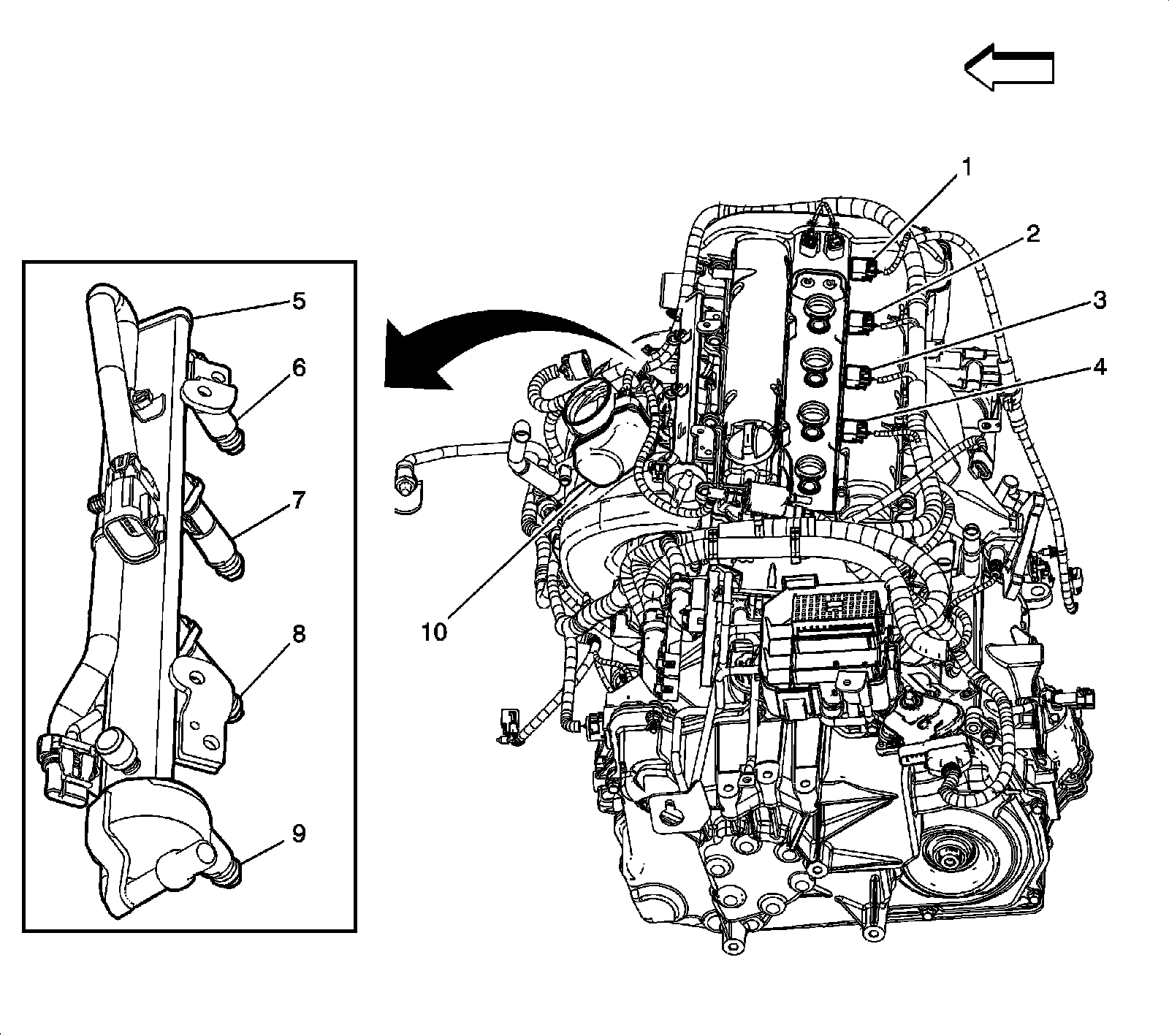

Left Side of Engine Components (L61)




1 - Ignition Coil Module 1
2 - Ignition Coil Module 2
3 - Ignition Coil Module 3
4 - Ignition Coil Module 4
5 - Fuel Rail
6 - Fuel Injector 1
7 - Fuel Injector 2
8 - Fuel Injector 3
9 - Fuel Injector 4
10 - Throttle Actuator Control (TAC) Module

Left Rear of the Engine (L61)




1 - Engine Coolant Temperature (ECT) Sensor
2 - Heated Oxygen Sensor (HO2S) 1

Right Front of the Engine Compartment (L61)

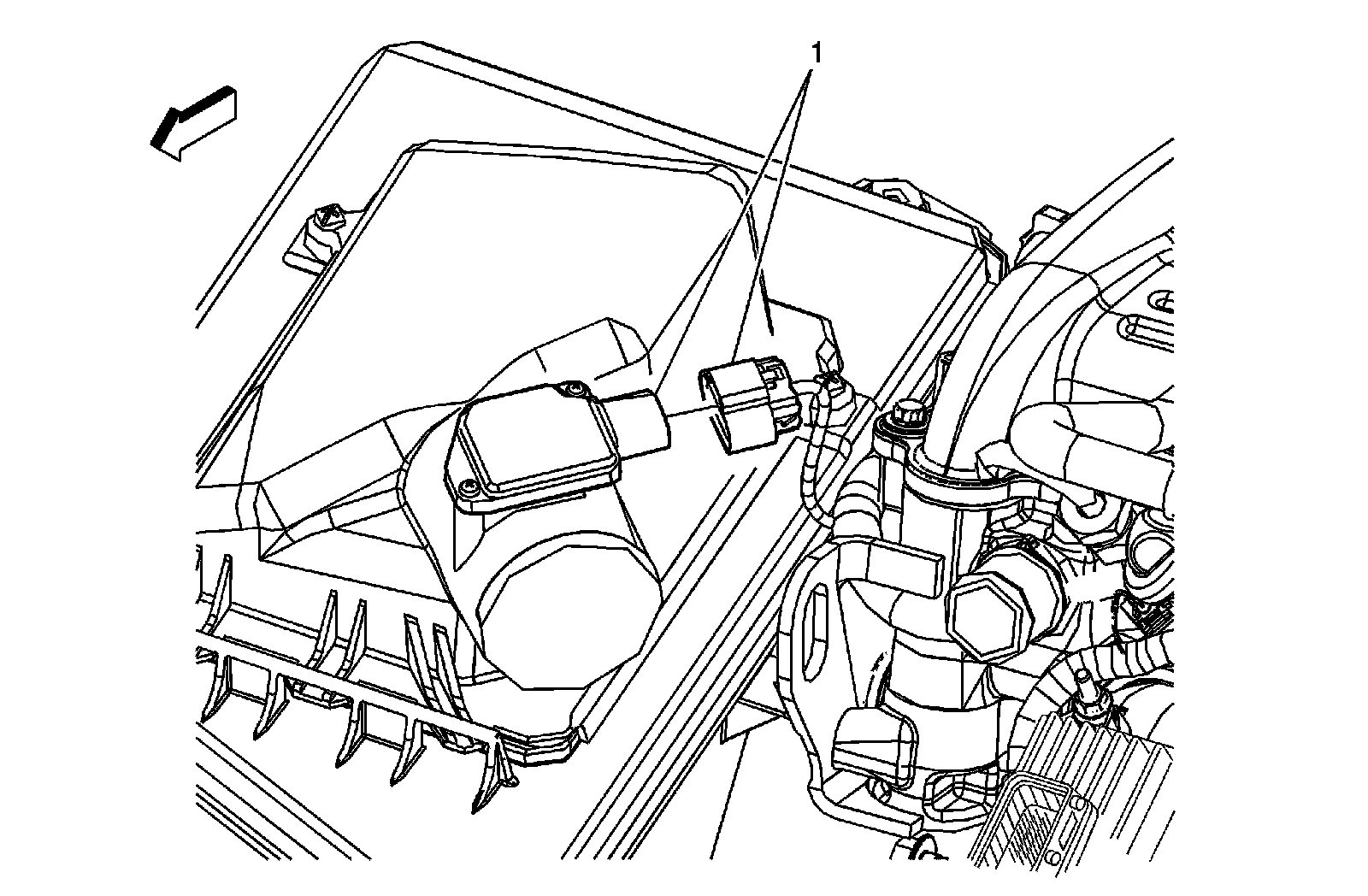

1 - Mass Air Flow (MAF) Sensor W/Intake Air Temperature (IAT) Sensor

Rear of Engine (L61)




1 - Heated Oxygen Sensor (HO2S) 1
2 - Heated Oxygen Sensor (HO2S) 2

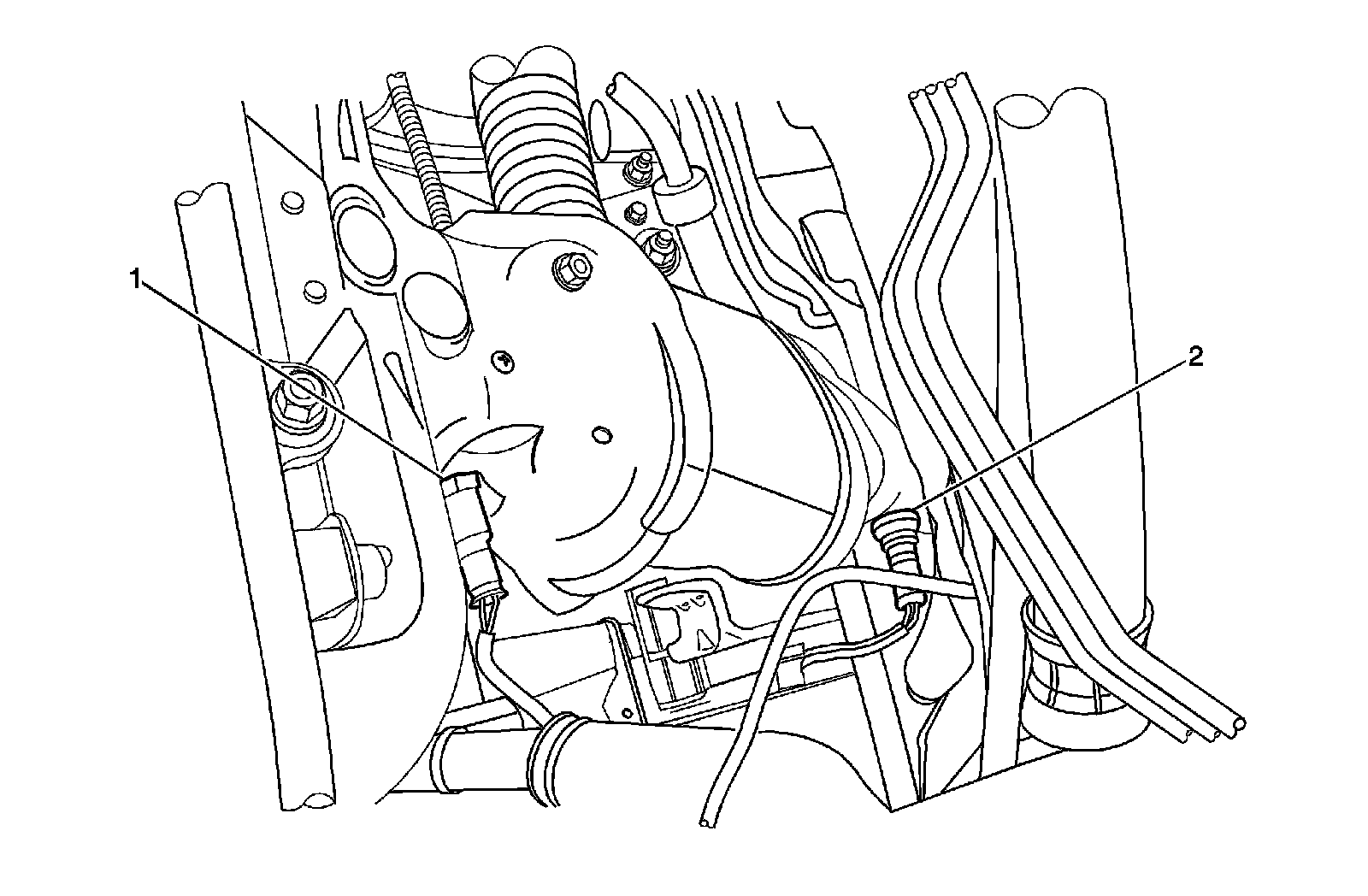

Lower Rear of Engine Components (L61)




1 - Engine Coolant Heater
2 - Heated Oxygen Sensor (HO2S) 1

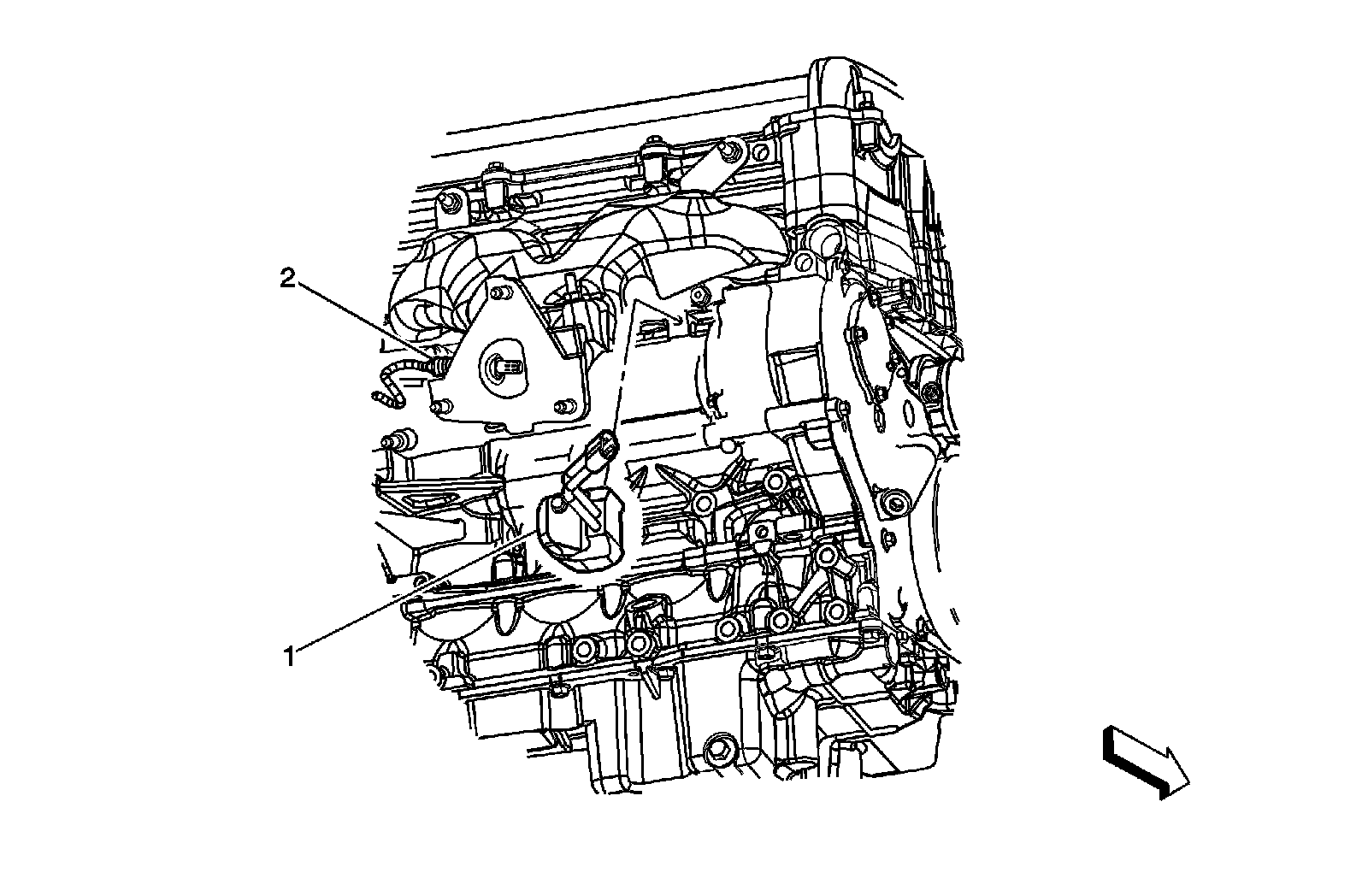

Right Lower of Engine Components (L61)

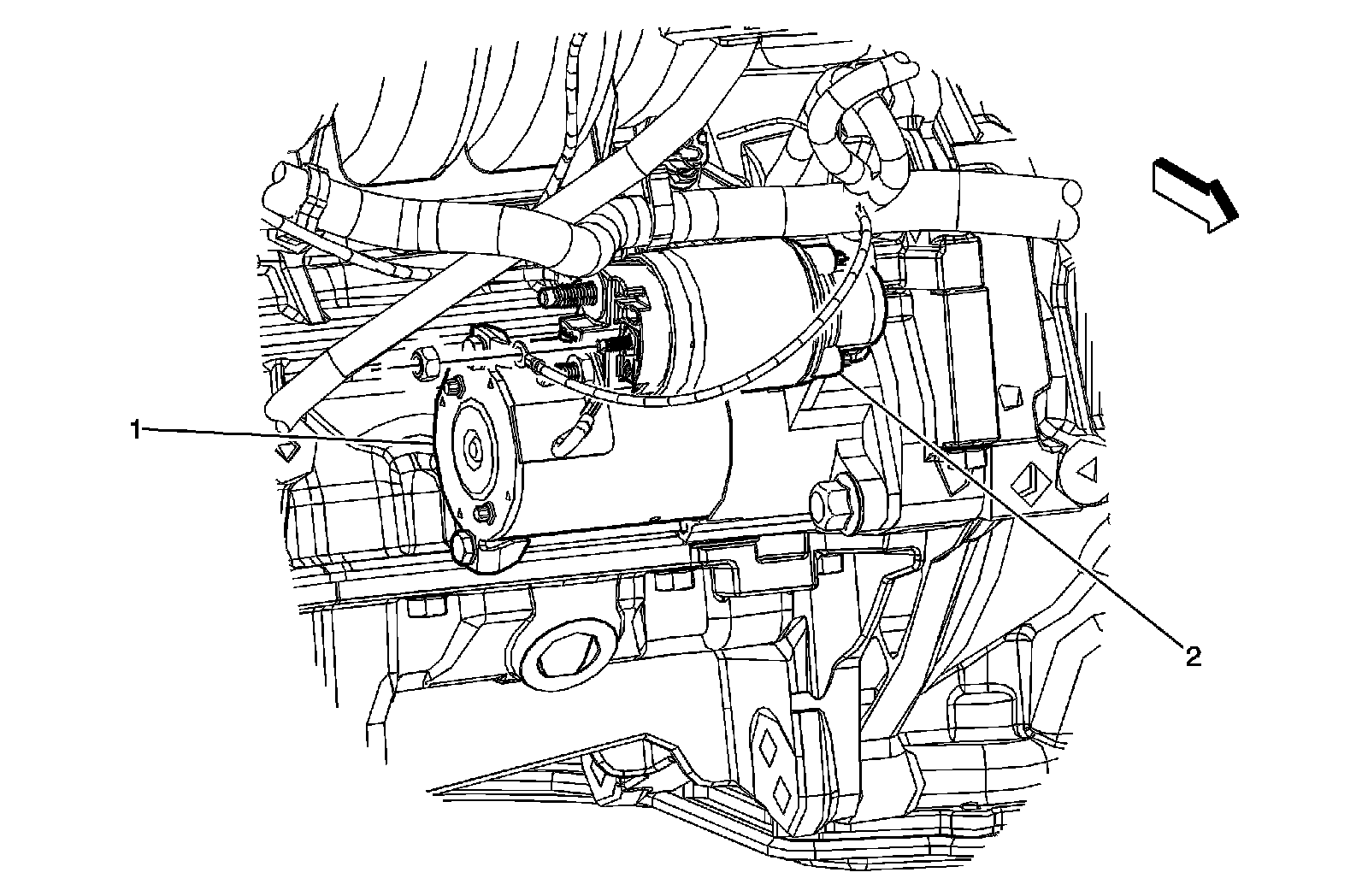

Right Lower Front of Engine - L61:

1 - Starter
2 - Starter Solenoid

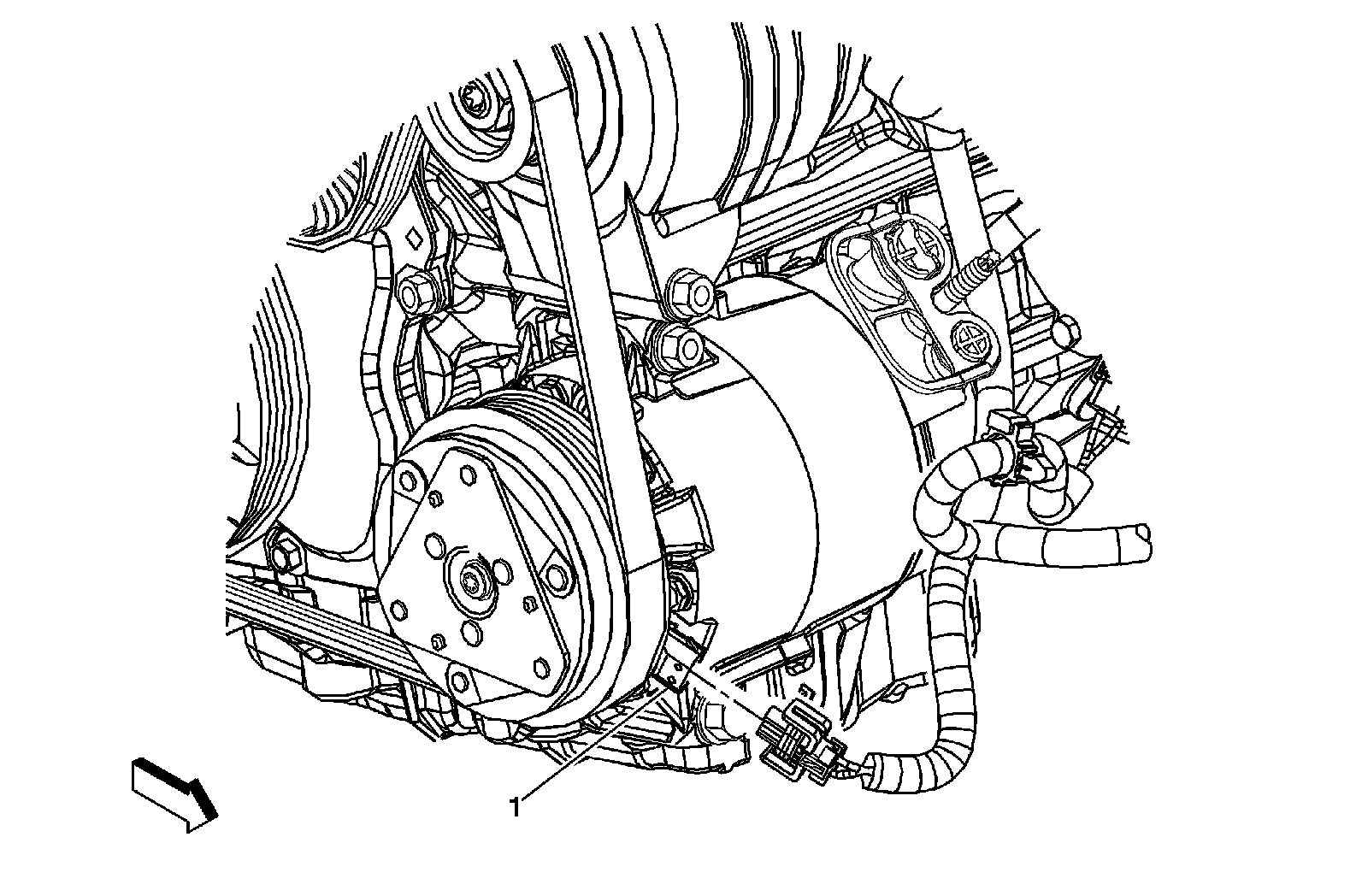

Lower Right Front of Engine Components (L61)




1 - A/C Compressor Clutch

Top Right Side of Engine Components (L61)




1 - Crankshaft Position (CKP) Sensor
2 - Engine Oil Pressure (EOP) Switch

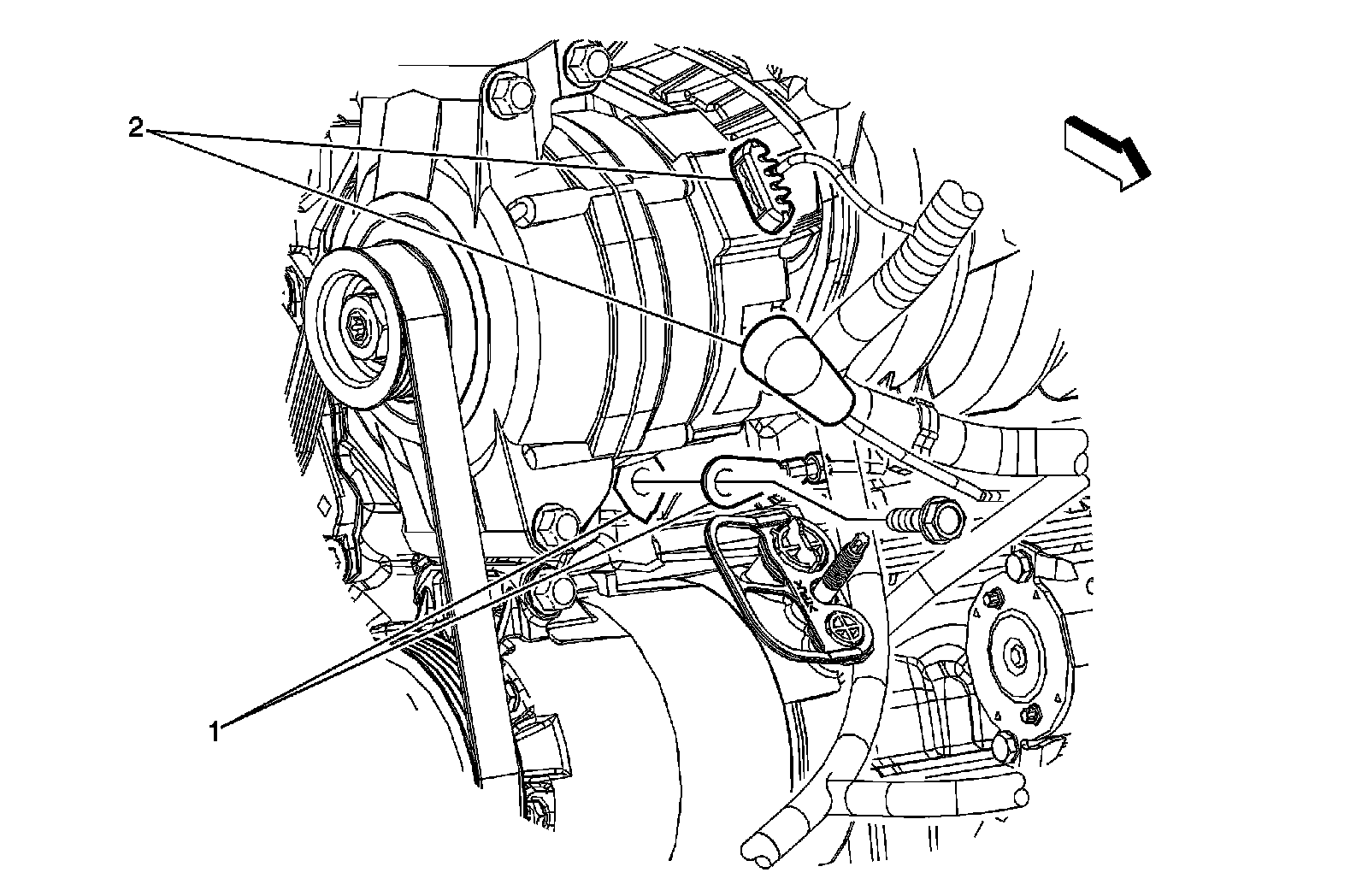

Generator (L61)




1 - G106
2 - Generator

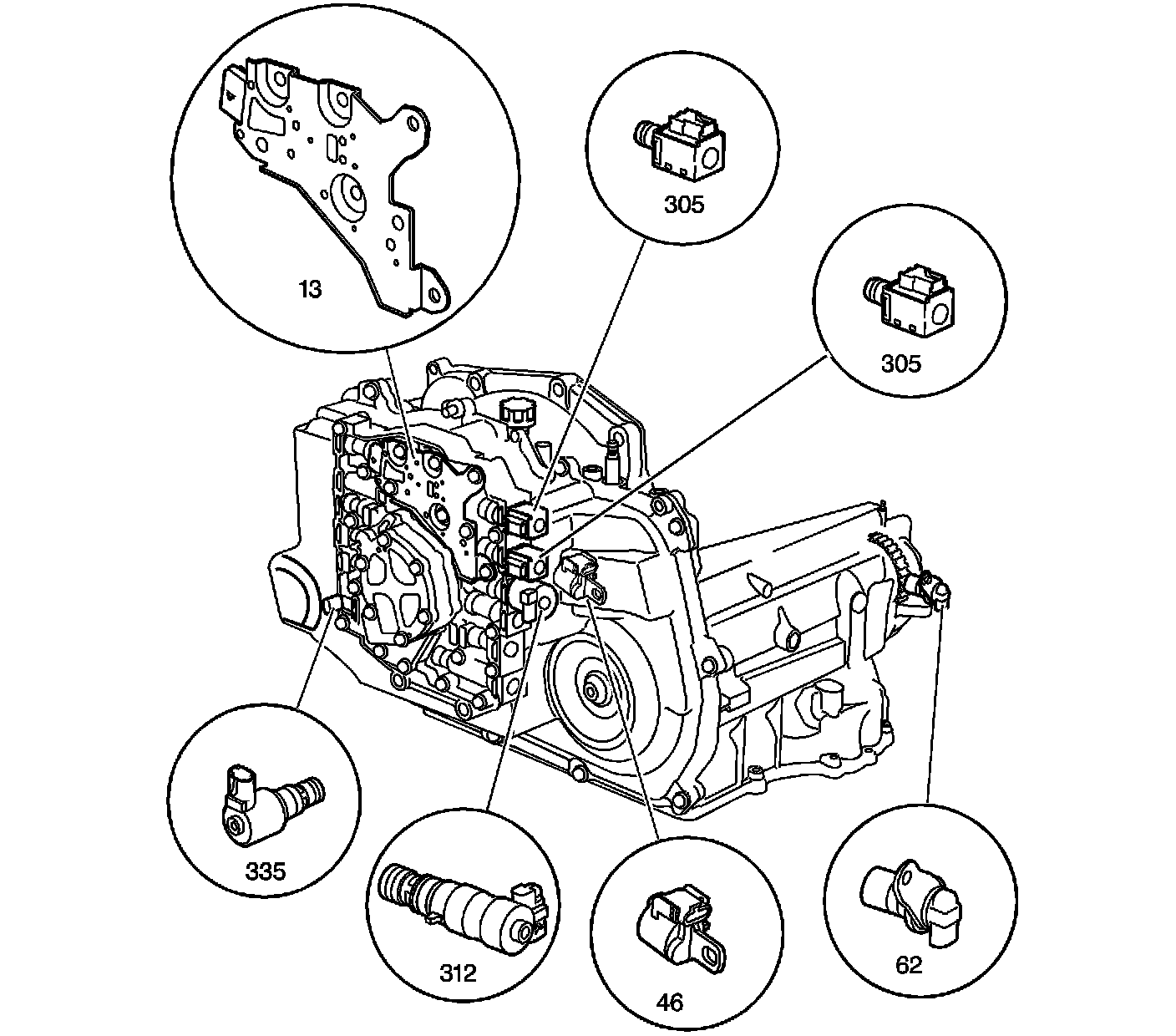

Transmission Electronic Components (MN5)

Electronic Components:

13 - TFP Manual Valve Position Switch Assembly
46 - Input Speed Sensor
62 - Output Speed Sensor
305 - 1-2 and 2-3 Shift Solenoid Valves
305 - 1-2 and 2-3 Shift Solenoid Valves
312 - Pressure Control Solenoid
335 - TCC Control PWM Solenoid

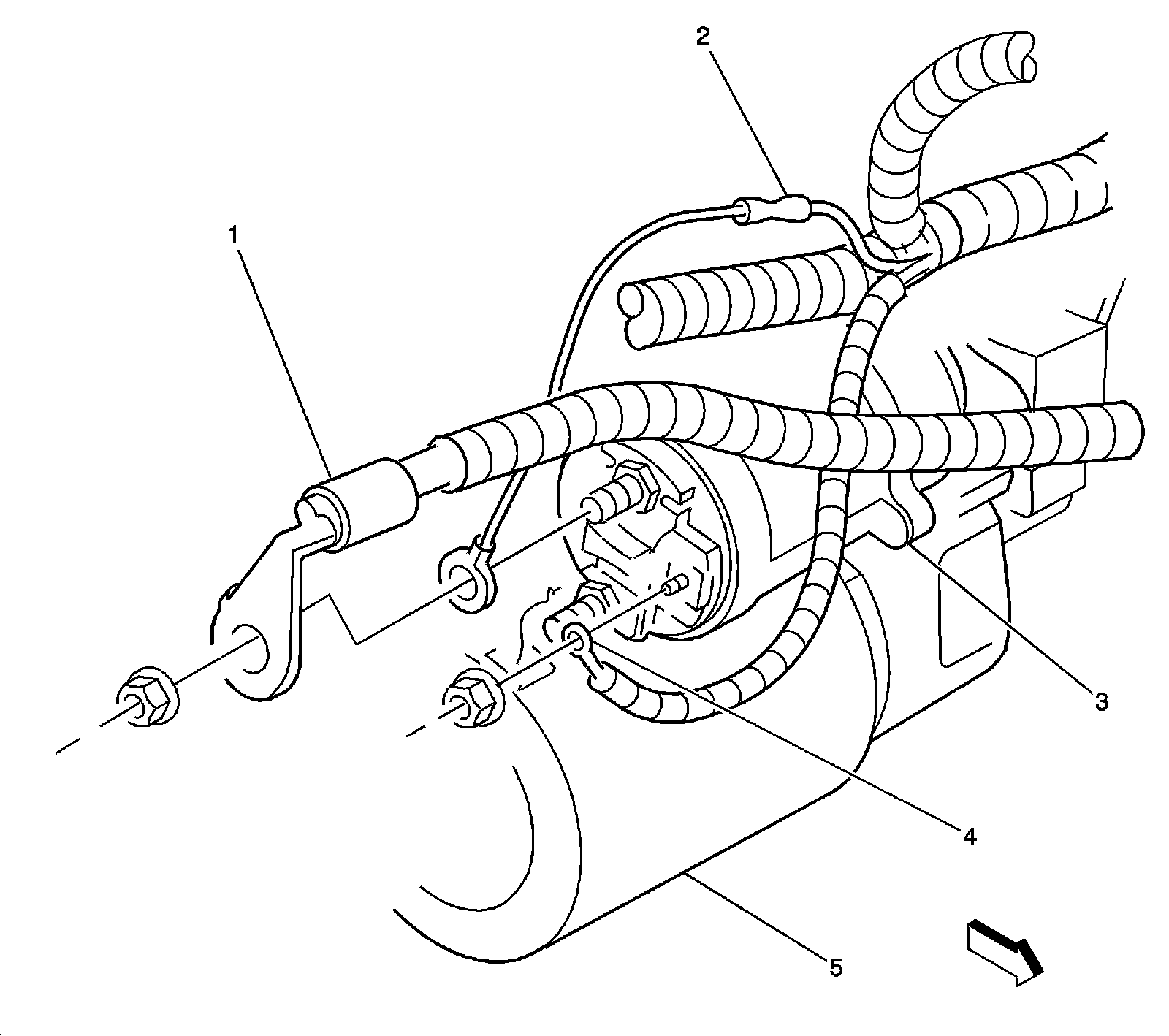

Starter Components




1 - Battery Positive Terminal at Starter Solenoid
2 - Fusible Link
3 - Starter Solenoid
4 - S Terminal
5 - Starter

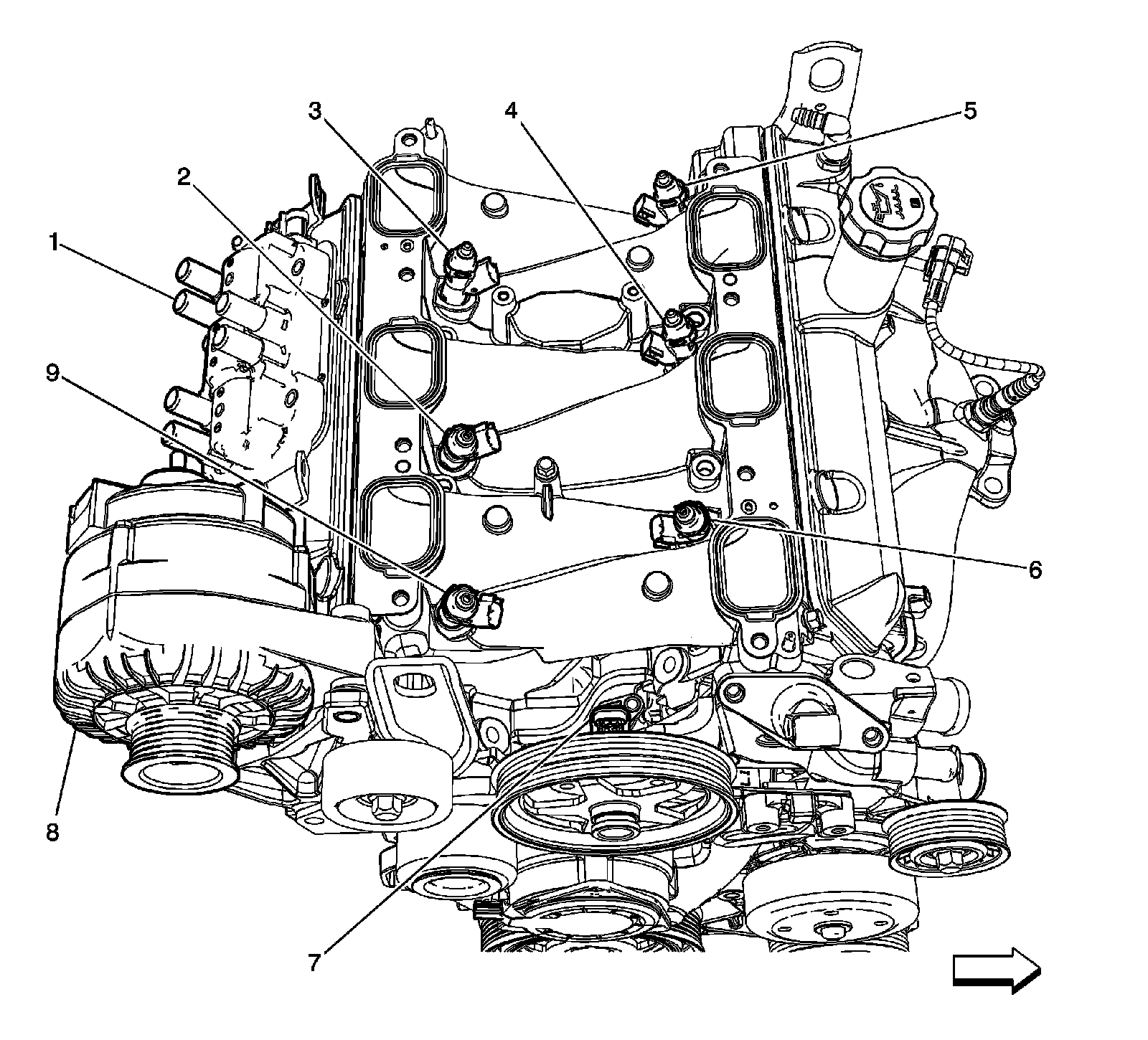

Top of the Engine Components 1 of 2 (LZ4)




1 - Ignition Control Module (ICM)
2 - Fuel Injector 3
3 - Fuel Injector 5
4 - Fuel Injector 4
5 - Fuel Injector 6
6 - Fuel Injector 2
7 - Camshaft Position (CMP) Sensor
8 - Generator
9 - Fuel Injector 1

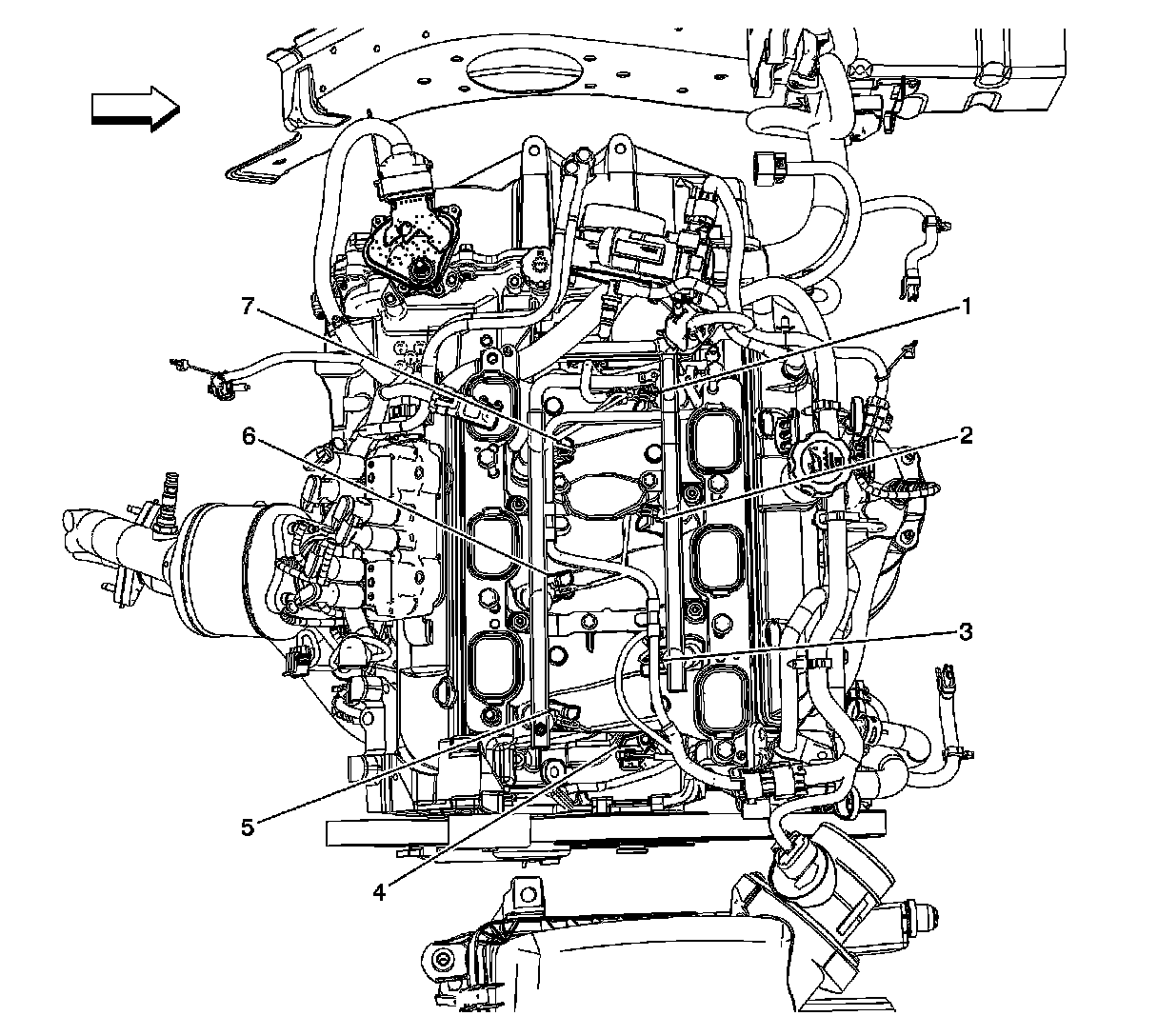

Top View of Engine Components 2 of 2 (LZ4)




1 - Fuel Injector 6
2 - Fuel Injector 5
3 - Fuel Injector 4
4 - Camshaft Position (CMP) Sensor
5 - Fuel Injector 1
6 - Fuel Injector 2
7 - Fuel Injector 3

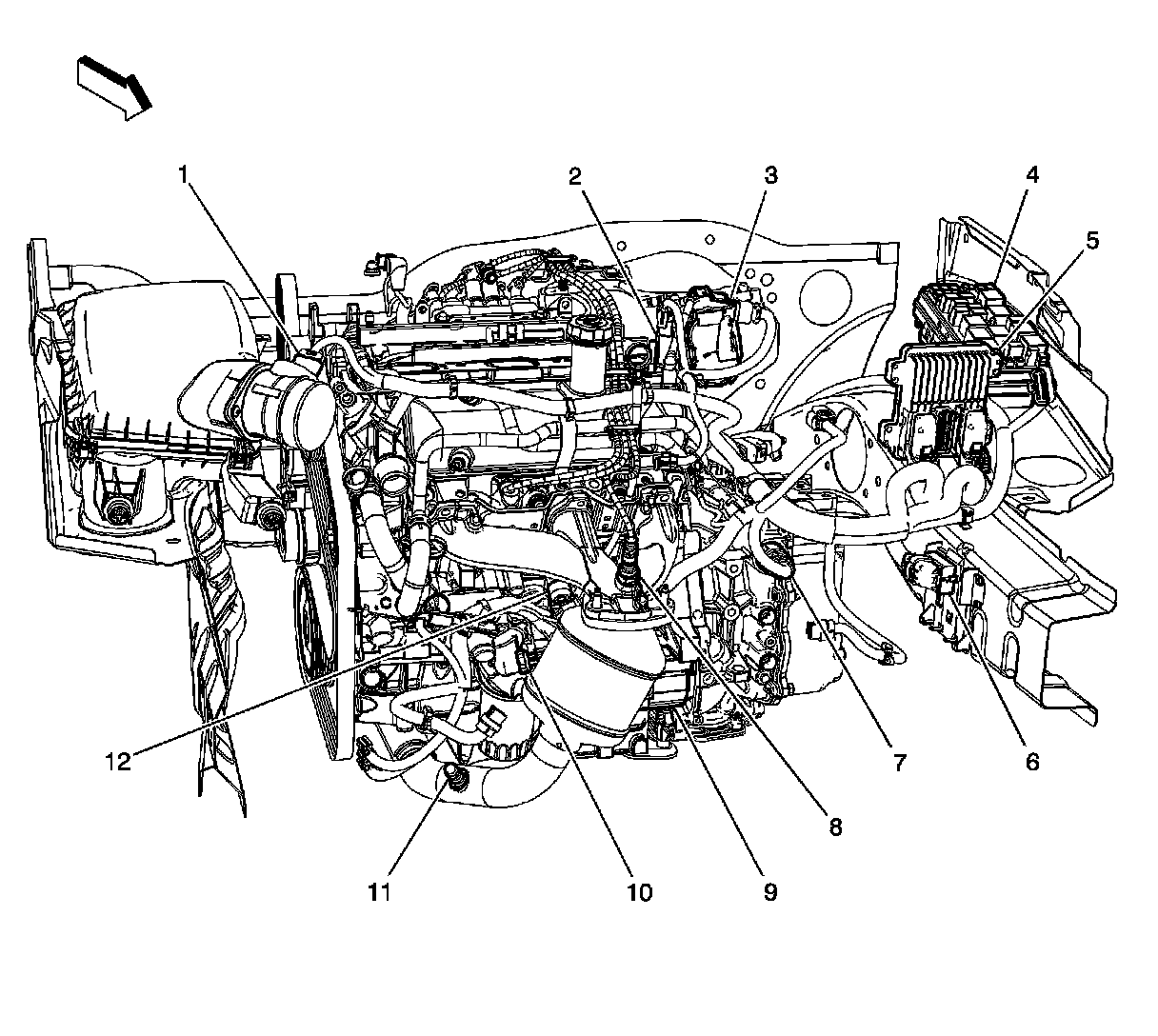

Front View of Engine (LZ4)




1 - MAF/IAT Sensor
2 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve
3 - Throttle Actuator Control (TAC) Module
4 - Fuse Block - Underhood
5 - Engine Control Module (ECM)
6 - Transmission Control Module (TCM)
7 - X100
8 - Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1
9 - Starter
10 - Engine Oil Pressure (EOP) Sensor
11 - Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2
12 - Knock Sensor 2

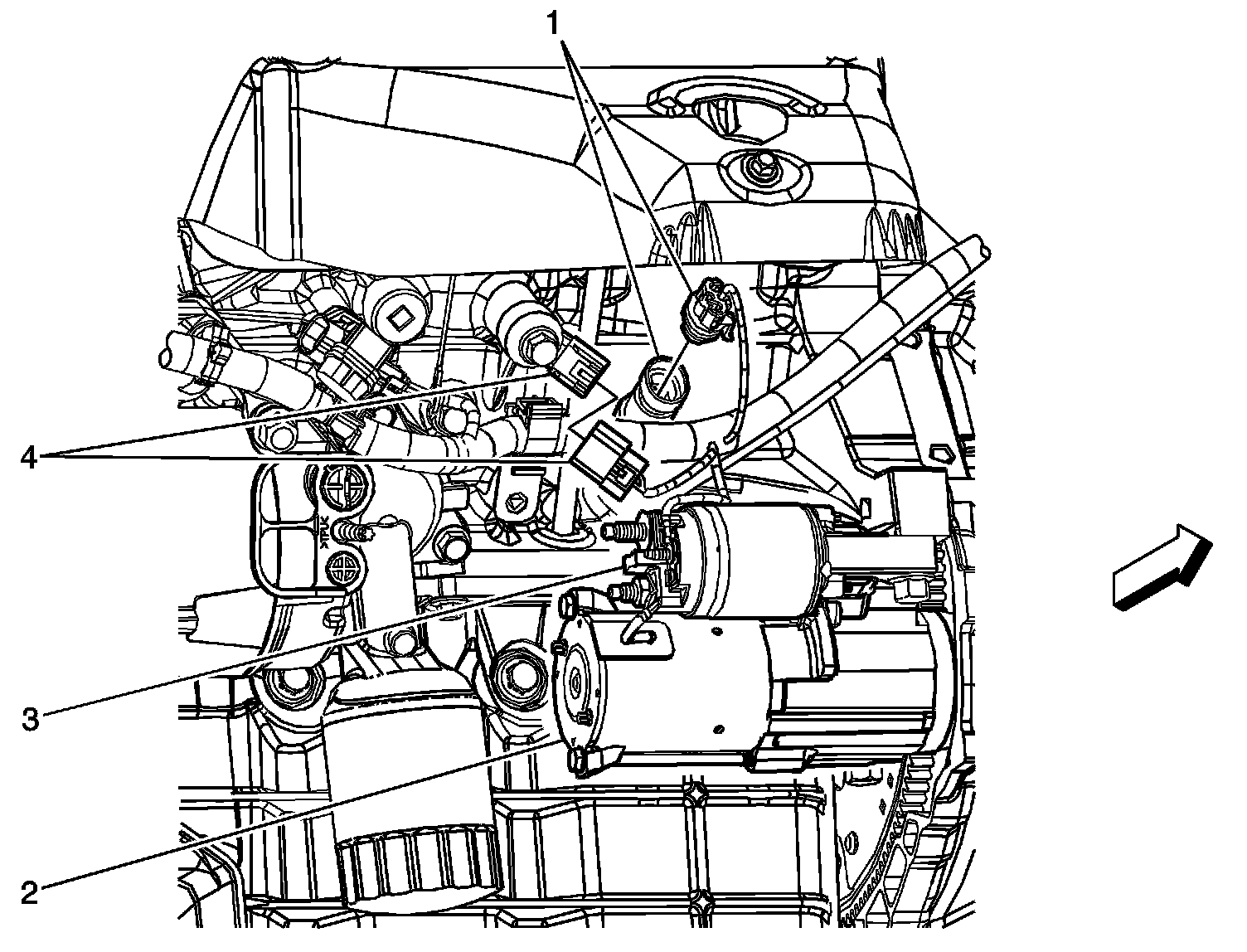

Lower Left Front of Engine (LZ4)




1 - Engine Oil Pressure (EOP) Sensor
2 - Starter
3 - Starter Solenoid
4 - Knock Sensor (KS) 2

Lower Left of Engine (LZ4)




1 - Camshaft Position (CMP) Actuator Solenoid
2 - Throttle Actuator Control (TAC) Module
3 - Evaporative Emission (EVAP) Canister Purge Solenoid
4 - Knock Sensor (KS) 1
5 - Starter Motor
6 - Engine Oil Pressure (EOP) Sensor
7 - A/C Compressor Clutch

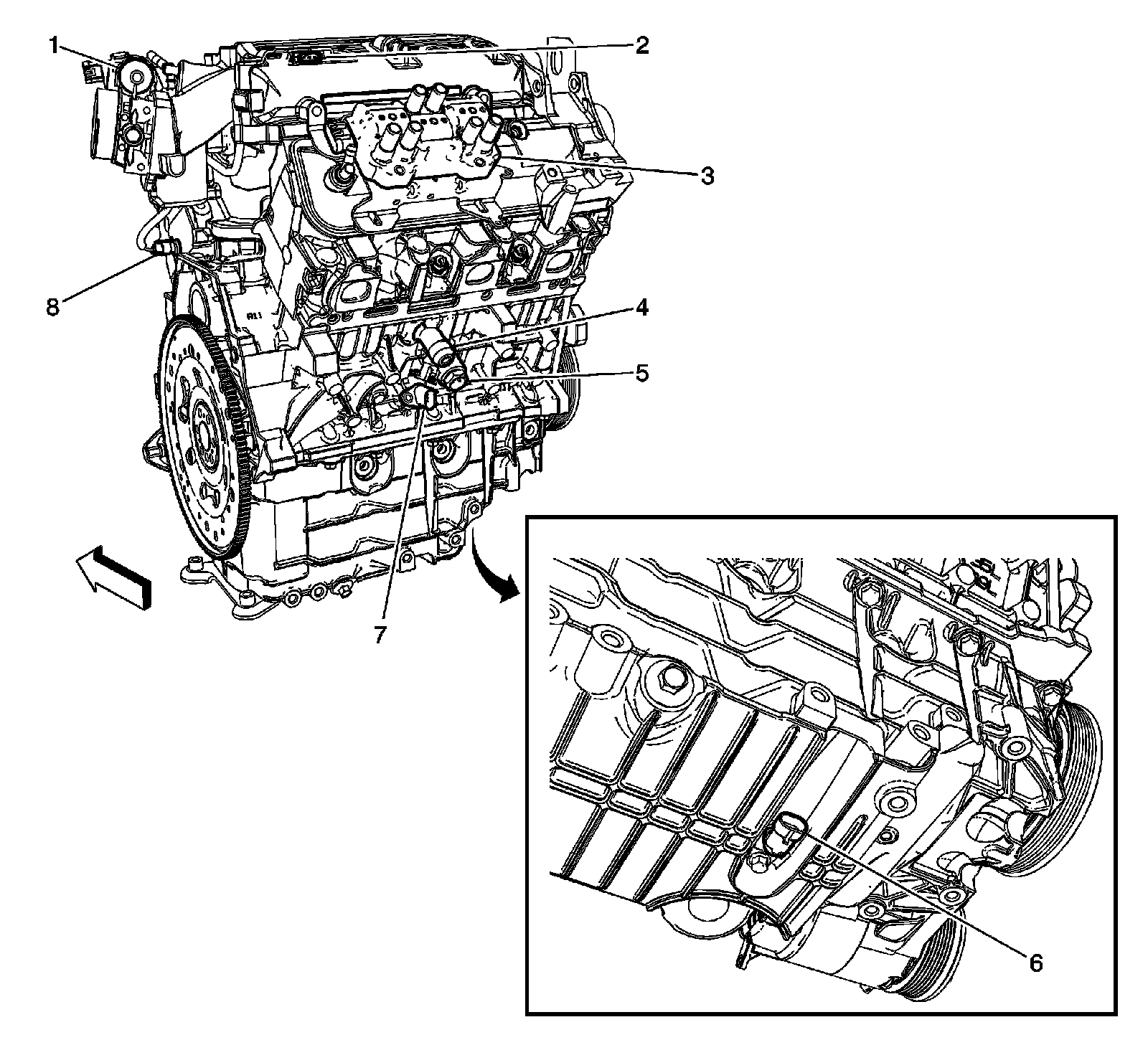

Rear of Engine (LZ4)




1 - Throttle Actuator Control (TAC) Module
2 - Manifold Absolute Pressure (MAP) Sensor
3 - Ignition Control Module (ICM)
4 - Knock Sensor (KS) 2
5 - Engine Block Heater
6 - Engine Oil Level Sensor
7 - Crankshaft Position (CKP) Sensor
8 - Engine Coolant Temperature (ECT) Sensor

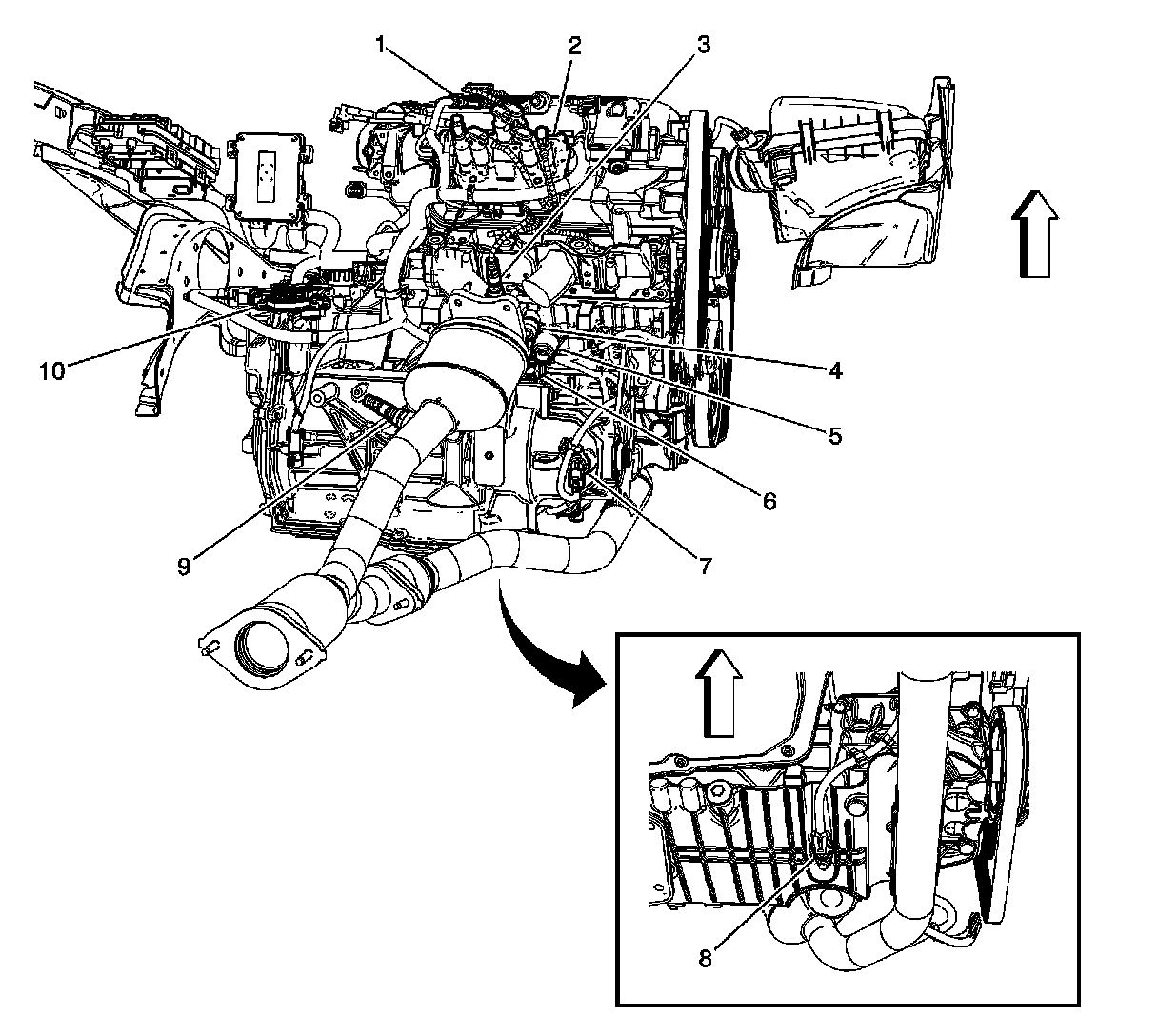

Rear View of Engine Components (LZ4)




1 - MAP Sensor
2 - Ignition Control Module (ICM)
3 - Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1
4 - Knock Sensor 1
5 - Engine Coolant Temperature (ECT) Sensor
6 - Crankshaft Position (CKP) Sensor
7 - Vehicle Speed Sensor (VSS)
8 - Engine Oil Level Sensor
9 - Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2
10 - Park/Neutral Position (PNP) Switch

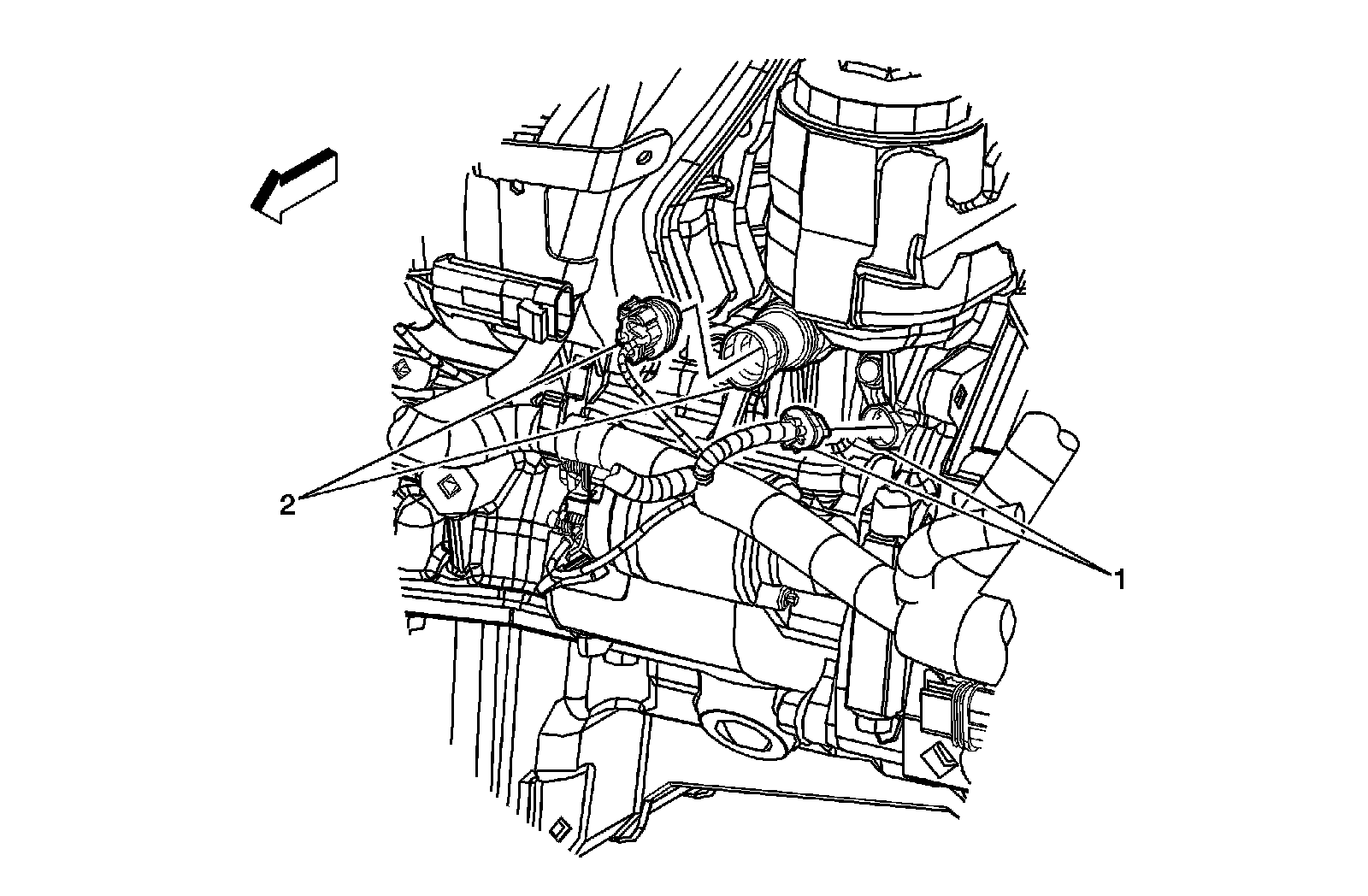

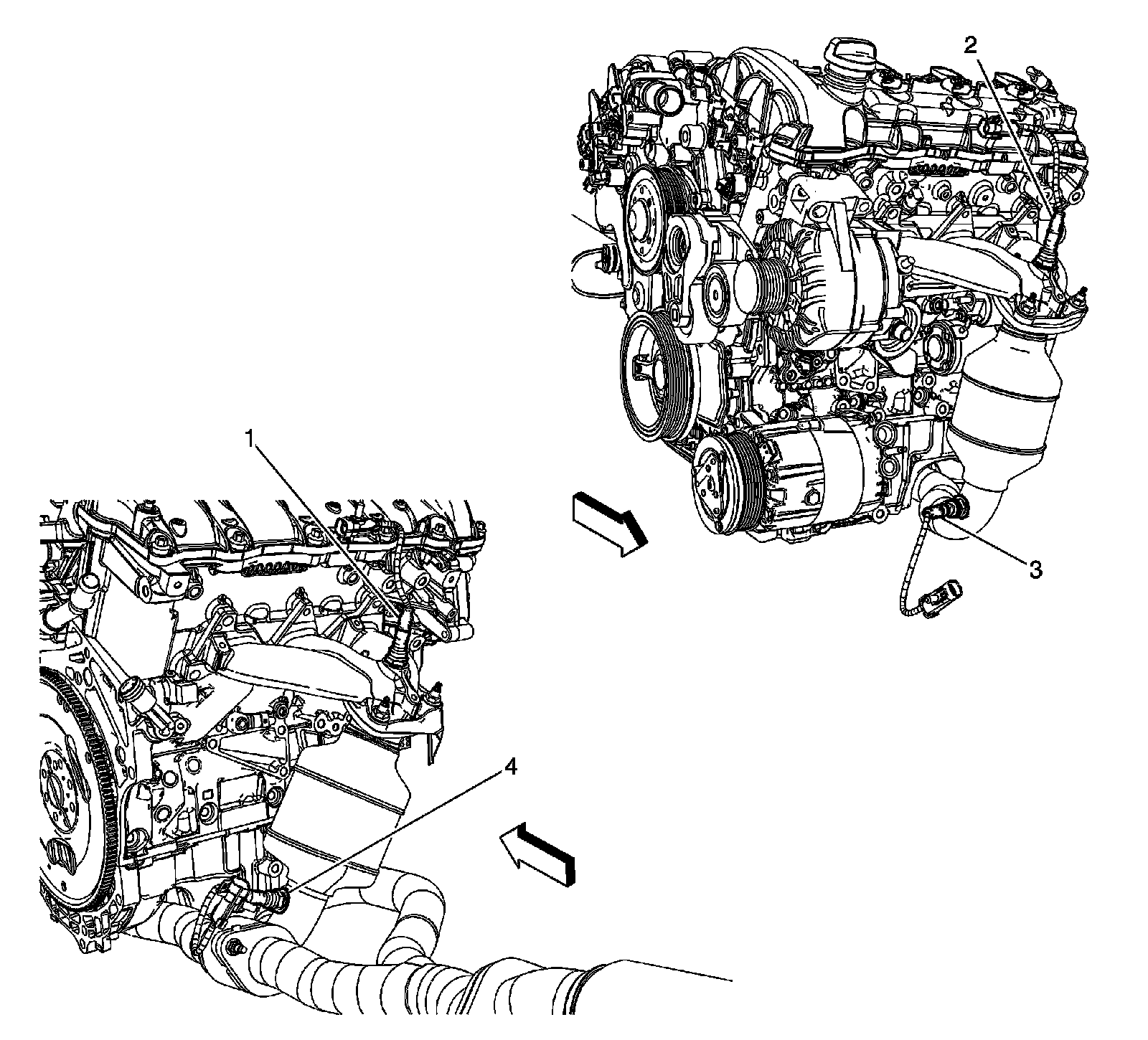

Oxygen Sensors Components (LZ4)




1 - Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1
2 - Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1
3 - Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2
4 - Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2
