Wheels/Vehicle Underbody Component Views

Wheels/Vehicle Underbody Component Views

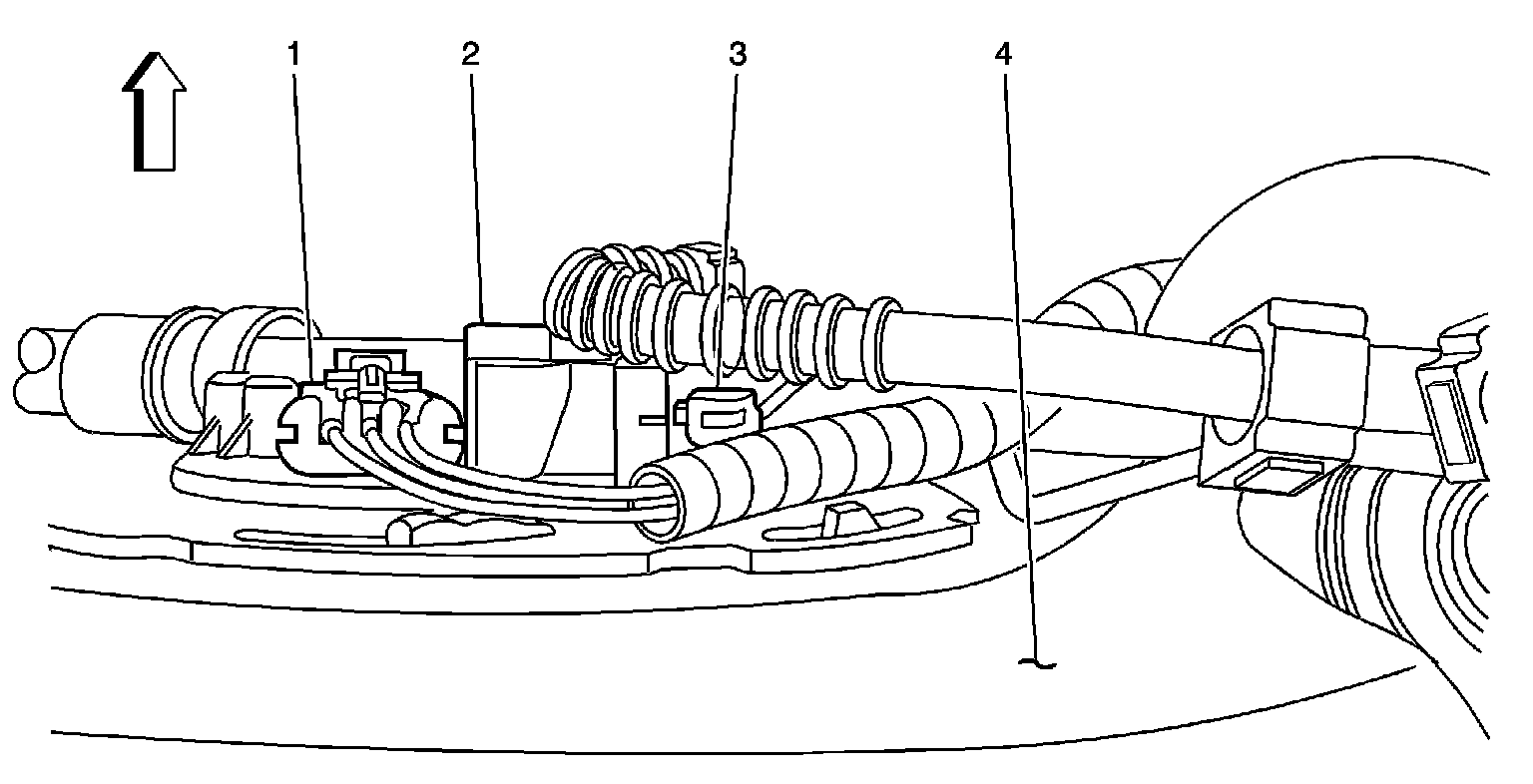

Top of Fuel Tank




1 - Fuel Tank Pressure (FTP) Sensor, Connector
2 - Fuel Pump and Sender Assembly
3 - Fuel Pump and Sender Assembly Connector
4 - Fuel Tank

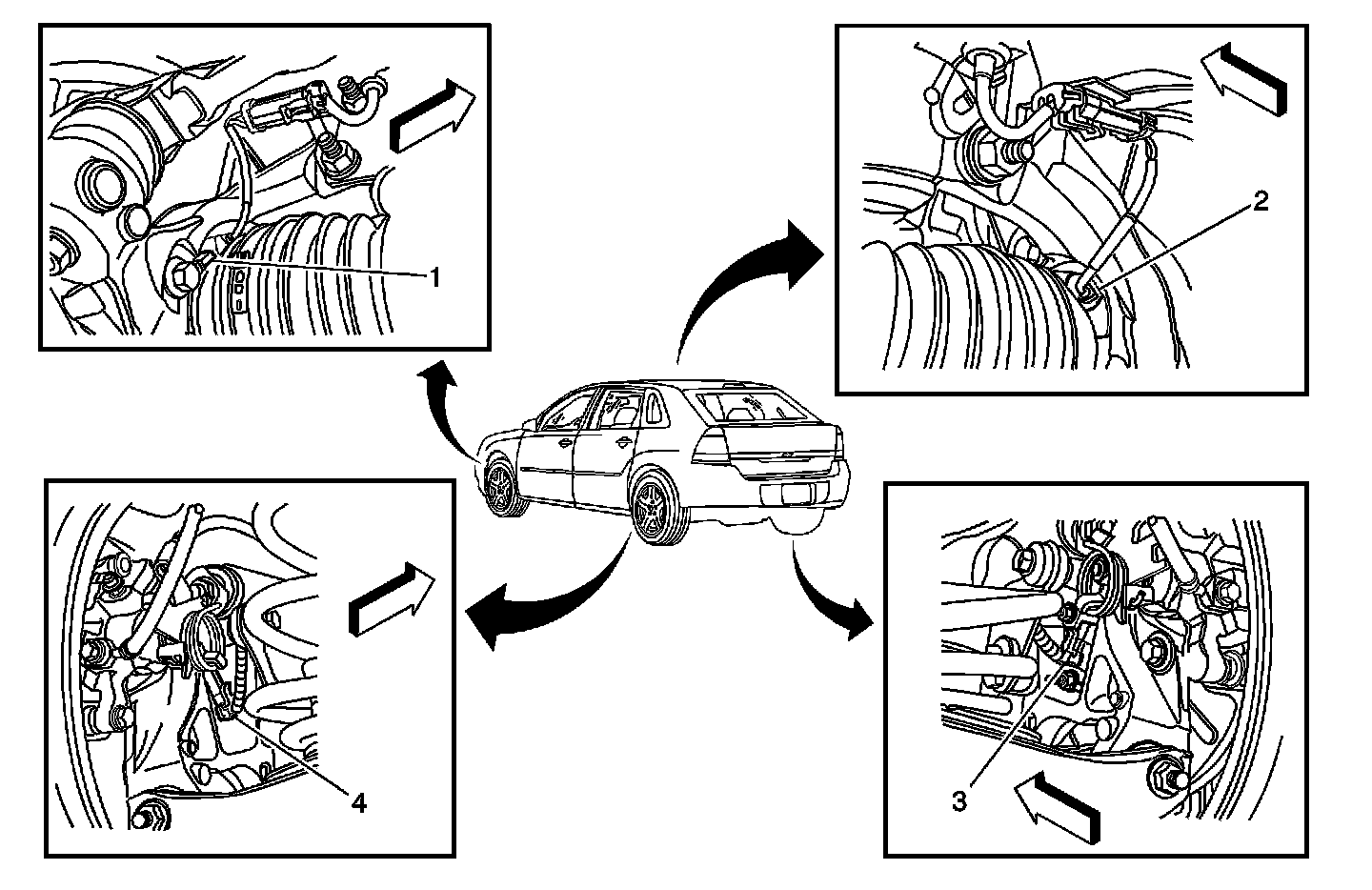

Wheel Speed Sensors

Wheel Speed Sensors:

1 - Wheel Speed Sensor (WSS) - Left Front
2 - Wheel Speed Sensor (WSS) - Right Front
3 - Wheel Speed Sensor (WSS) - Right Rear
4 - Wheel Speed Sensor (WSS) - Left Rear

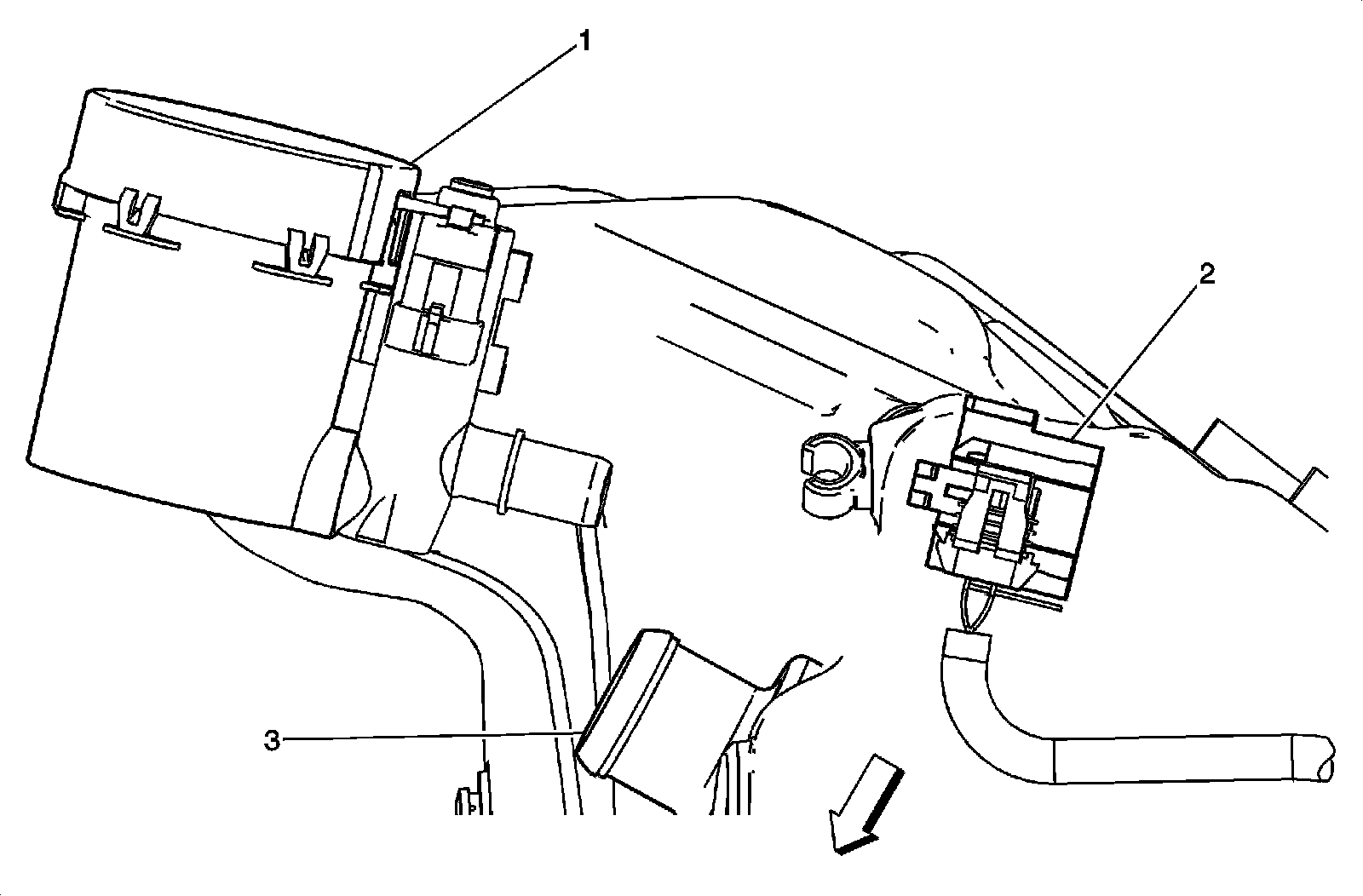

Under Right Rear of Vehicle




1 - Evaporative Emission (EVAP) Canister
2 - Evaporative Emission (EVAP) Canister Vent Solenoid Valve
3 - Fuel Tank Filler Neck

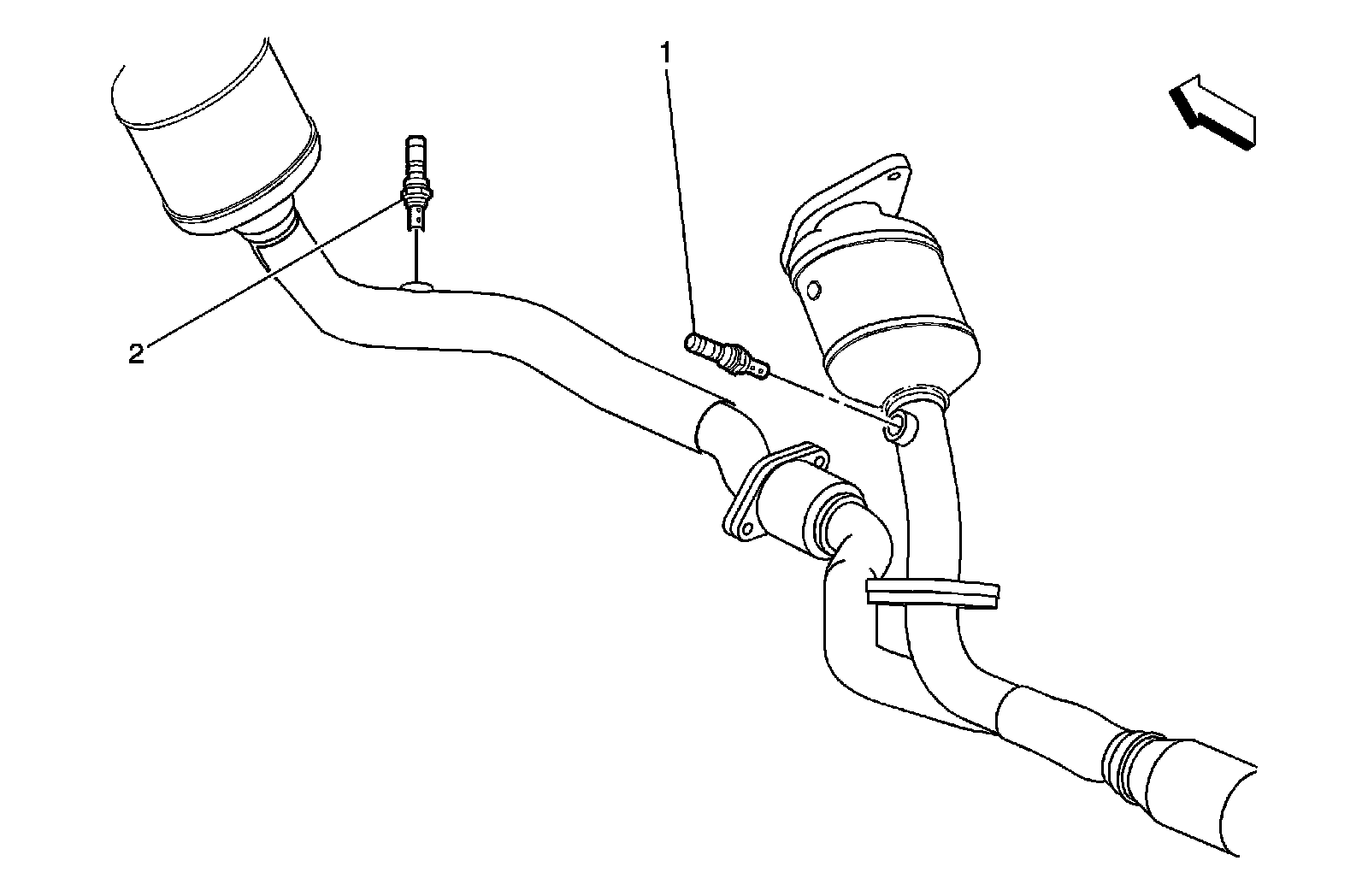

Heated Oxygen Sensor (HO2S)




1 - Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2
2 - Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2

Fuel Tank Components




1 - Evaporative Emission (EVAP) Canister
2 - Evaporative Emission (EVAP) Canister Vent Solenoid Valve
3 - Fuel Pump and Sender Assembly
4 - Fuel Tank Pressure (FTP) Sensor
5 - Fuel Tank
