Inflatable Restraint Roof Rail Module



Component Connector End Views

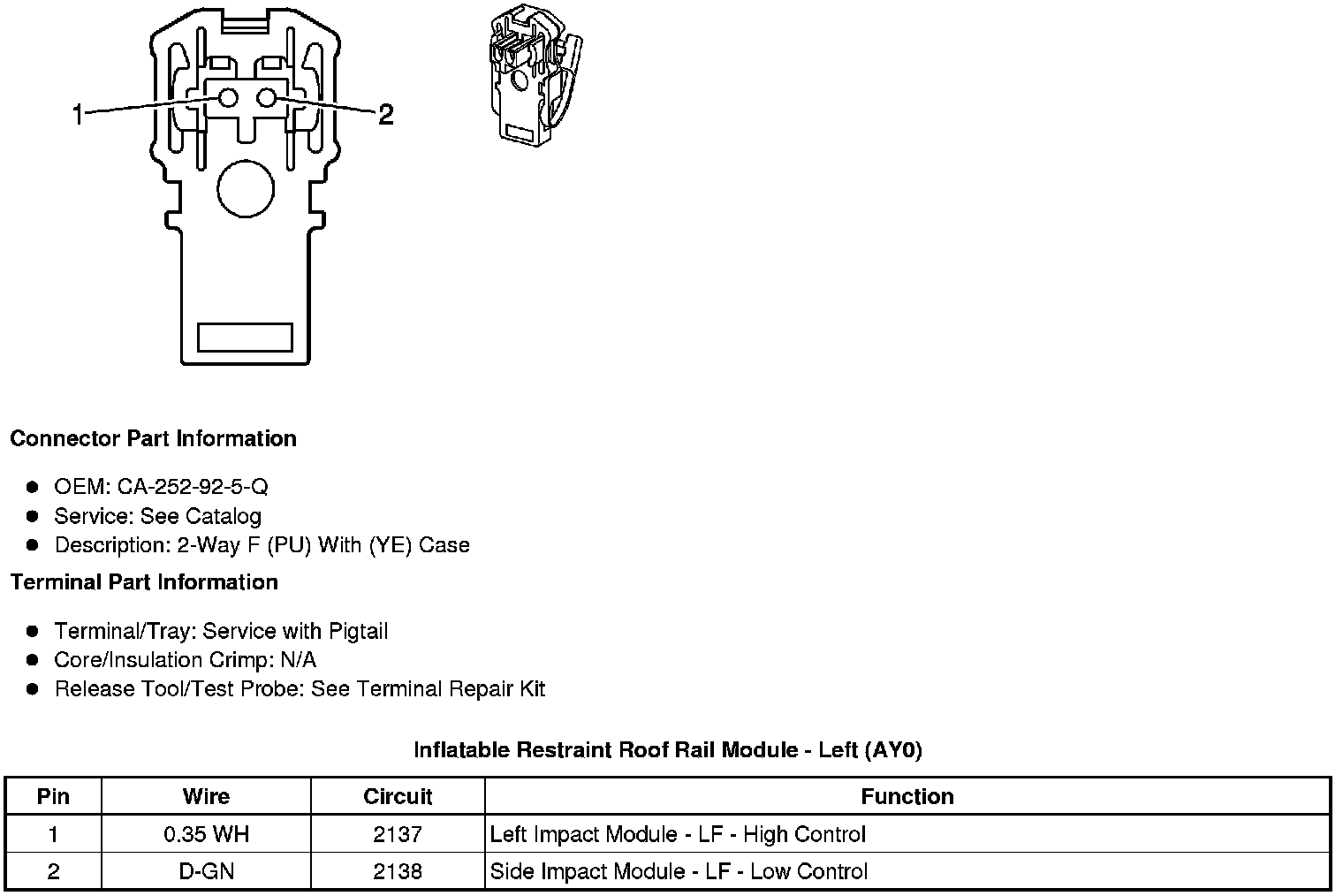

Inflatable Restraint Roof Rail Module - Left (AY0)

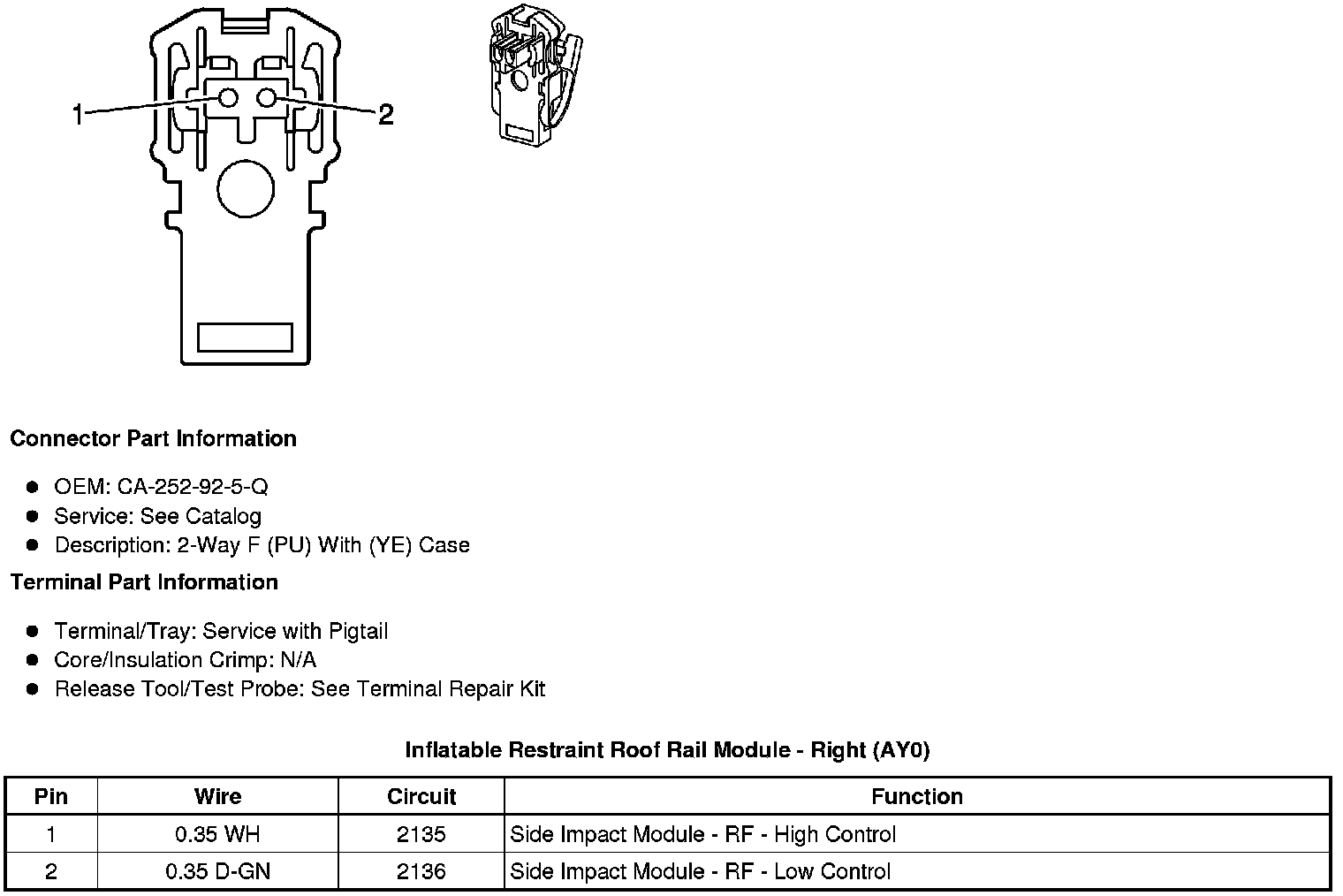

Inflatable Restraint Roof Rail Module - Right (AY0)
