Air Door Actuator / Motor, HVAC
>>
Mode Actuator
Mode Actuator

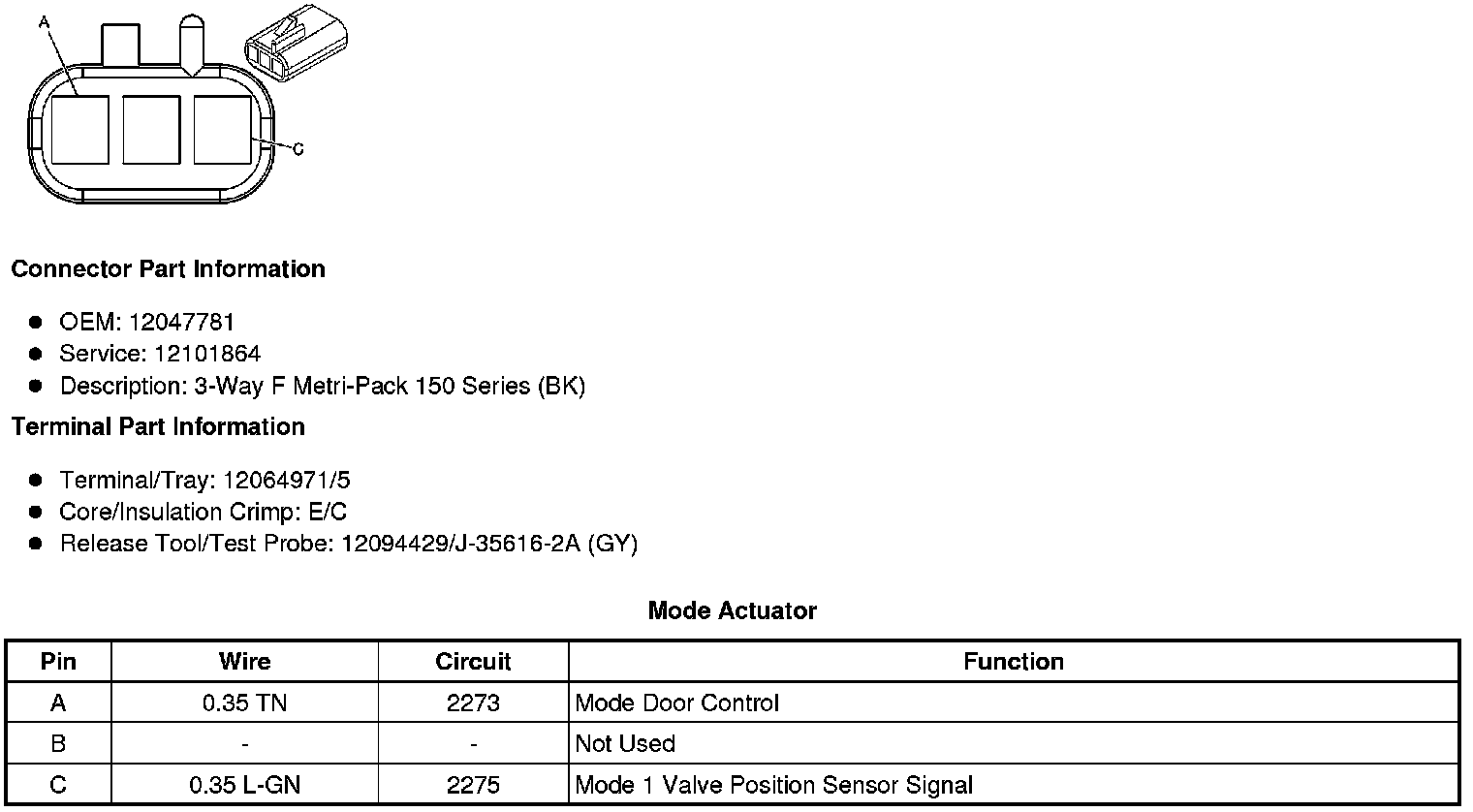

Component Connector End Views
Mode Actuator
