Diesel Data
: Automotive Repair
Home
>>
Chevrolet
>>
2008
>>
Malibu Classic V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Component Connector End Views
>>
Accessories and Optional Equipment
>>
Radio, Stereo, and Compact Disc
>>
Speaker
Speaker
Component Connector End Views

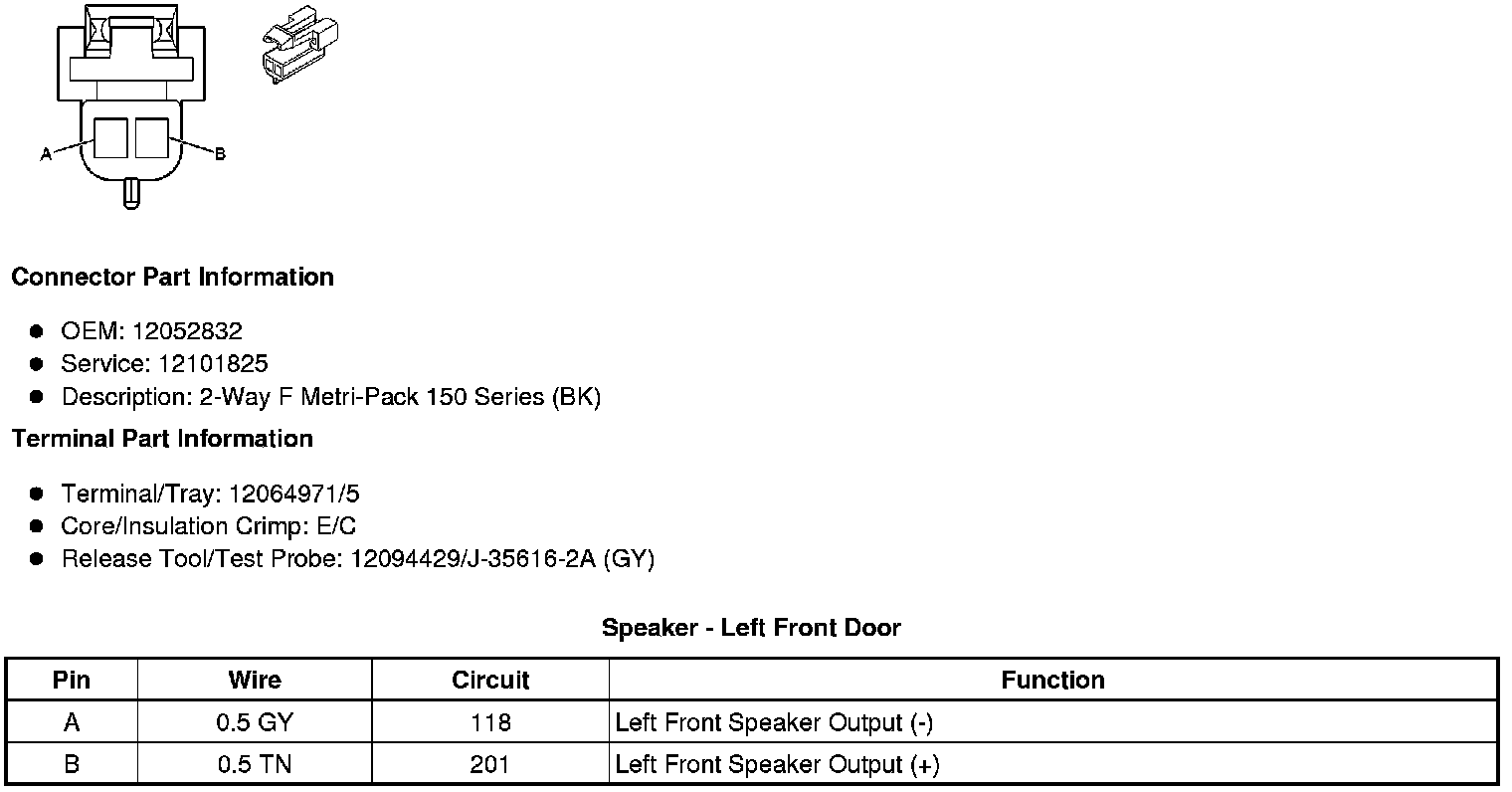

Speaker - Left Front Door

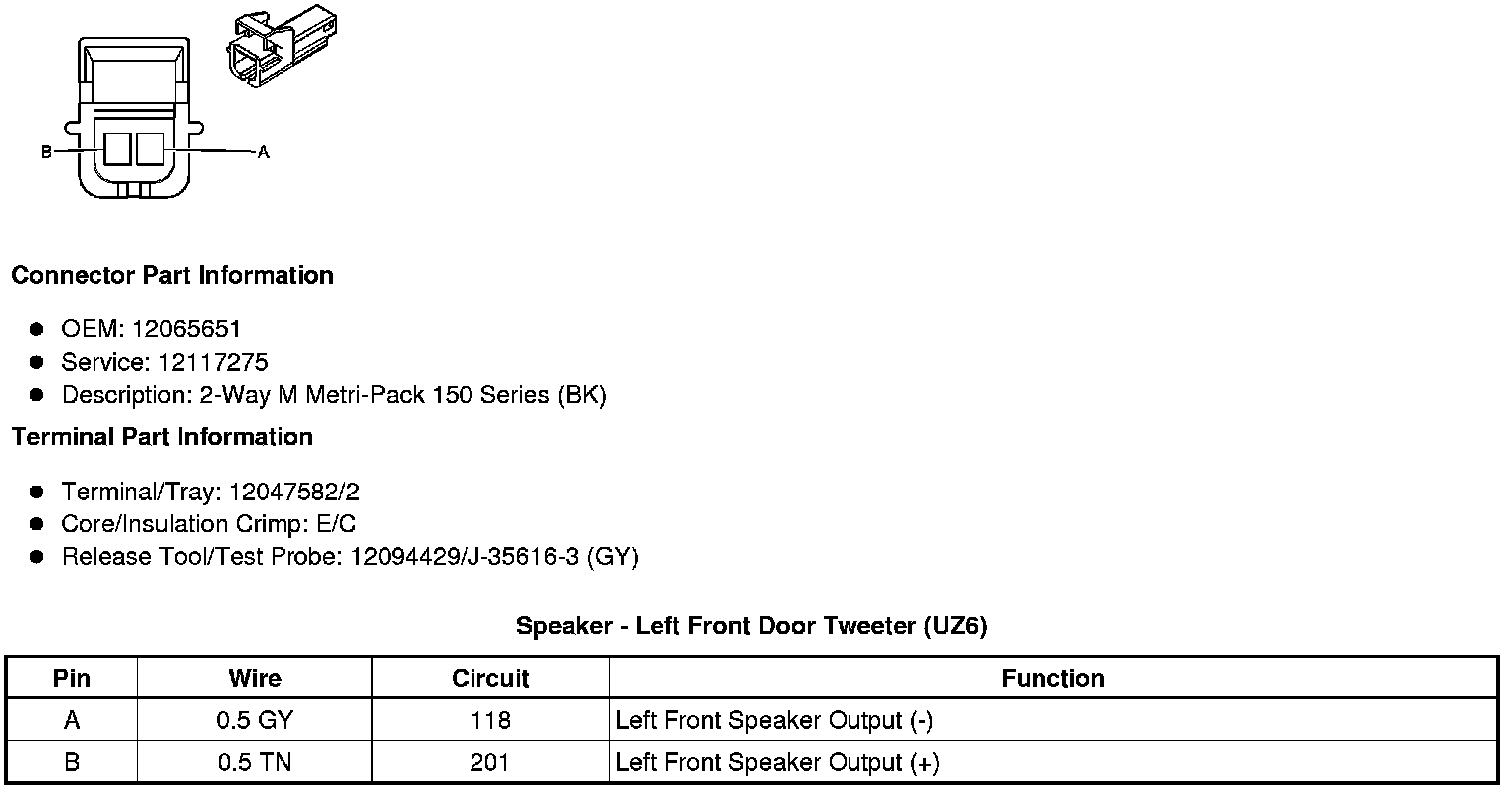

Speaker - Left Front Door Tweeter (UZ6)

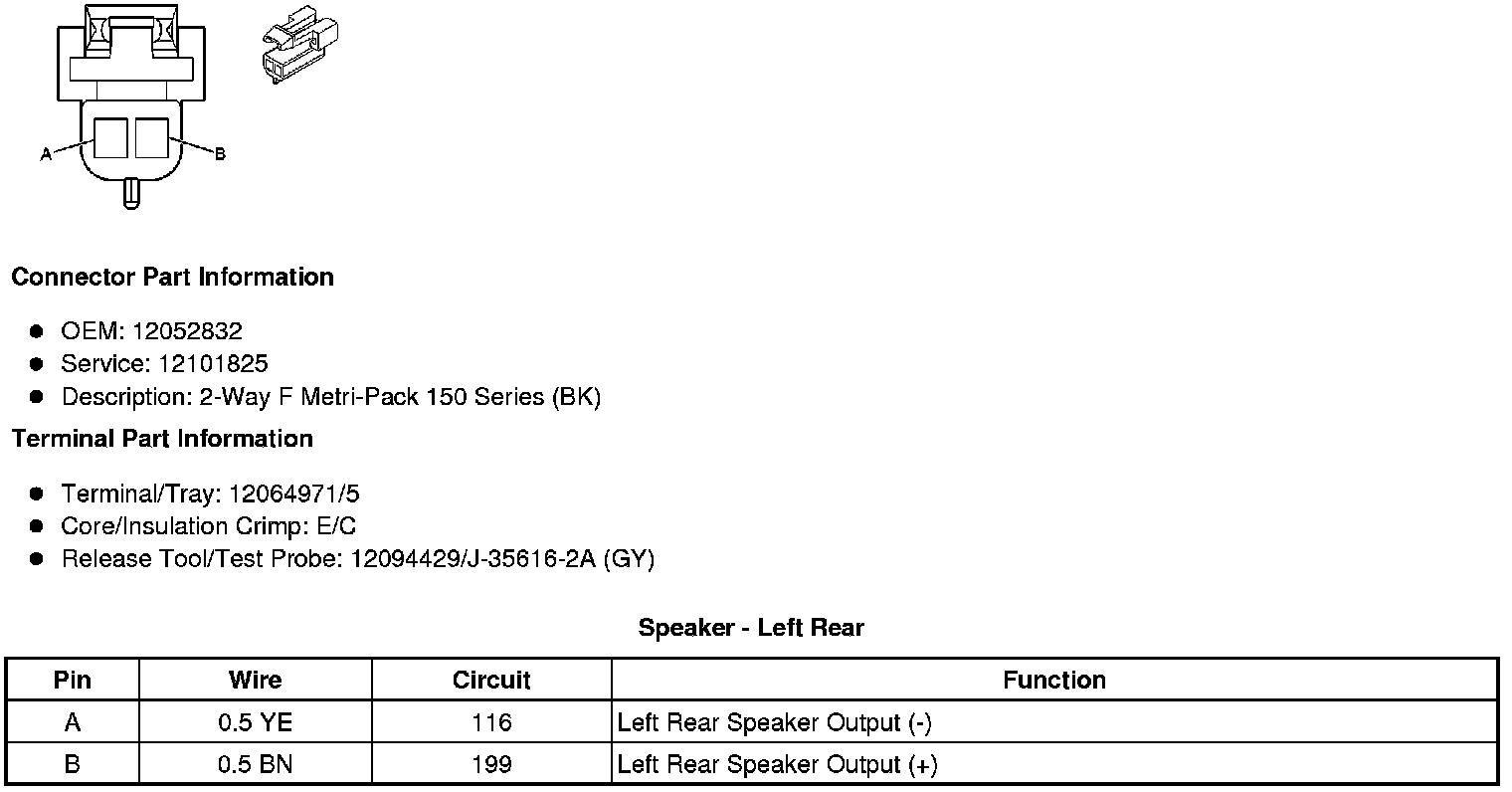

Speaker - Left Rear

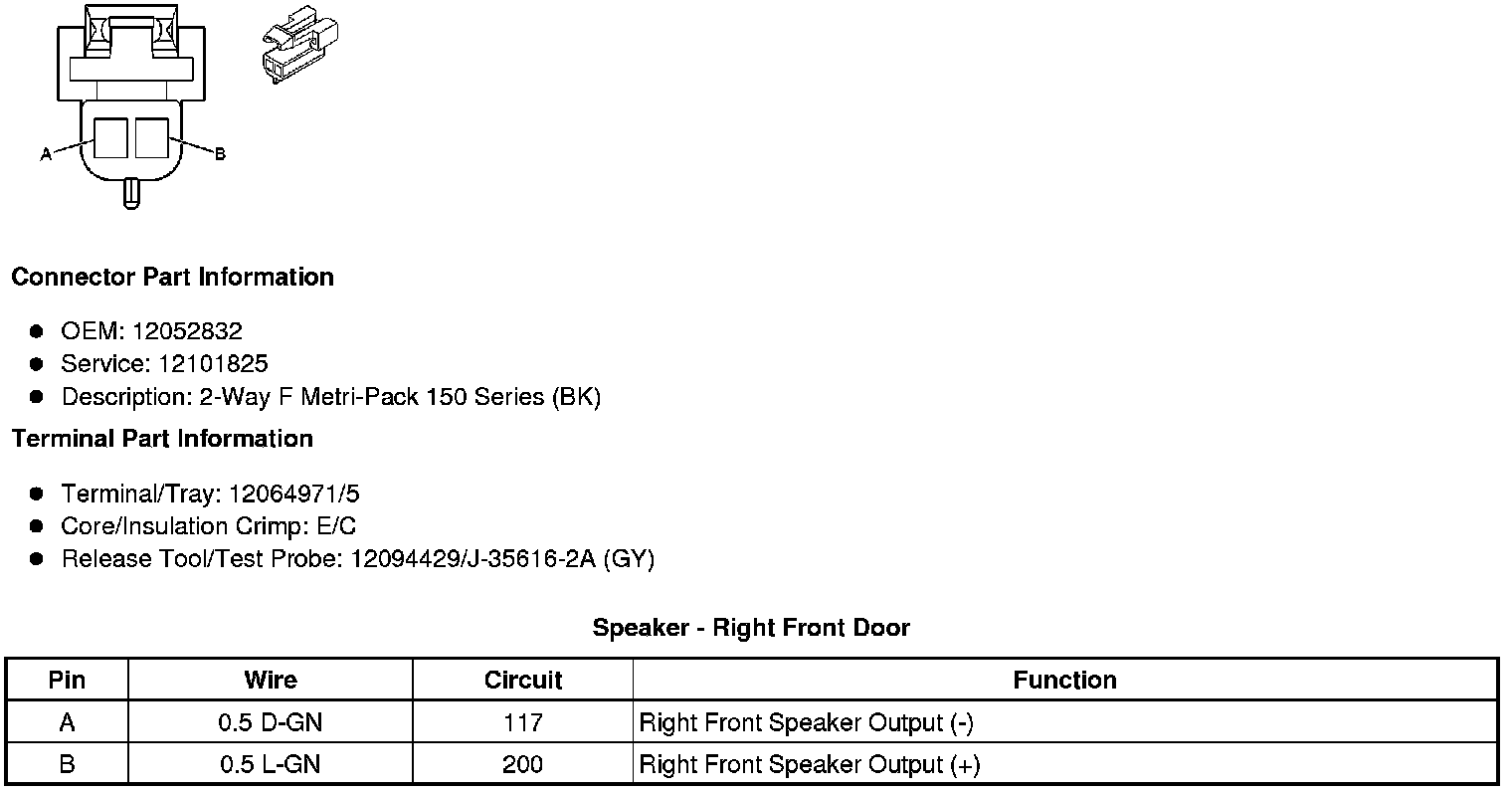

Speaker - Right Front Door

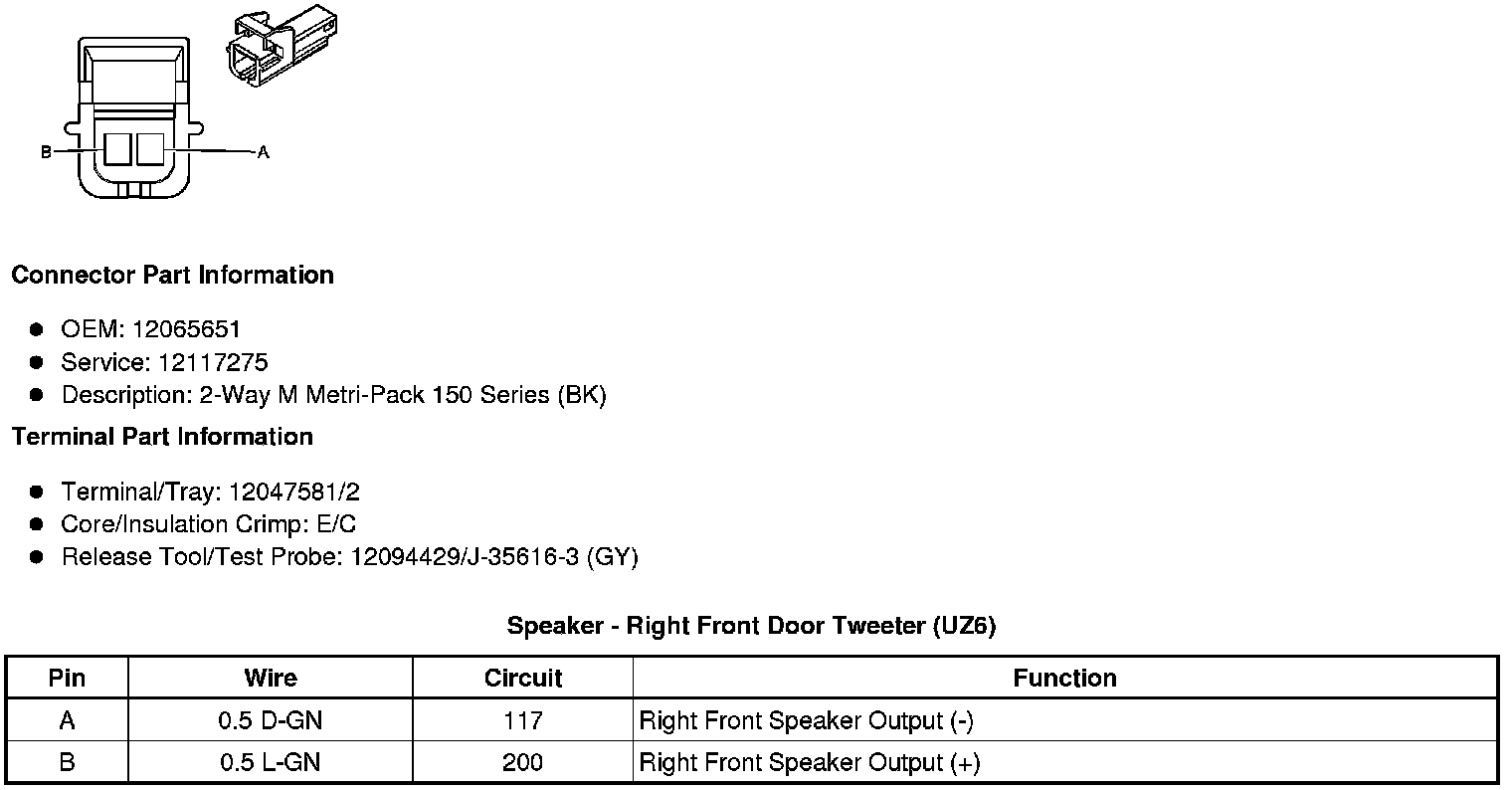

Speaker - Right Front Door Tweeter (UZ6)

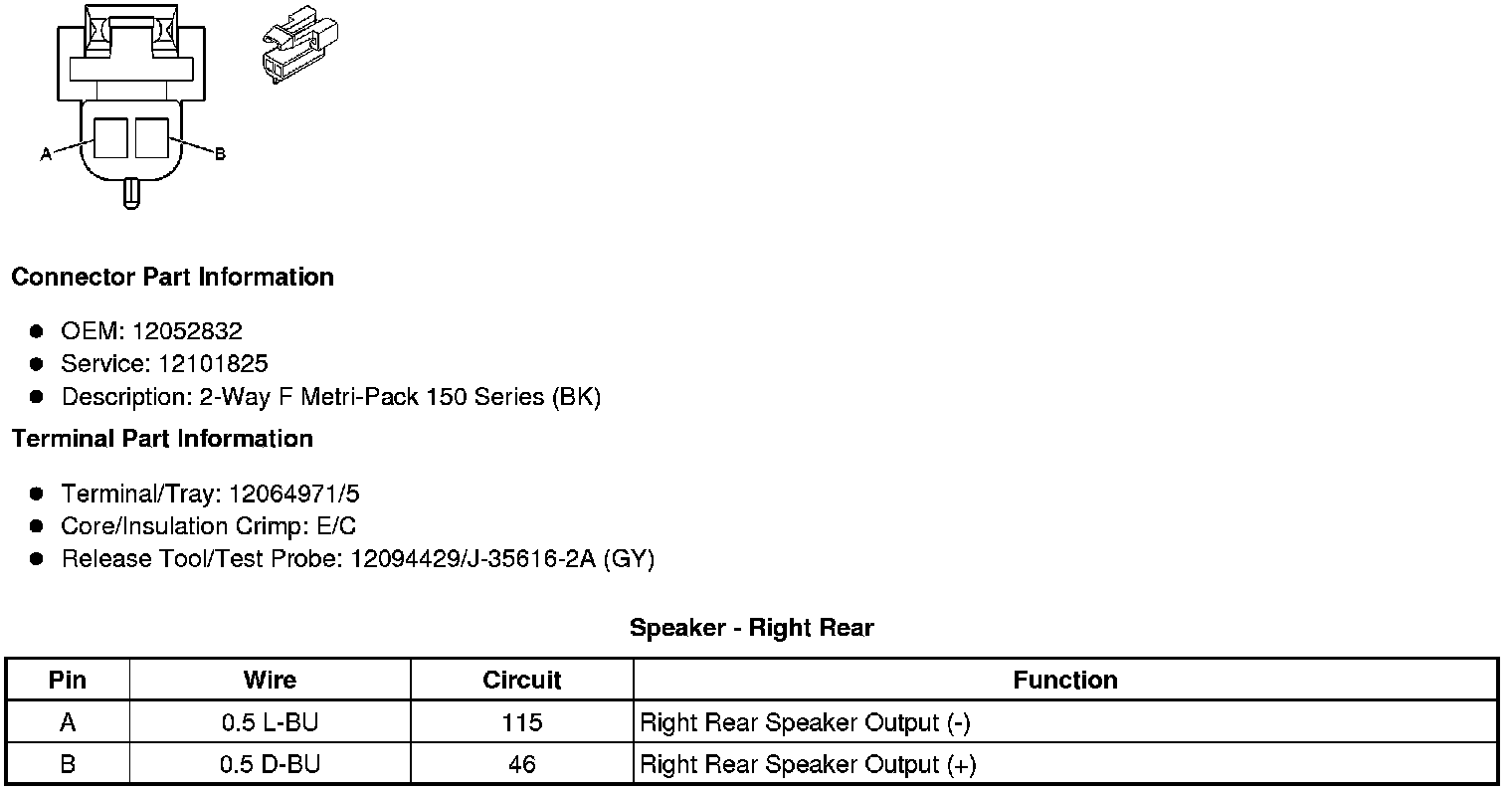

Speaker - Right Rear
