Diesel Data
: Automotive Repair
Home
>>
Chevrolet
>>
2008
>>
Malibu Classic V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Component Connector End Views
>>
Lighting and Horns
>>
Courtesy Lamp
Courtesy Lamp
Component Connector End Views

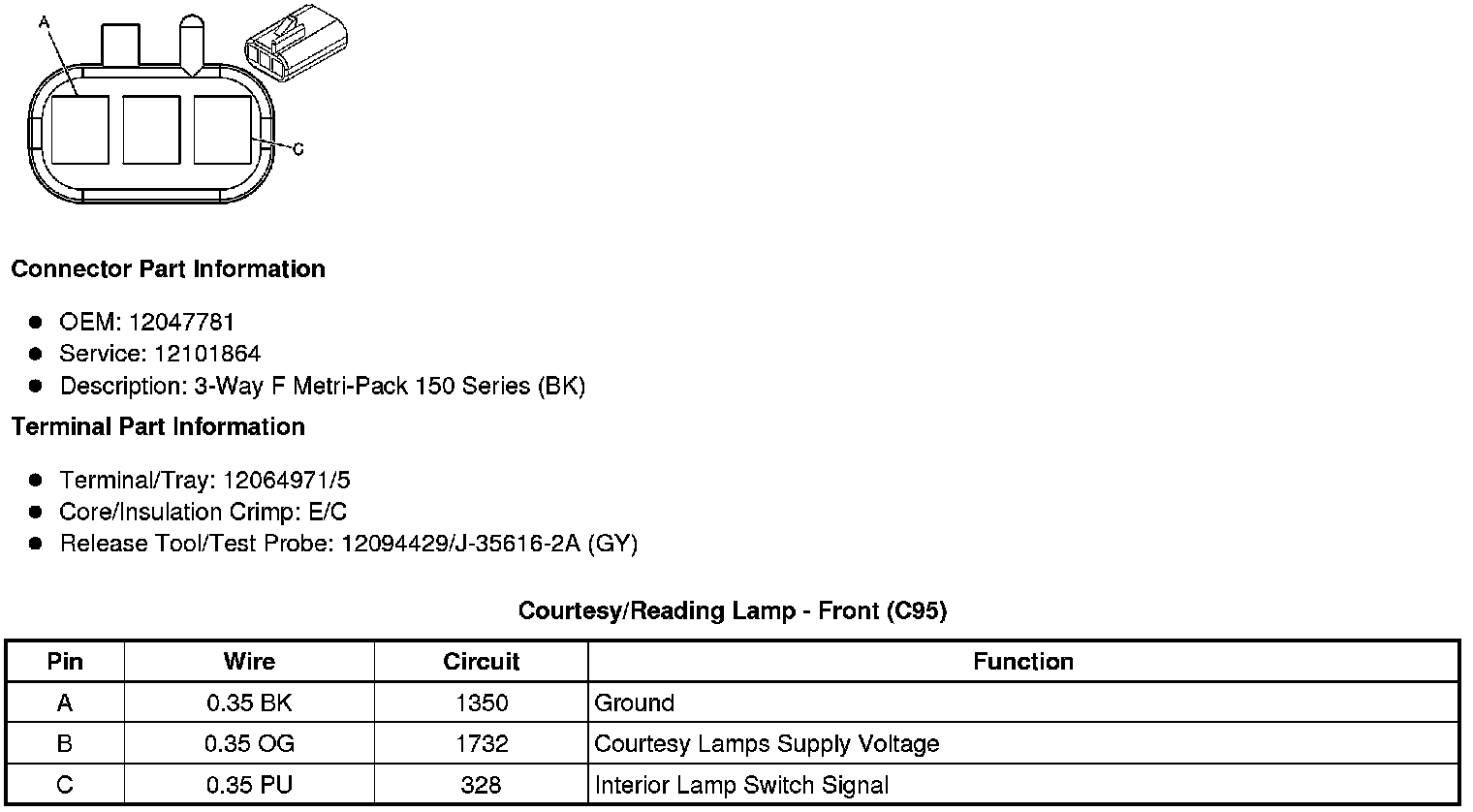

Courtesy/Reading Lamp - Front (C95)

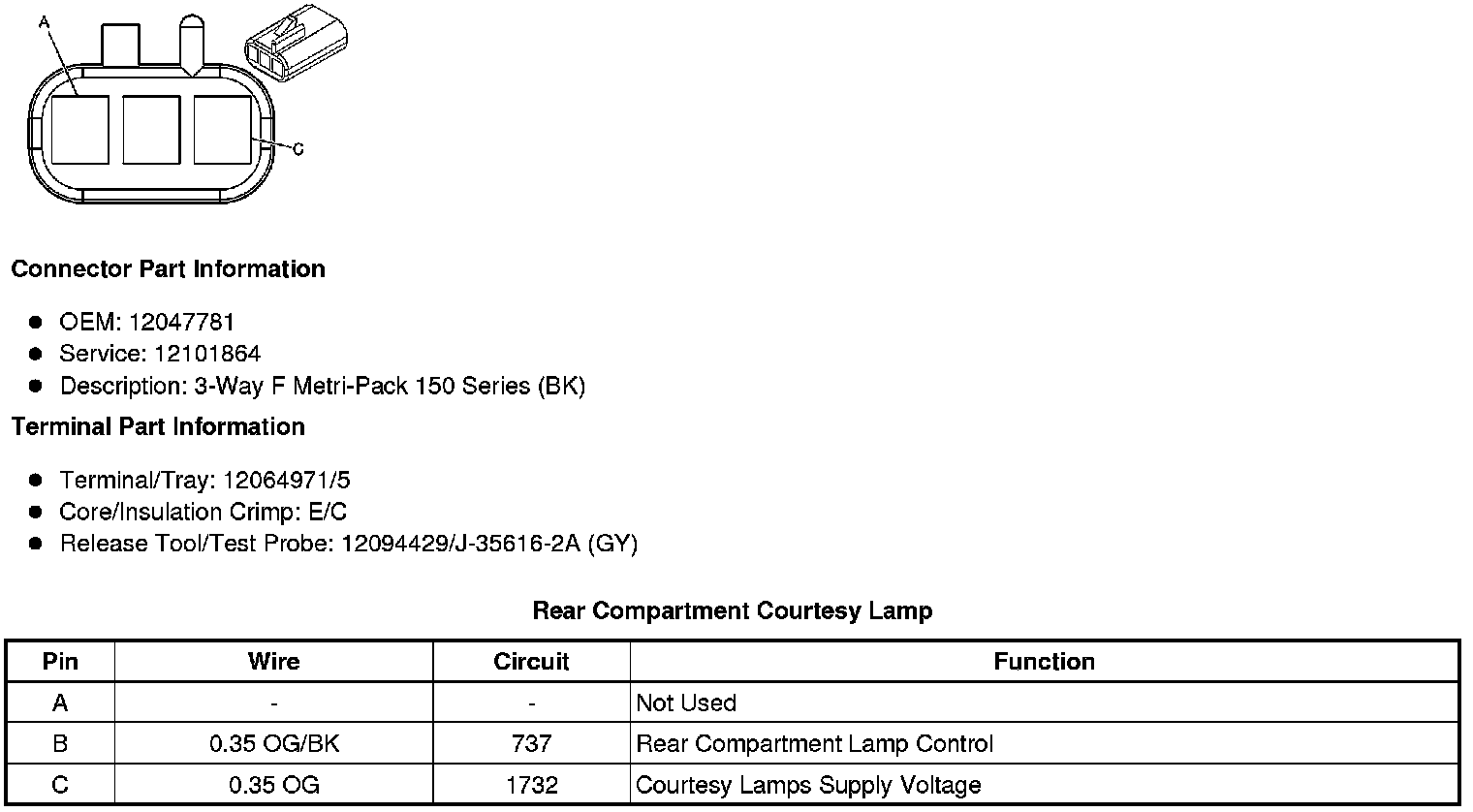

Rear Compartment
Courtesy Lamp
