Electronic Throttle Actuator



Component Connector End Views

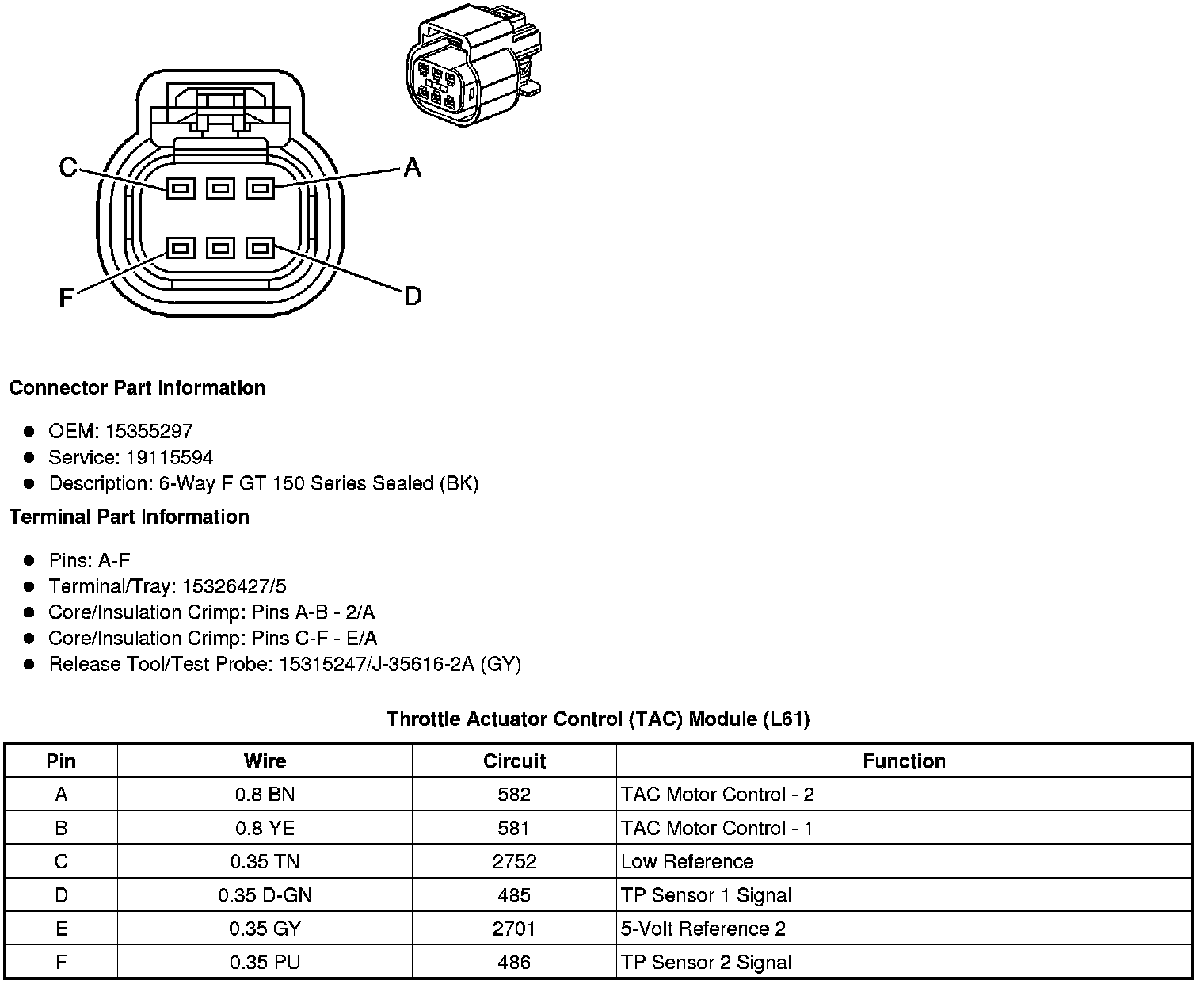

Throttle Actuator Control (TAC) Module (L61)

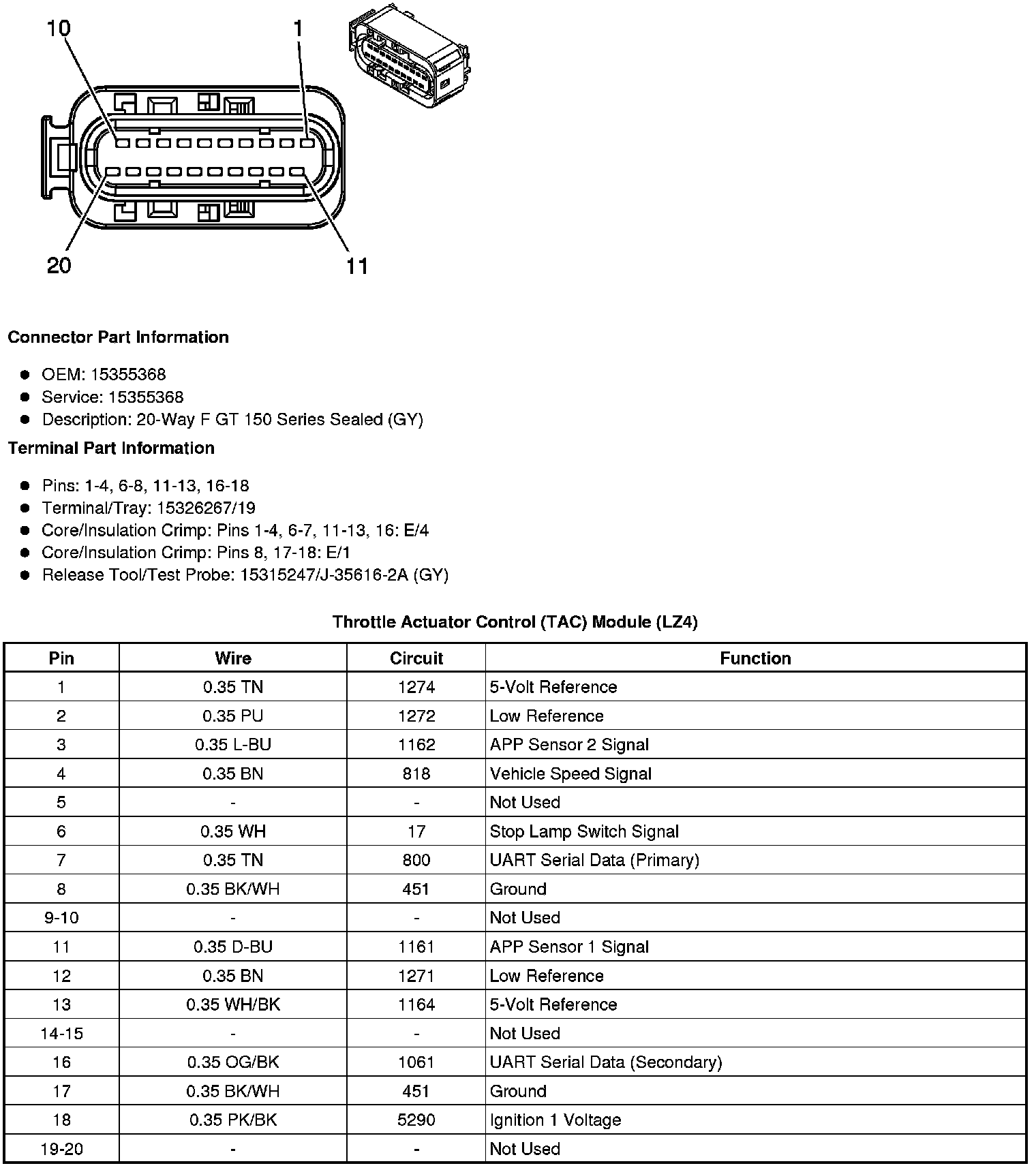

Throttle Actuator Control (TAC) Module (LZ4)
