Fuel Injector



Component Connector End Views

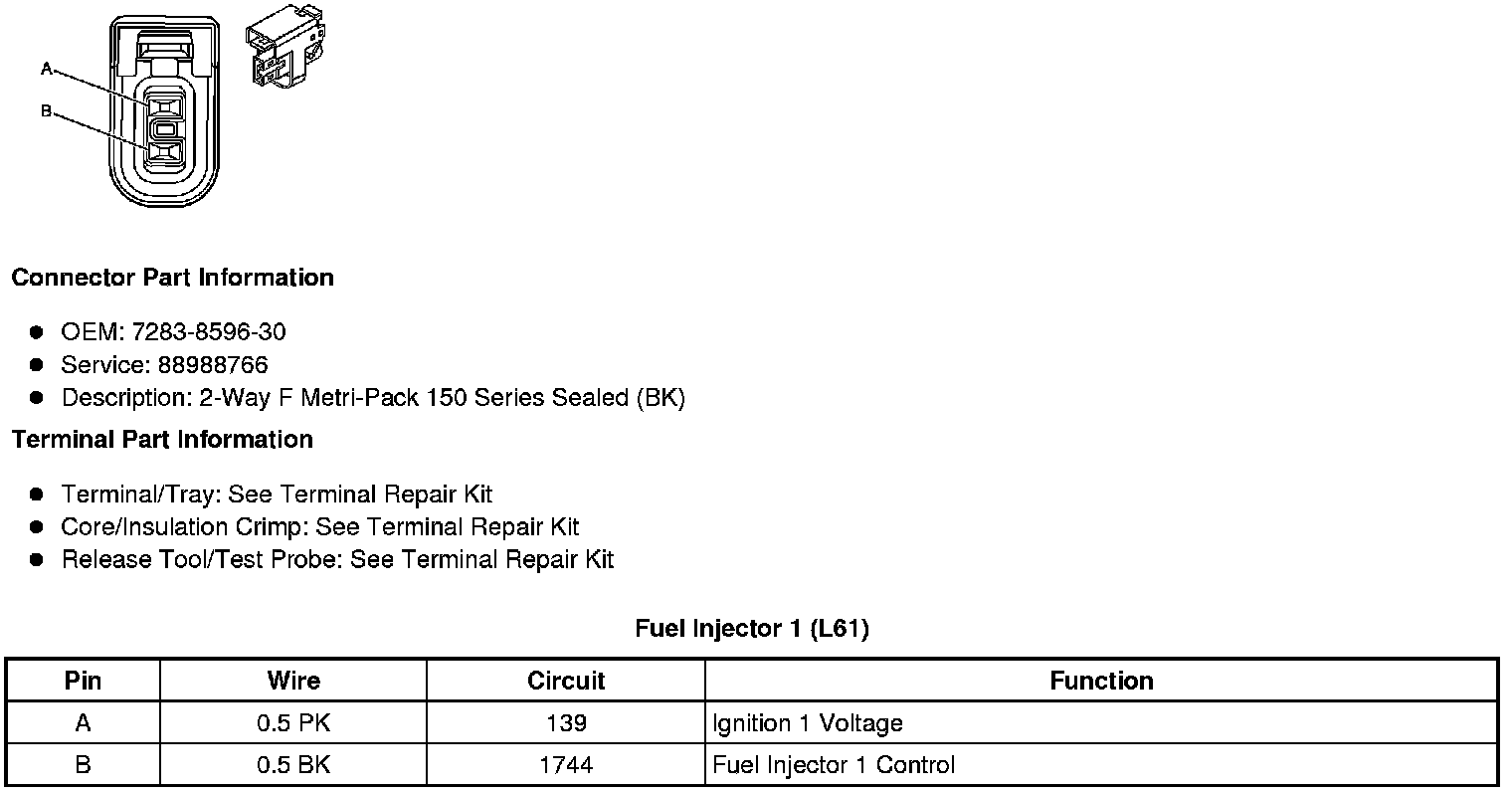

Fuel Injector 1 (L61)

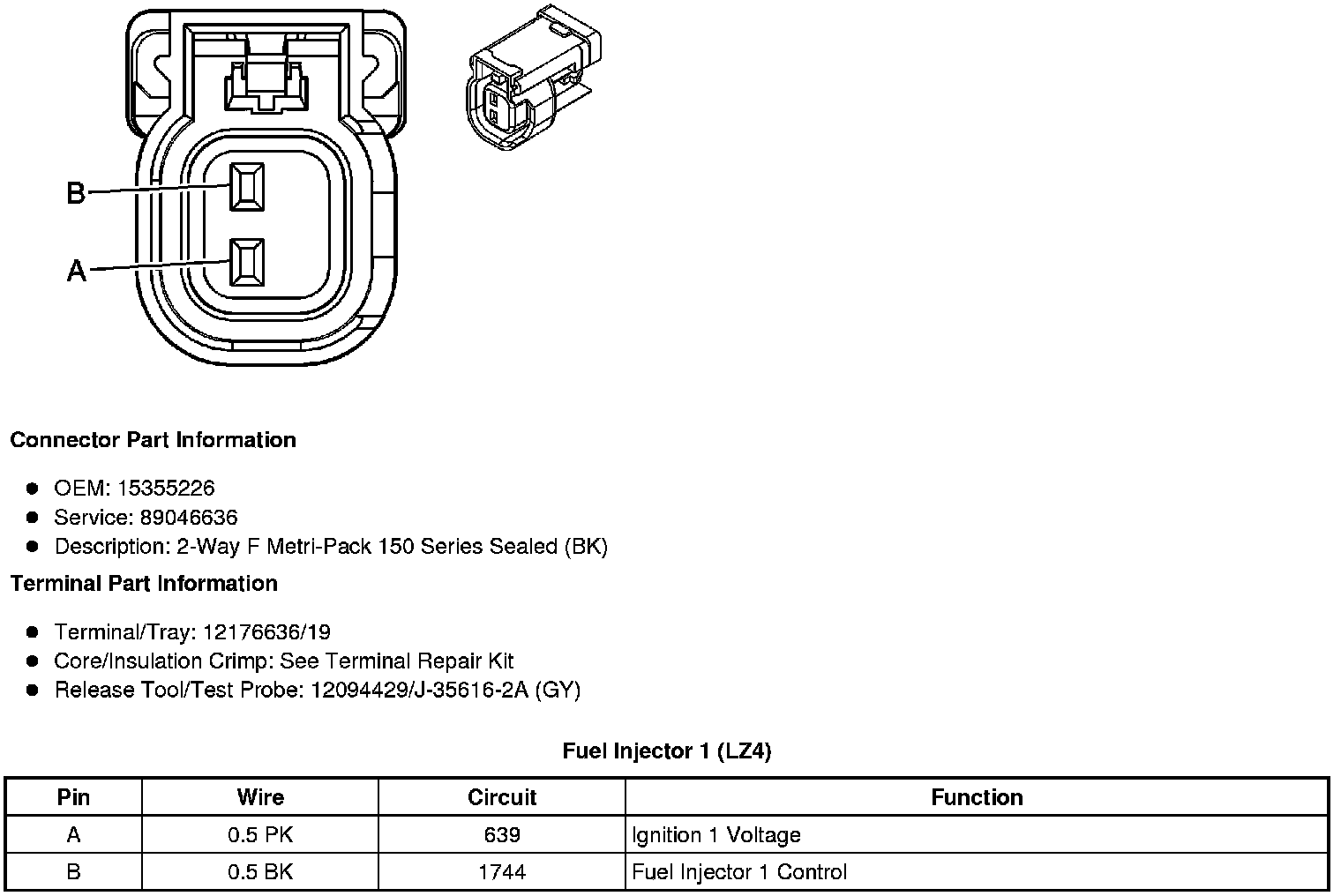

Fuel Injector 1 (LZ4)

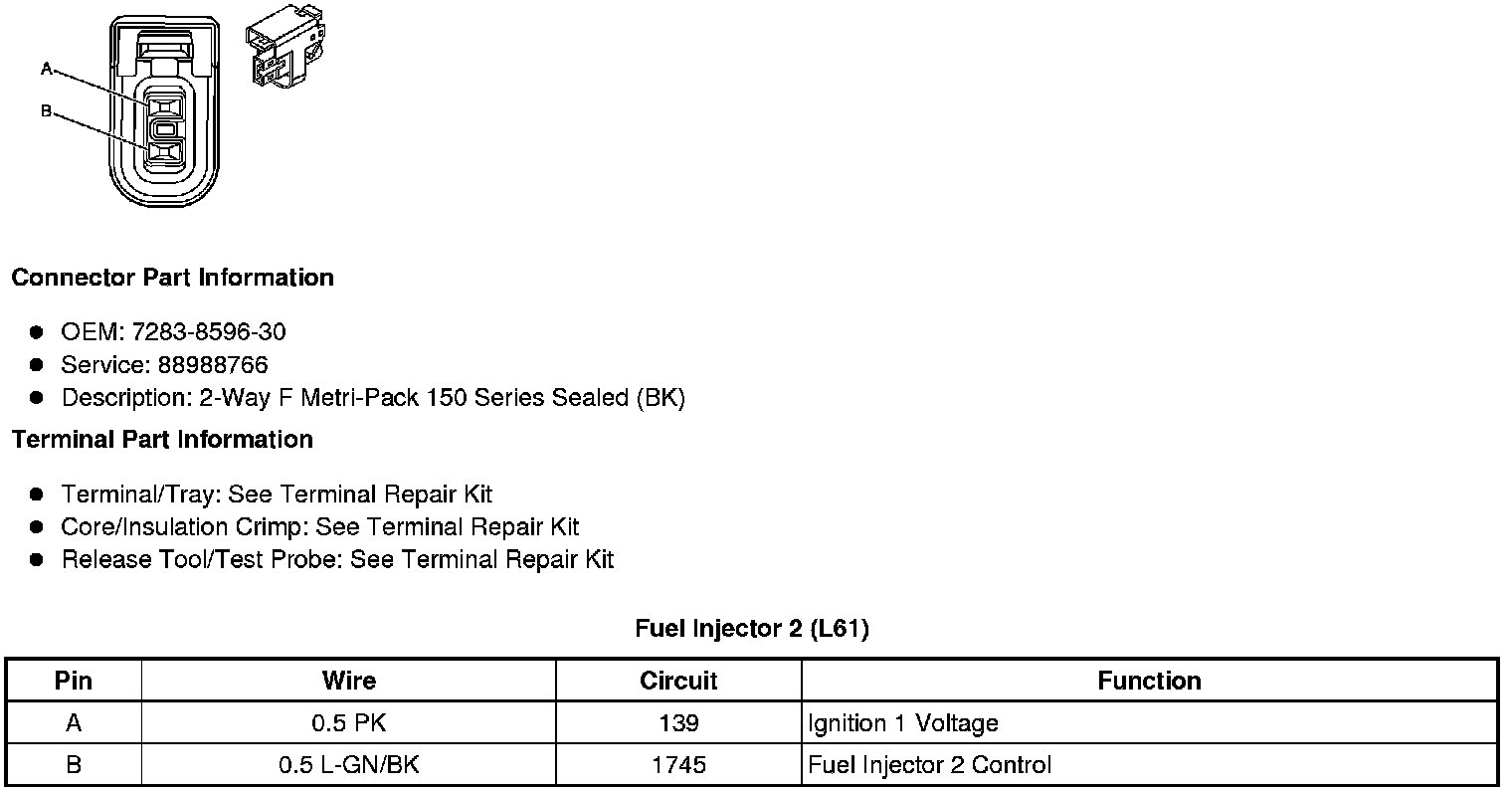

Fuel Injector 2 (L61)






Fuel Injector 2 (LZ4)

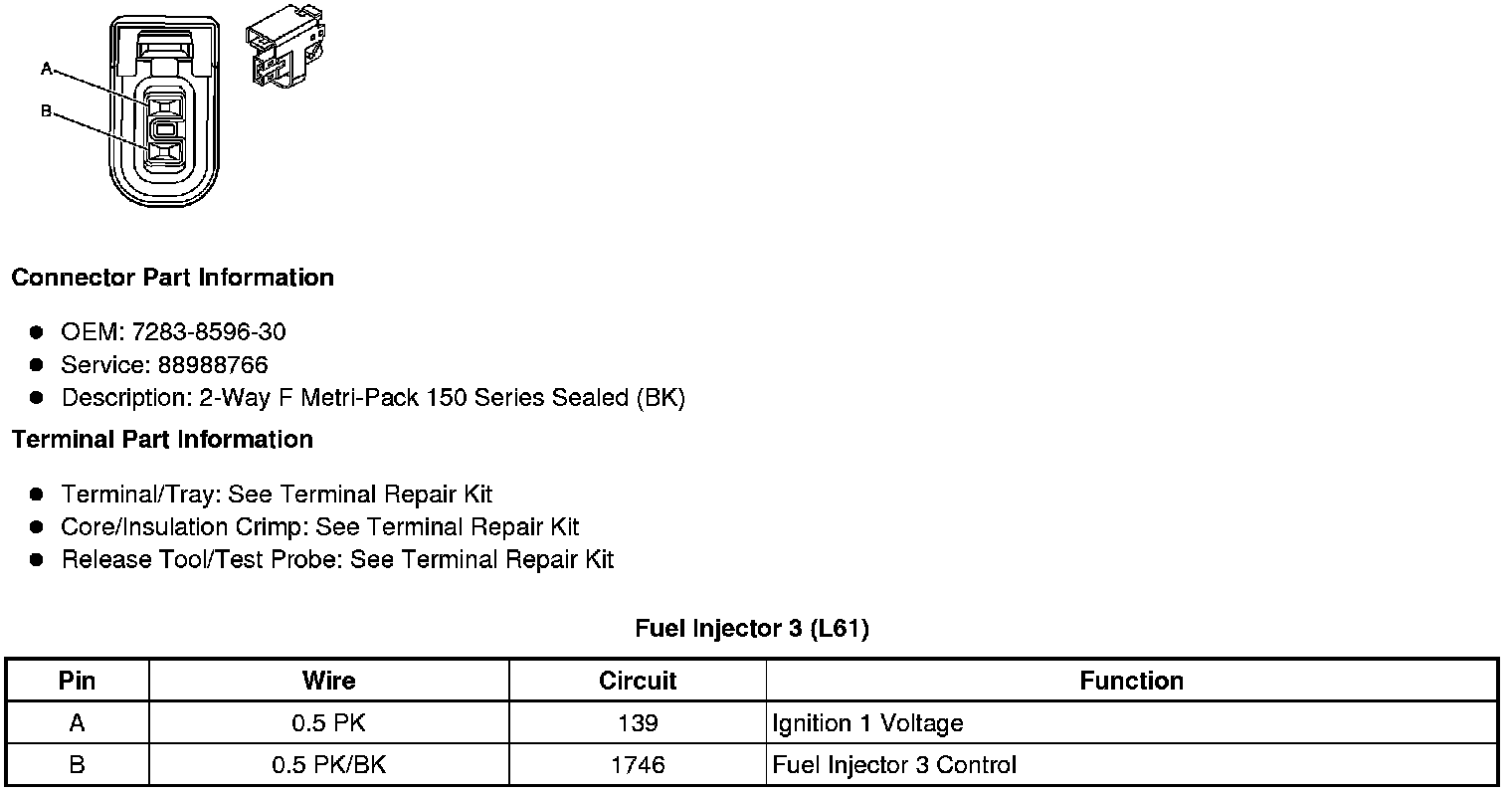

Fuel Injector 3 (L61)






Fuel Injector 3 (LZ4)






Fuel Injector 4 (L61)

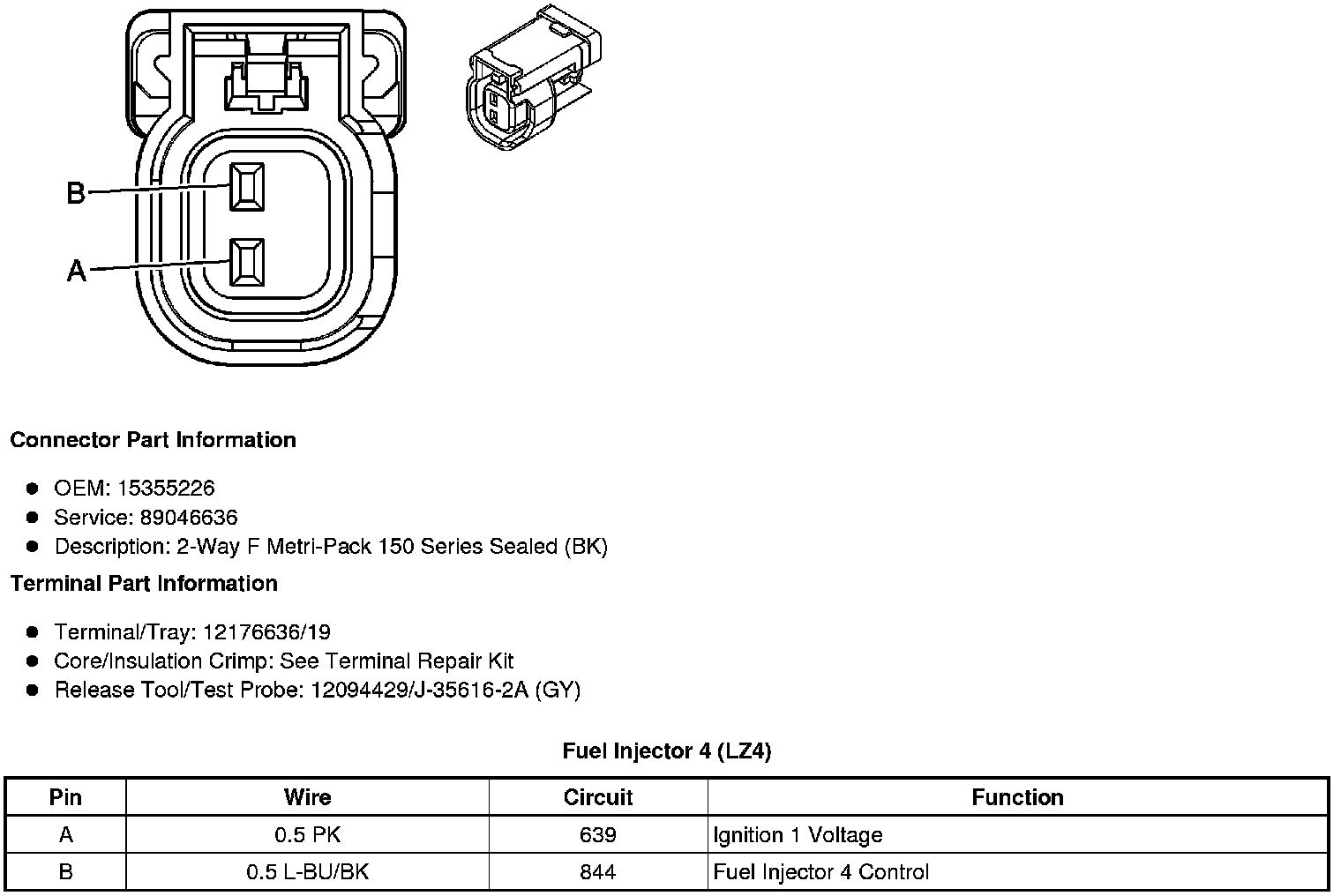

Fuel Injector 4 (LZ4)

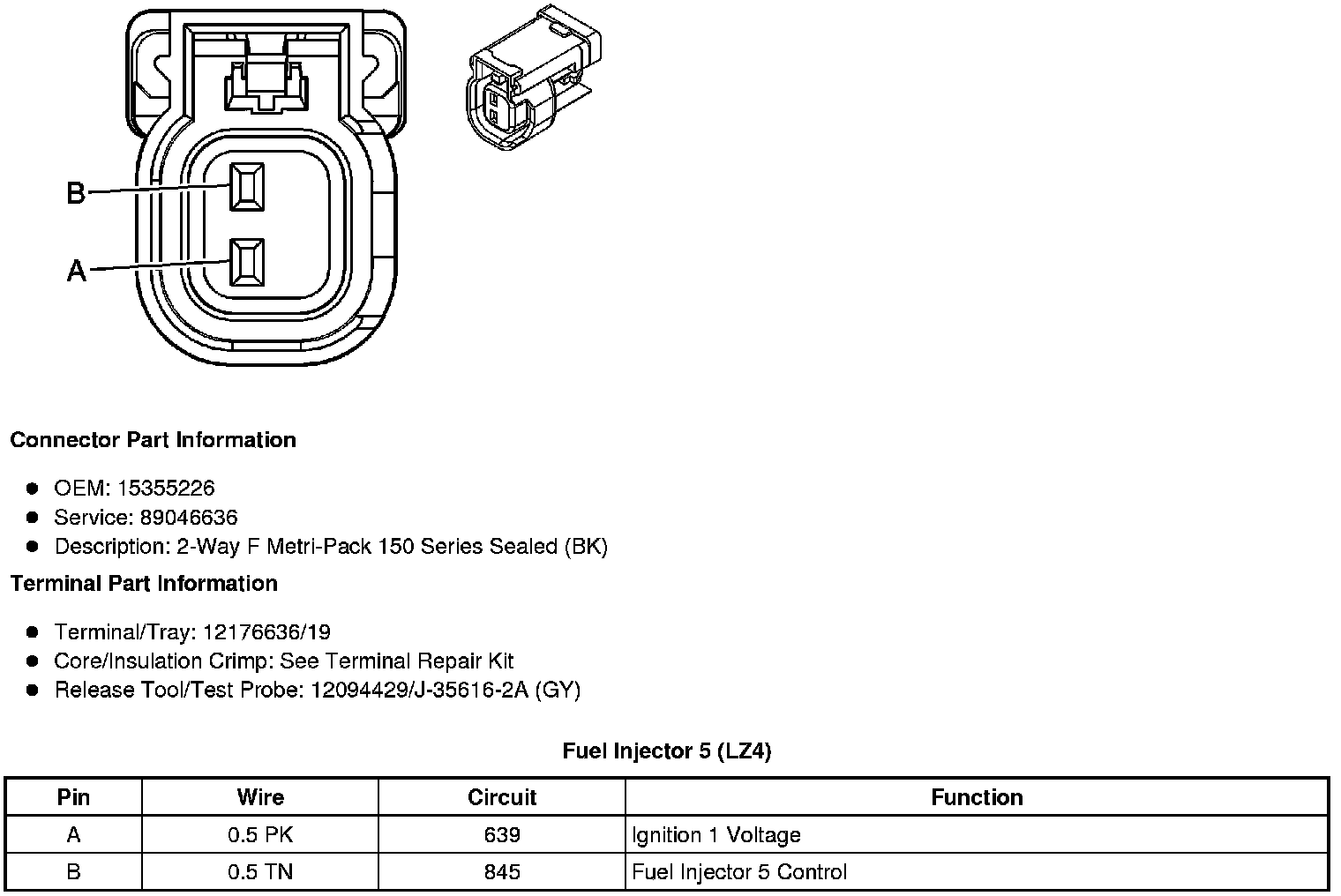

Fuel Injector 5 (LZ4)






Fuel Injector 6 (LZ4)
