Clockspring Assembly / Spiral Cable, Air Bag



Component Connector End Views

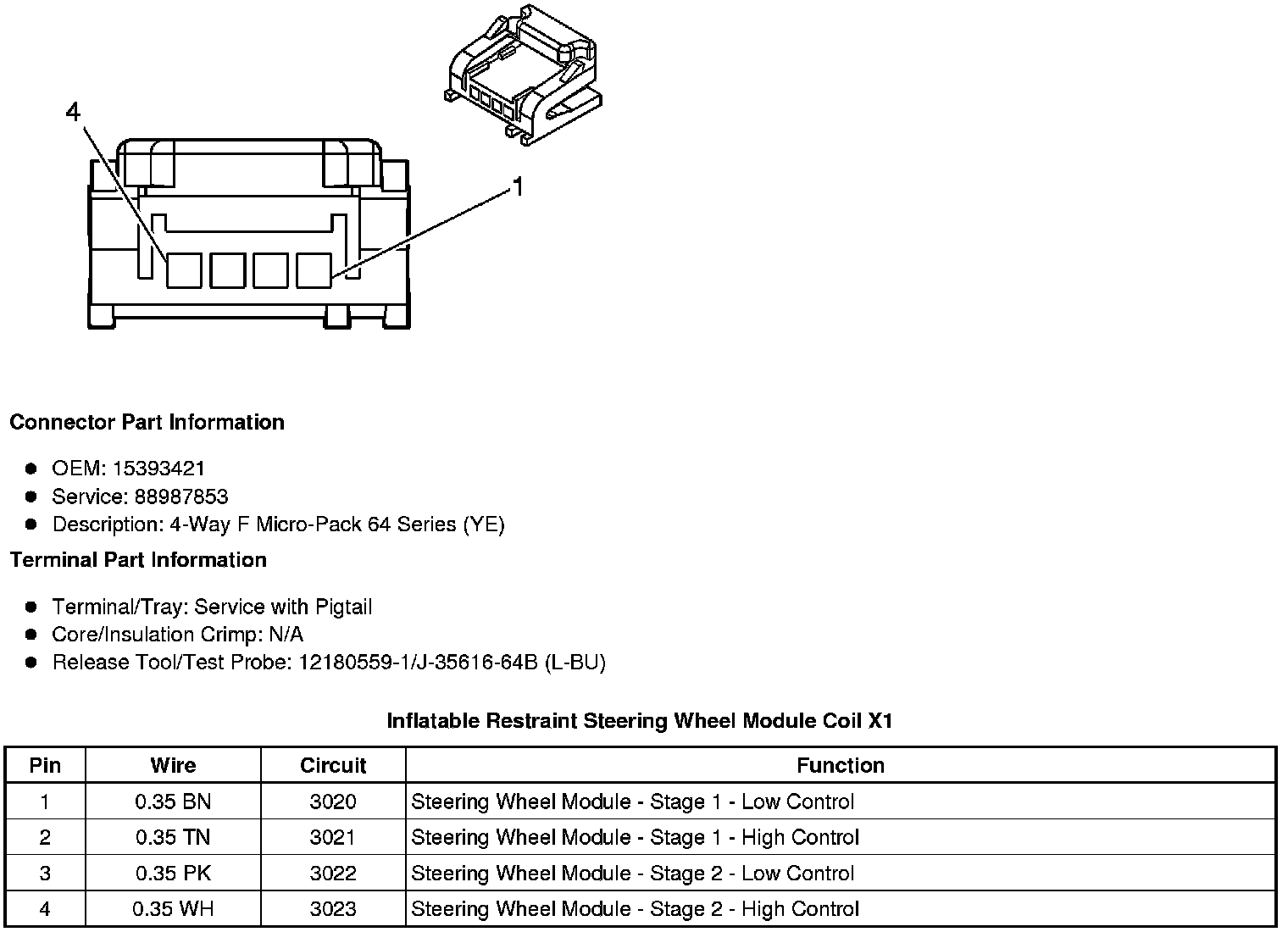

Inflatable Restraint Steering Wheel Module Coil X1

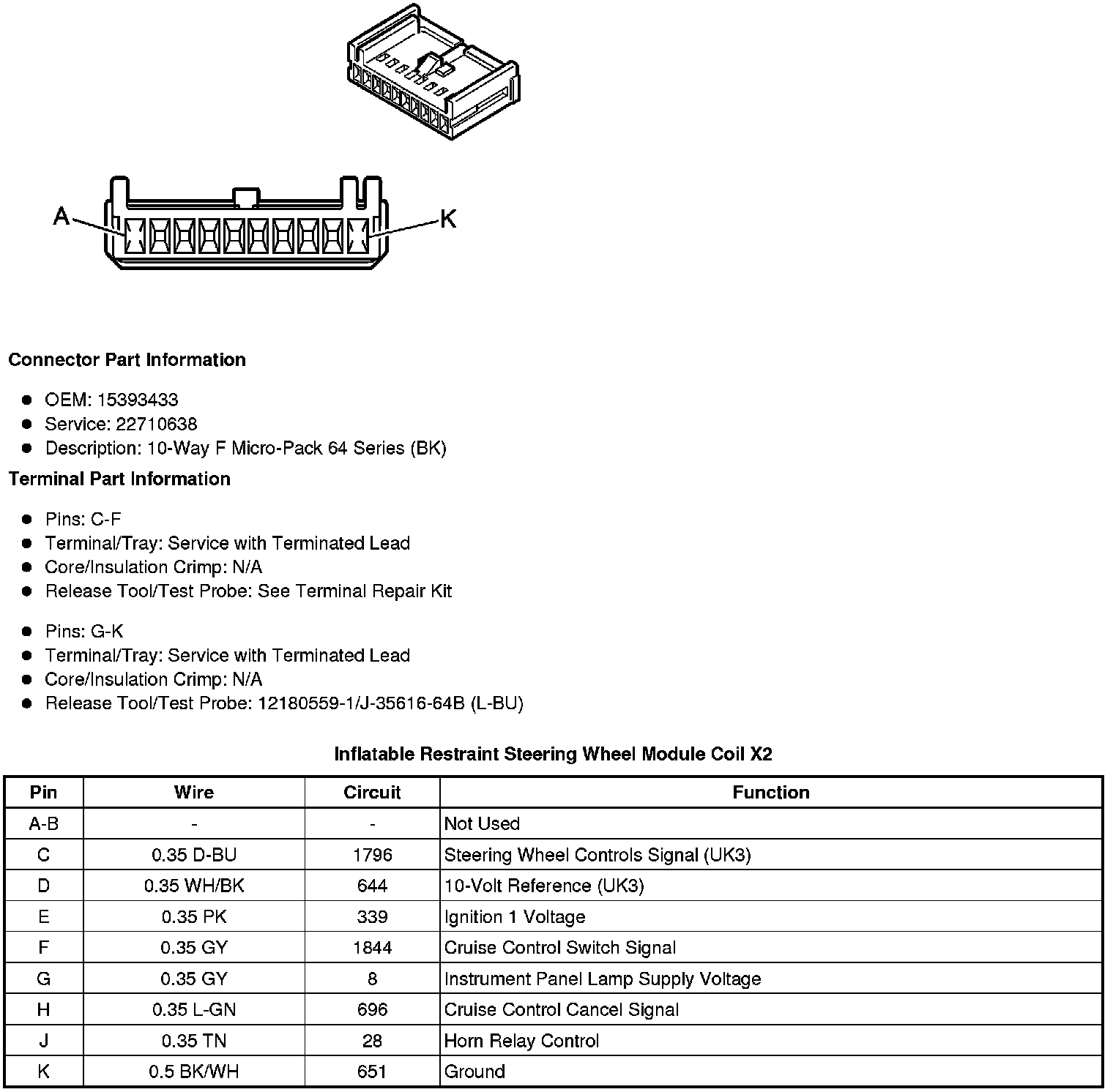

Inflatable Restraint Steering Wheel Module Coil X2
