Seat Belt Tensioner



Component Connector End Views

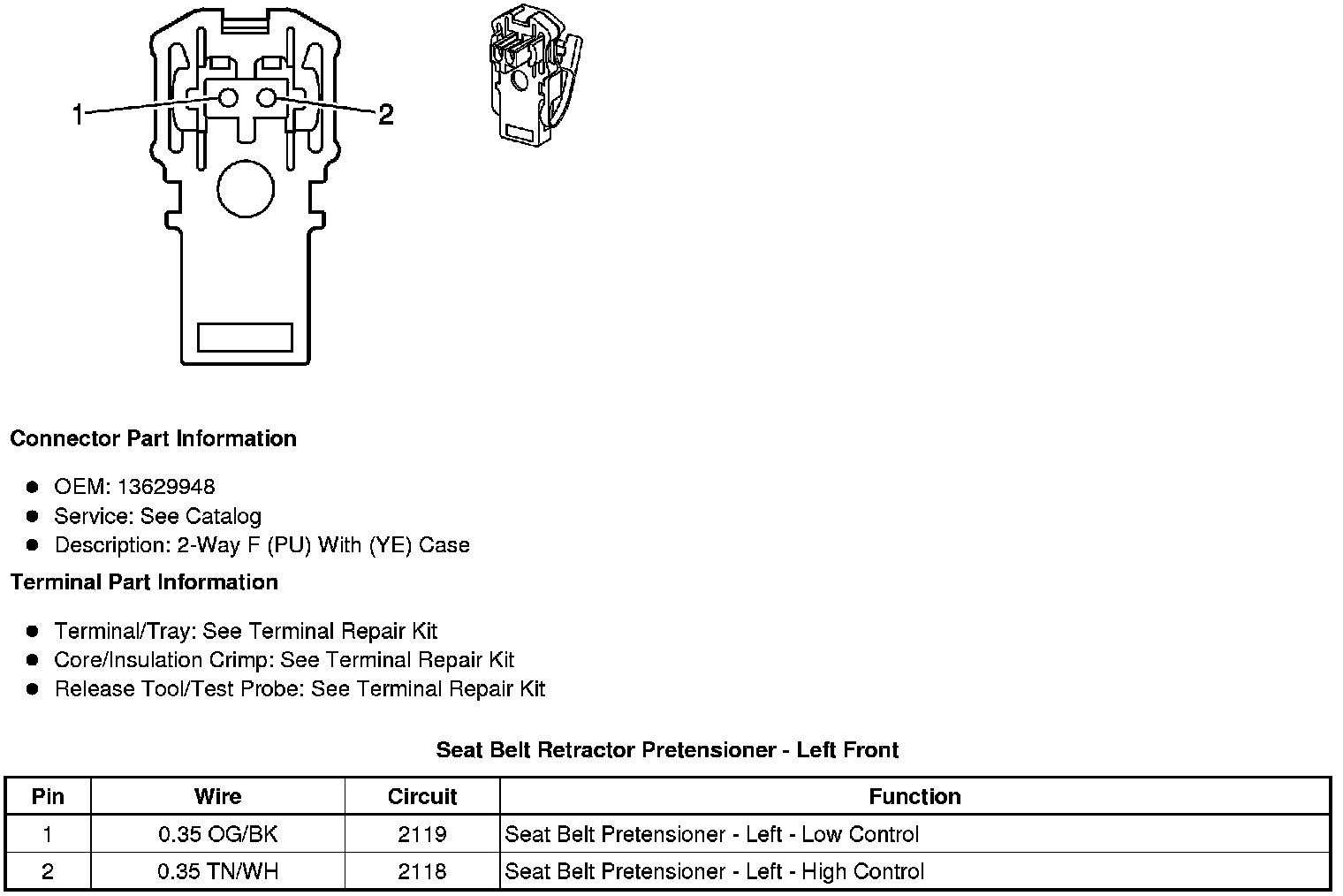

Seat Belt Retractor Pretensioner - Left Front

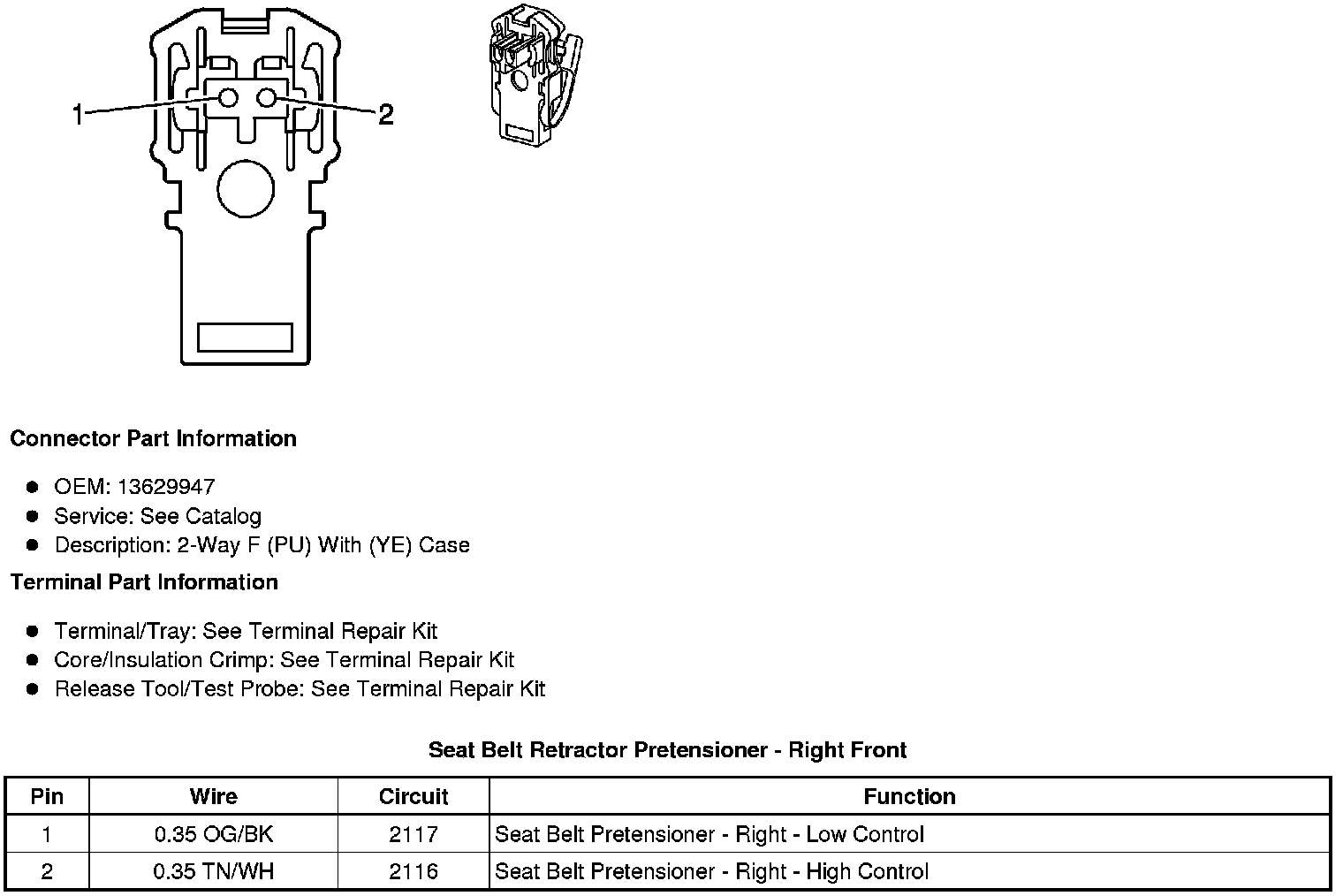

Seat Belt Retractor Pretensioner - Right Front
