Relays and Modules - Steering



Component Connector End Views

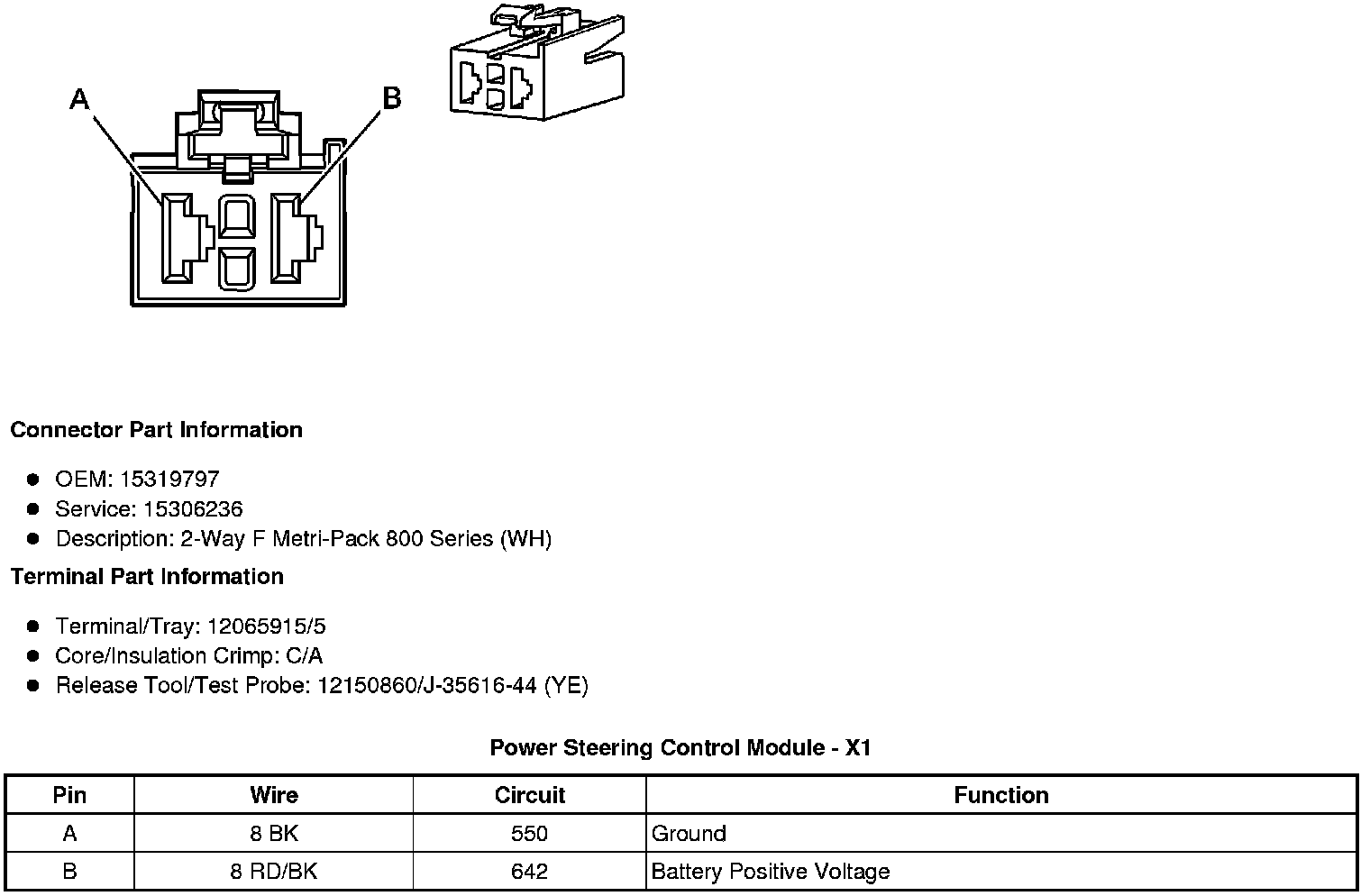

Power Steering Control Module - X1

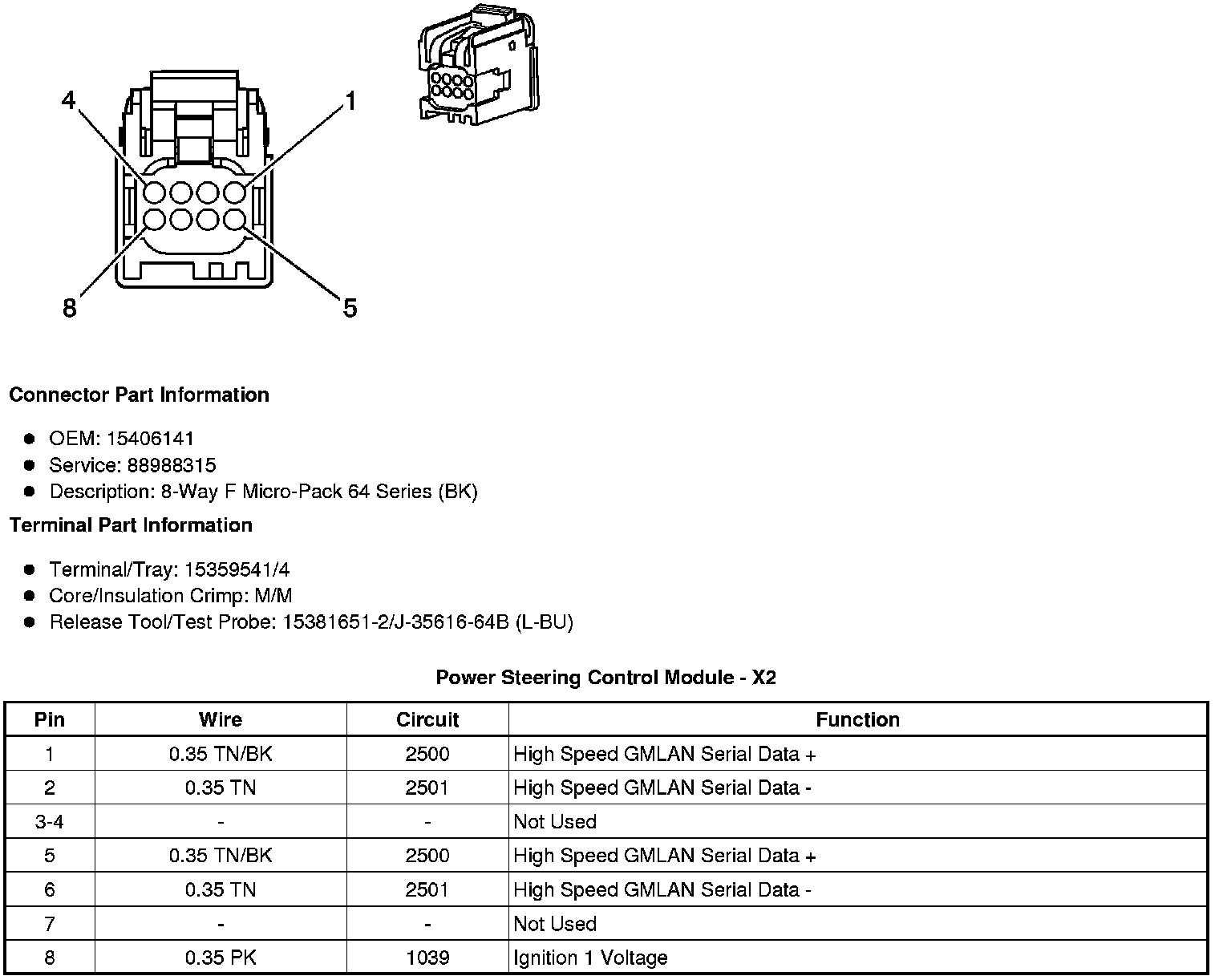

Power Steering Control Module - X2

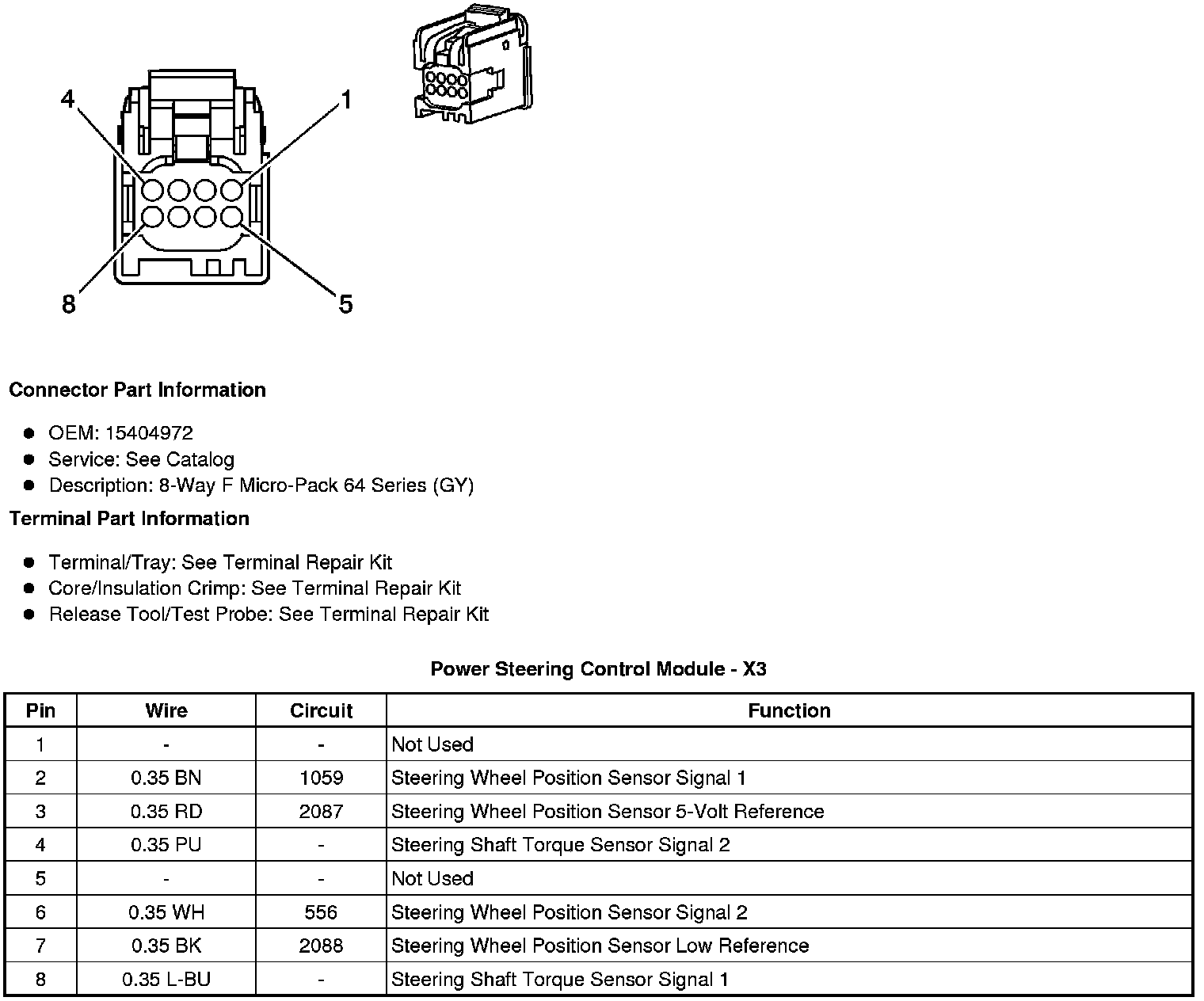

Power Steering Control Module - X3
