Engine Control Module
Component Connector End Views

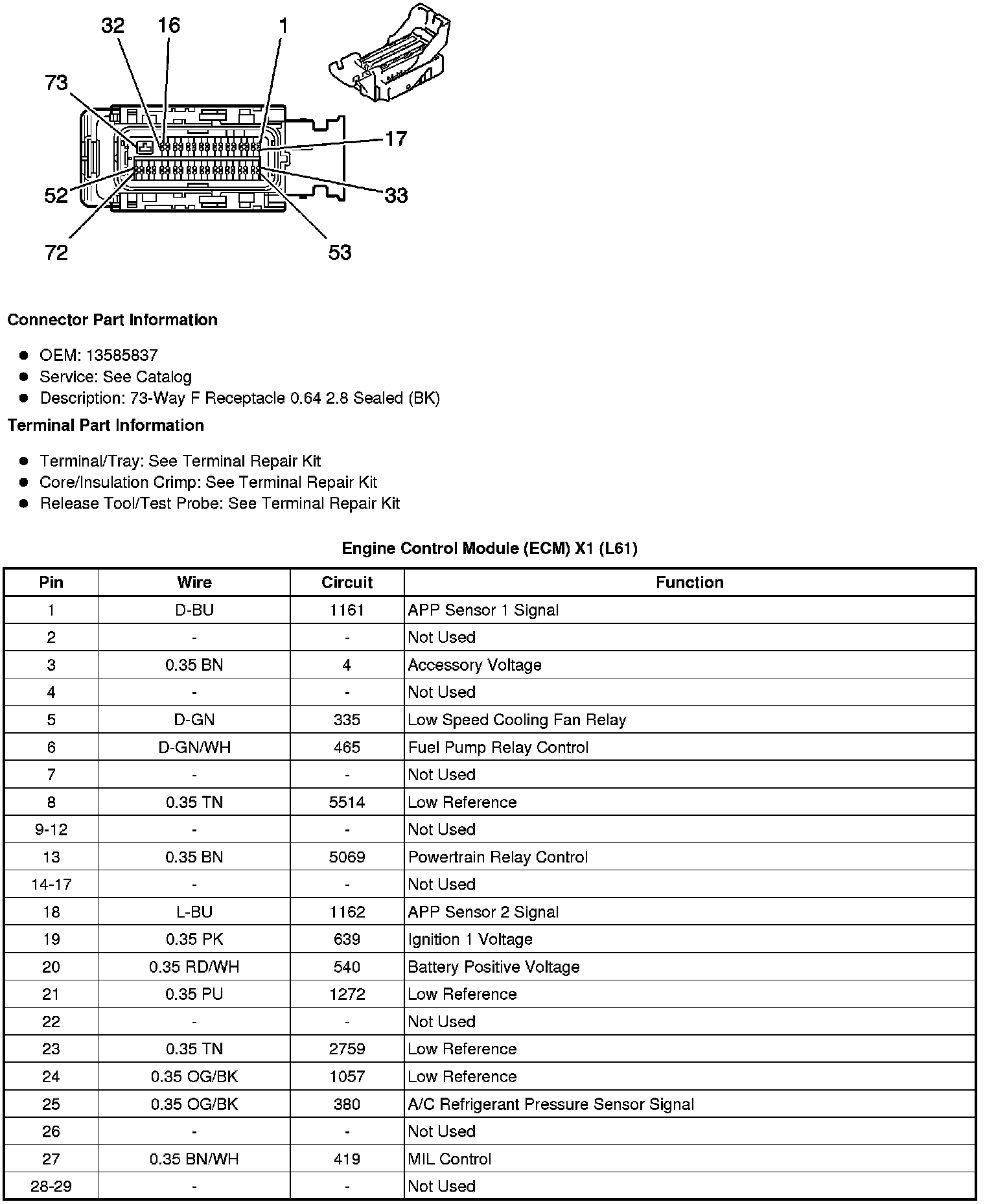

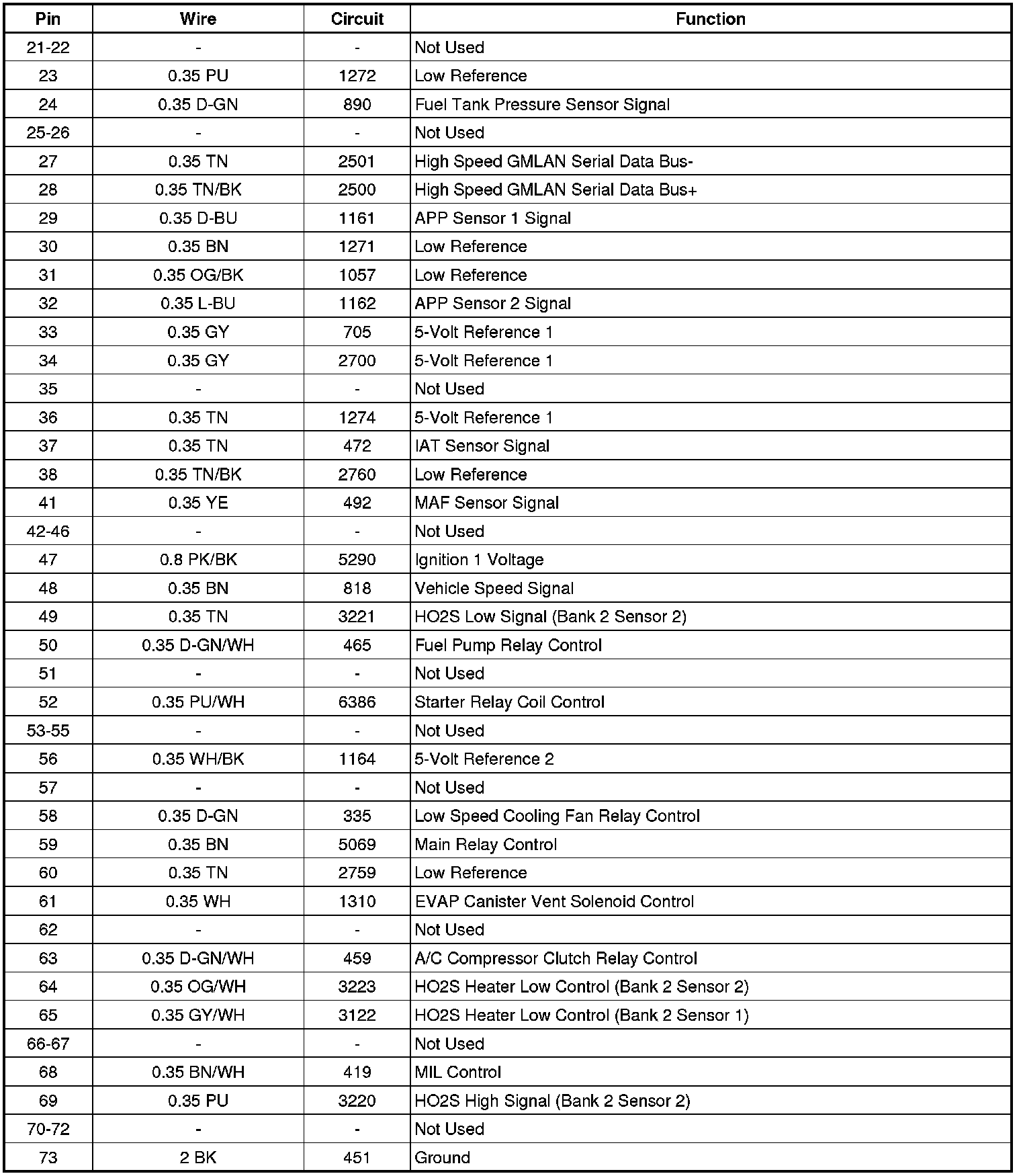

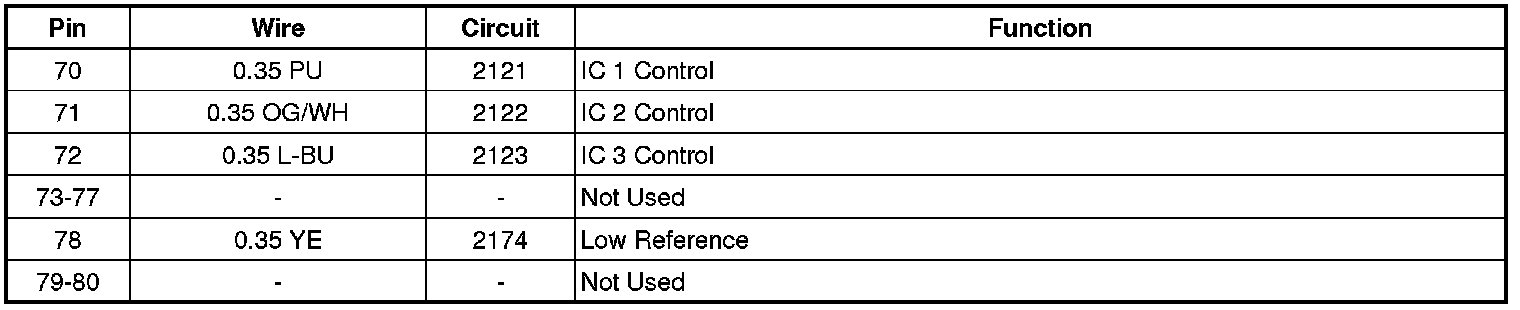

Engine Control Module (ECM) X1 (L61)

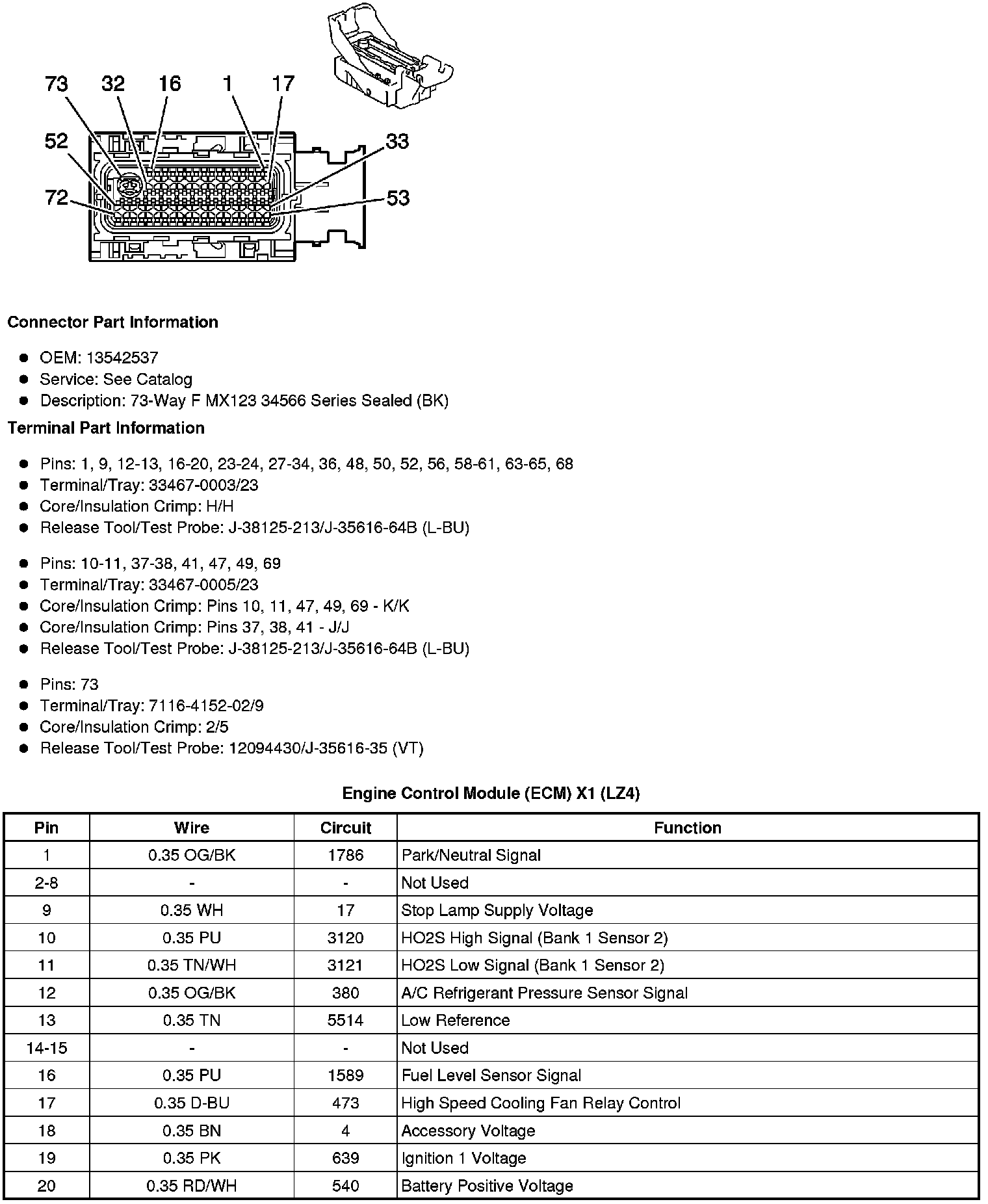

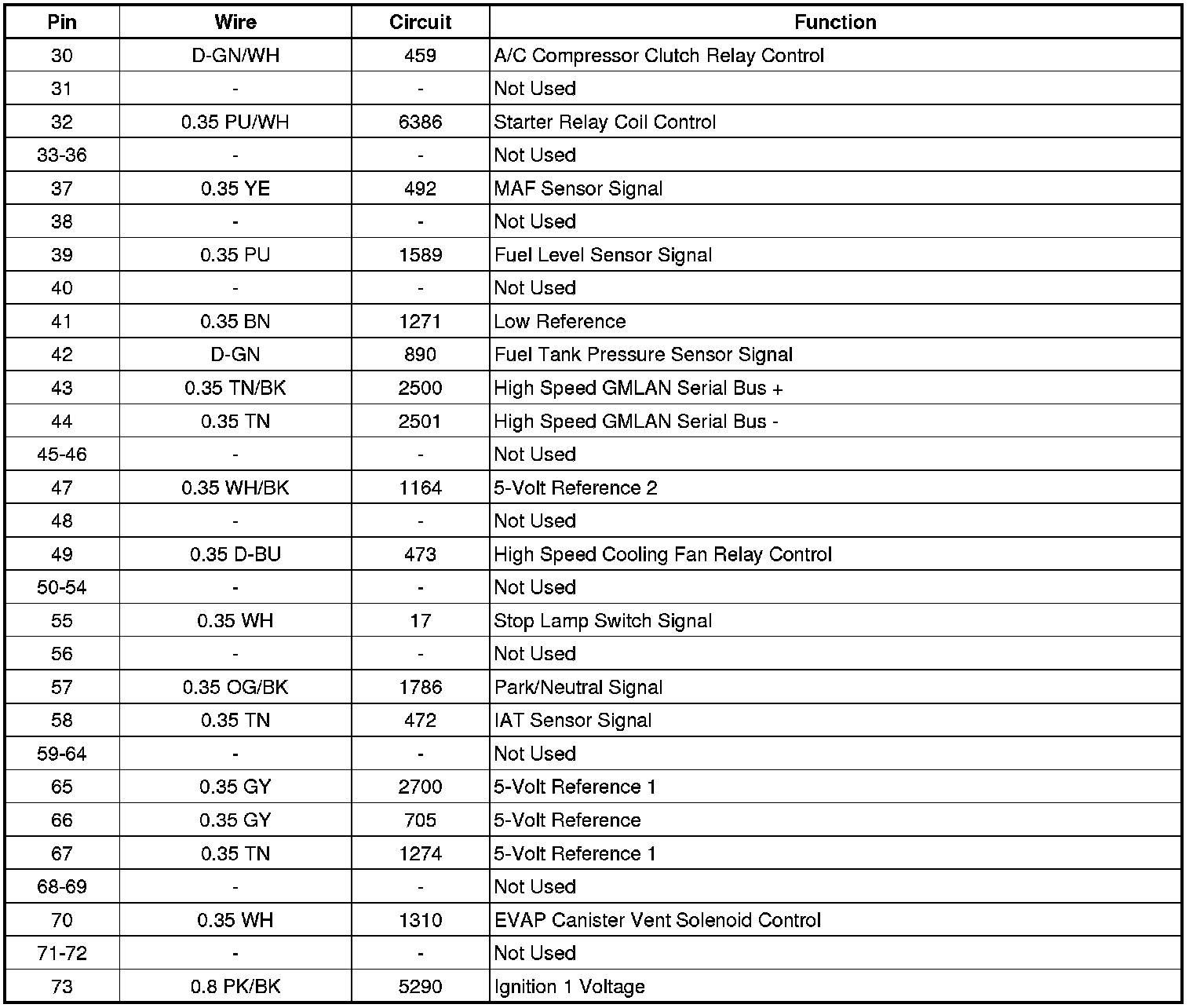

Engine Control Module (ECM) X1 (LZ4)

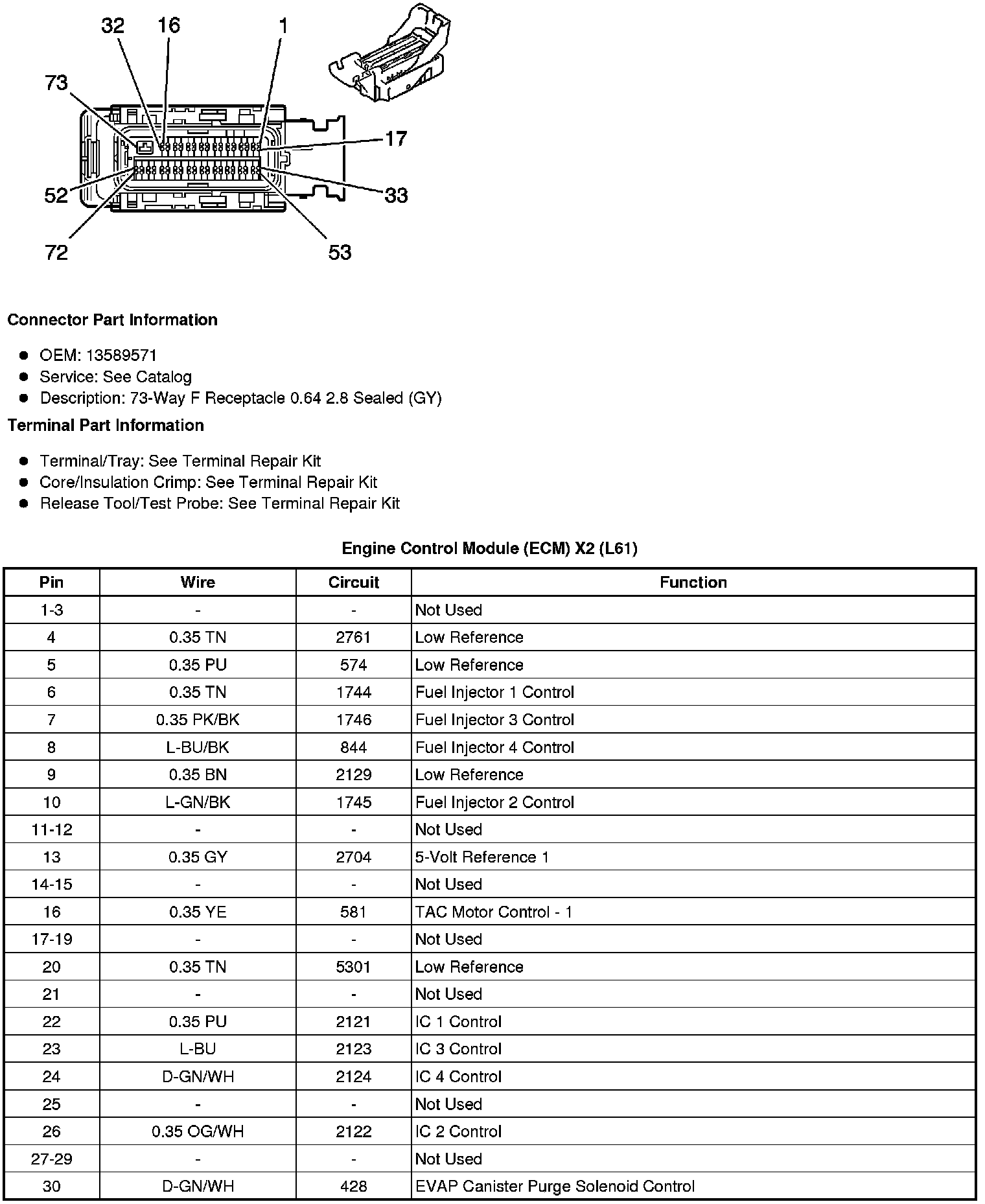

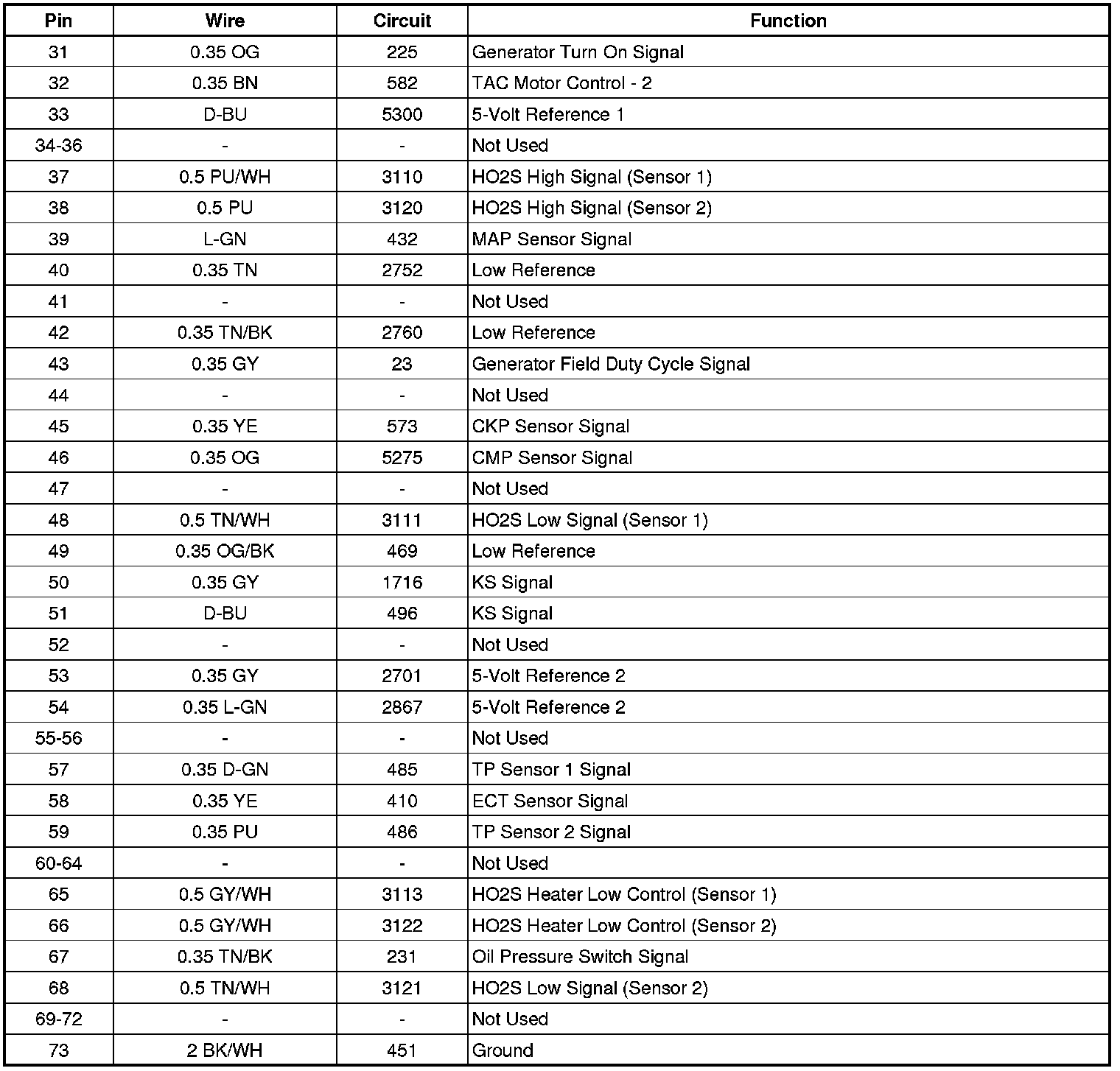

Engine Control Module (ECM) X2 (L61)

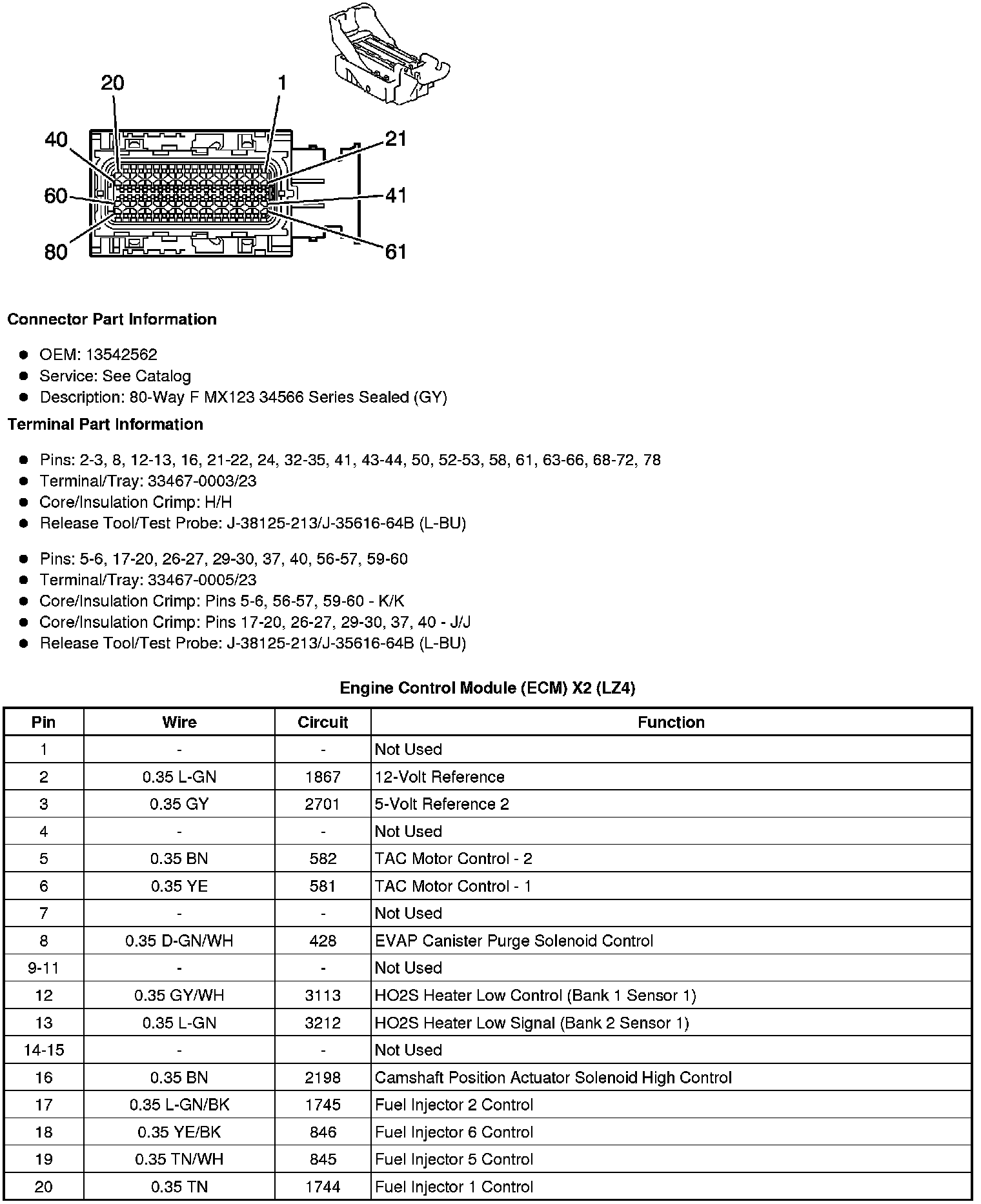

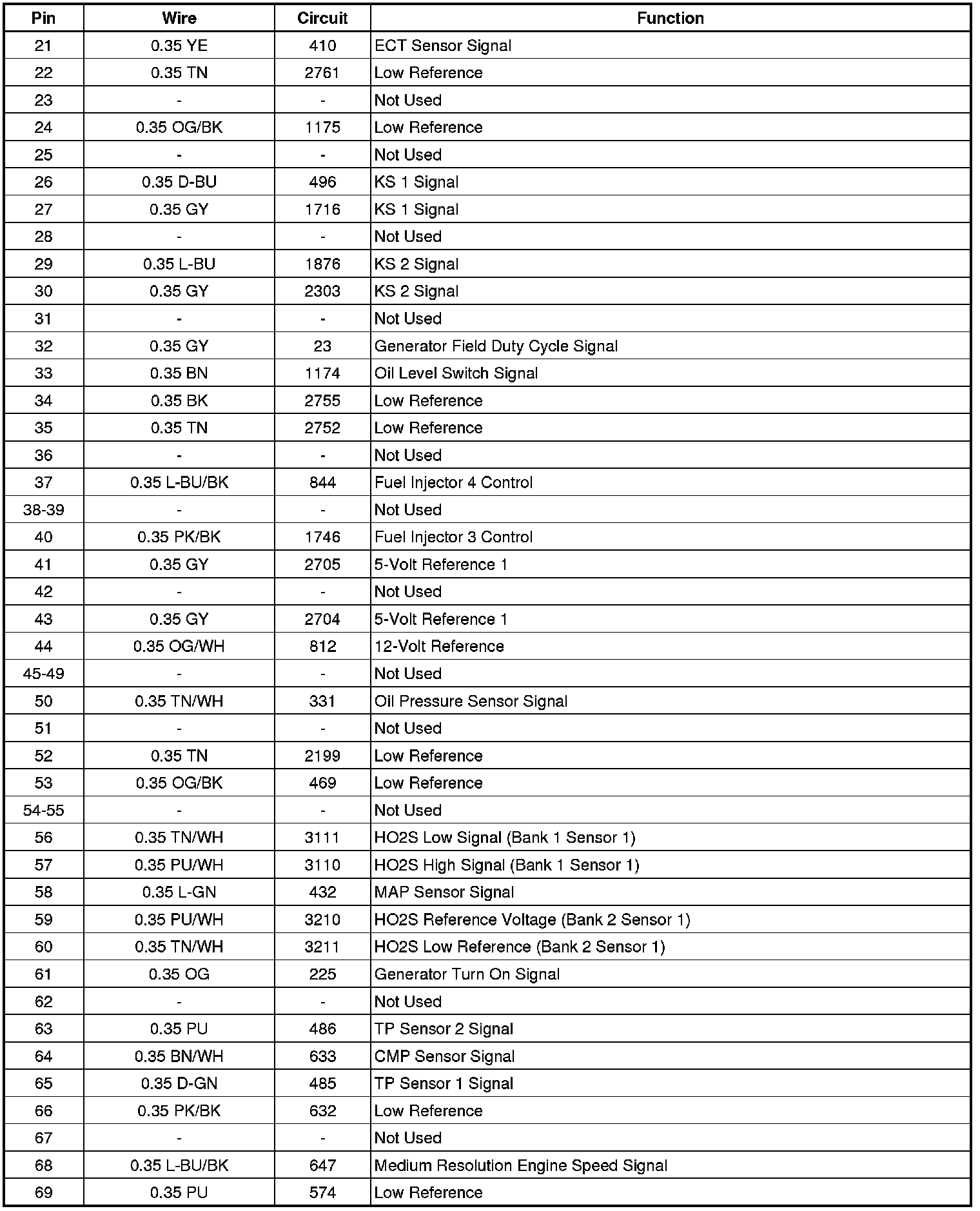

Engine Control Module (ECM) X2 (LZ4)
Component Connector End Views
Engine Control Module (ECM) X1 (L61)
Engine Control Module (ECM) X1 (LZ4)
Engine Control Module (ECM) X2 (L61)
Engine Control Module (ECM) X2 (LZ4)
