Fuse Block
Electrical Center Identification Views

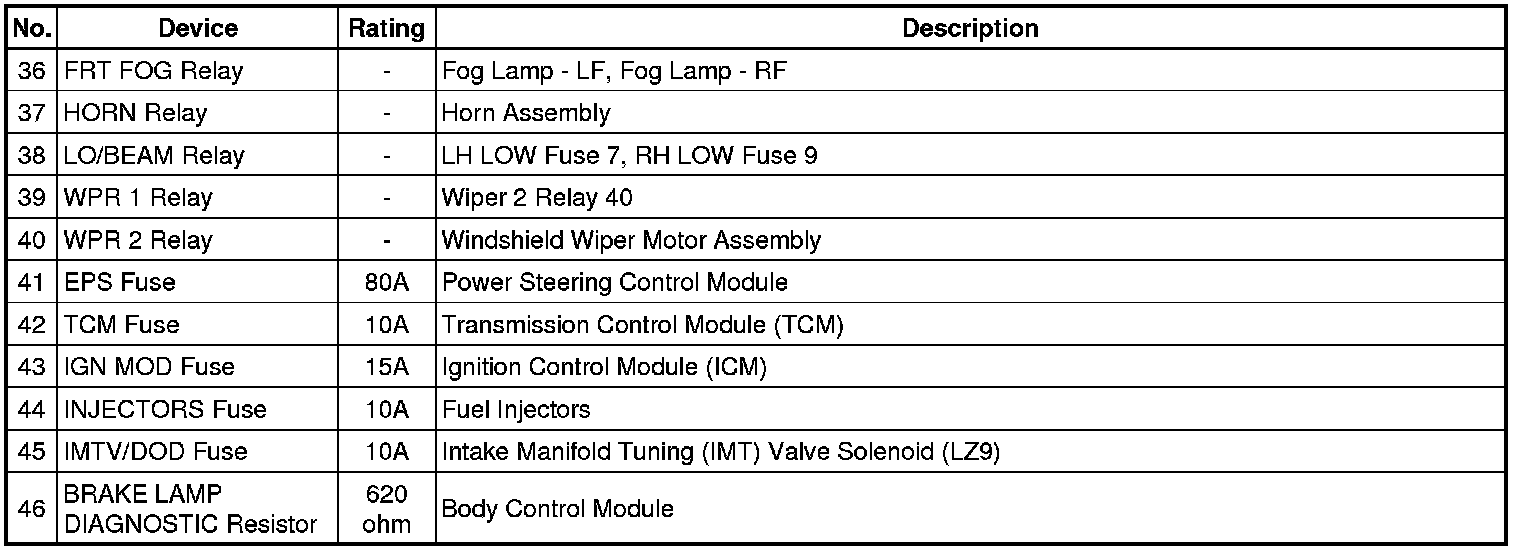

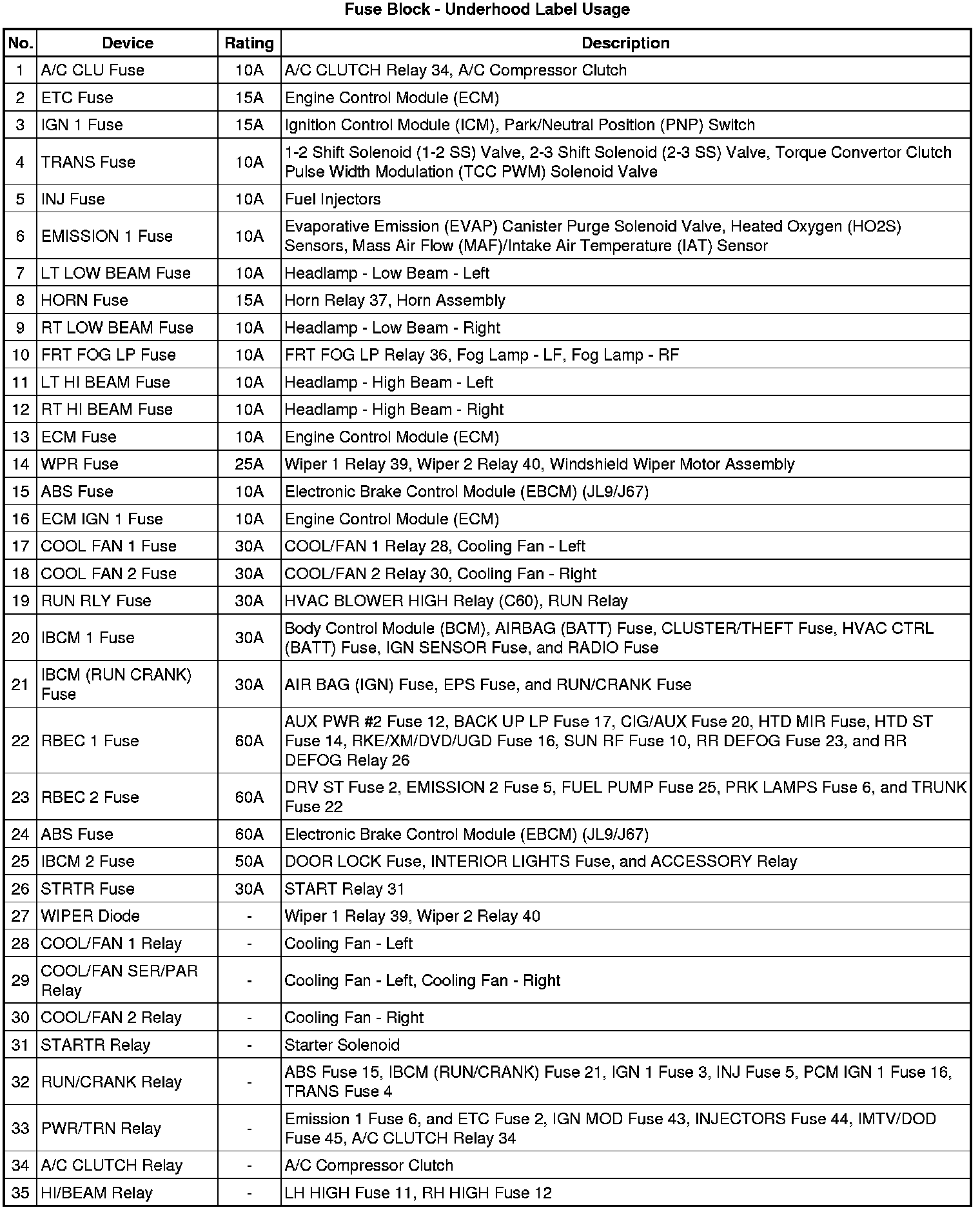

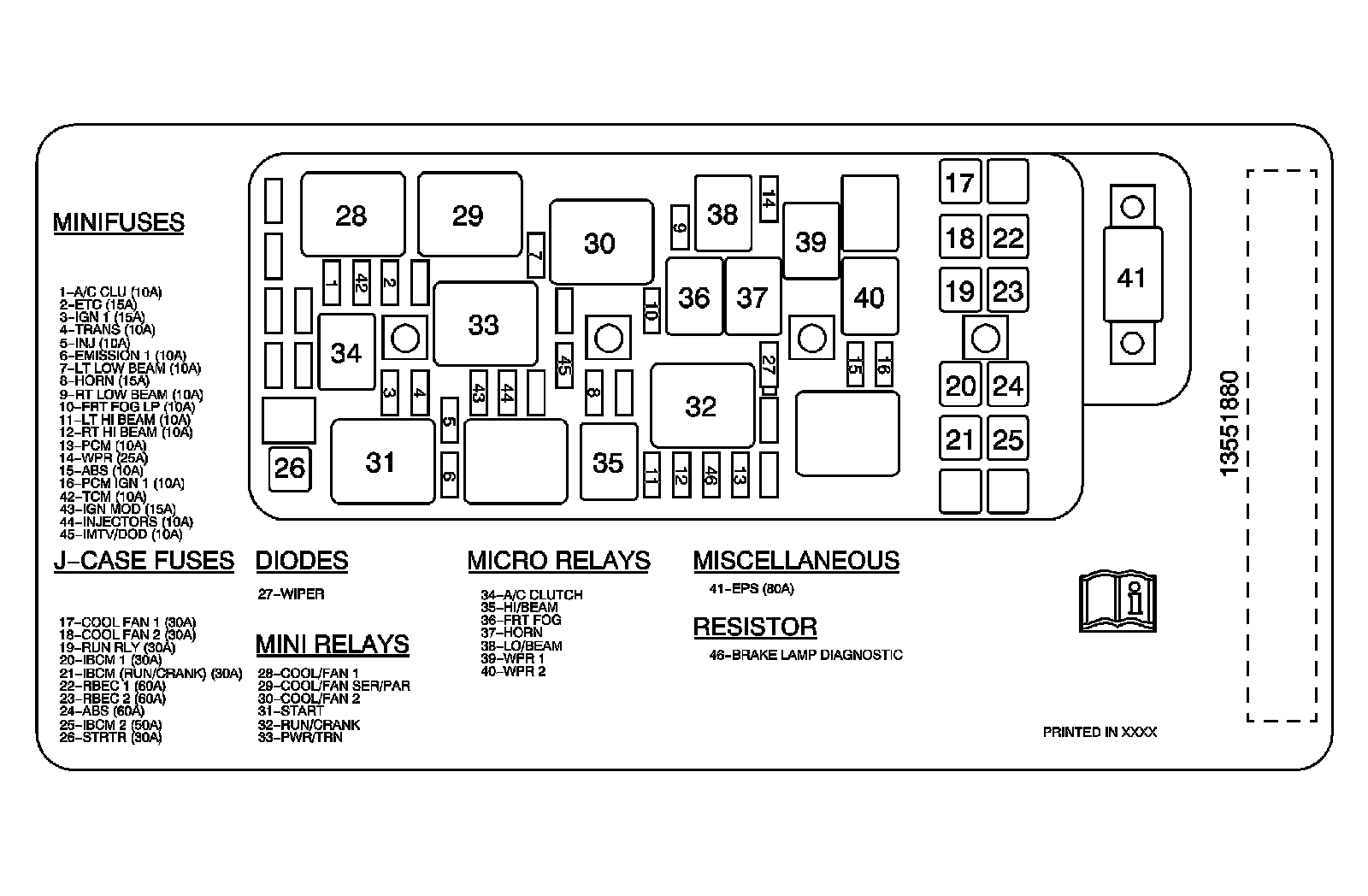

Fuse Block - Underhood Label

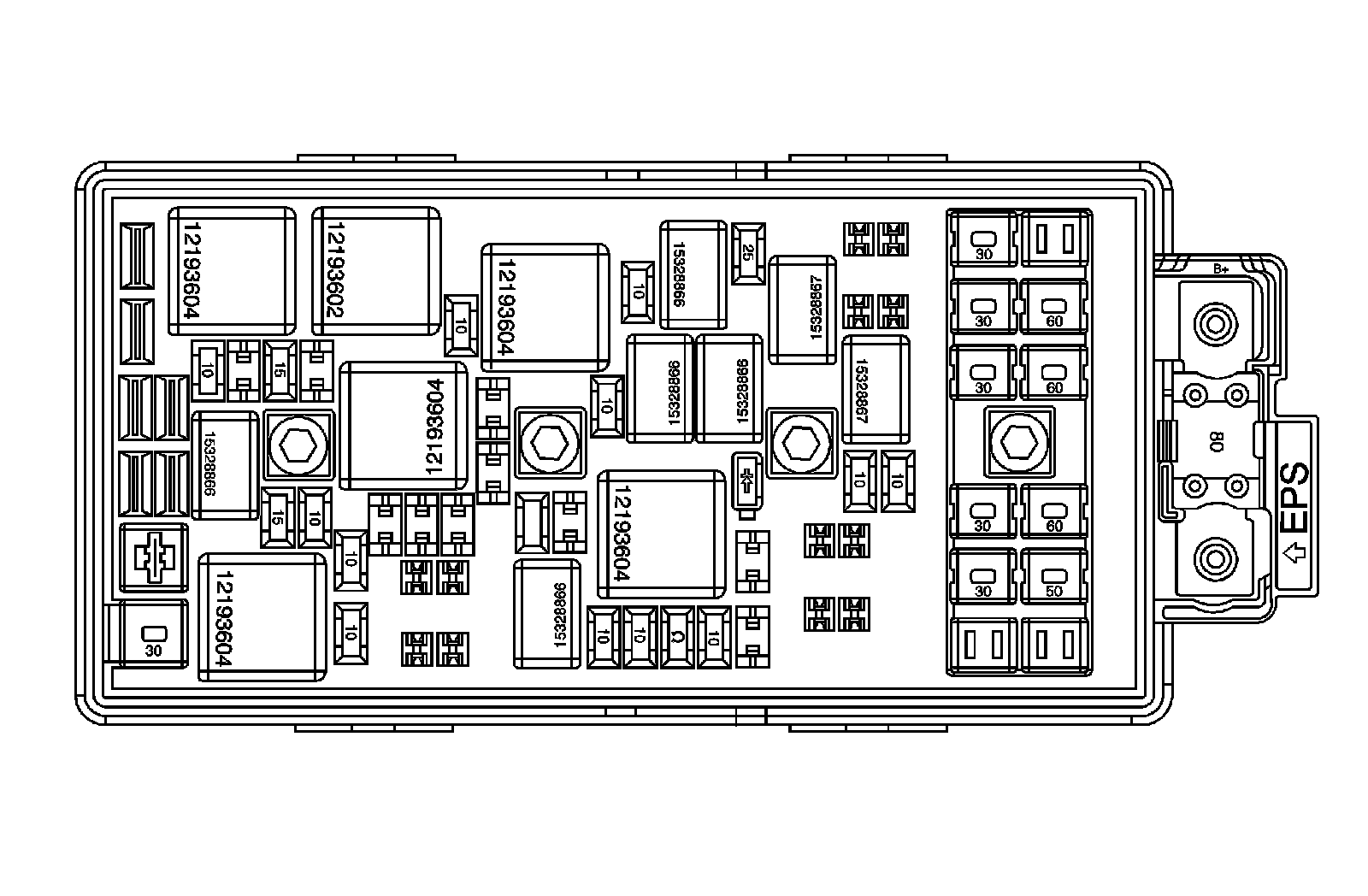

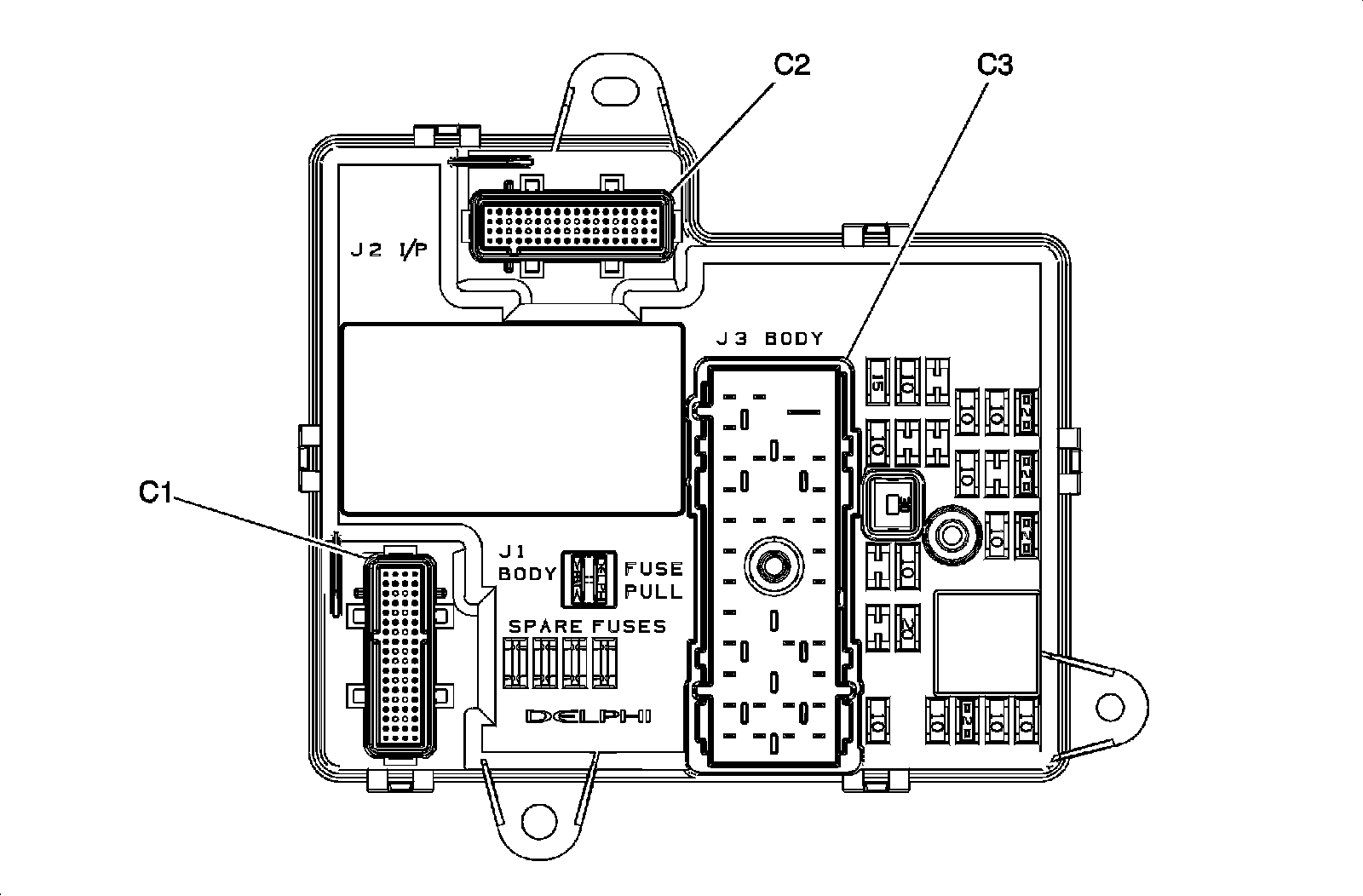

Fuse Block - Underhood Top View

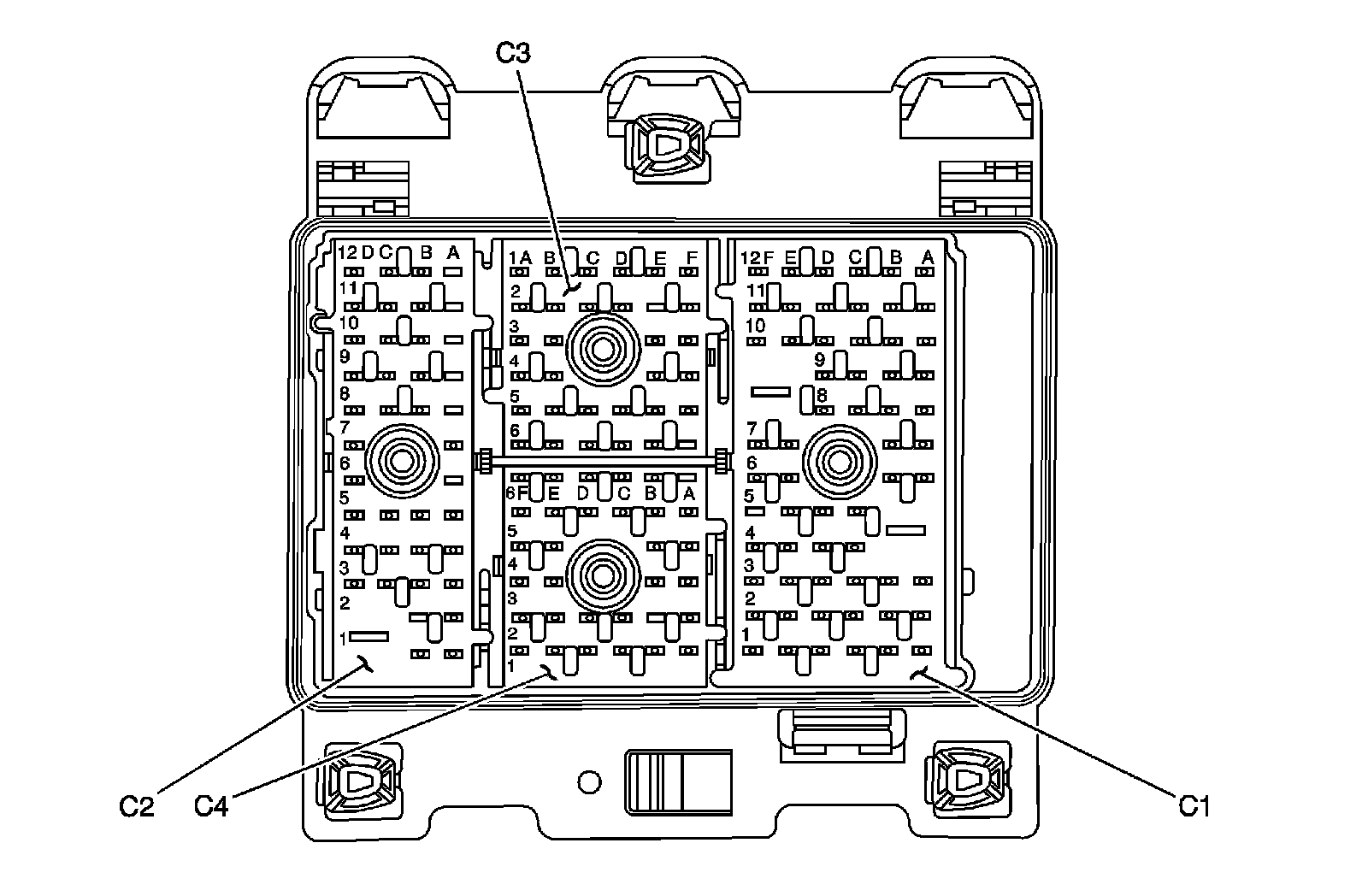

Fuse Block - Underhood Bottom View

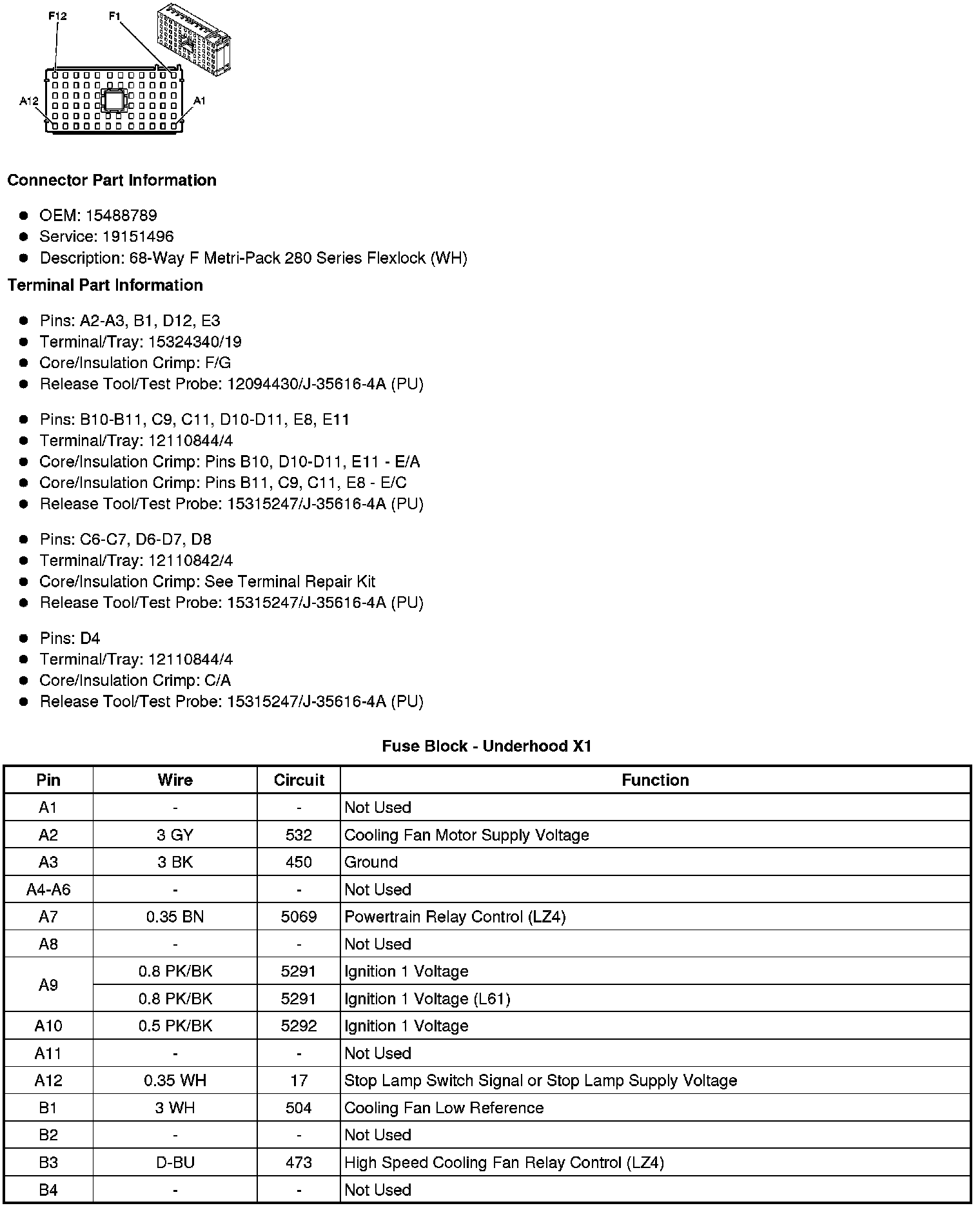

Fuse Block - Underhood X1

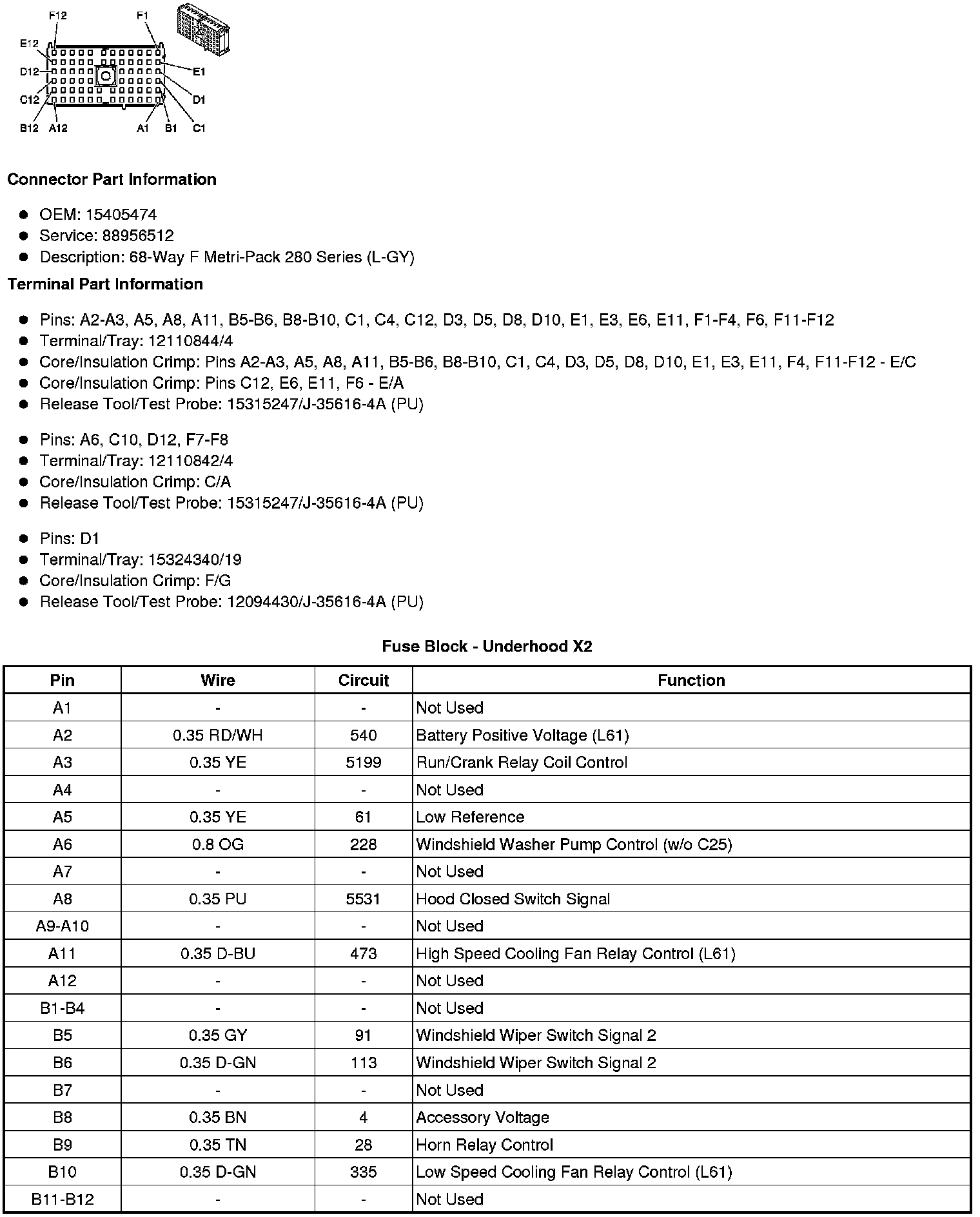

Fuse Block - Underhood X2

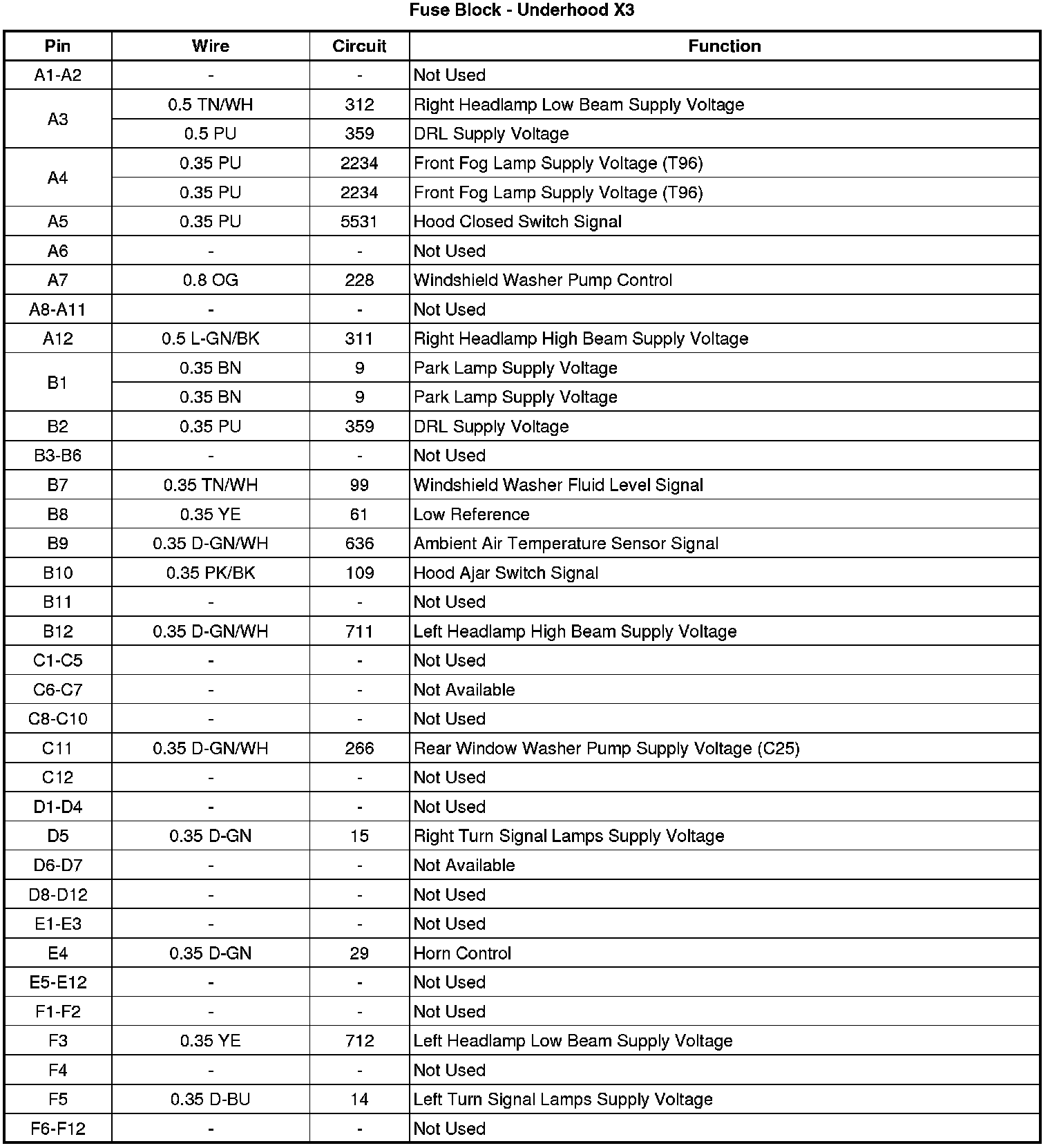

Fuse Block - Underhood X3

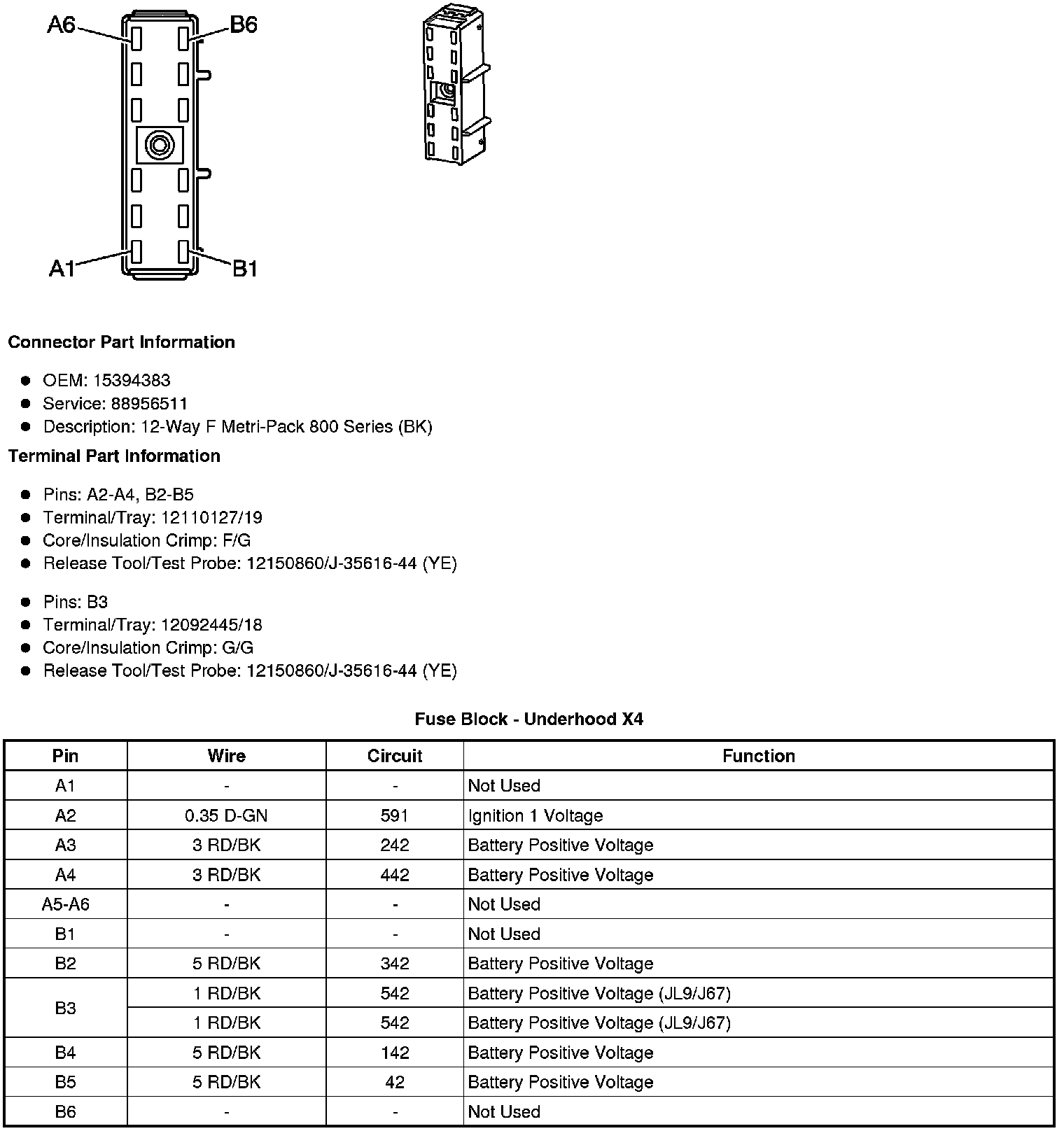

Fuse Block - Underhood X4

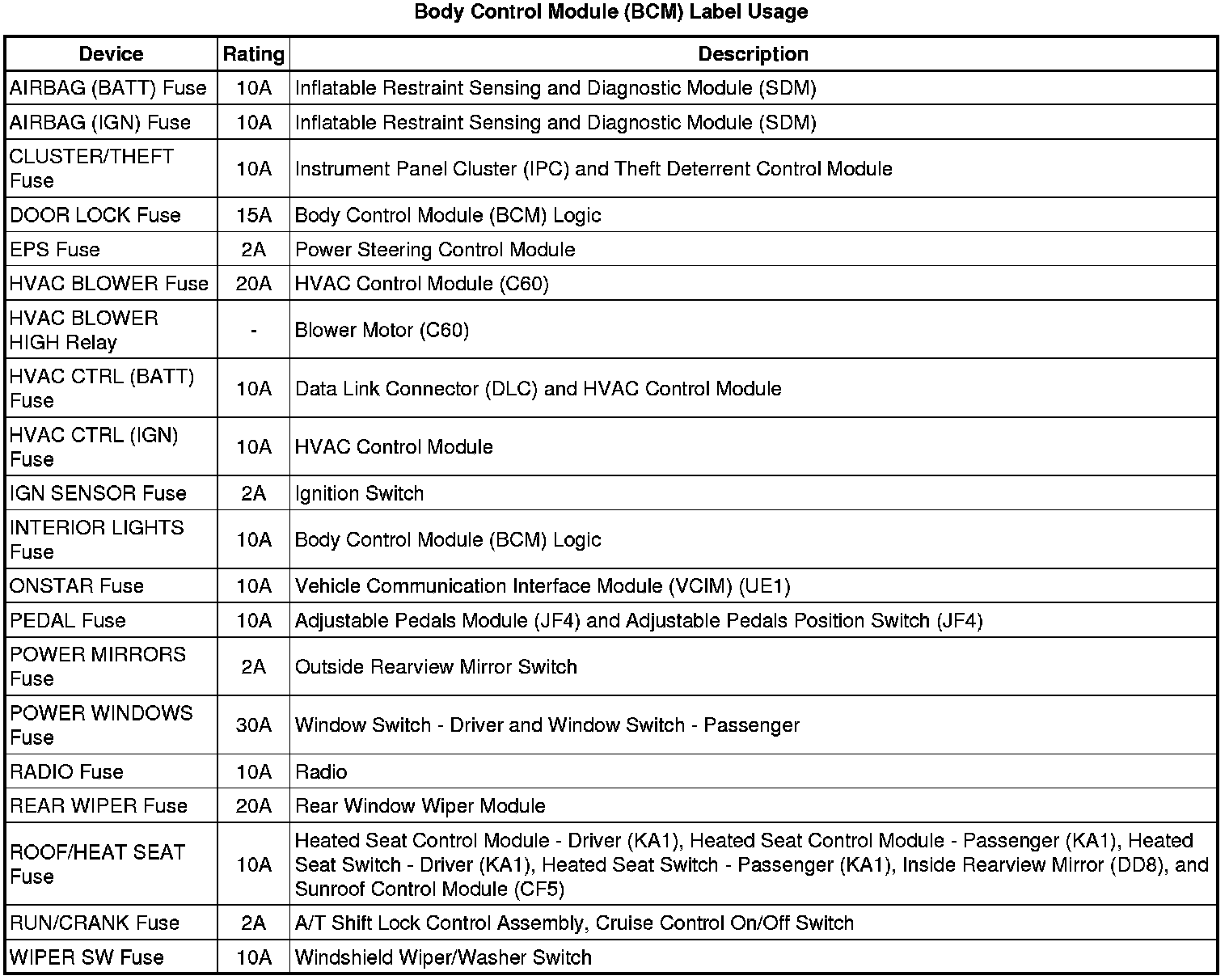

Body Control Module (BCM) - Label
Body Control Module (BCM) - Top View
Body Control Module (BCM) - Bottom View

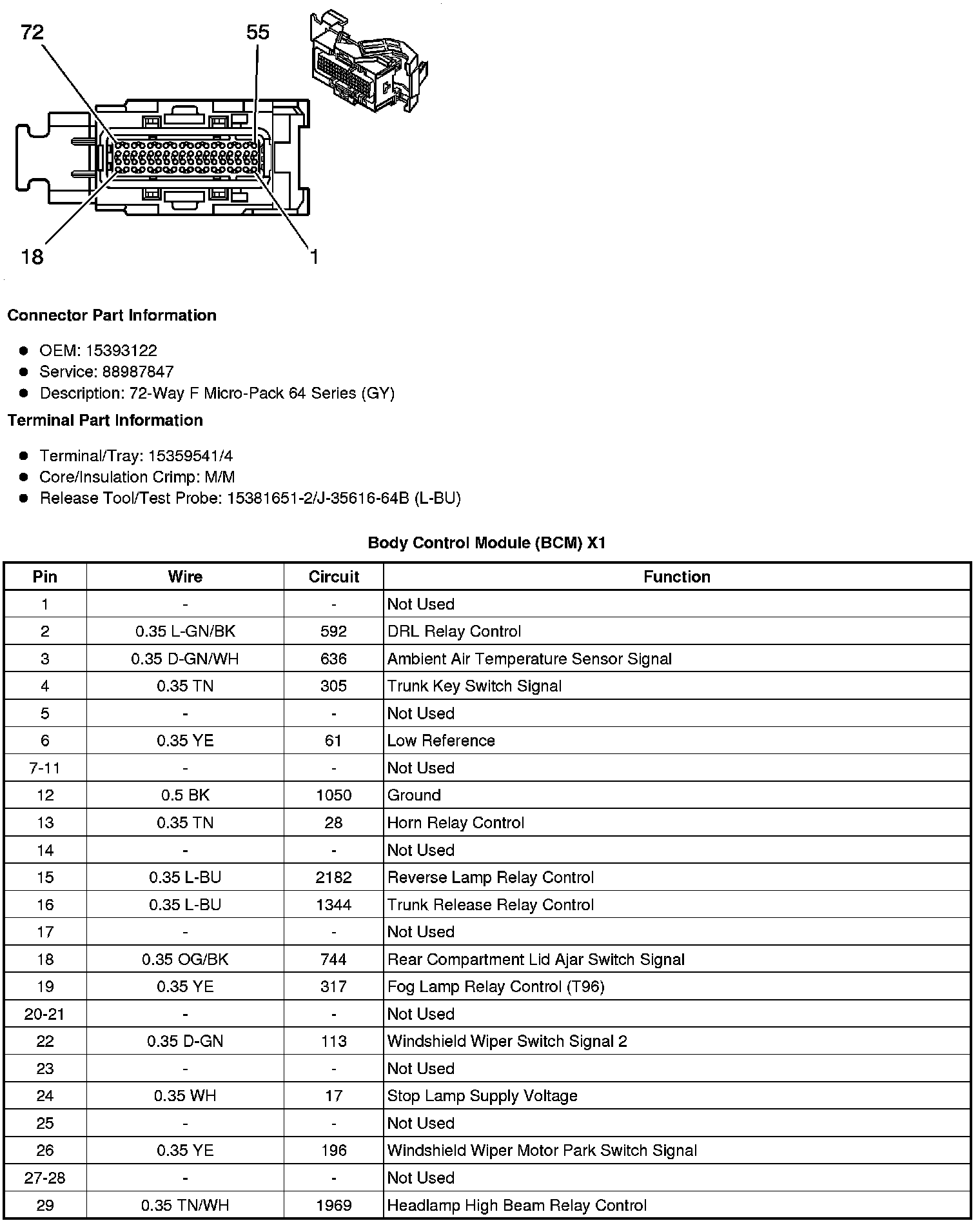

Body Control Module (BCM) X1

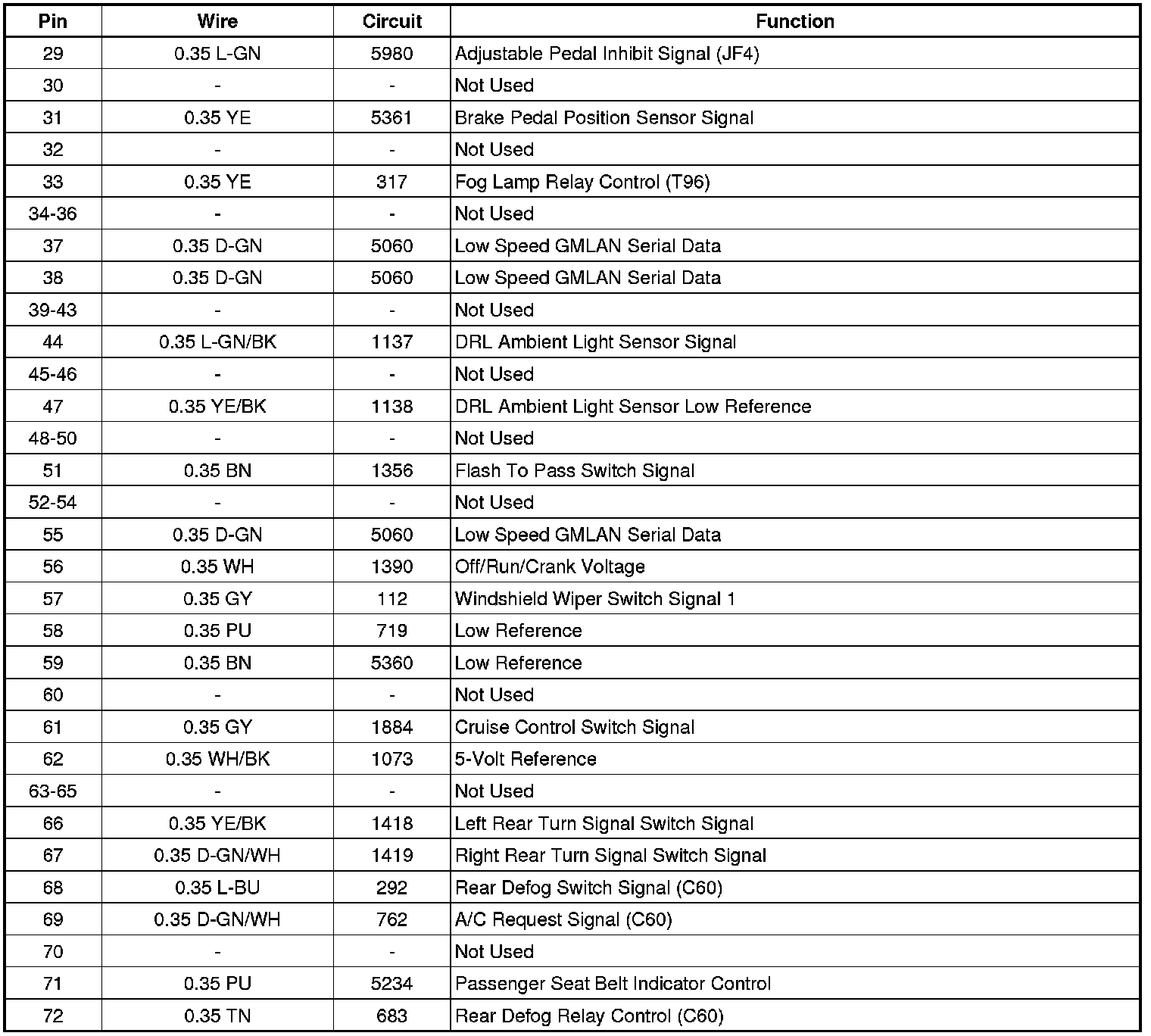

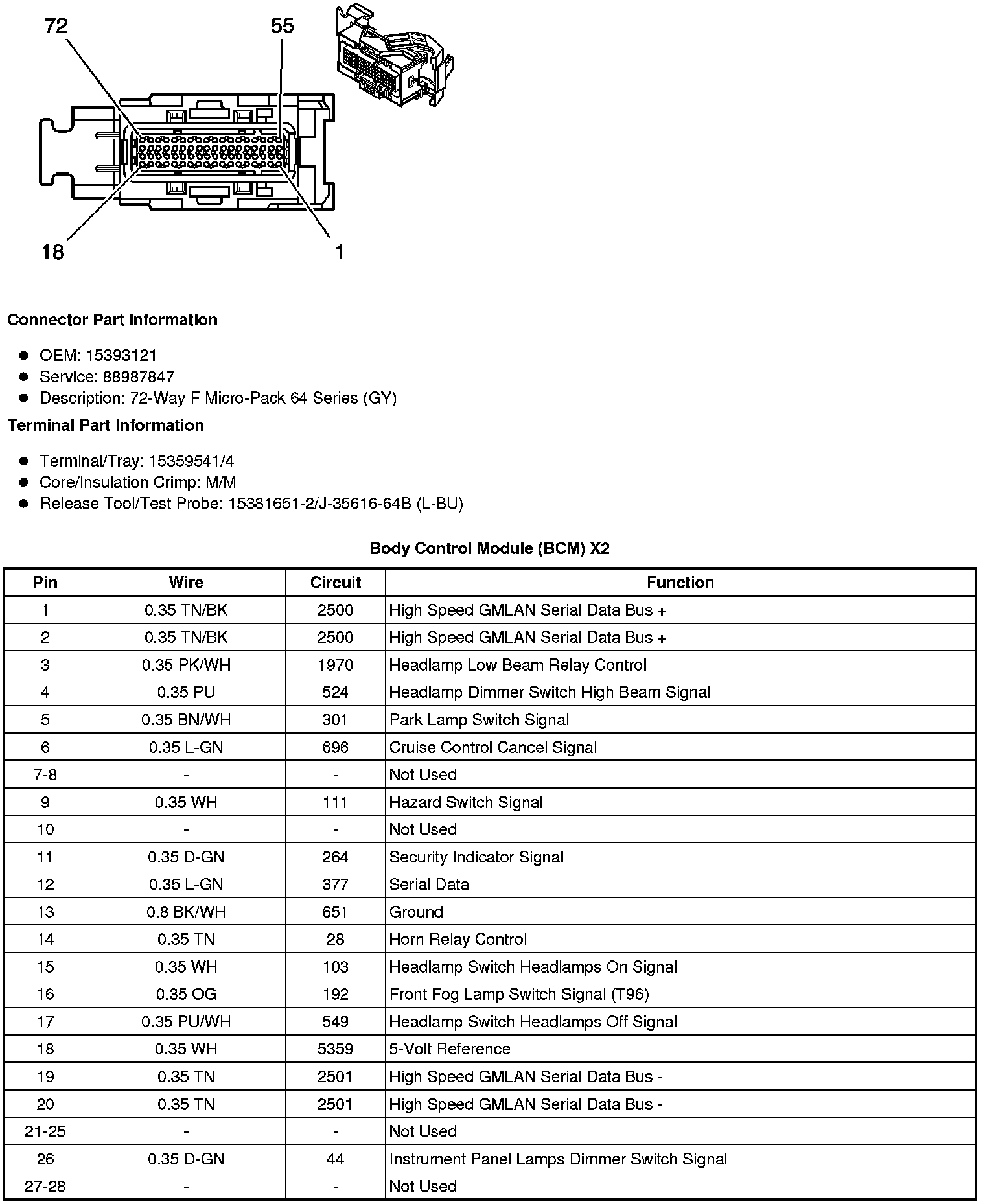

Body Control Module (BCM) X2
Body Control Module (BCM) X3

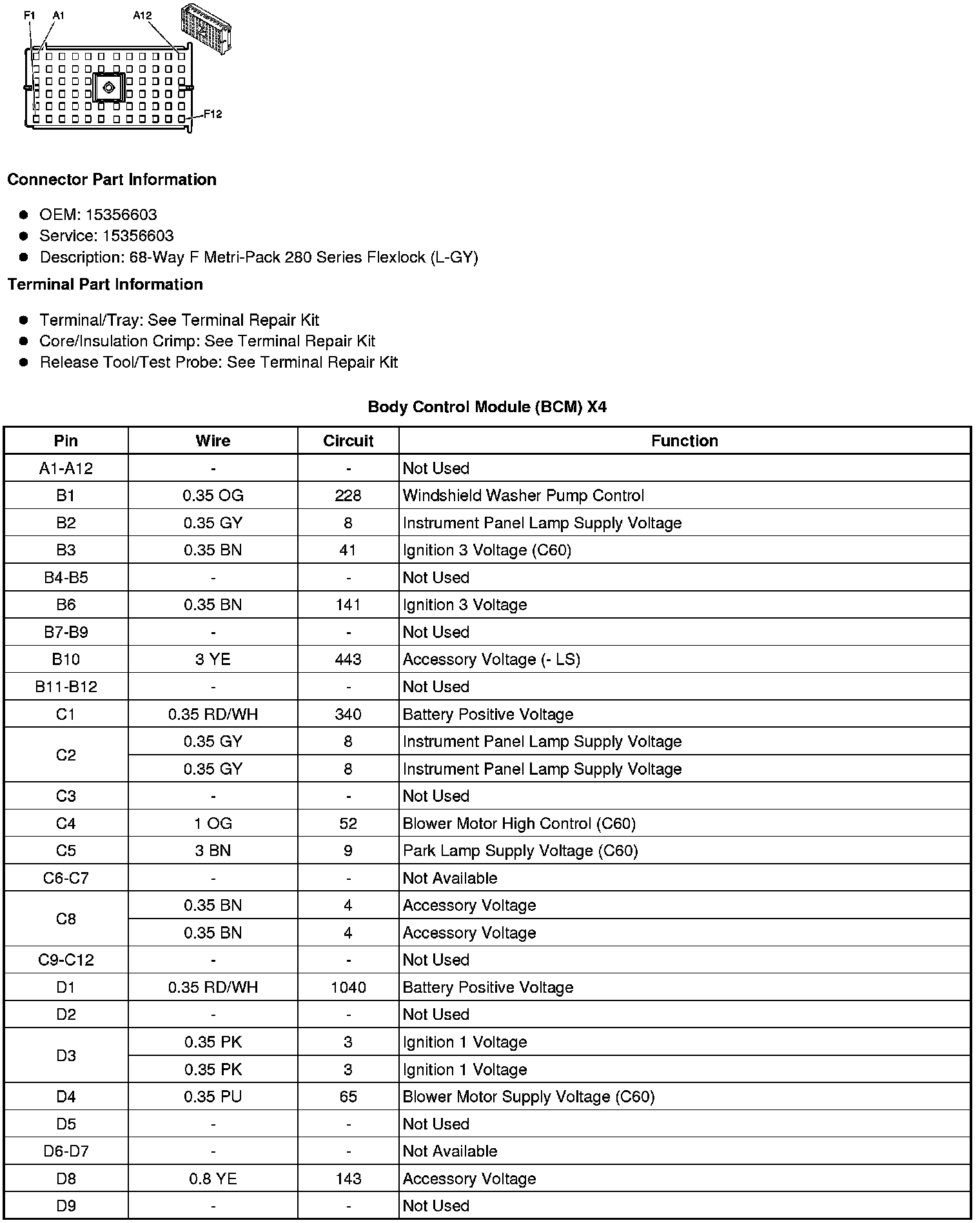

Body Control Module (BCM) X4

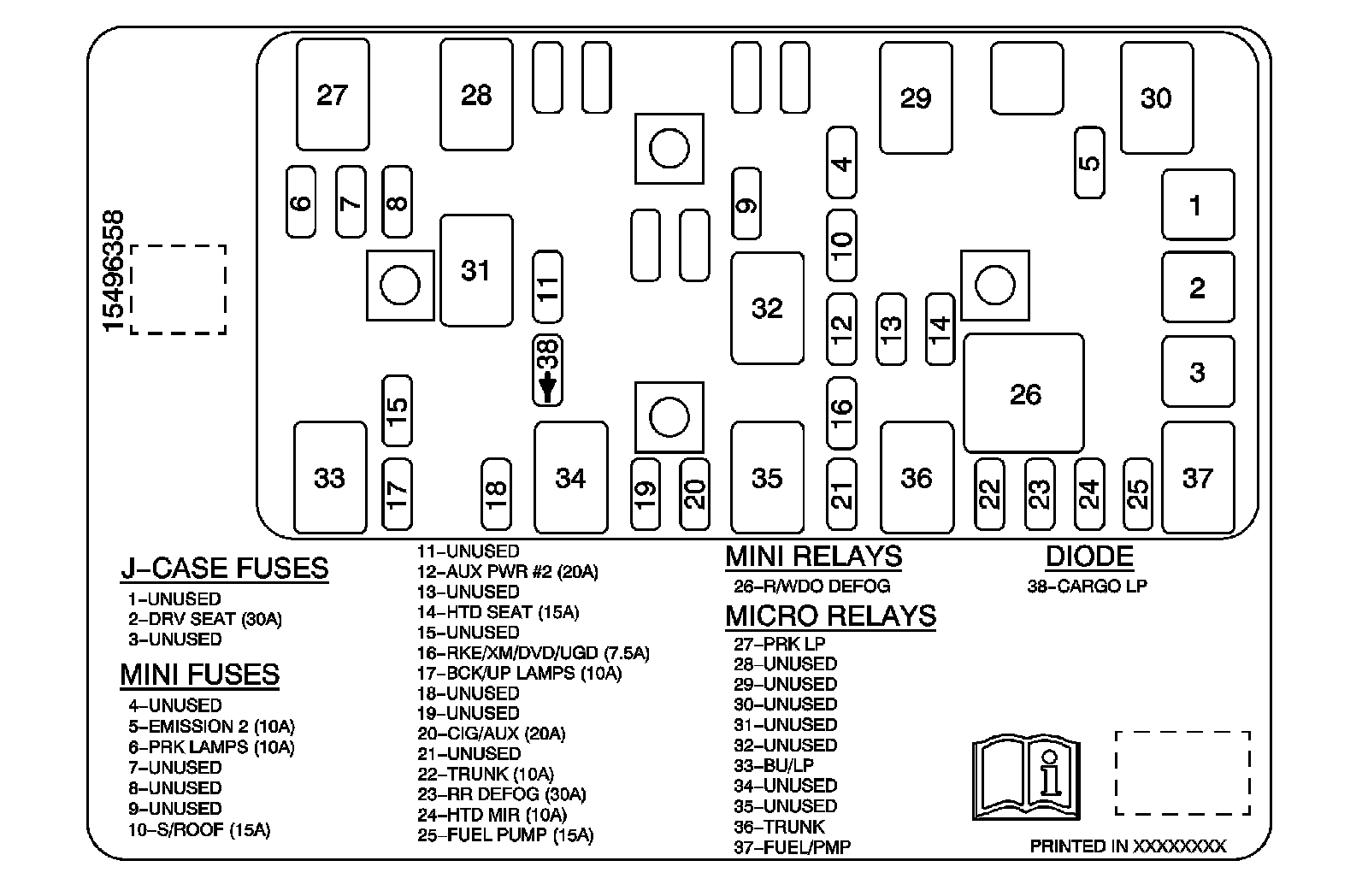

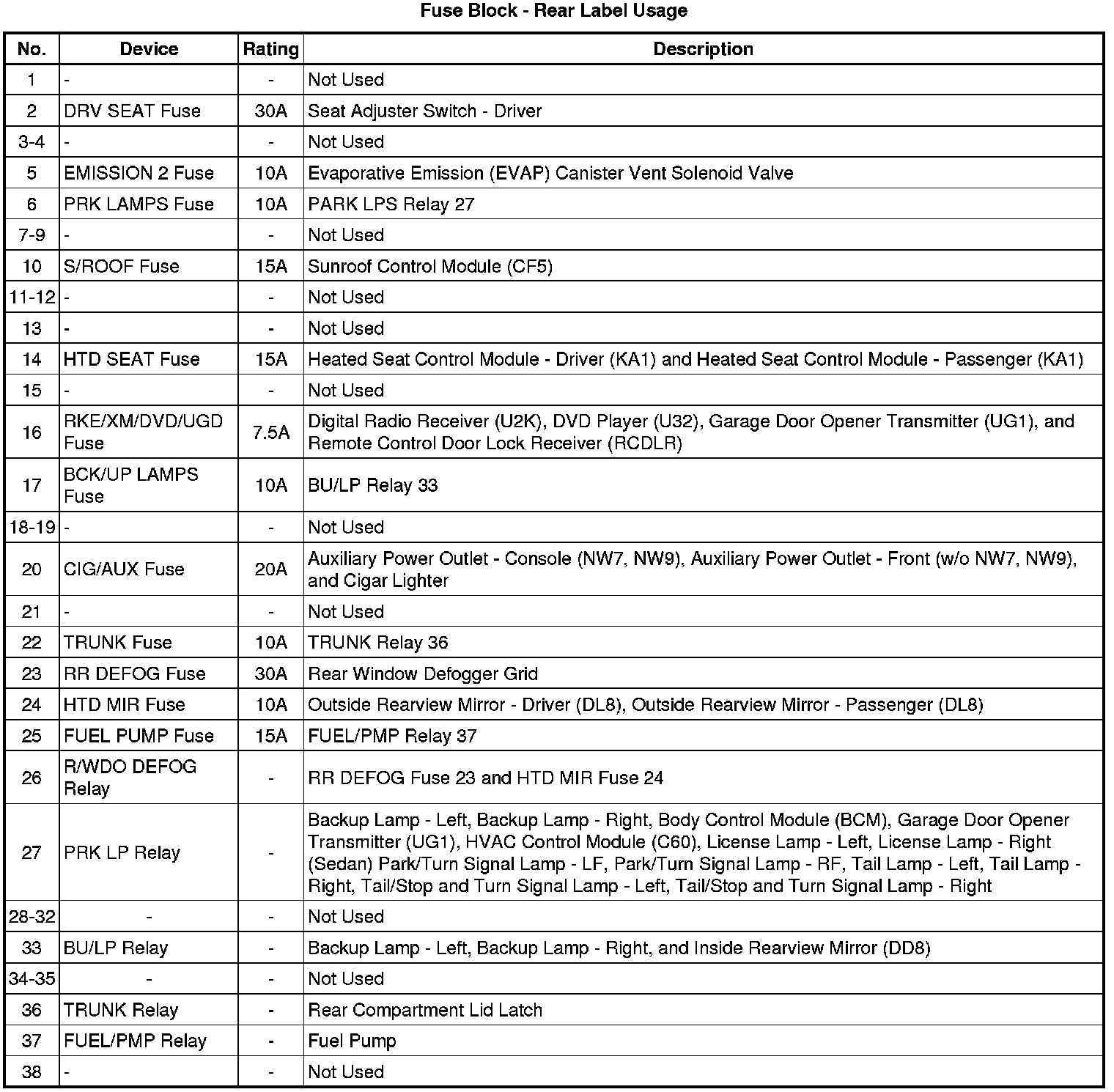

Fuse Block - Rear Label

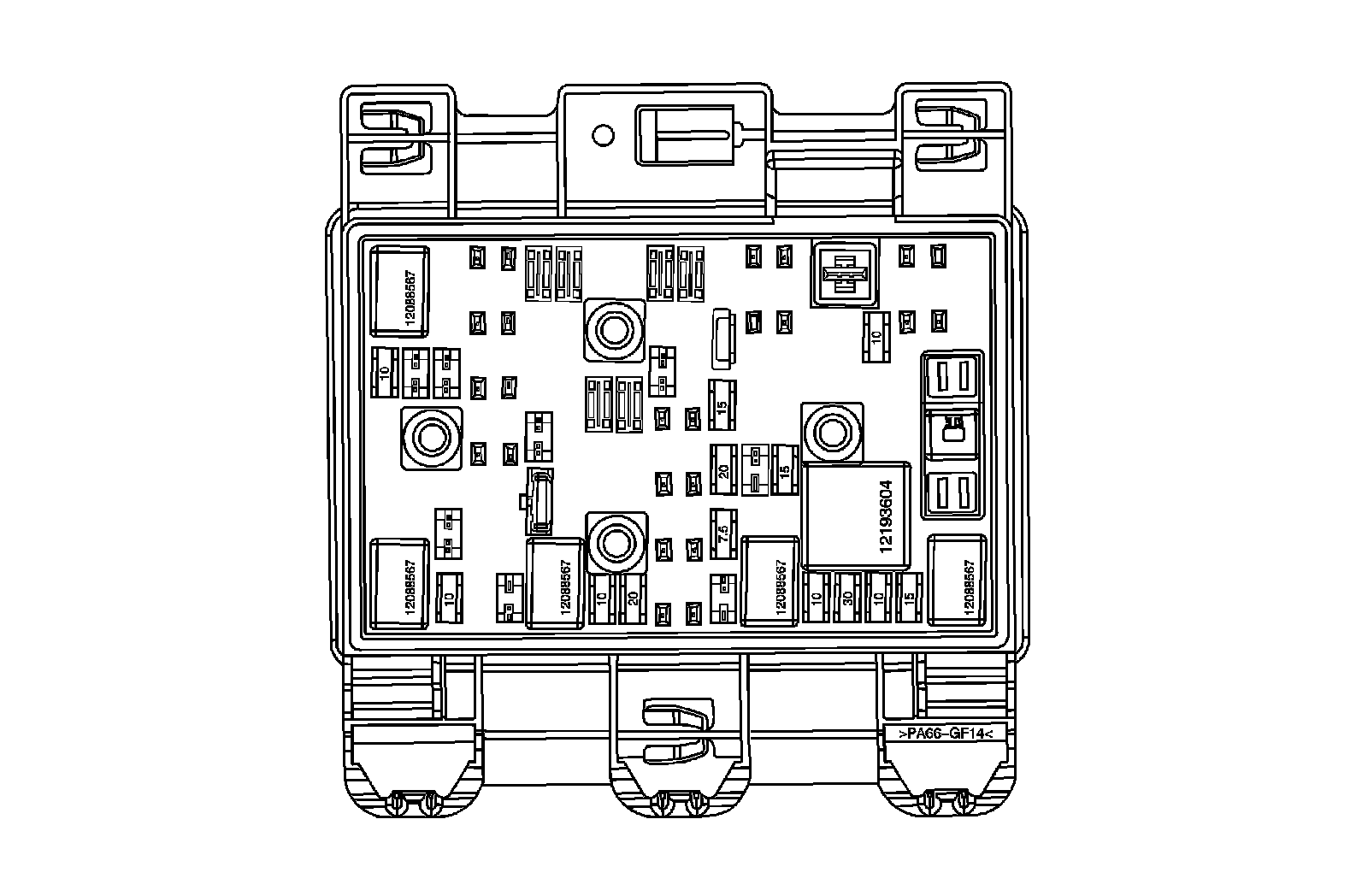

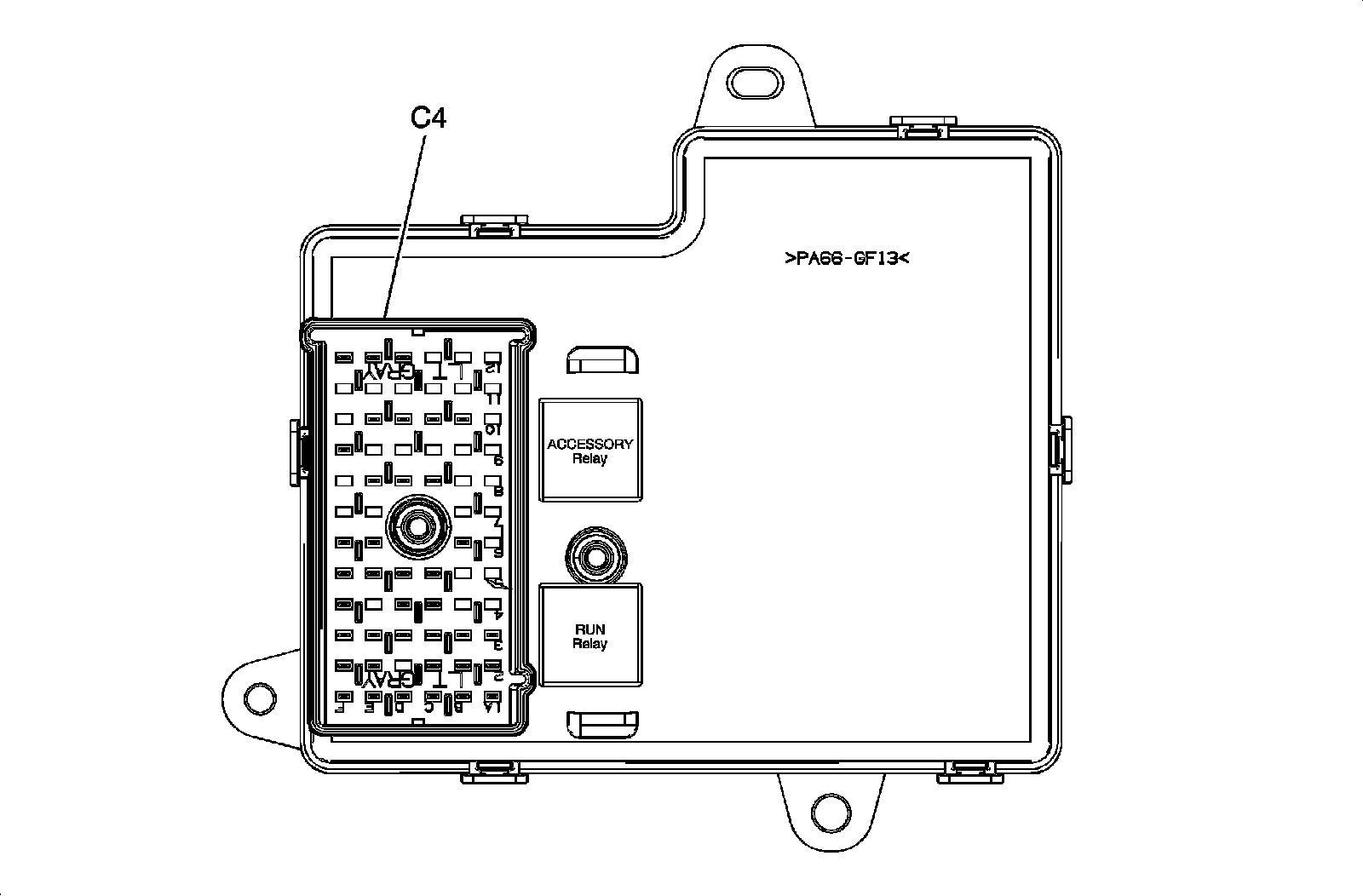

Fuse Block - Rear Top View
Fuse Block - Rear Bottom View

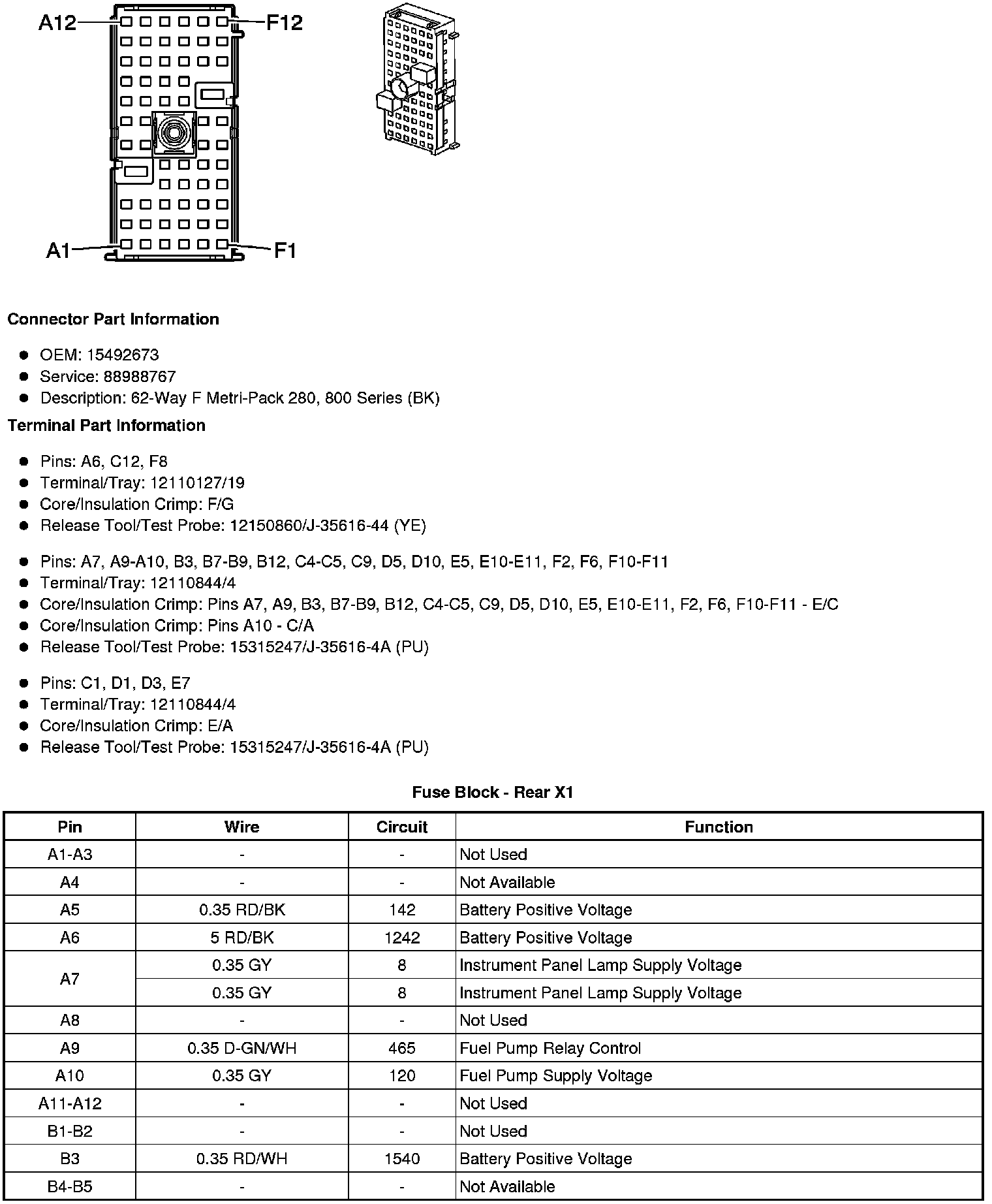

Fuse Block - Rear X1

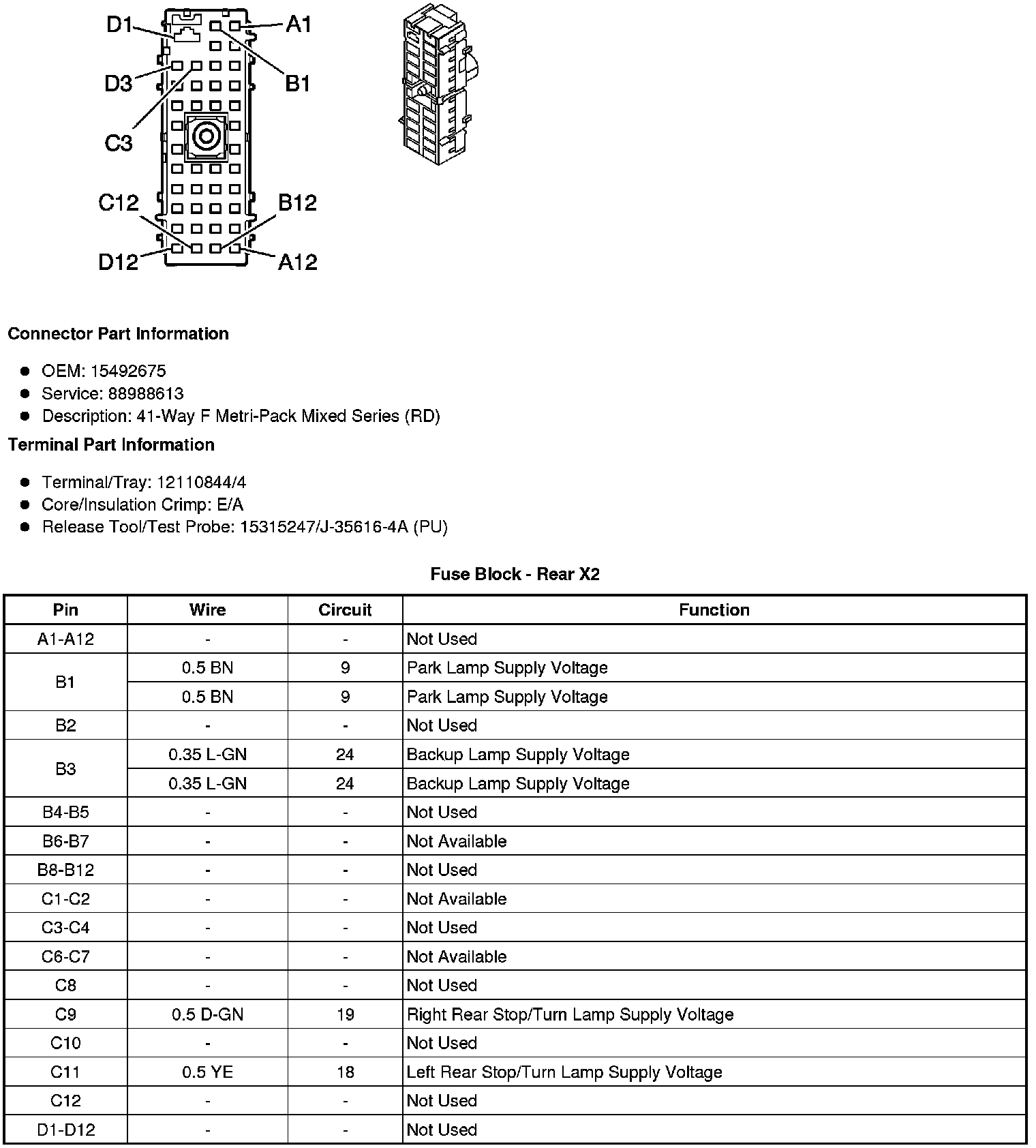

Fuse Block - Rear X2

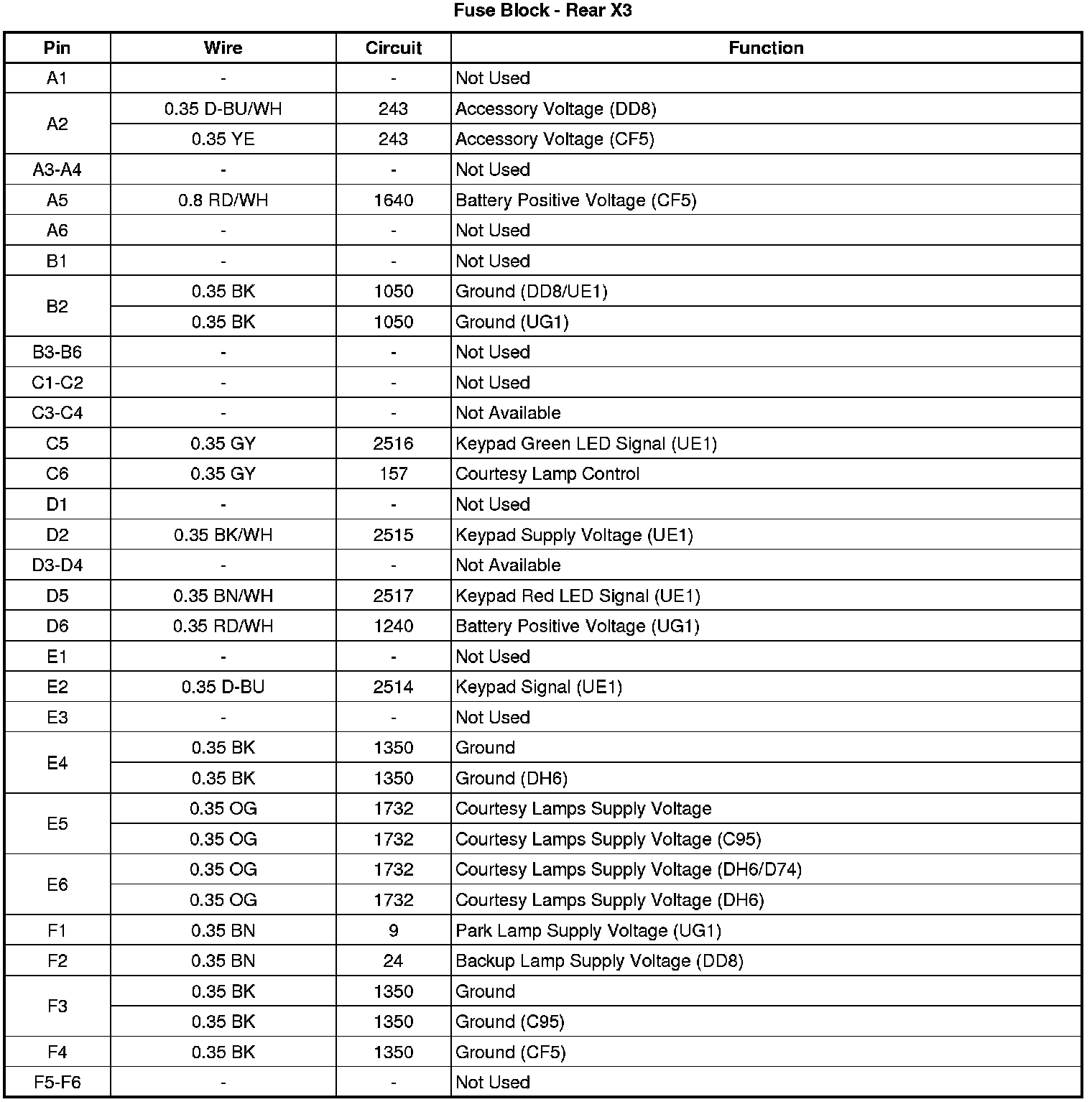

Fuse Block - Rear X3

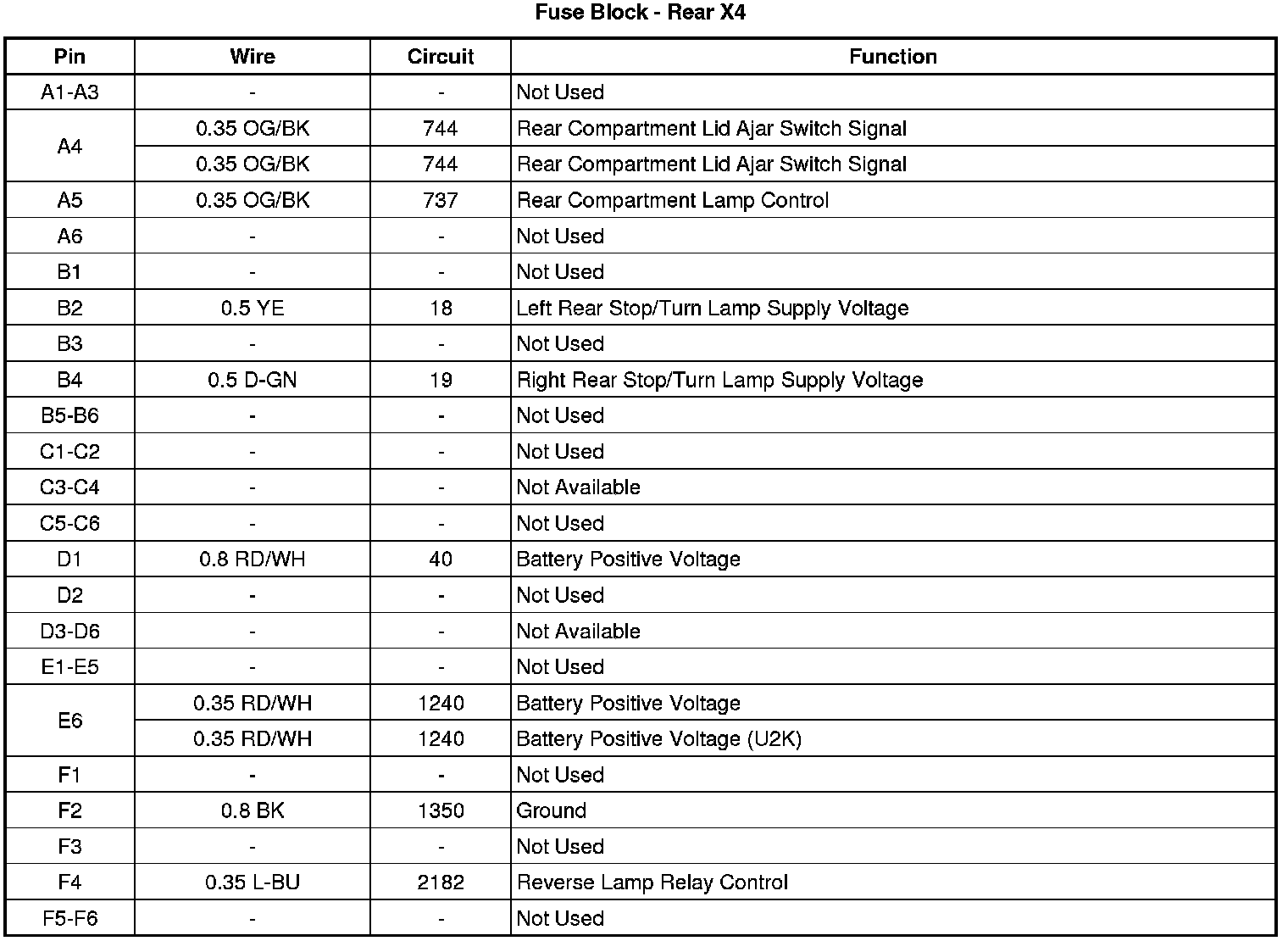

Fuse Block - Rear X4
