System Diagram

Component Connector End Views

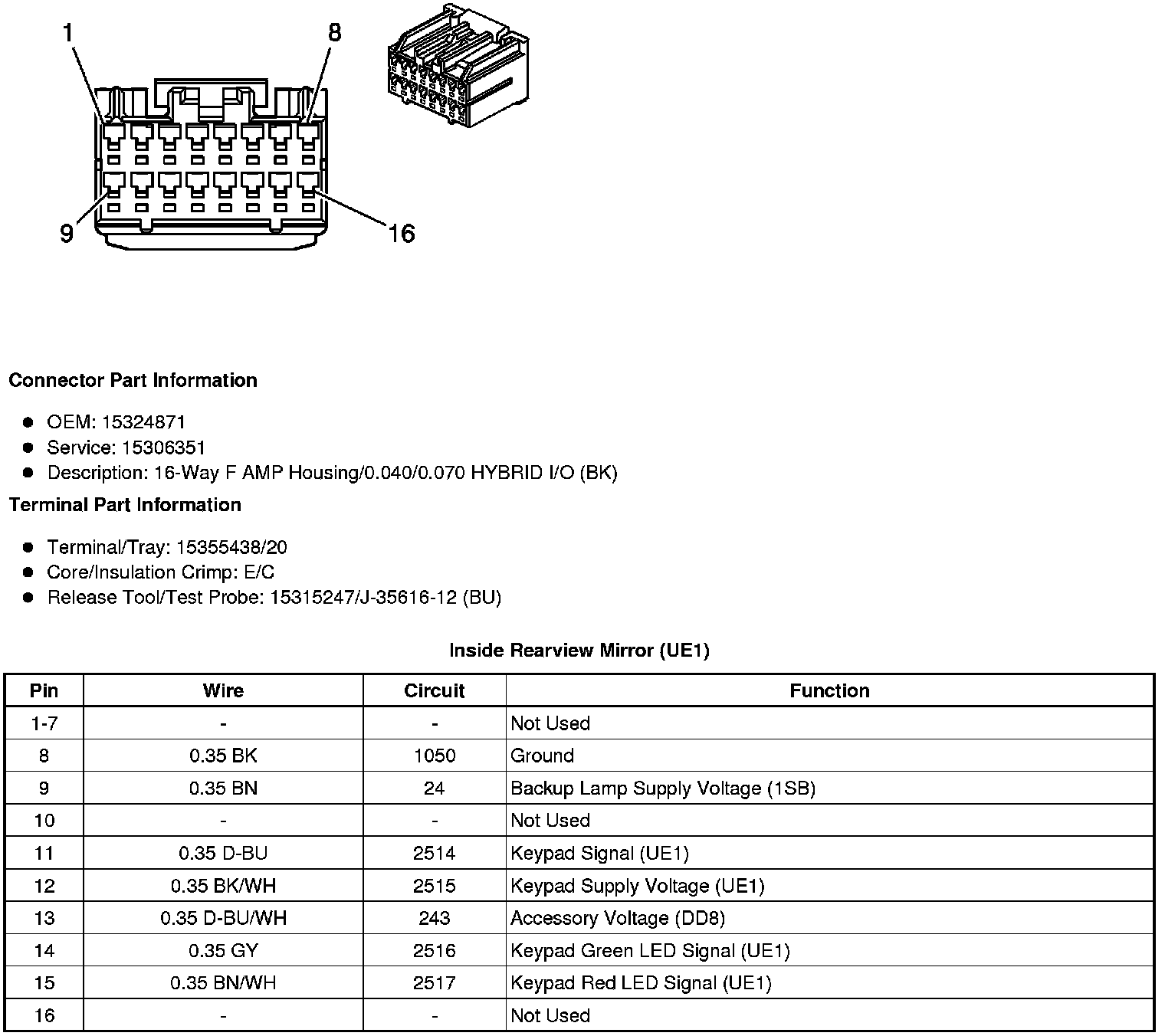

Inside Rearview Mirror (UE1)

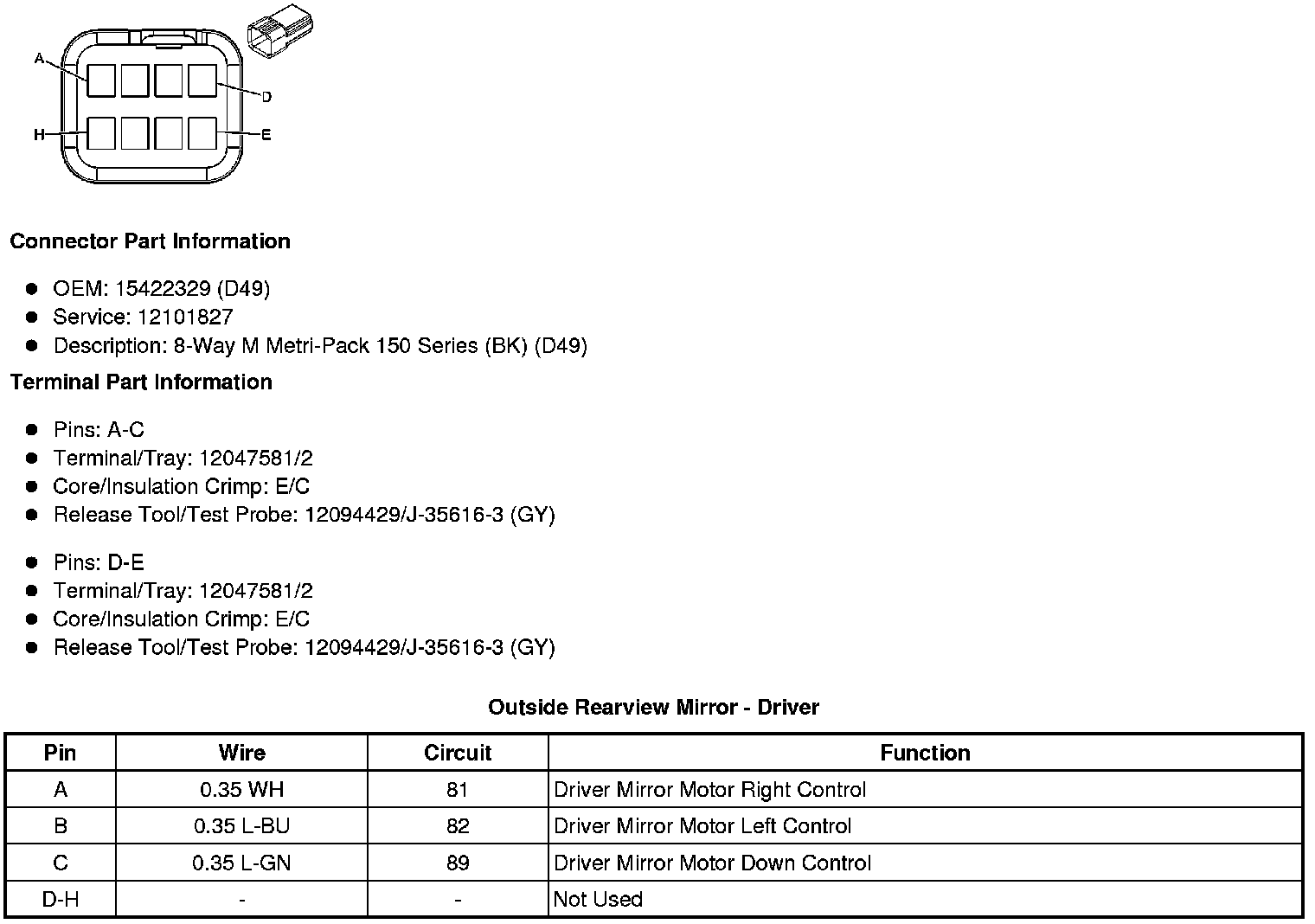

Outside Rearview Mirror - Driver

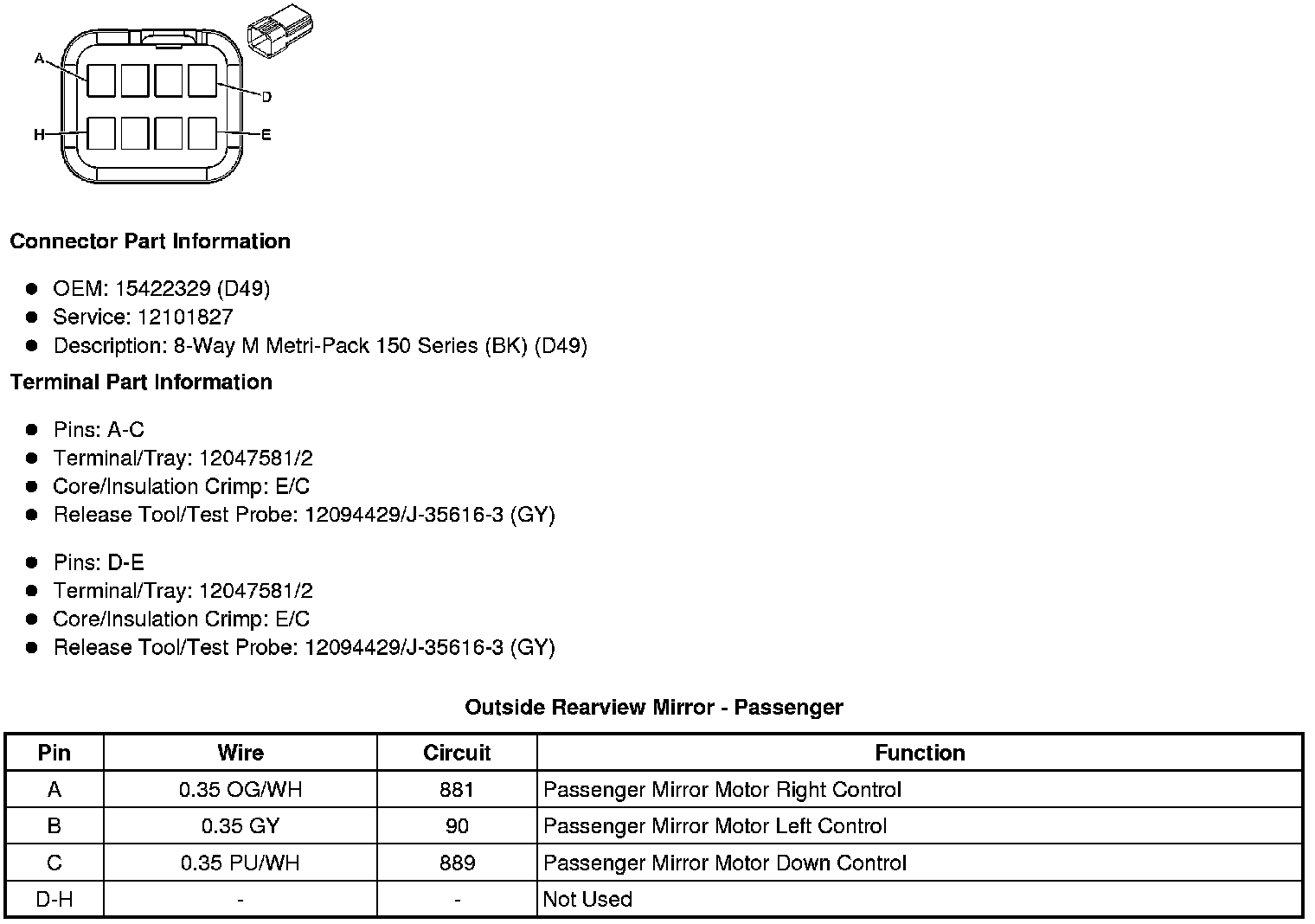

Outside Rearview Mirror - Passenger
