X108



Inline Harness Connector End Views

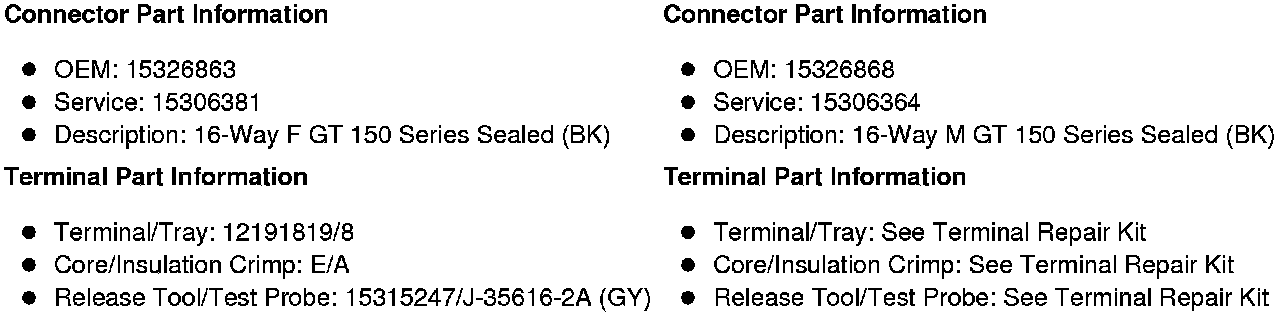

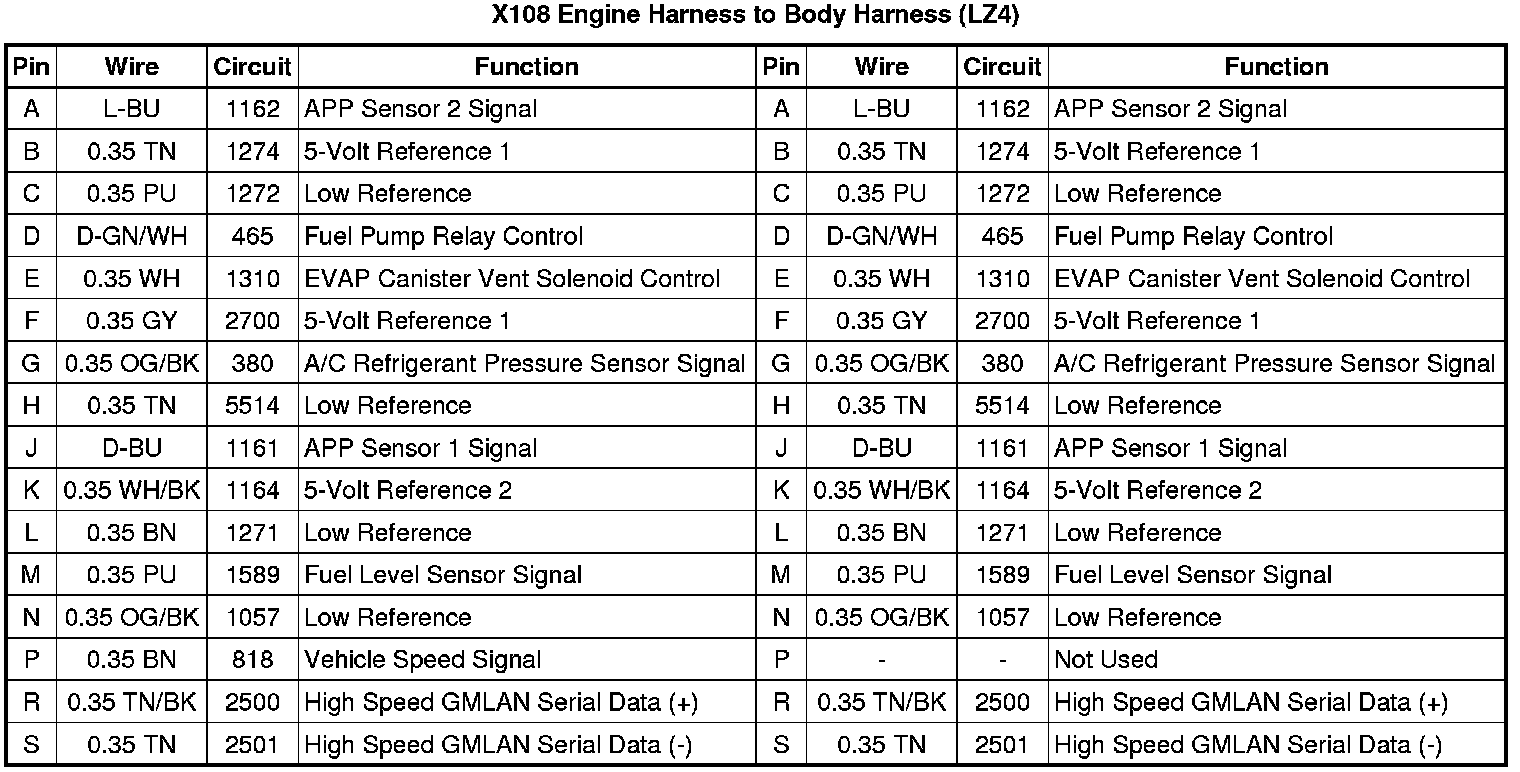

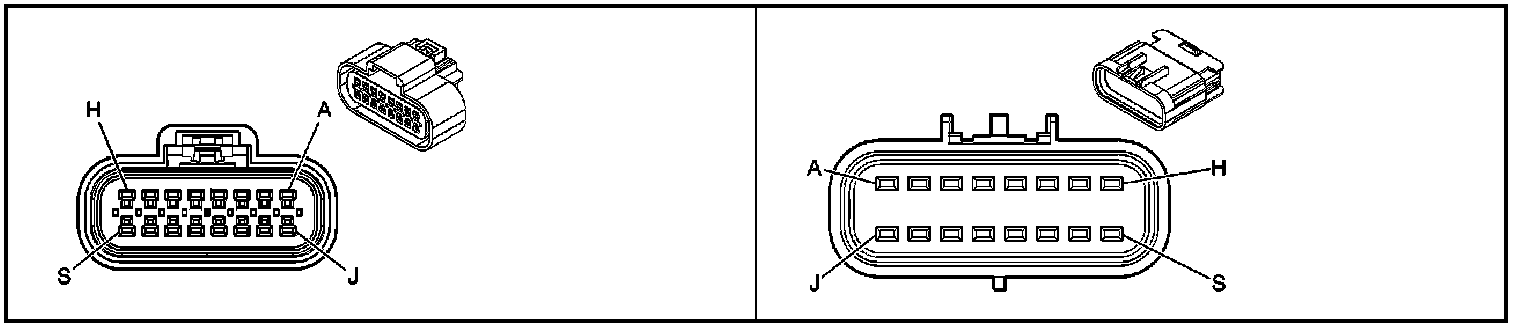

X108 Engine Harness to Body Harness (LZ4)

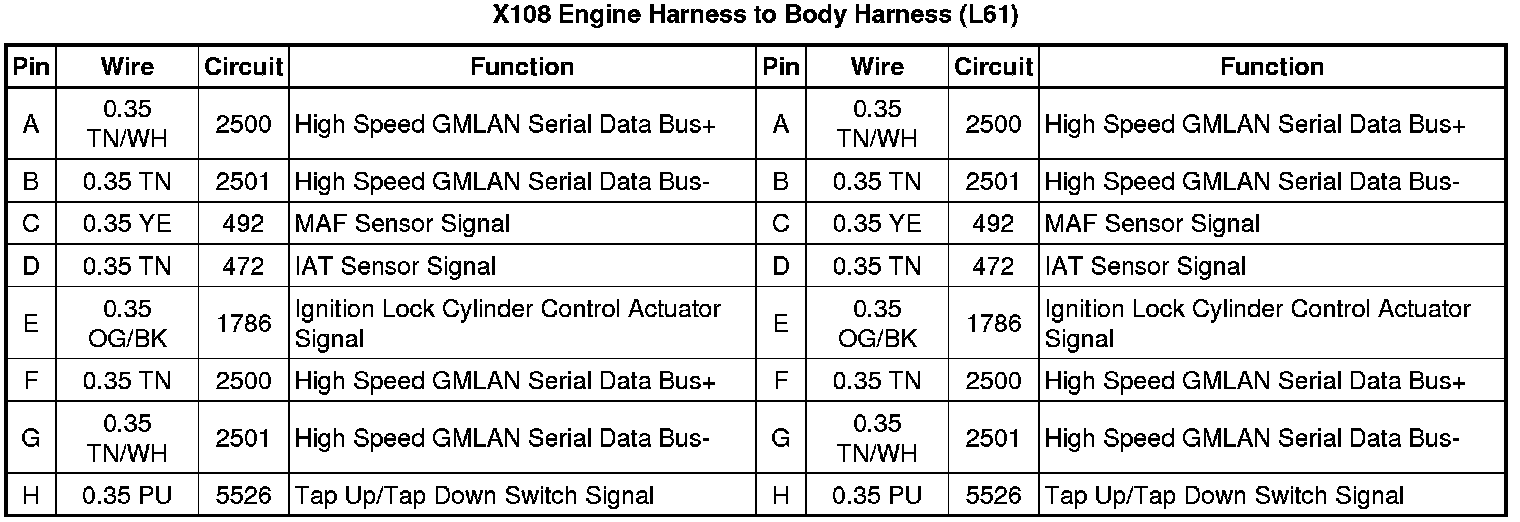

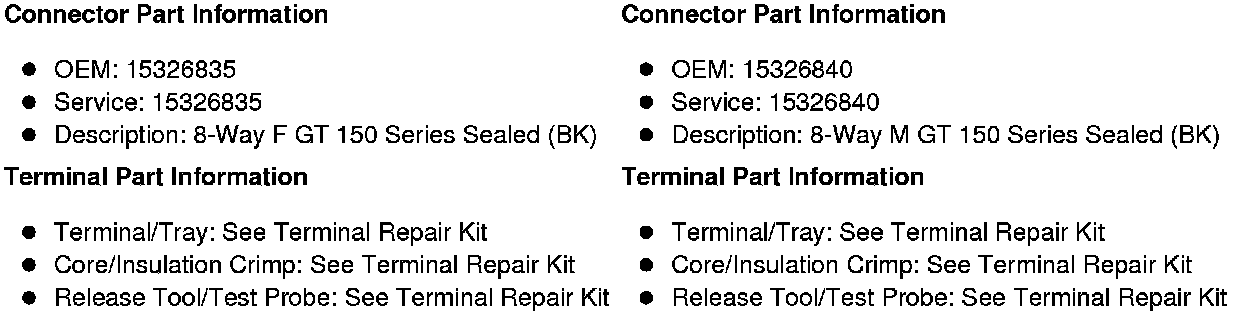

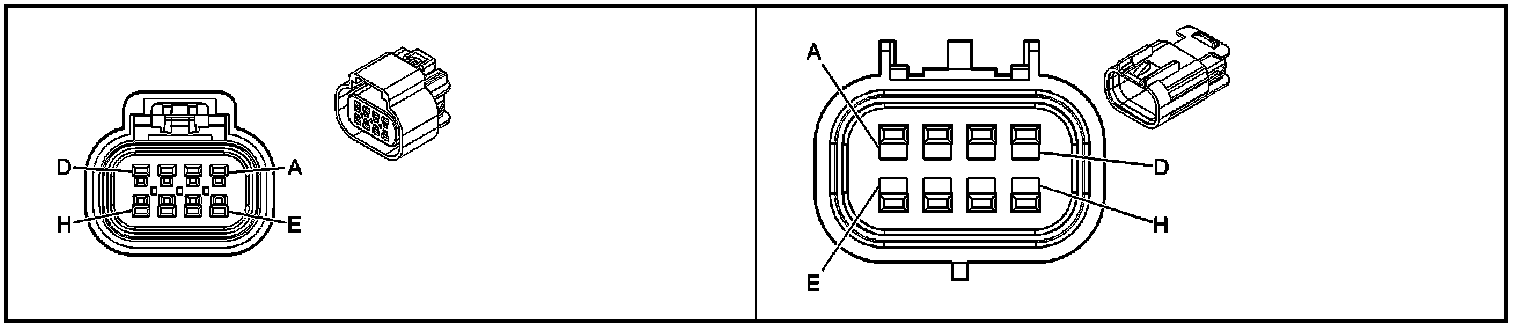

X108 Engine Harness to Body Harness (L61)
