X320

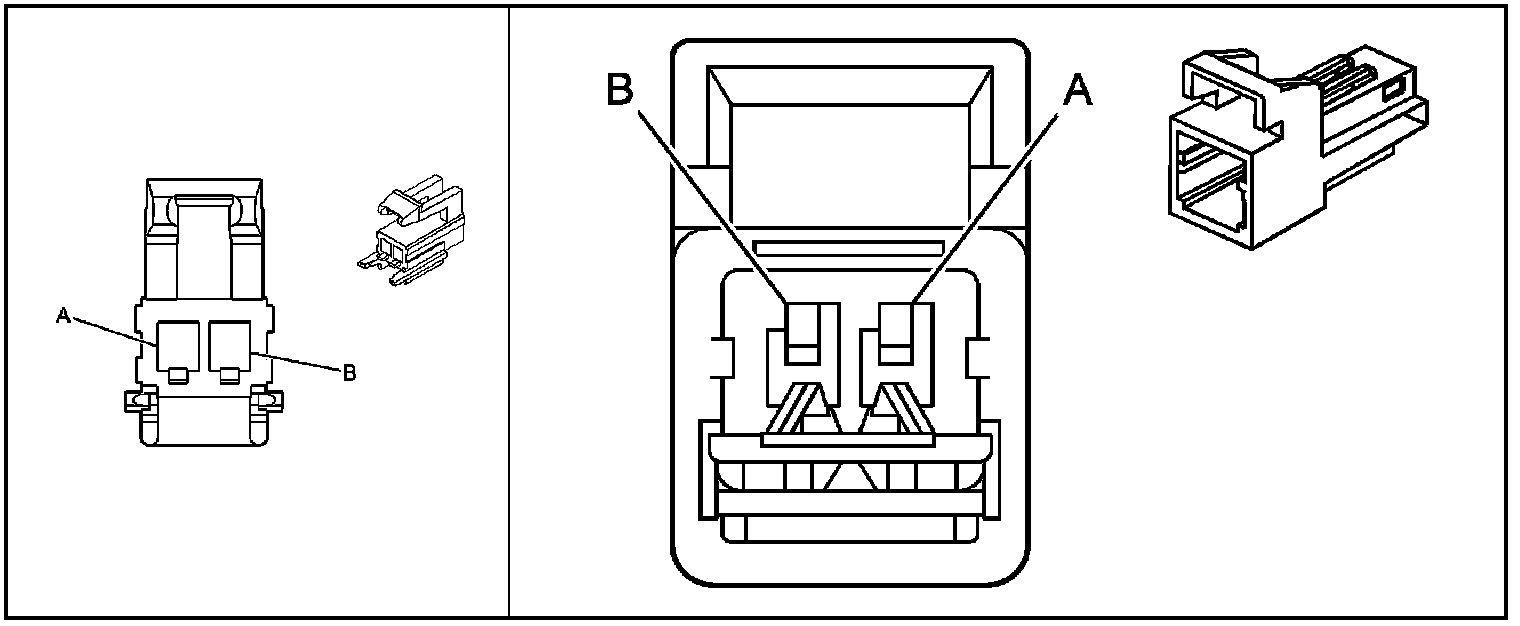

Inline Harness Connector End Views

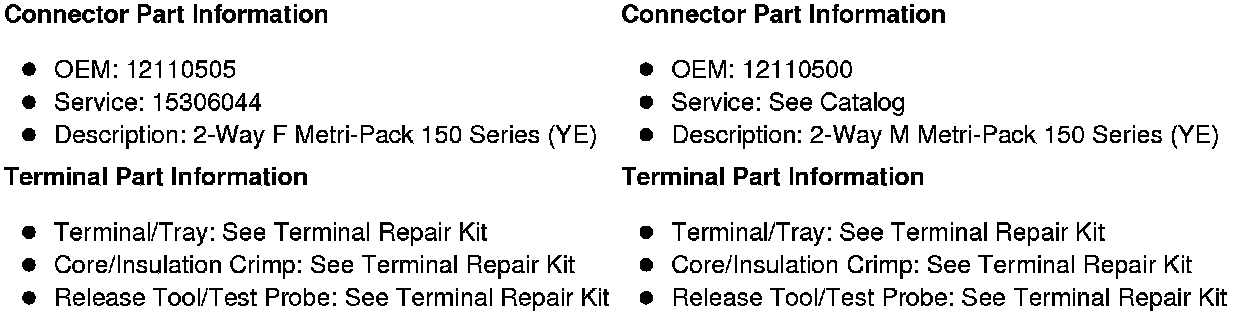

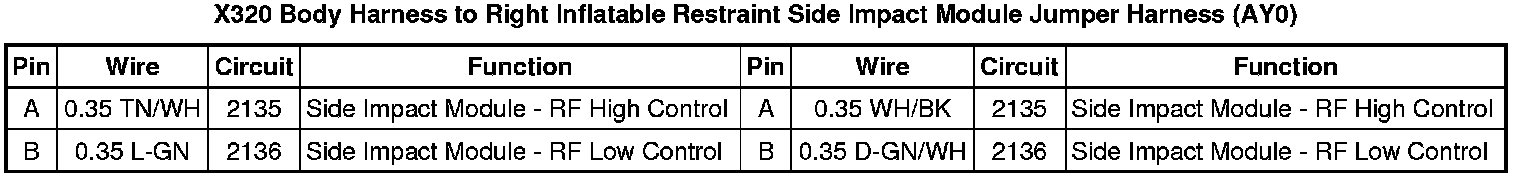

X320 Body Harness to Right Inflatable Restraint Side Impact Module Jumper Harness (AY0)
