Windshield Washer Pump
Windshield Washer Pump
Component Connector End Views

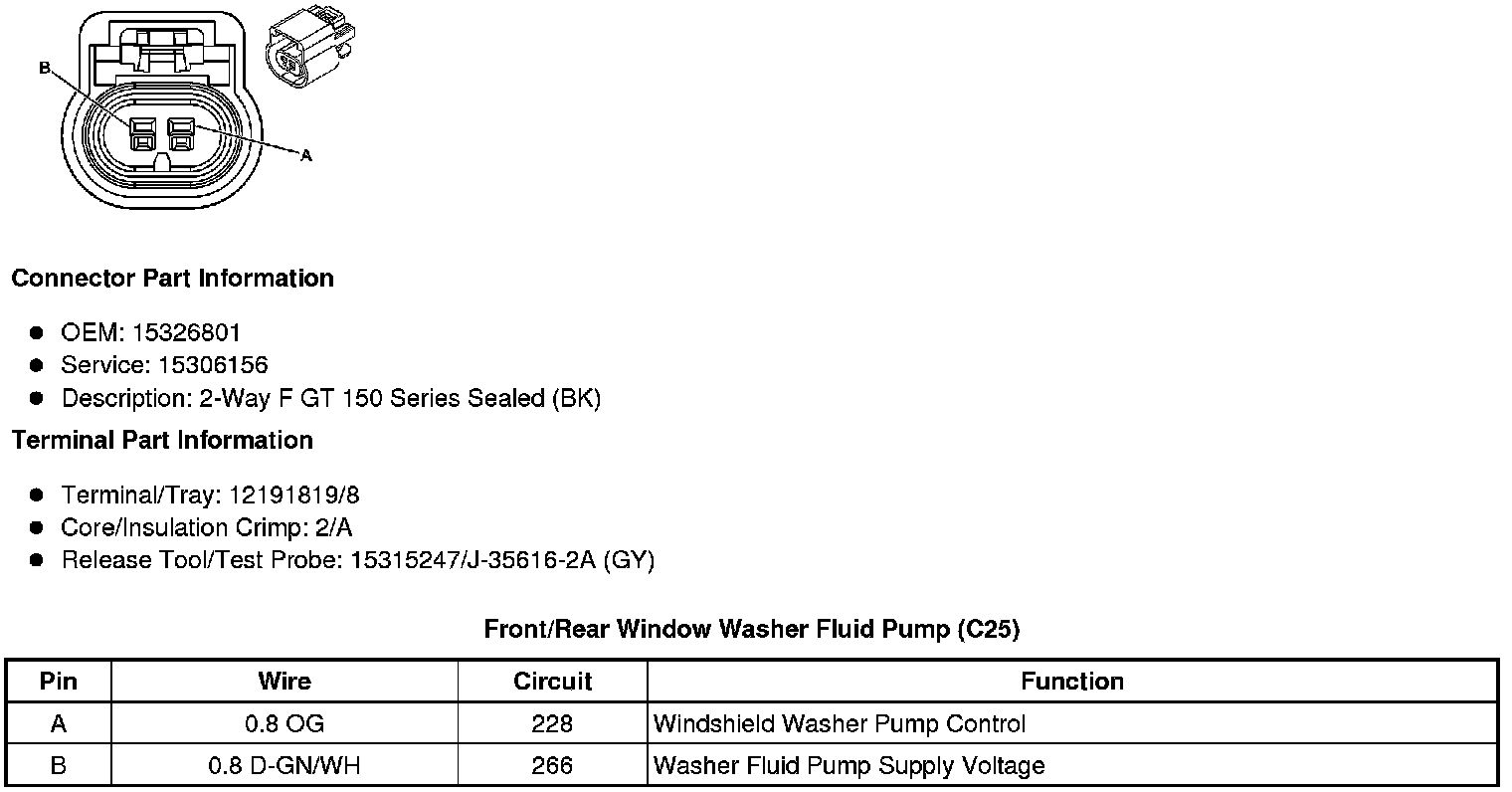

Front/Rear Window Washer Fluid Pump (C25)

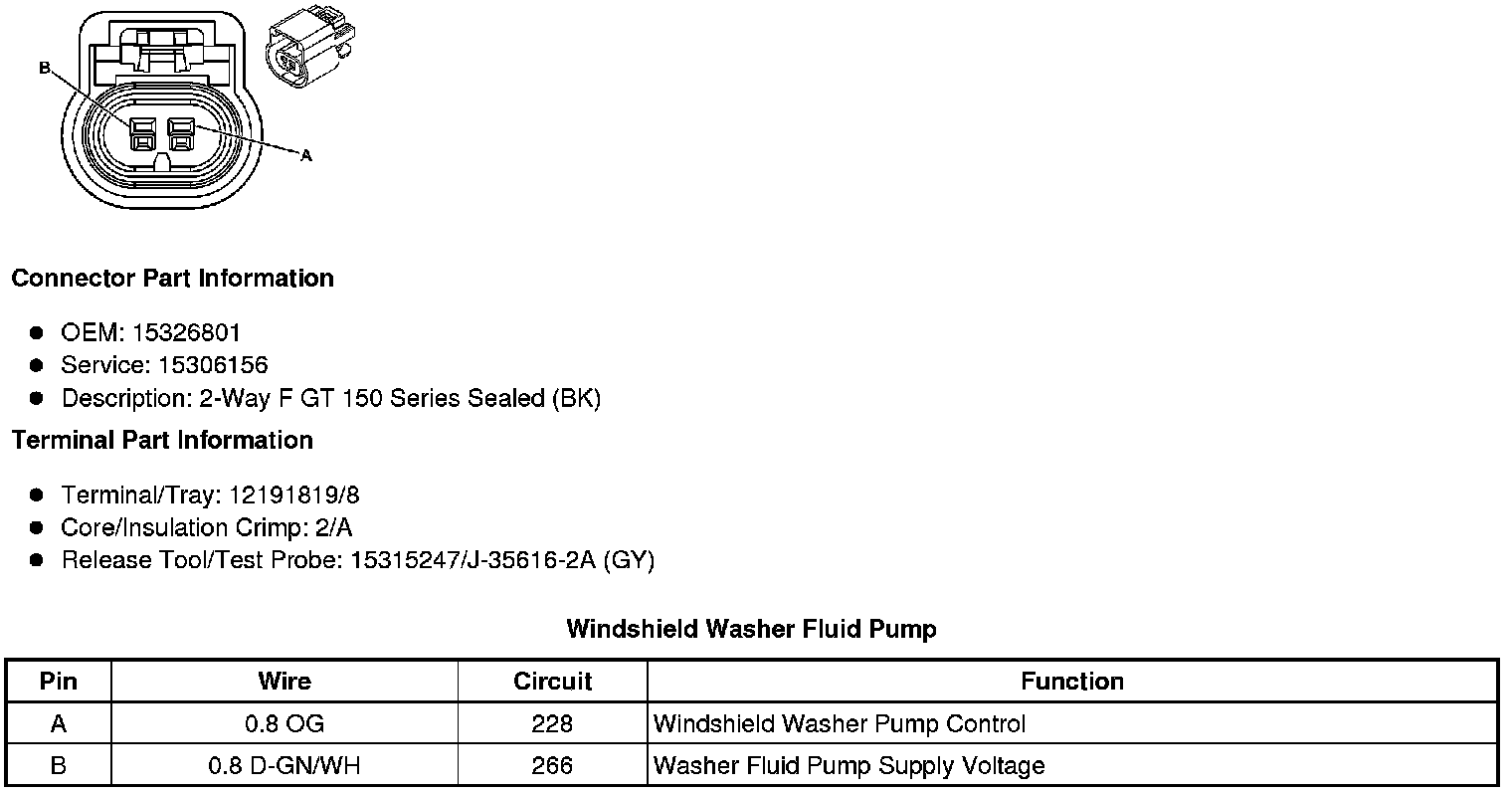

Windshield Washer Fluid Pump
