X102
Harness Routing Views
Rear of Engine Compartment
1 - Brake Fluid Level Switch
2 - X101 (JL9/J67)
3 - Fuse Block - Underhood
4 - Electronic Brake Control Module (EBCM) (JL9/J67)
5 - Powertrain Control Module (PCM)
6 - G109
7 - Coolant Level Switch
8 - X102 (JL9/J67)
Front of Vehicle/Engine Compartment Component Views

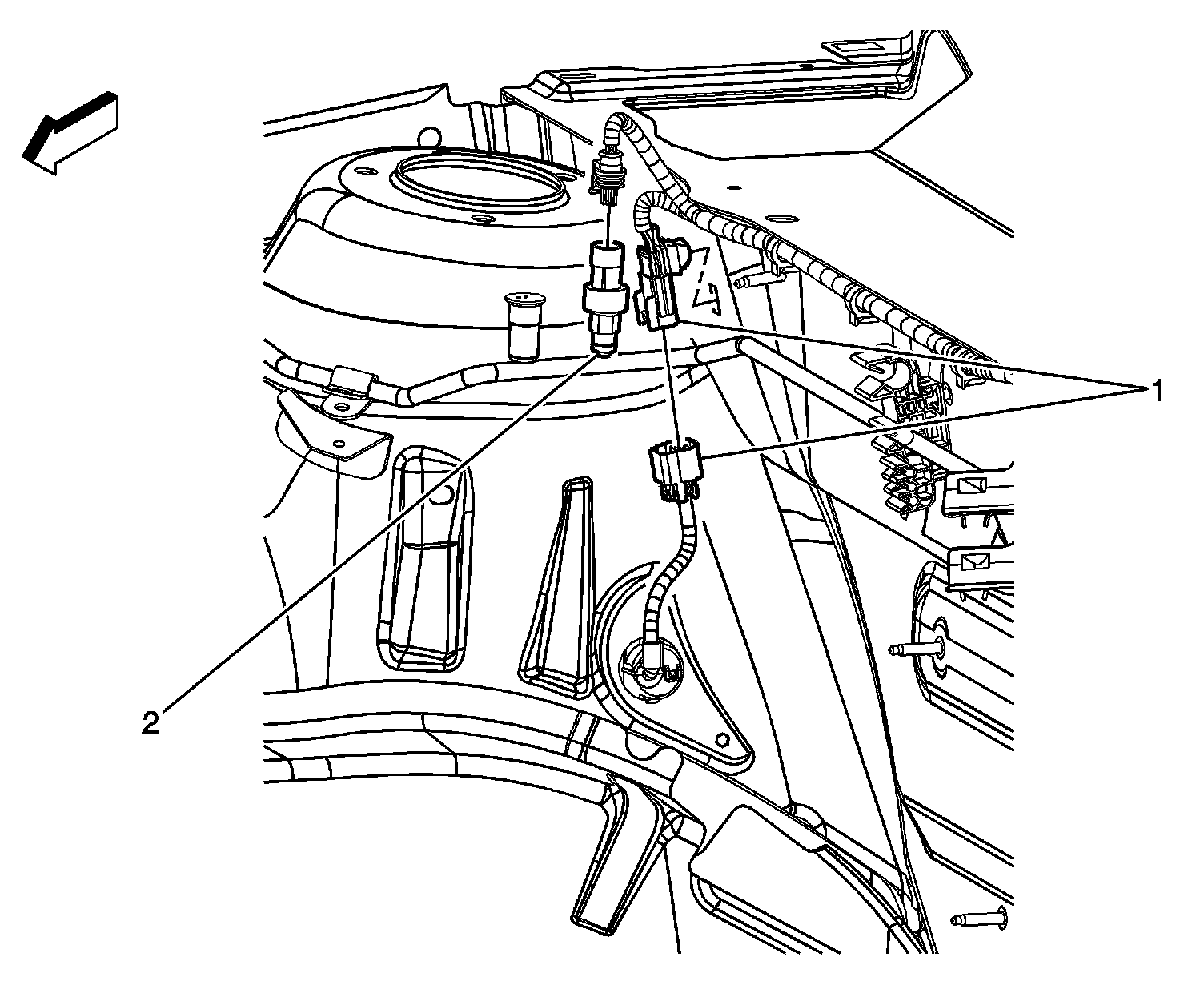

Right Rear of Engine Compartment Components
1 - X102 (X101 Similar)
2 - A/C Refrigerant Pressure Sensor
