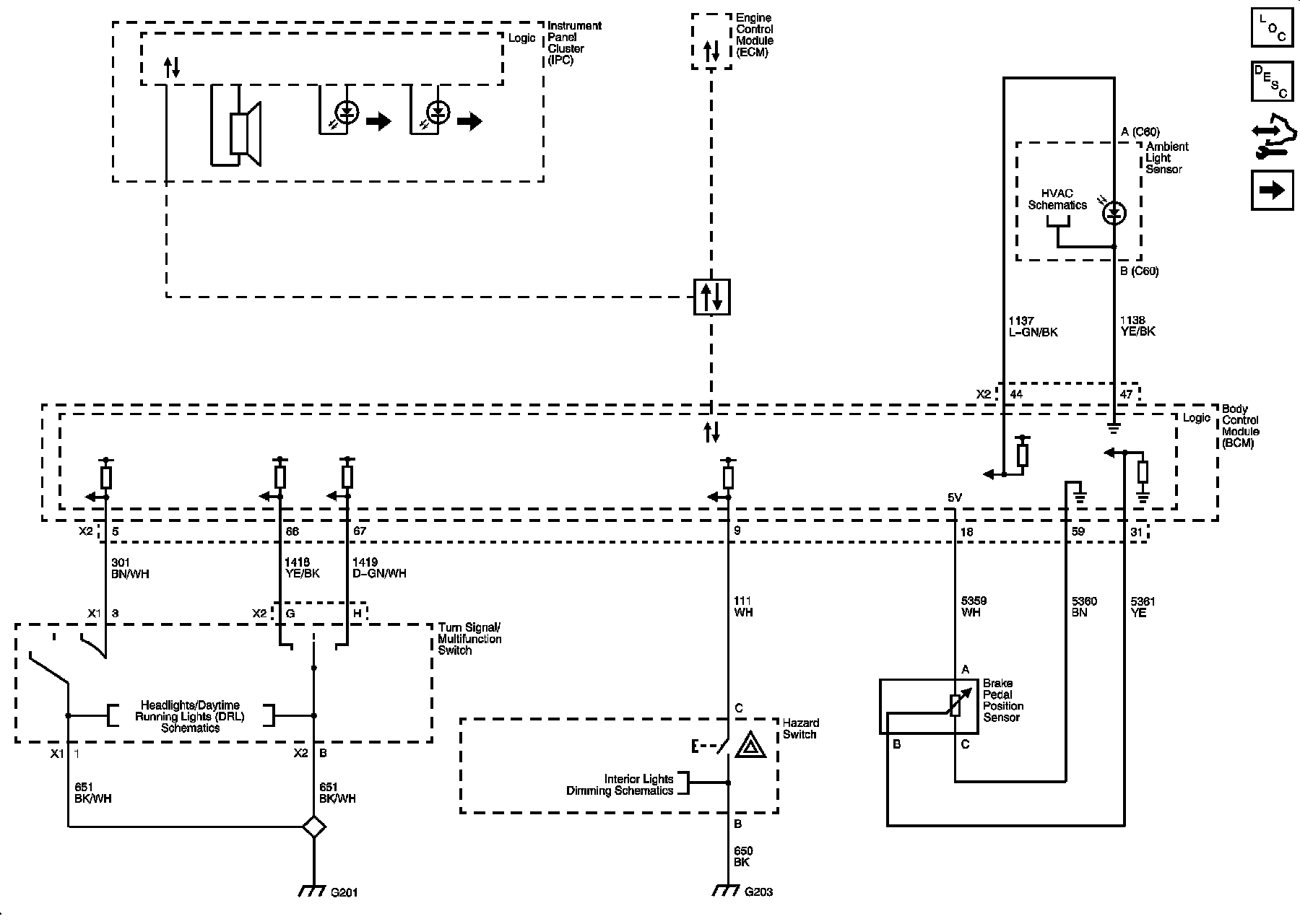

Exterior Lights Schematic 1



Exterior Lights Schematics

Ambient Light Sensor, Brake Pedal Position Sensor, Hazard Switch and Turn Signal/Mulrifunction Switch
