Diesel Data
: Automotive Repair
Home
>>
Chevrolet
>>
2008
>>
Malibu Classic V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
Information Bus
Data Communication Schematics

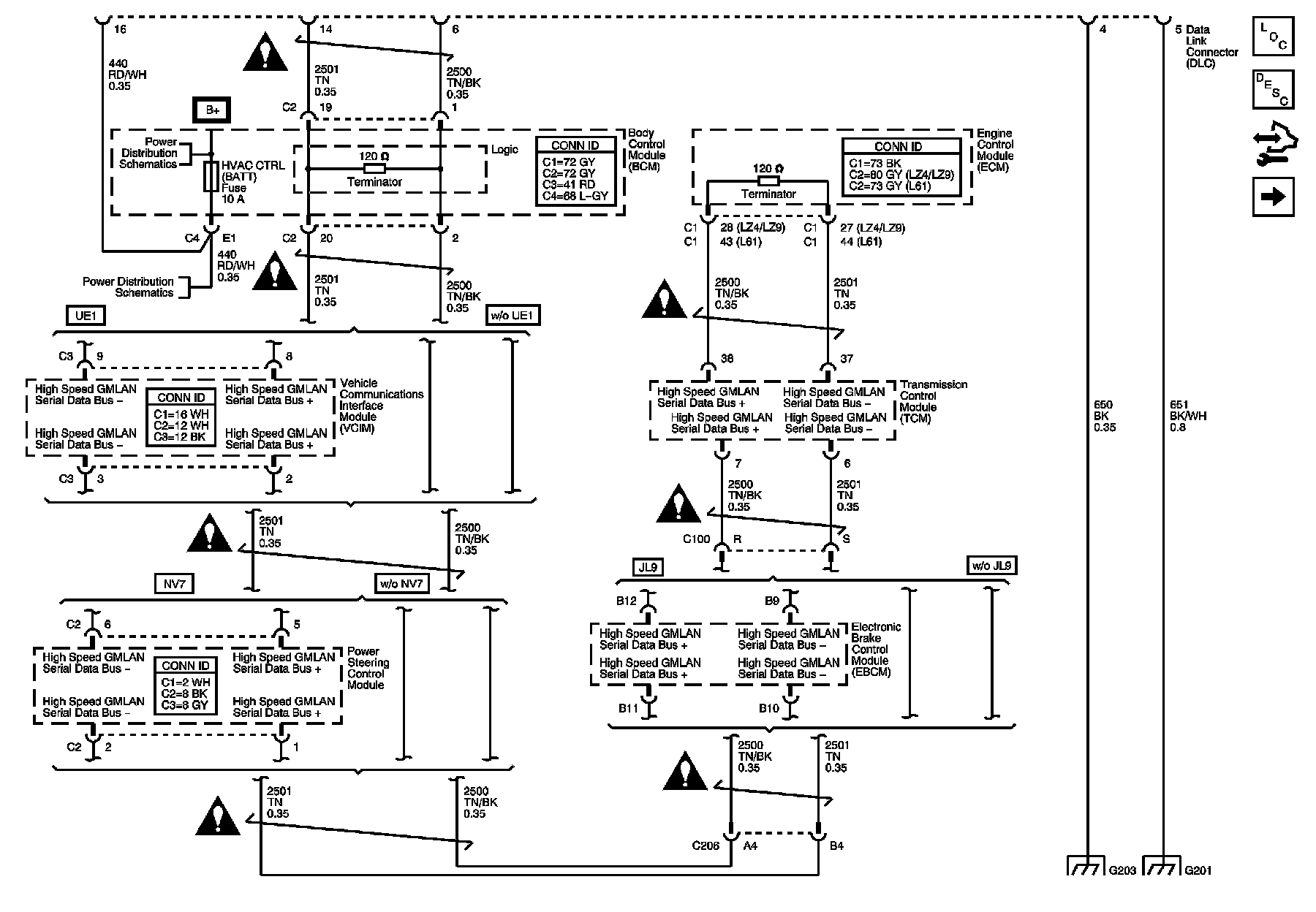

Power, Ground and High Speed Serial Data

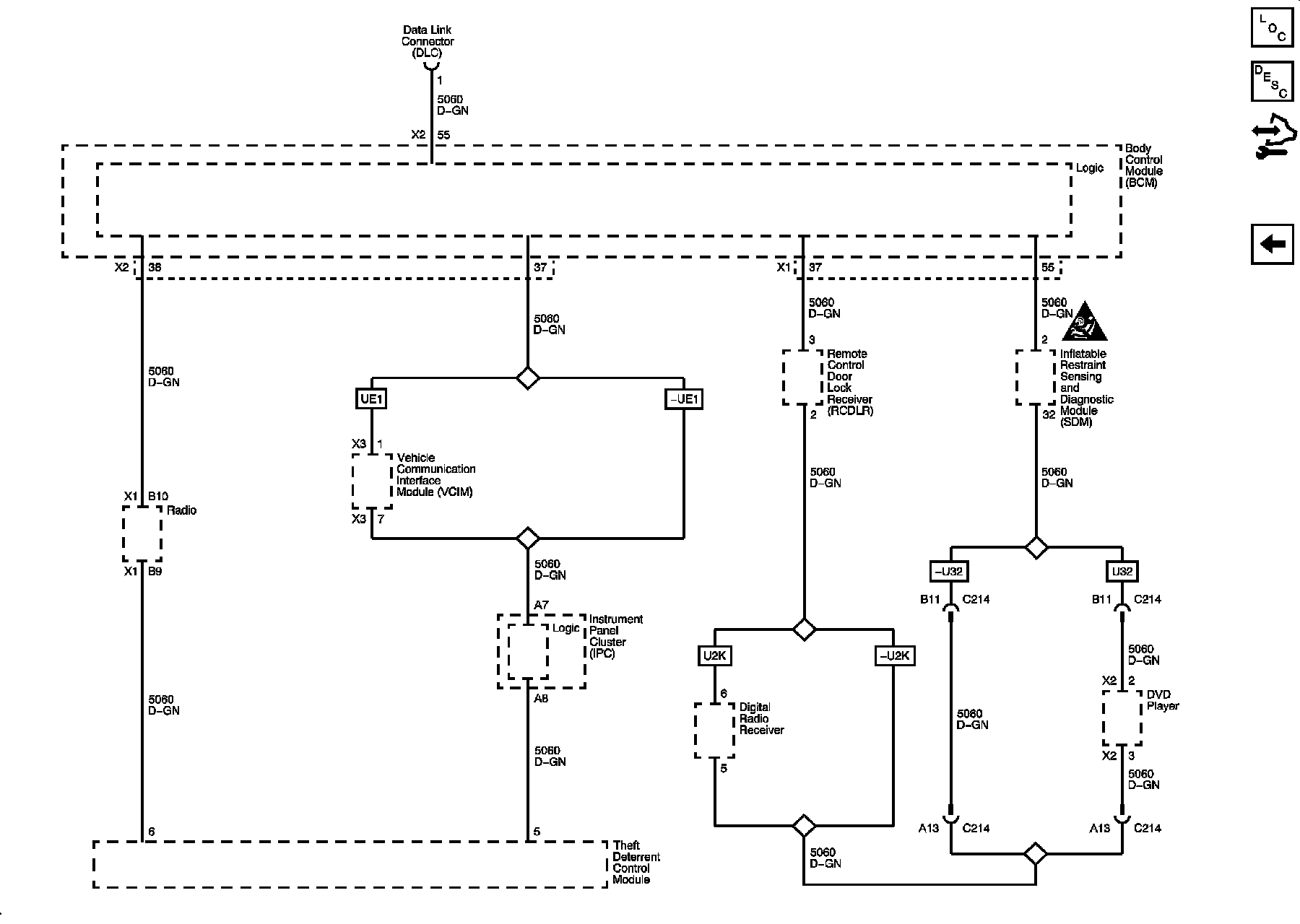

Low Speed Serial Data
