Engine - Coolant Temperature Sensor/Switch: Diagrams

Component Connector End Views

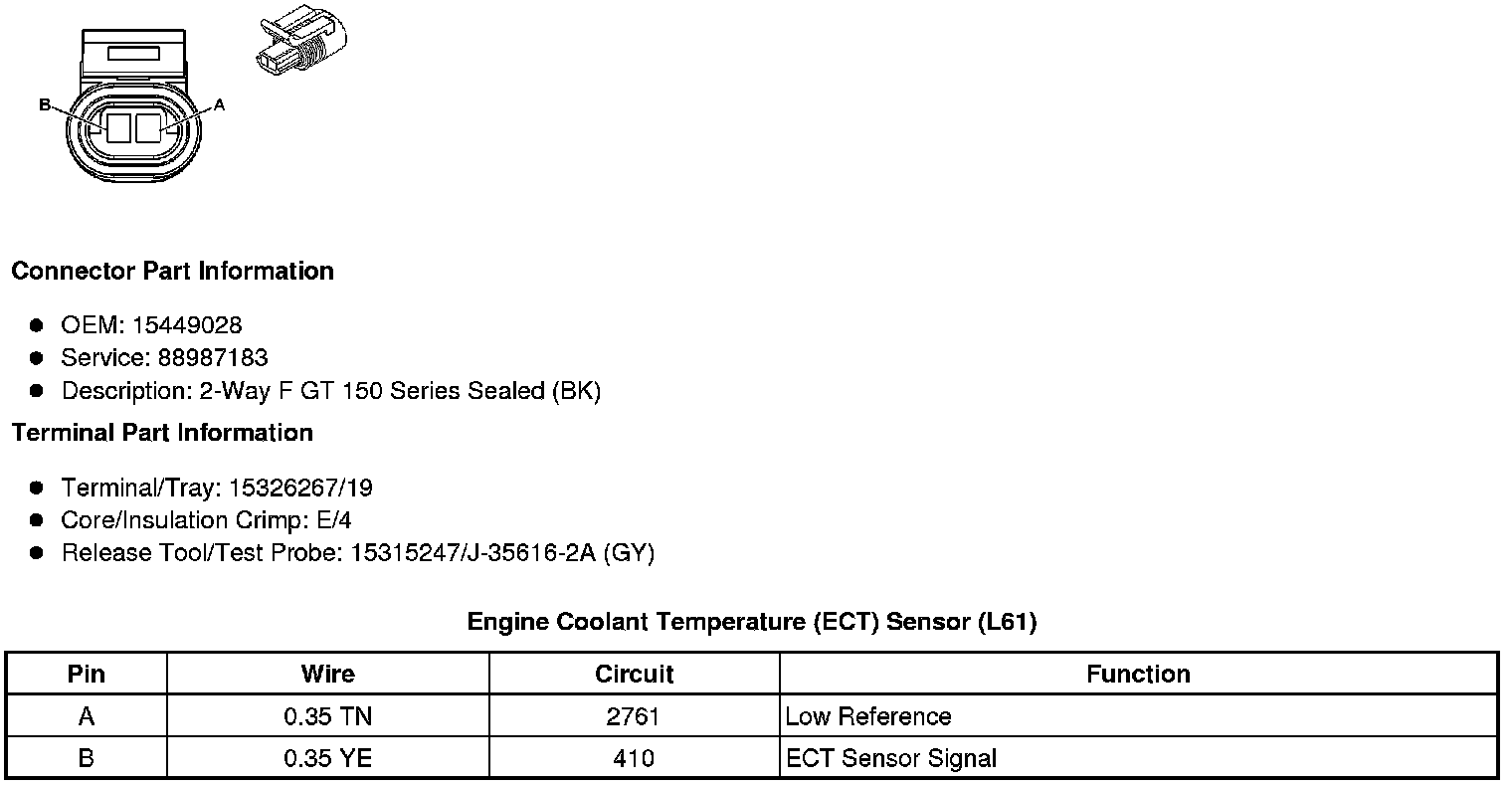

Engine Coolant Temperature (ECT) Sensor (L61)

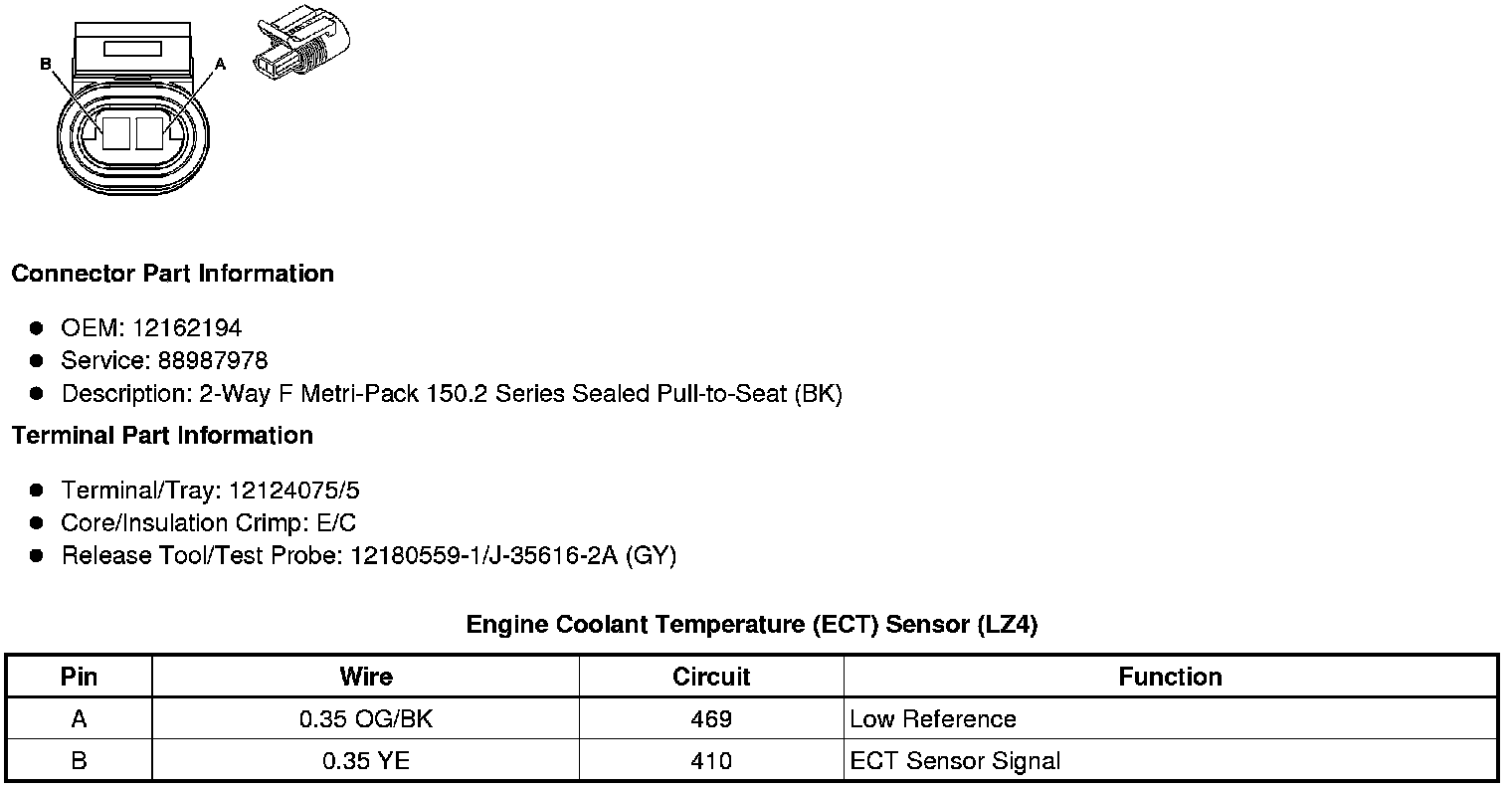

Engine Coolant Temperature (ECT) Sensor (LZ4)
