Radiator Air Baffle and Deflector Replacement - Upper

Radiator Air Upper Baffle and Deflector Replacement

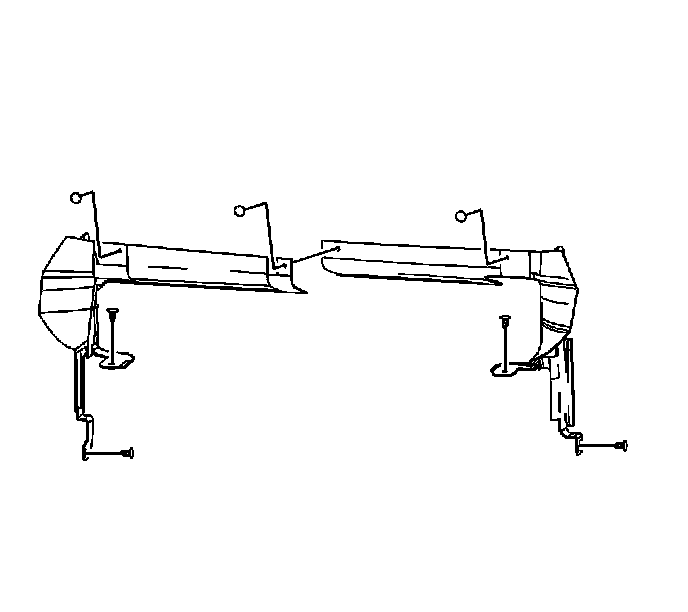

Removal Procedure





1. Remove the front bumper upper fascia support. Refer to Front Bumper Fascia Upper Support Replacement (Front Bumper Fascia Upper Support Replacement) .
2. Remove the upper radiator air deflector retainers.
3. Remove the wire harness clips at the bumper beam.
4. Remove the upper radiator air deflector.



Installation Procedure


Important: Radiator air deflector must be properly installed or reduced A/C and engine cooling system performance could occur.






1. Install the upper radiator air deflector.
2. Install the wire harness clips at the bumper beam.
3. Install the upper radiator air deflector retainers.
4. Install the front bumper upper fascia support. Refer to Front Bumper Fascia Upper Support Replacement (Front Bumper Fascia Upper Support Replacement) .
