Engine Mount Bracket Replacement

Engine Mount Bracket Replacement

Removal Procedure

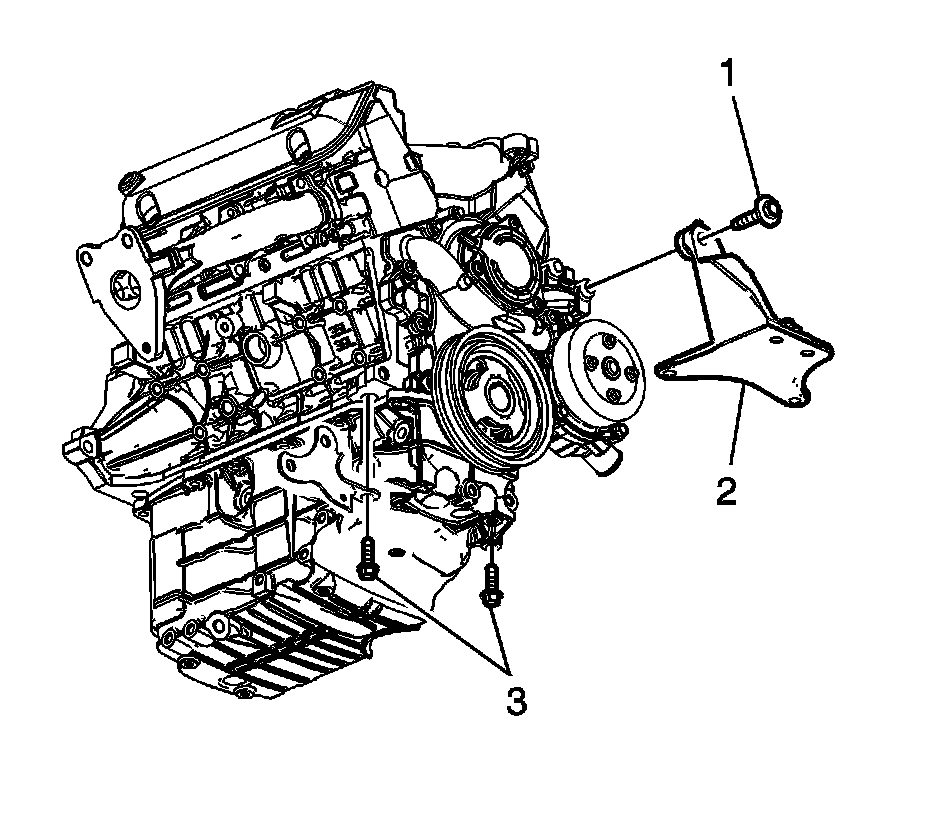

1. Remove the engine mount. Refer to Engine Mount Replacement (Service and Repair) .
2. Remove the engine mount bracket bolts (1, 3) from the engine.
3. Remove the engine mount bracket (2).



Installation Procedure





1. Position the engine mount bracket to the engine.

Notice: Refer to Fastener Notice (Fastener Notice) .

2. Loosely install the engine mount bracket bolts.
3. Hold the engine mount bracket firmly to the front of the engine and snug the oil pan bolts (3) so that the bracket is just seated to the oil pan.
4. Tighten the engine mount bracket to engine bolt.

Tighten the bolt to 90 N.m (66 lb ft).

5. Tighten the engine mount bracket to oil pan bolts.

Tighten the bolts to 50 N.m (37 lb ft).

6. Install the engine mount. Refer to Engine Mount Replacement (Service and Repair) .
