Engine Mount Replacement

Engine Mount Replacement

Removal Procedure





1. Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation (Service and Repair) .
2. Remove the engine splash shield. Refer to Radiator Air Lower Baffle and Deflector Replacement (Service and Repair) .

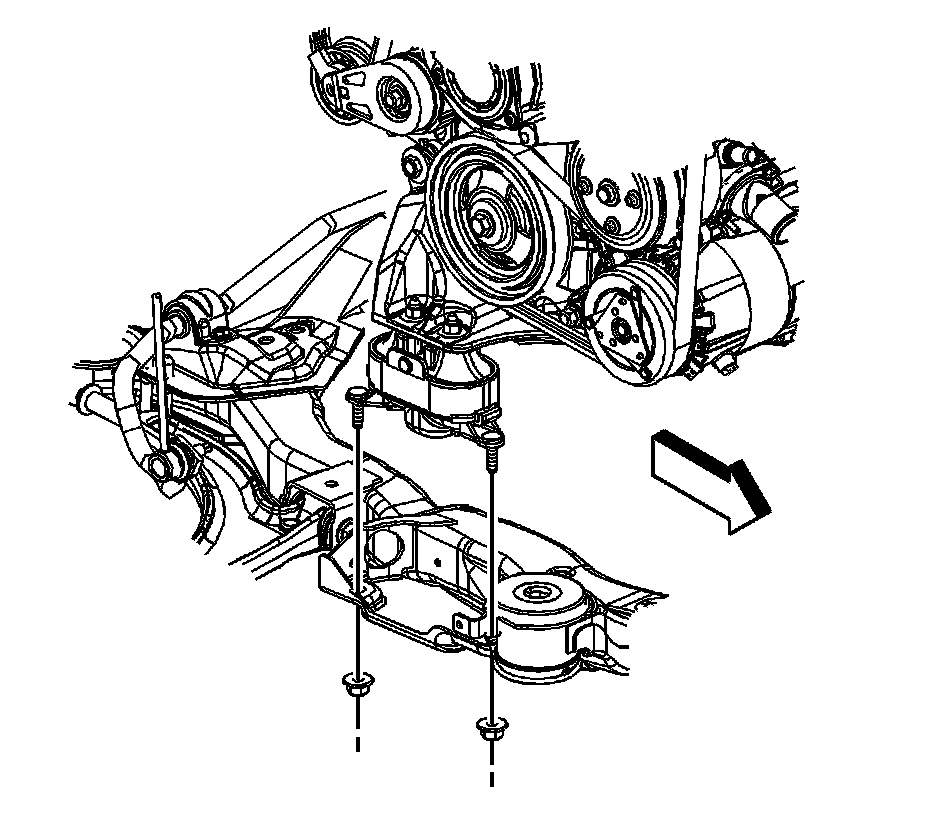

3. Remove the engine mount to fame nuts.

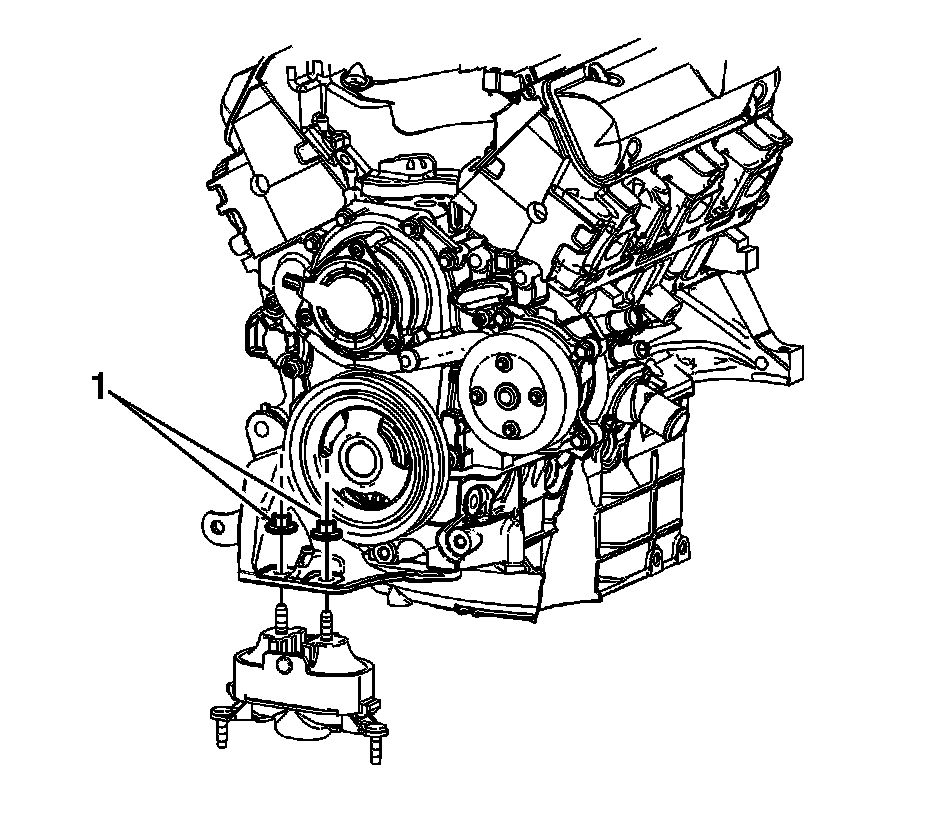

4. Remove the engine mount to engine mount bracket nuts (1).
5. Using a suitable jackstand, raise the engine.
6. Remove the engine mount.



Installation Procedure





1. Position the motor mount onto the frame.
2. Use the jackstand to lower the engine mount bracket on to the engine mount.

Notice: Refer to Fastener Notice (Fastener Notice) .

3. Install the engine mount to engine mount bracket nuts (1).

Tighten the nuts to 50 N.m (37 lb ft).





4. Install the engine mount to frame nuts.

Tighten the nuts to 50 N.m (37 lb ft).

5. Install the engine splash shield. Refer to Radiator Air Lower Baffle and Deflector Replacement (Service and Repair) .
6. Install the tire and wheel. Refer to Tire and Wheel Removal and Installation (Service and Repair) .
