Engine Mount Strut Bracket Replacement

Engine Mount Strut Bracket Replacement

Removal Procedure





1. Remove the engine mount strut. Refer to Engine Mount Strut Bracket Replacement .

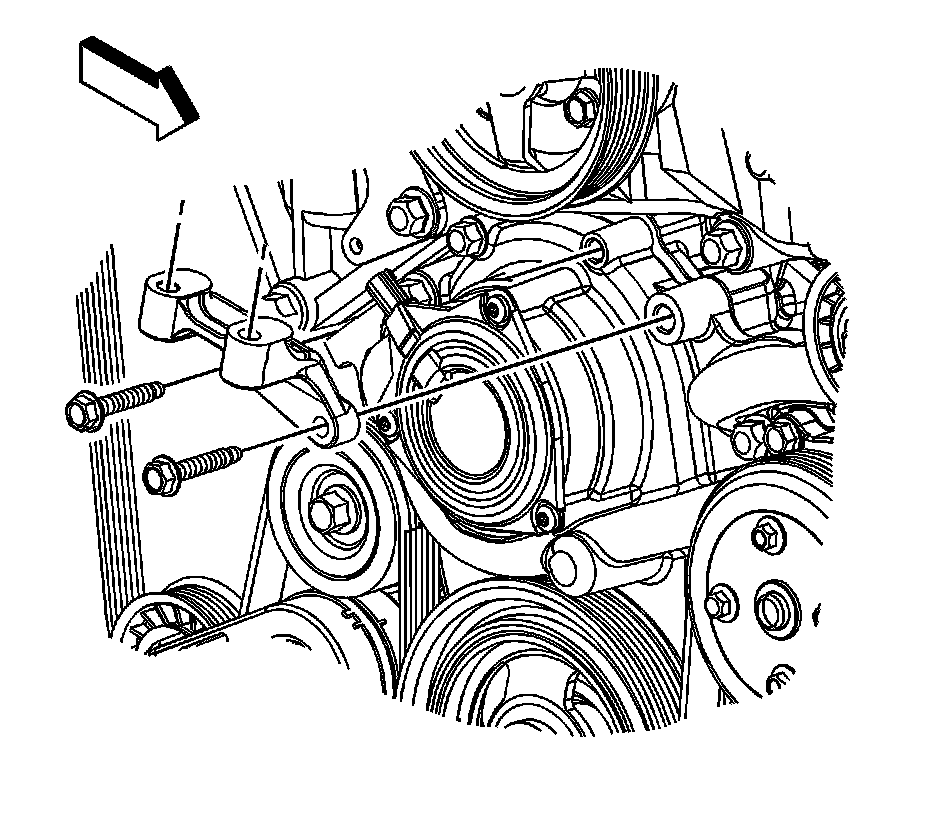

2. Remove the engine mount strut bracket to engine bolts.
3. Remove the engine mount strut bracket.



Installation Procedure






Notice: Refer to Fastener Notice (Fastener Notice) .

1. Position the engine mount strut bracket to the engine.

Tighten the bolts to 25 N.m (18 lb ft).

2. Install the engine mount strut. Refer to Engine Mount Strut Bracket Replacement .
