Engine Mount Strut Replacement

Engine Mount Strut Replacement

Removal Procedure





1. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement (Service and Repair) .
2. Remove the engine mount strut to engine mount strut bracket bolts (1).

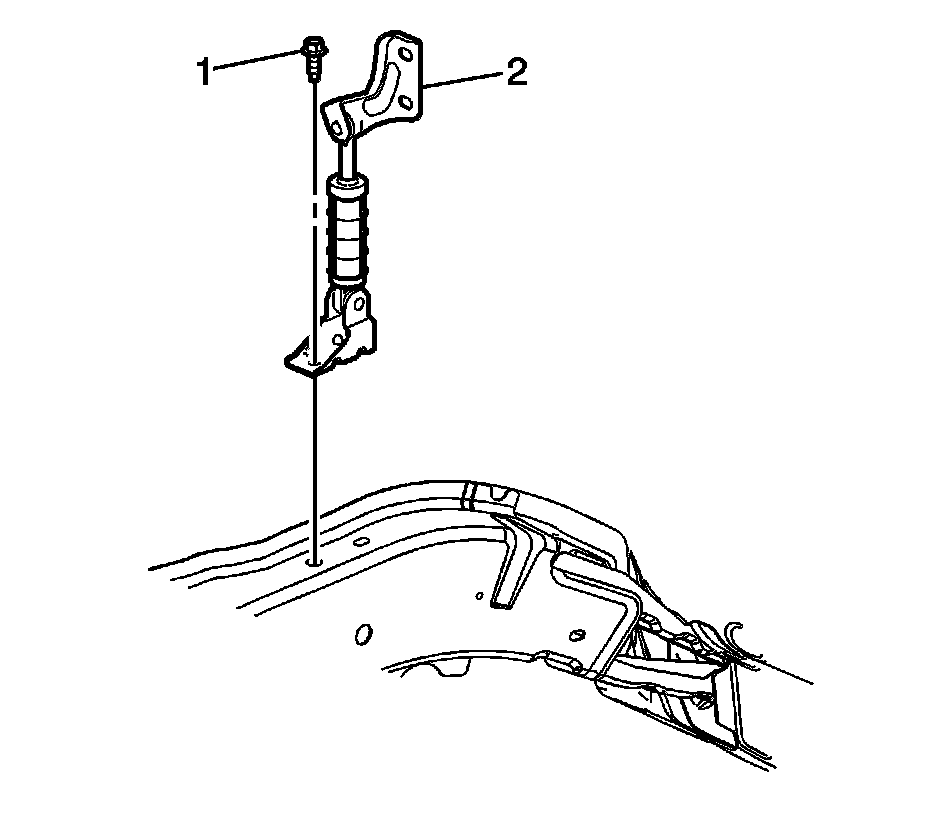

3. Rotate the engine mount strut (2) to the vertical position in order to access the lower bolt.
4. Remove the engine mount strut bolt (1).
5. Remove the engine mount strut.



Installation Procedure






Notice: Refer to Fastener Notice (Fastener Notice) .

1. Install the engine mount strut (2) in to the engine compartment side rail. Ensure that the tab on the strut is inserted into the hole in the side rail.
2. Install the engine mount strut bolt (1).

Tighten the bolt to 50 N.m (37 lb ft).

3. Rotate the engine mount strut to the horizontal position.




4. Install the engine mount strut to engine mount strut bracket bolts (1).

Tighten the bolts to 50 N.m (37 lb ft).

5. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement (Service and Repair) .
