Air Temperature Sensor Replacement - Upper

Air Temperature Sensor Replacement - Upper

Removal Procedure

1. Remove the left closeout panel. Refer to Instrument Panel Insulator Panel Replacement - Left Side (Service and Repair) .
2. Remove the knee bolster. Refer to Knee Bolster Replacement (Service and Repair) .

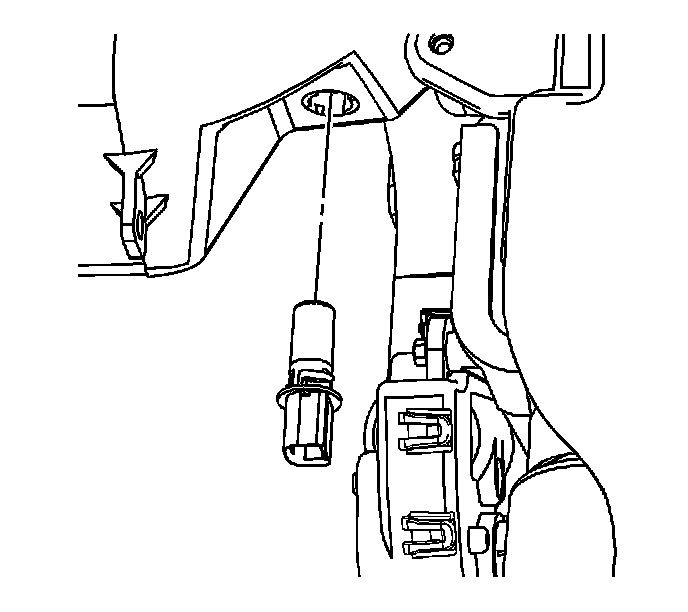

3. Twist and pull the upper air temperature sensor from the upper right air outlet duct.
4. Remove the upper air temperature sensor wire harness connector.



Installation Procedure

1. Install the upper air temperature sensor wire harness.




2. Install the upper air temperature sensor.
3. Install the knee bolster. Refer to Knee Bolster Replacement (Service and Repair) .
4. Install the left closeout panel. Refer to Instrument Panel Insulator Panel Replacement - Left Side (Service and Repair) .
