Hazard Warning Switch: Service and Repair

Hazard Warning Switch Replacement

Removal Procedure

1. Remove the instrument panel (I/P) center trim panel. Refer to Instrument Panel Center Trim Panel Replacement (Service and Repair) .

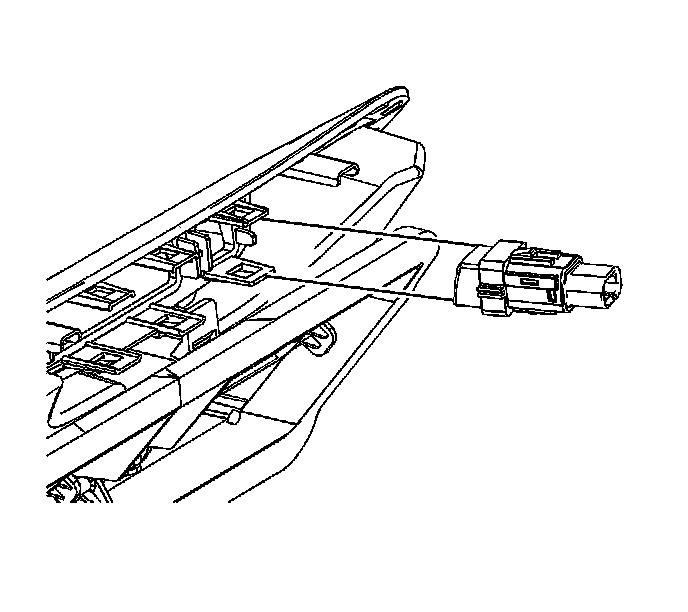

2. Remove the hazard switch connector.




3. Remove the hazard switch.



Installation Procedure





1. Install the hazard switch.
2. Install the hazard switch connector.
3. Install the I/P center trim panel. Refer to Instrument Panel Center Trim Panel Replacement (Service and Repair) .
