Interior Compartment

Harness Routing Views

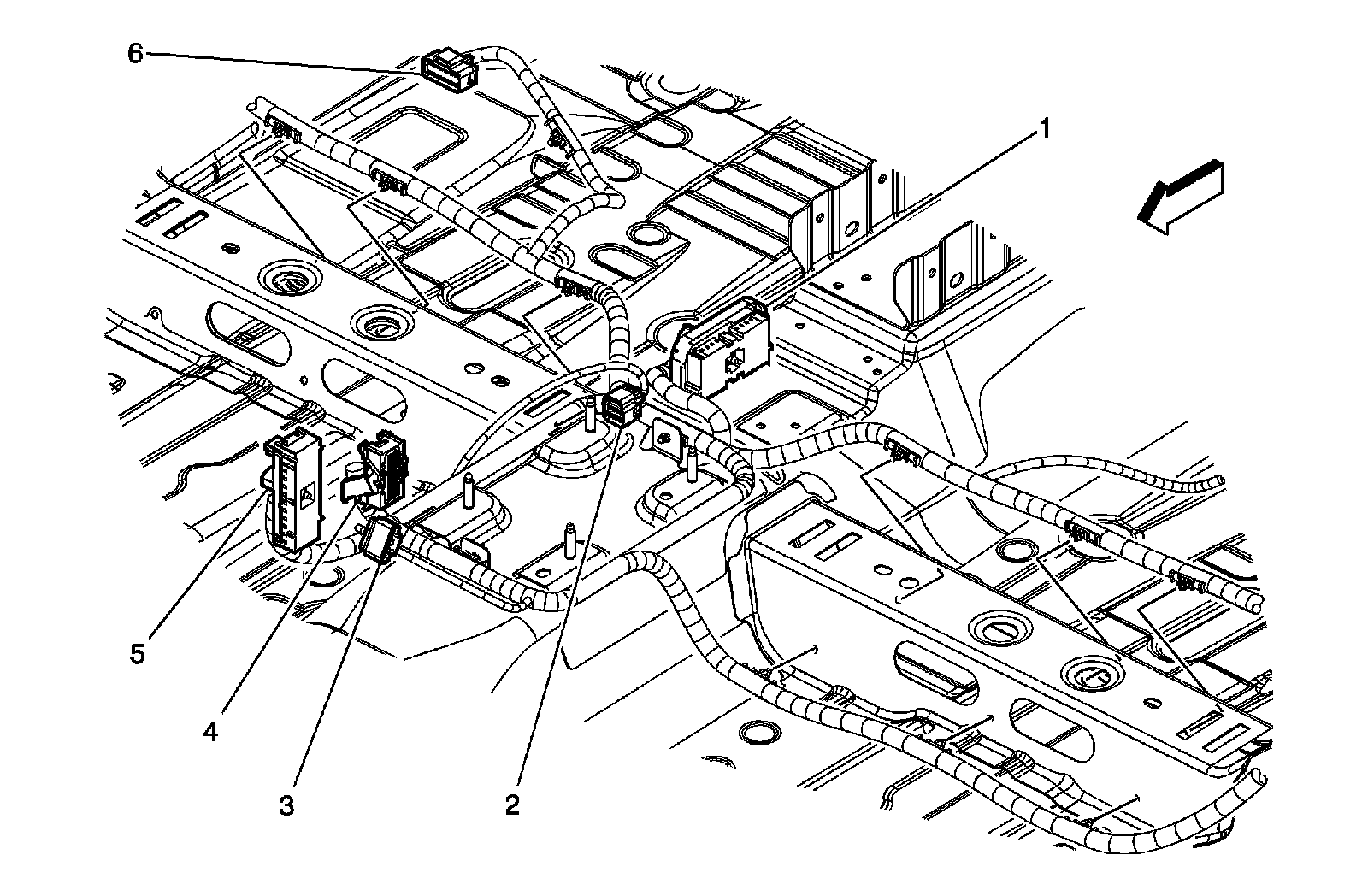

Passenger Compartment Floor




1 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
2 - Automatic Transmission Shift Lever Position Indicator
3 - X214
4 - Body Control Module (BCM), X1
5 - Body Control Module (BCM), X3
6 - X310

Under Driver Seat




1 - Seat Front Vertical Motor (AG1)
2 - Seat Horizontal Motor (AG1)
3 - Heated Seat Cushion Temperature Sensor - Driver (KA1)
4 - Seat Rear Vertical Motor (AG1)
5 - X300
6 - Heated Seat Control Module - Driver (KA1)

Left Front of Floor Console

Left Front of Floor Console:

1 - X214
2 - Cigar Lighter
3 - Traction Control Switch (NW7/NW9) or Auxiliary Power Outlet - Front (- NW7/NW9)
