Power Distribution Diagram 3

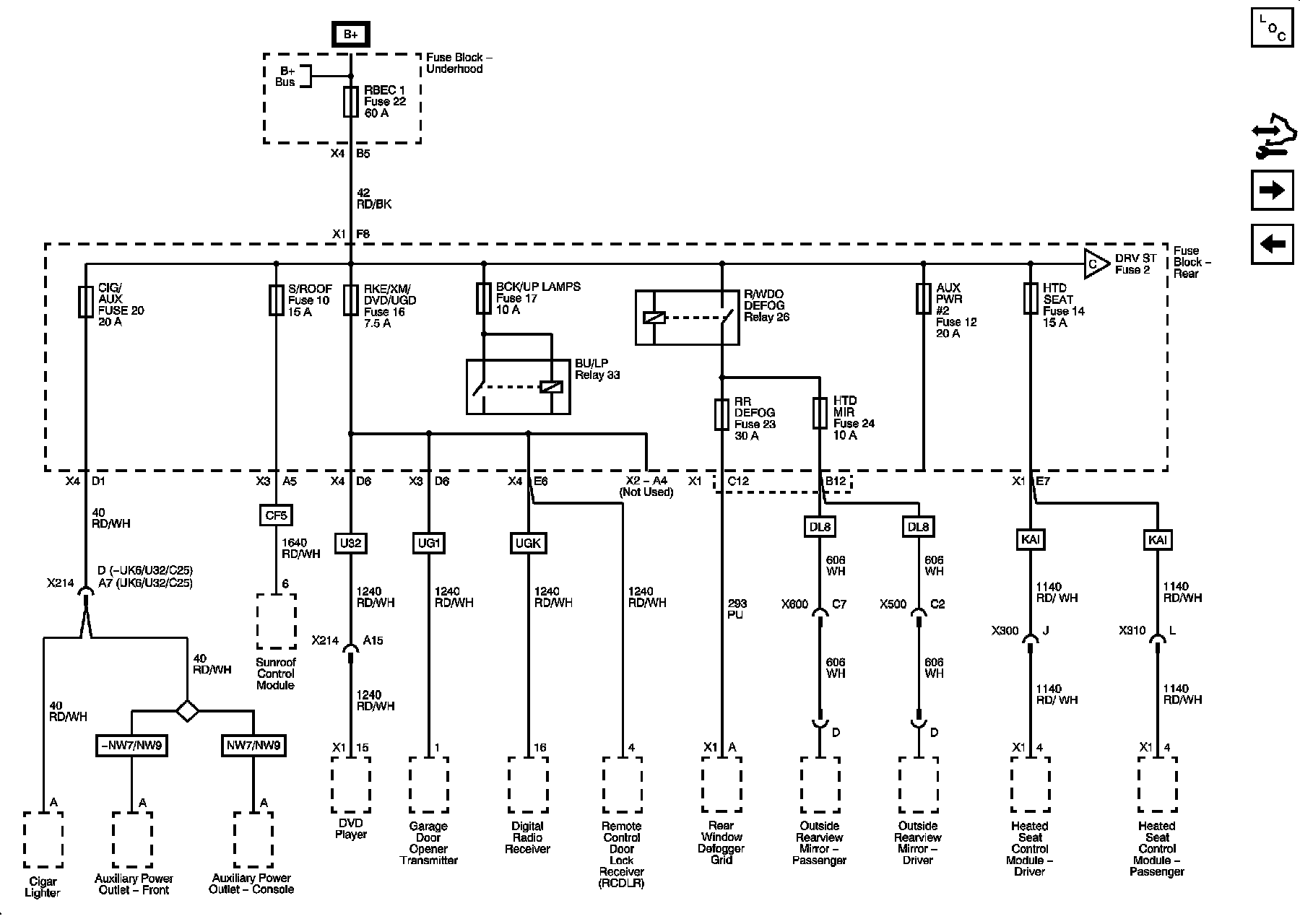

Power Distribution Schematics

Underhood Fuse Block RBEC 1 and Rear Fuse Block AUX #2, BCK/UP LAMPS, CIG/AUX, HTD MIR, HTD SEAT, RKE/XM/DVD/UGD, RR DEFOG AND S/ROOF Fuses
