Power Distribution Diagram 6



Power Distribution Schematics

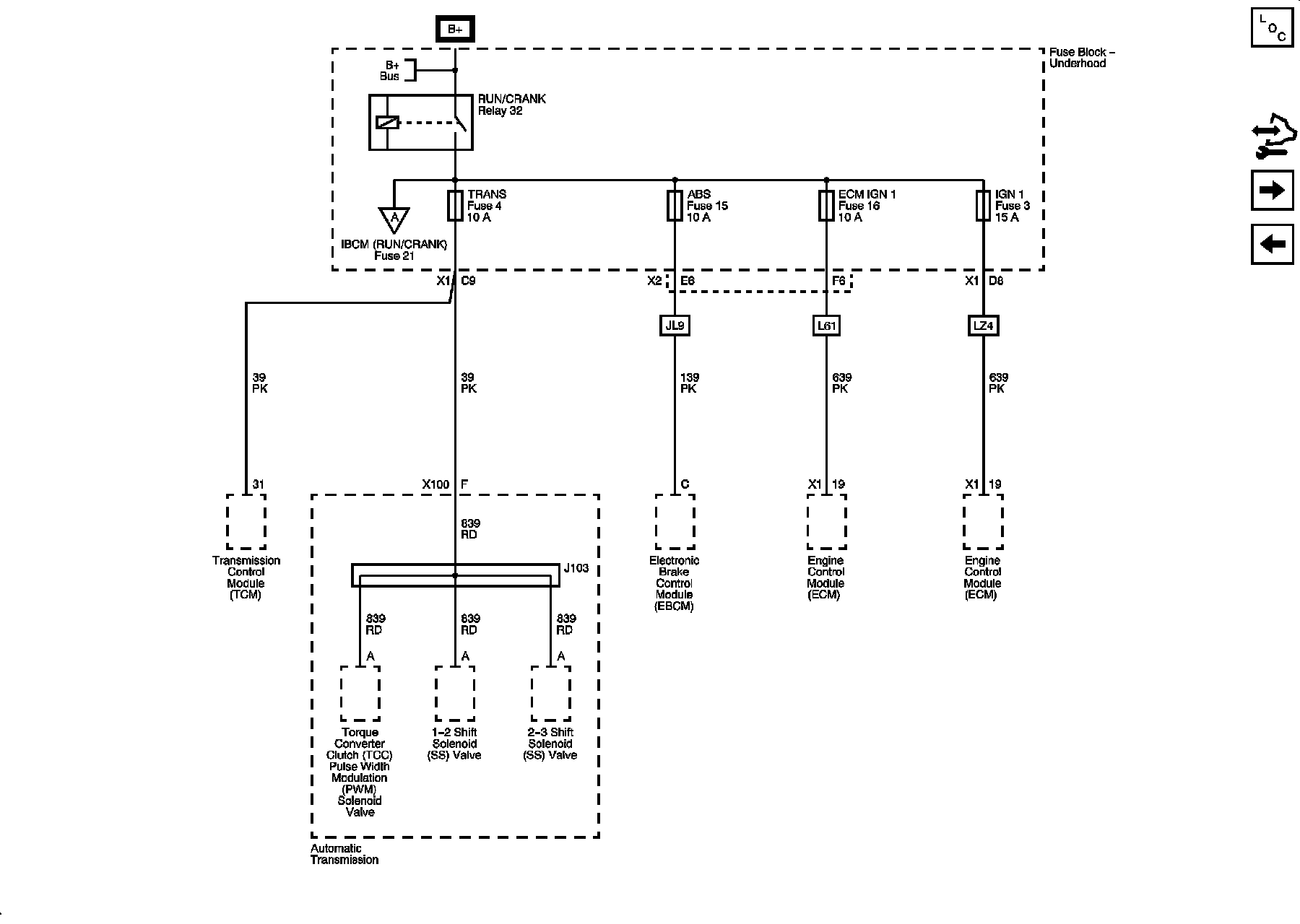

Underhood Fuse Block RUN/CRANK Relay, ABS, IGN 1, INJ, ECM IGN 1, and TRANS Fuses
