Power Distribution Diagram 7
Power Distribution Diagram 7
Power Distribution Schematics

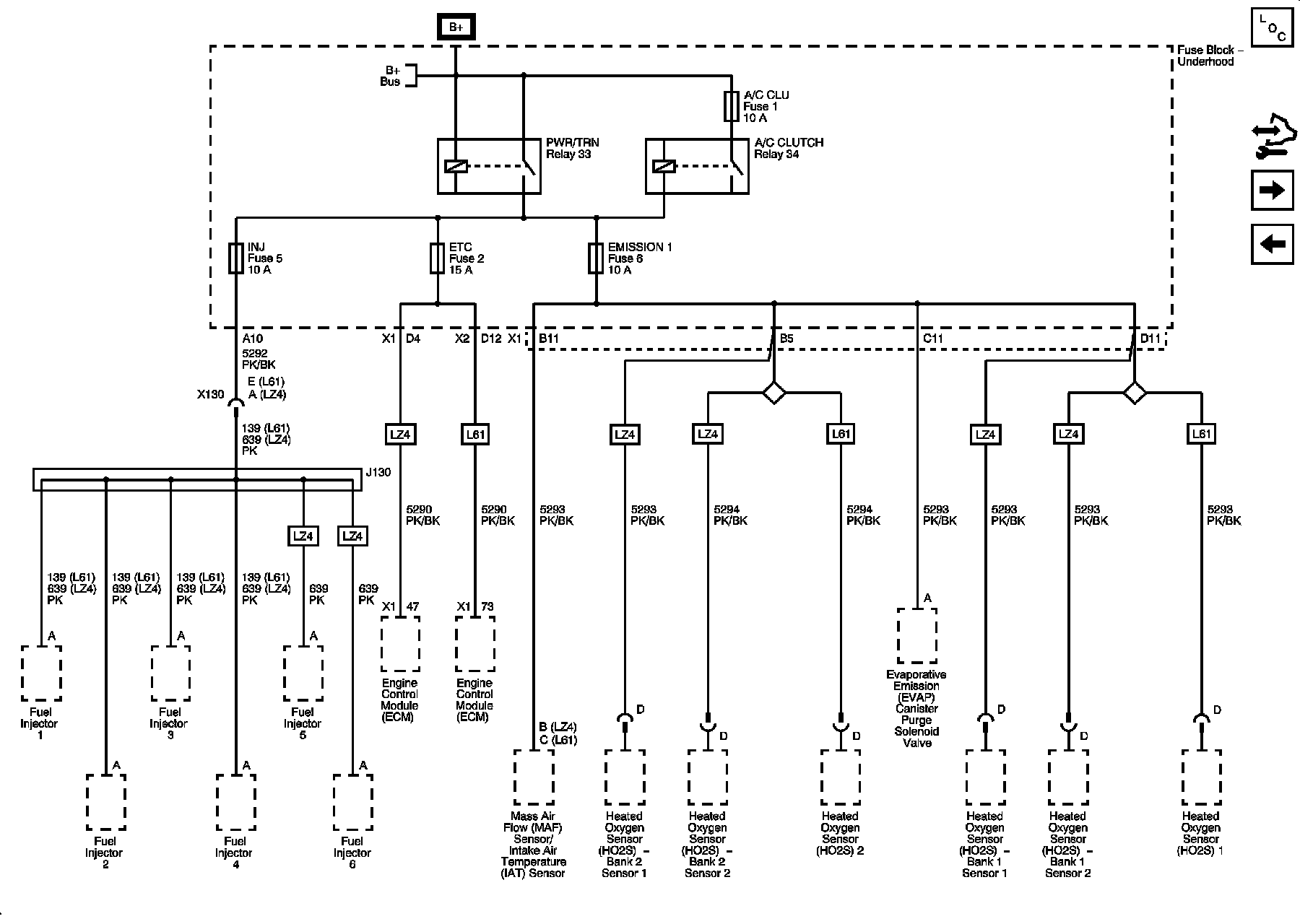

Underhood Fuse Block A/C CLUTCH and PWR/TRN Relays, A/C CLU, EMISSION 1, ETC and INJ Fuses
