Inflatable Restraint Instrument Panel Module



Component Connector End Views

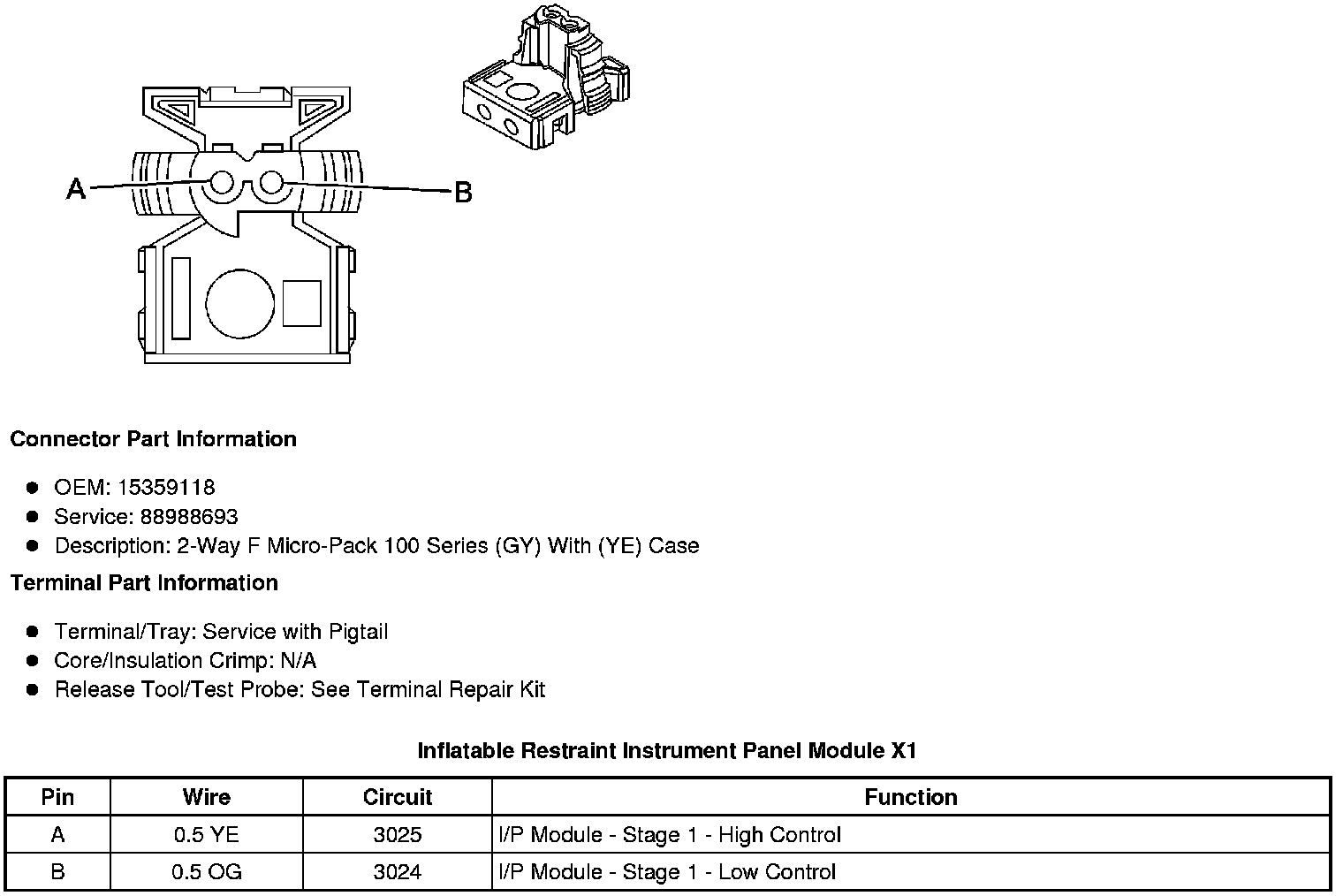

Inflatable Restraint Instrument Panel Module X1

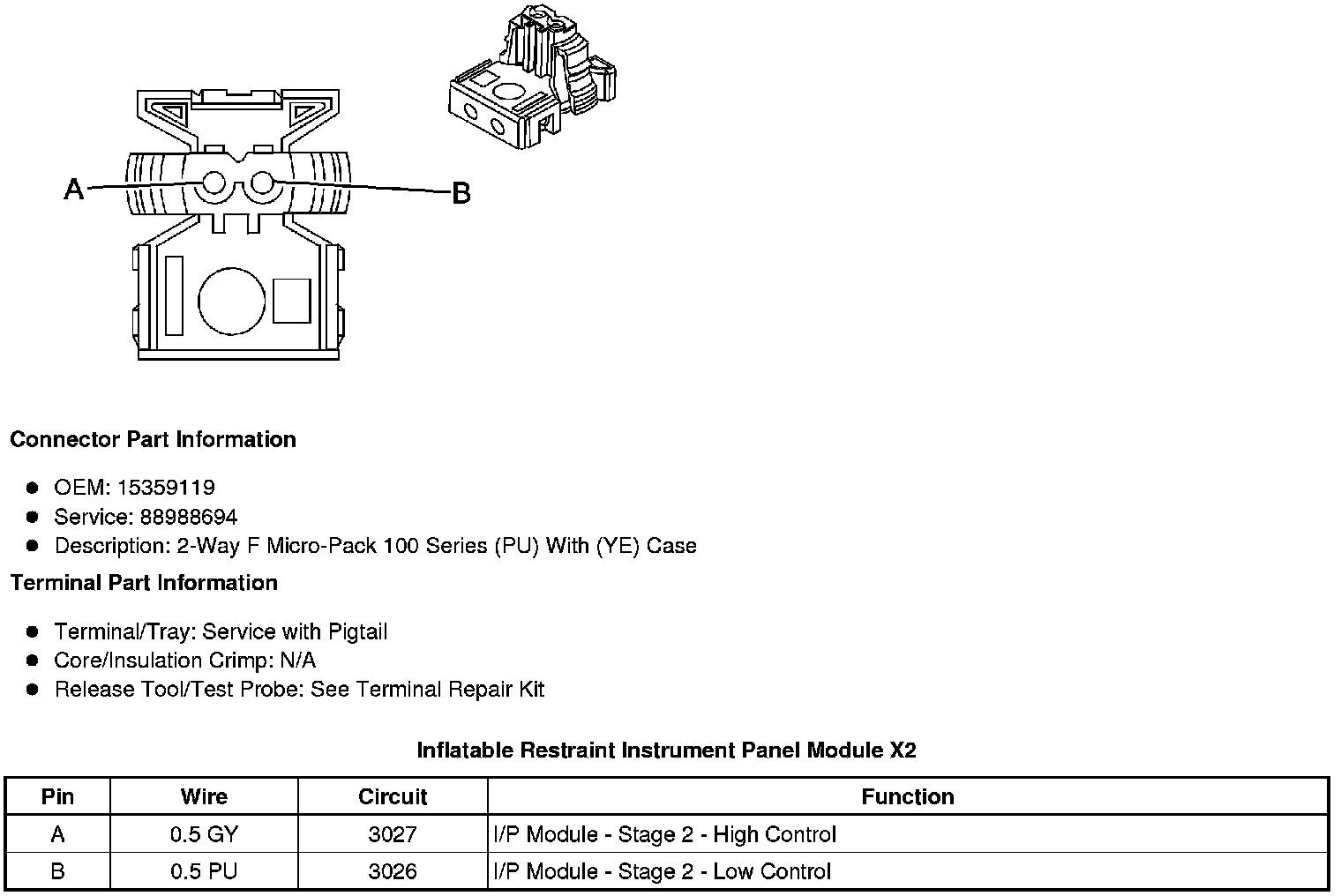

Inflatable Restraint Instrument Panel Module X2
