Inflatable Restraint Side Impact Sensor Replacement

Inflatable Restraint Side Impact Sensor Replacement

Removal Procedure

1. Disable the roof rail SIR system. Refer to SIR Disabling and Enabling (Service and Repair) .
2. Remove the door trim panel. Refer to Front Side Door Trim Panel Replacement (Service and Repair) .

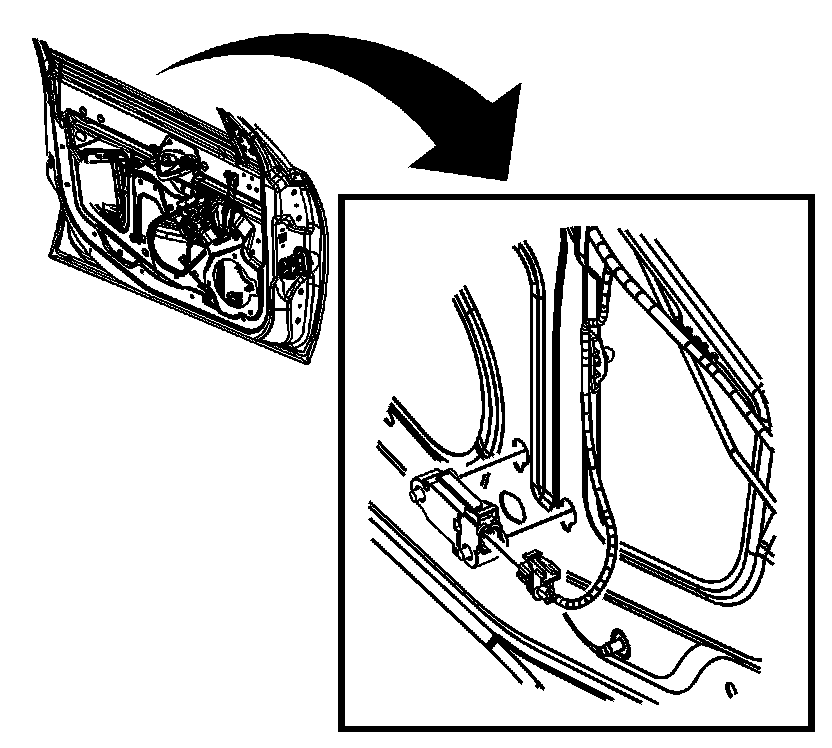

3. Remove the fasteners securing the sensor to the vehicle and remove the sensor from the vehicle.
4. Disconnect the electrical connector.



Installation Procedure





1. Connect the electrical connector.

Notice: Refer to Fastener Notice (Fastener Notice) .

2. Position the sensor to the vehicle and install the sensor fasteners.

Tighten the fasteners to 9 N.m (80 lb in).

3. Install the door trim panel. Refer to Front Side Door Trim Panel Replacement (Service and Repair) .
4. Enable the roof rail SIR system. Refer to SIR Disabling and Enabling (Service and Repair) .
