Front Seat Belt Buckle Replacement

Front Seat Belt Buckle Replacement

Removal Procedure

1. Remove the front seat. Refer to Front Seat Replacement - Bucket (Front Seat Replacement - Bucket) .

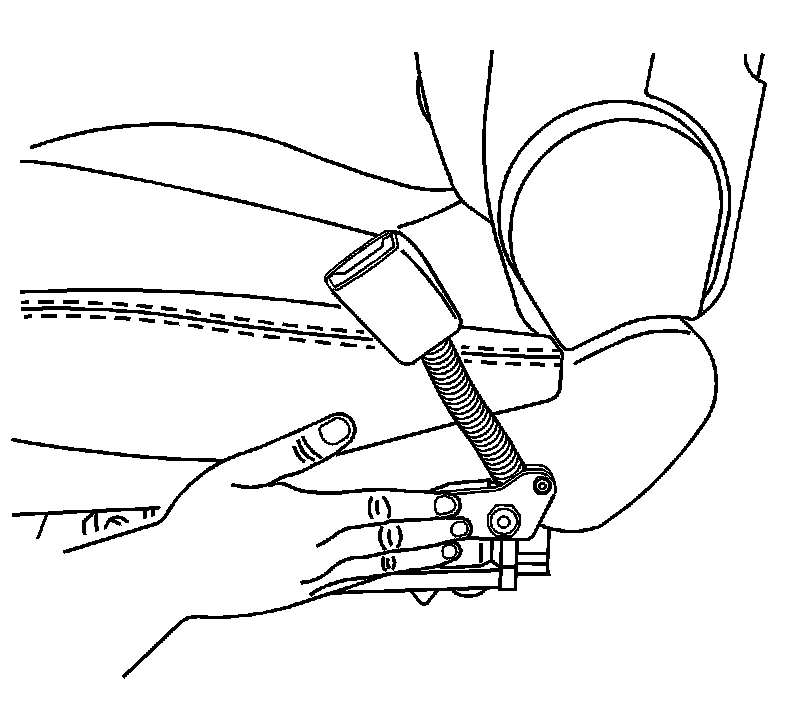

2. Remove the seat belt buckle fastener.
3. Remove the seat belt buckle.



Installation Procedure





1. Install the seat belt buckle.

Notice: Refer to Fastener Notice (Fastener Notice) .

2. Install the seat belt buckle fastener.

Tighten the fastener to 35 N.m (25 lb ft).

3. Install the front seat. Refer to Front Seat Replacement - Bucket (Front Seat Replacement - Bucket) .
