Rear Seat Belt Buckle Replacement (Sedan)

Rear Seat Belt Buckle Replacement (Sedan)

Removal Procedure

1. Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement (Sedan) (Rear Seat Cushion Replacement (Sedan)) .

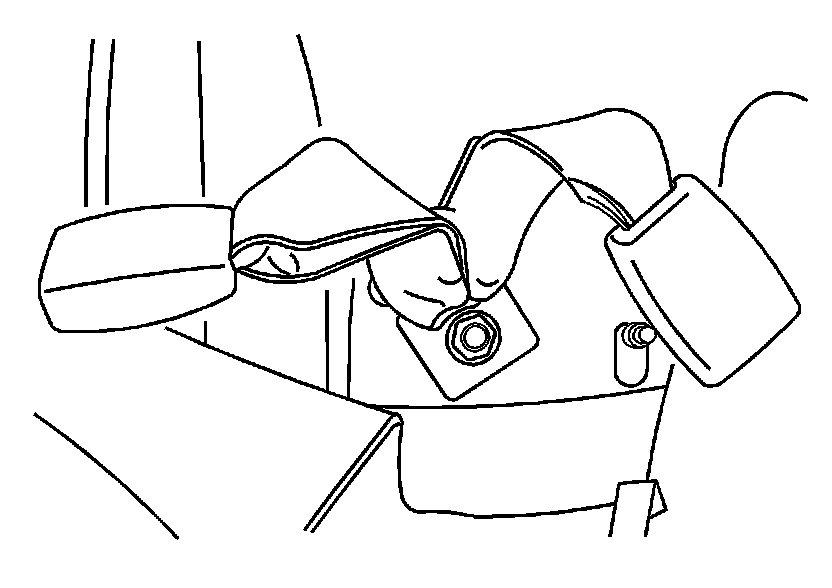

2. Remove the seat belt buckle fastener.
3. Remove the seat belt buckle.



Installation Procedure





1. Install the seat belt buckle.

Notice: Refer to Fastener Notice (Fastener Notice) .

2. Install the fastener to the seat belt buckle.

Tighten the fastener to 35 N.m (25 lb ft).

3. Install the rear seat cushion. Refer to Rear Seat Cushion Replacement (Sedan) (Rear Seat Cushion Replacement (Sedan)) .
