Guide Replacement - Rear Seat Shoulder Belt (Extended Sedan)

Guide Replacement - Rear Seat Shoulder Belt (Extended Sedan)

Removal Procedure

1. Remove the rear seat back trim panel. Refer to Rear Seat Back Cushion Trim Panel Replacement (Rear Seat Back Cushion Trim Panel Replacement) .

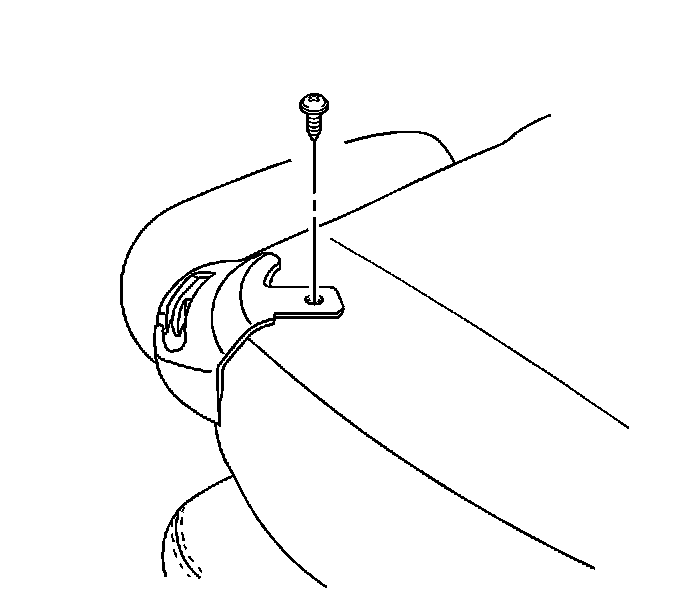

2. Remove the shoulder belt guide fasteners from the seat frame.

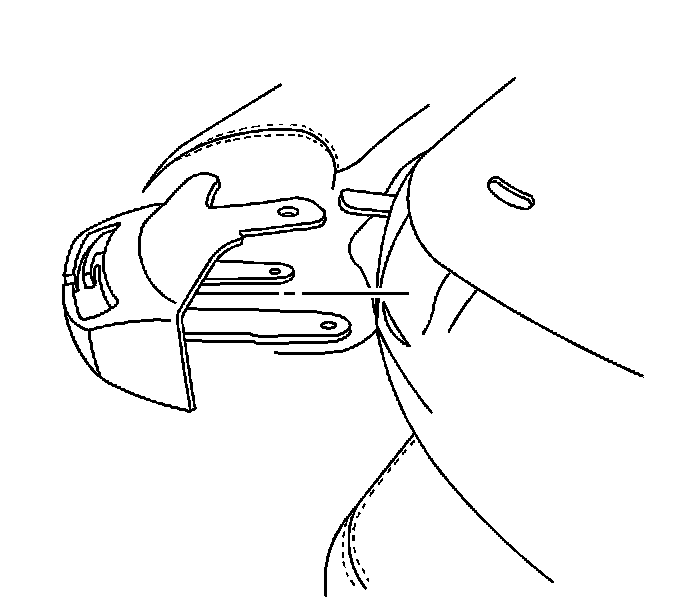

3. Remove the shoulder belt guide from the seat assembly.



Installation Procedure





1. Install the shoulder belt guide to the seat assembly.




2. Install the shoulder belt guide fasteners to the seat frame.
3. Install the rear seat back trim panel. Refer to Rear Seat Back Cushion Trim Panel Replacement (Rear Seat Back Cushion Trim Panel Replacement) .
