Dimmer Switch: Service and Repair

Instrument Panel Lamp Dimmer Switch Replacement

Removal Procedure

1. Remove the left instrument panel (I/P) trim panel. Refer to Instrument Panel Trim Panel Replacement - Left Side (Service and Repair) .
2. Remove the I/P dimmer switch wire harness connector.

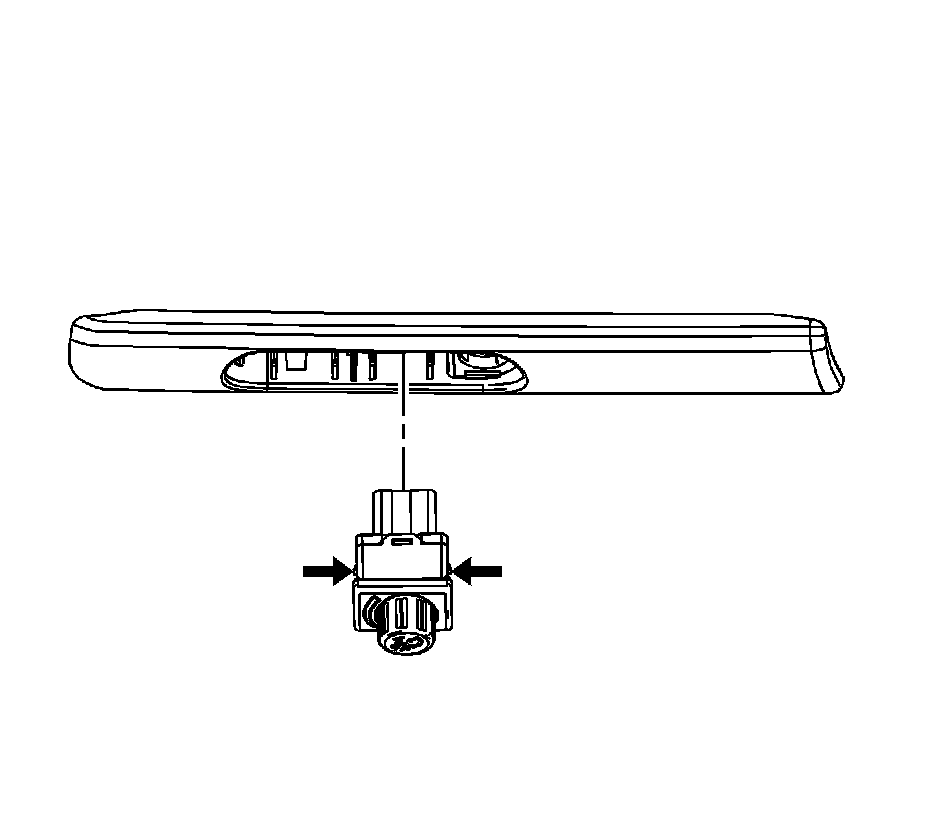

3. Remove the I/P dimmer switch.



Installation Procedure





1. Install the I/P dimmer switch.
2. Install the I/P dimmer switch wire harness connector.
3. Install the left I/P trim panel. Refer to Instrument Panel Trim Panel Replacement - Left Side (Service and Repair) .
