Luggage Compartment/Rear of Vehicle Component Views

Luggage Compartment/Rear of Vehicle Component Views

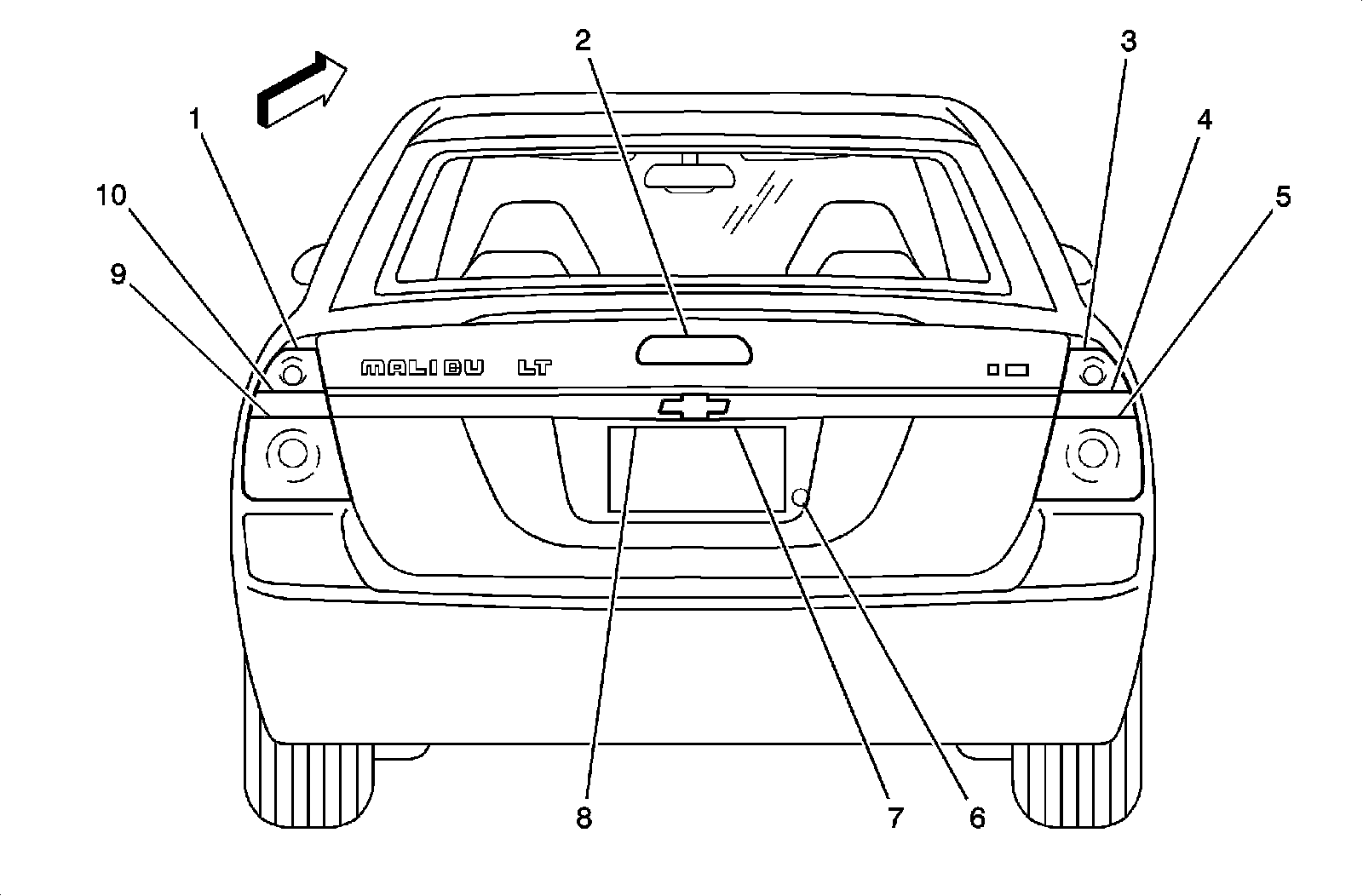

Rear Exterior Lighting




1 - Tail Lamp - Left
2 - Center High Mounted Stop Lamp (CHMSL)
3 - Tail Lamp - Right
4 - Backup Lamp - Right
5 - Tail/Stop and Turn Signal Lamp - Right
6 - Rear Compartment Lid Release Switch - Exterior
7 - License Lamp - Right
8 - License Lamp - Left
9 - Tail/Stop and Turn Signal Lamp - Left
10 - Backup Lamp - Left

Rear Compartment Courtesty Lamp




1 - Rear Compartment Courtesy Lamp

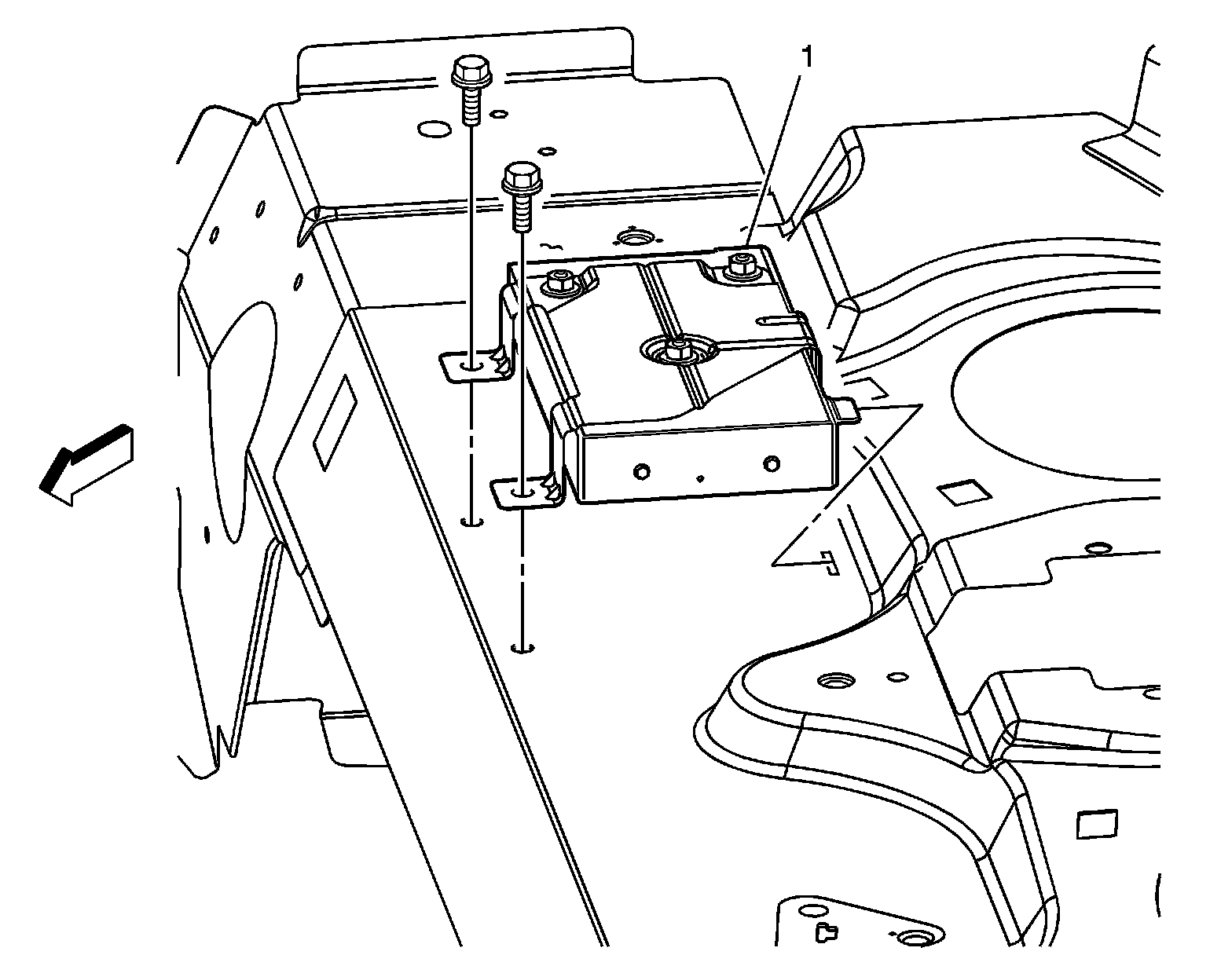

Digital Radio Receiver




1 - Digital Radio Receiver

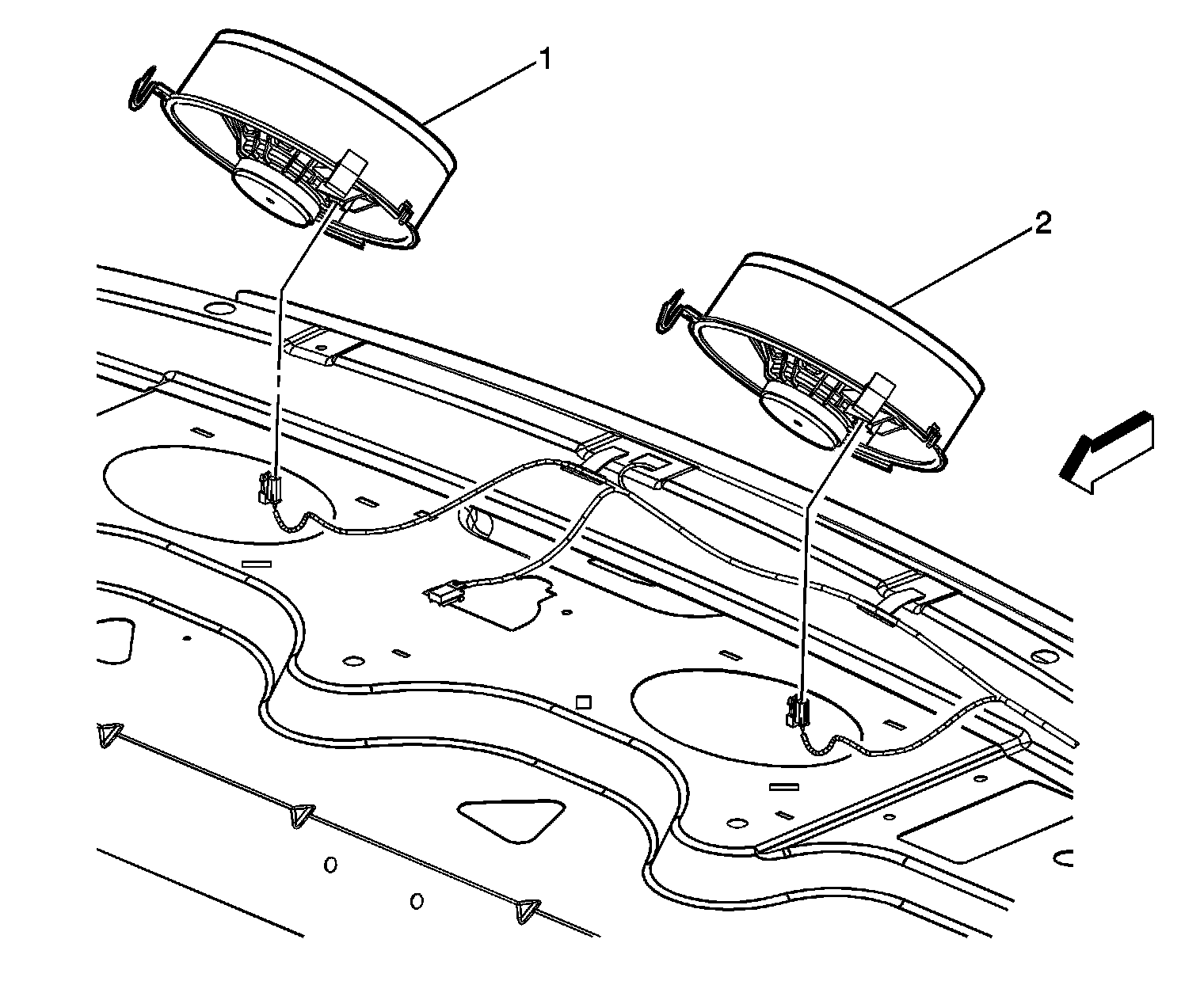

Rear Speakers




1 - Speaker - Right Rear
2 - Speaker - Left Rear

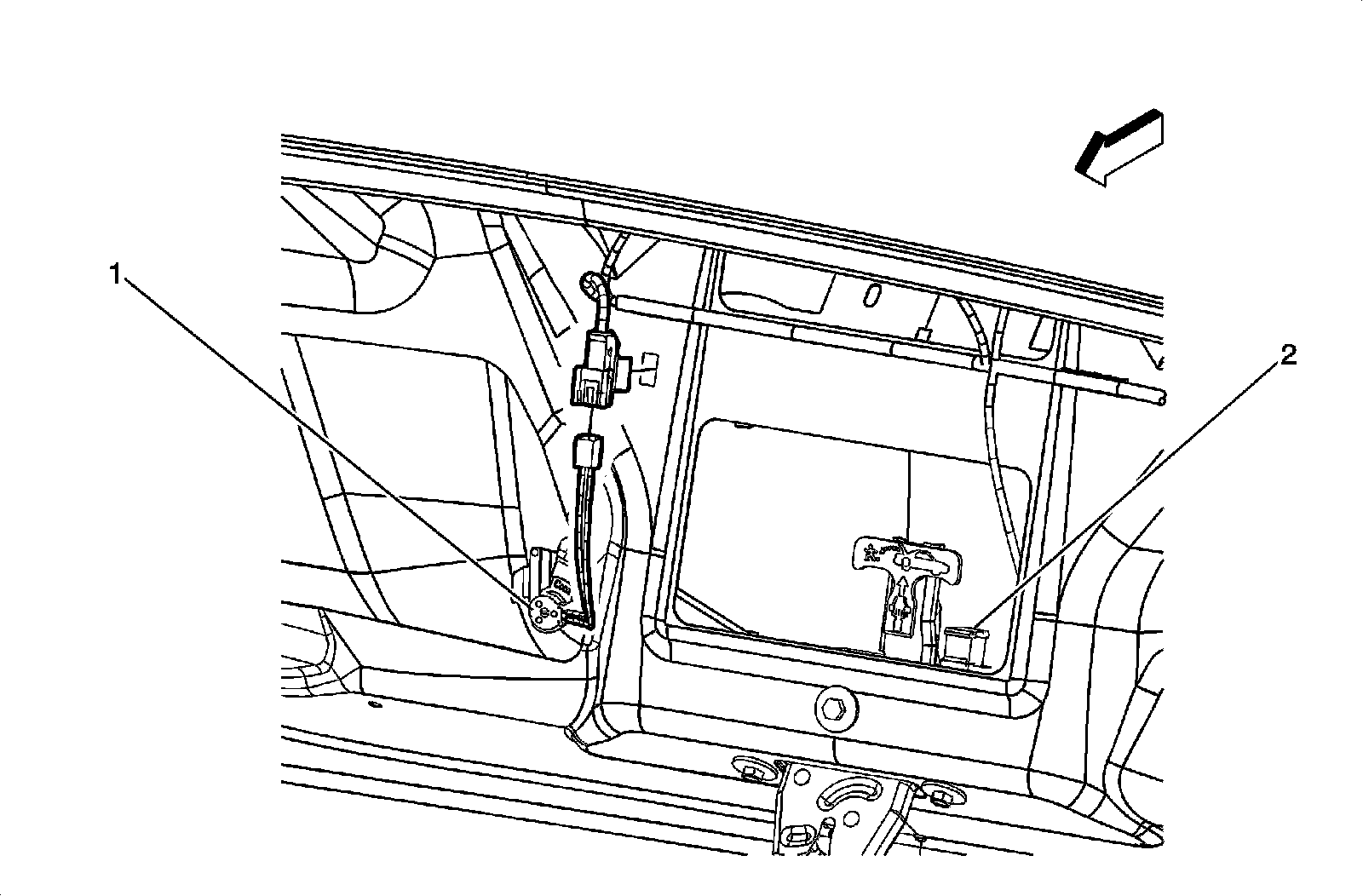

Rear Compartment Lid Latch and Rear Compartment Lid Release Switch - Exterior




1 - Rear Compartment Lid Release Switch - Exterior
2 - Rear Compartment Lid Latch

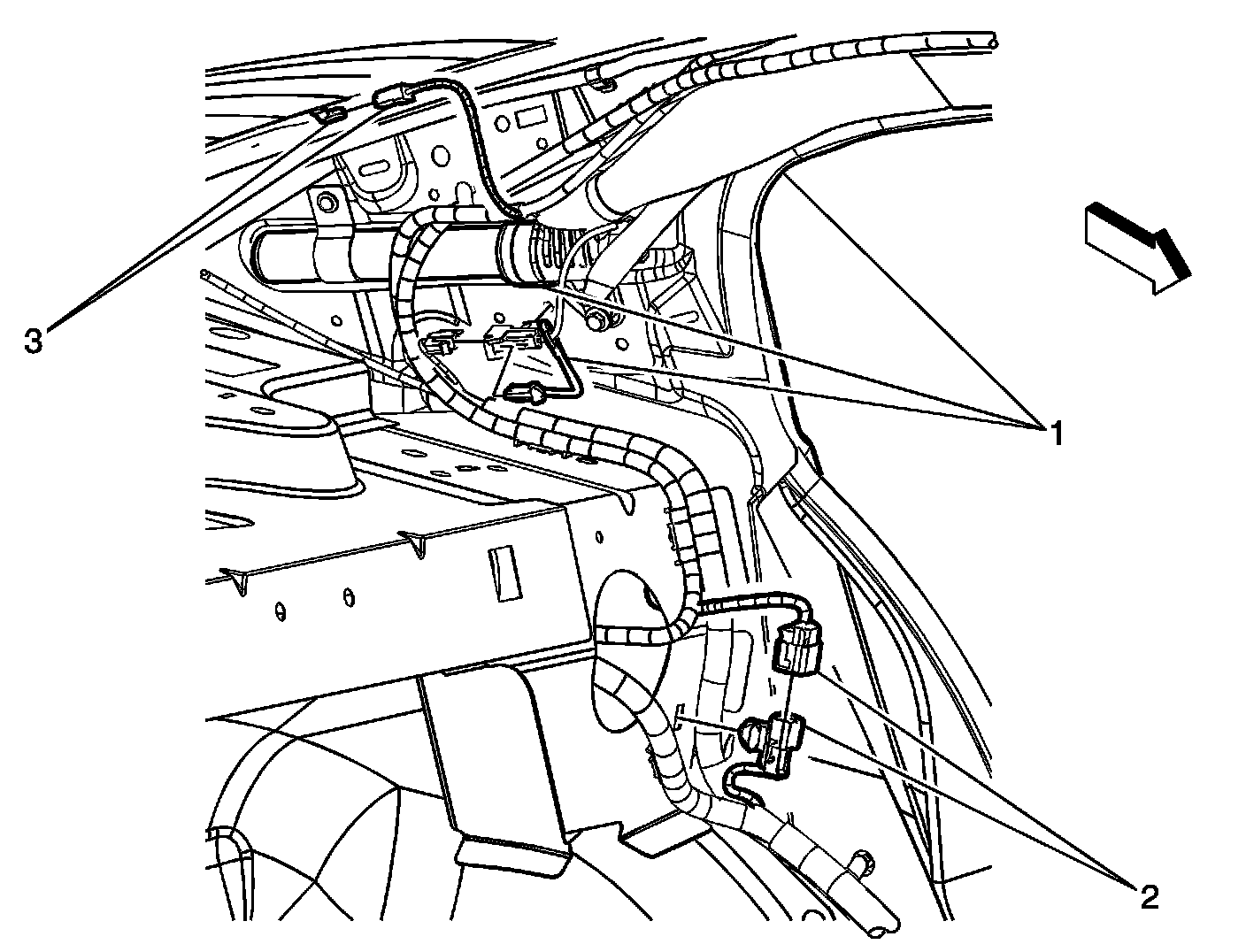

Left C-Pillar Components




1 - Inflatable Restraint Roof Rail Module - Left (AY0)
2 - X451 (UE1)
3 - Rear Window Defogger Grid X1

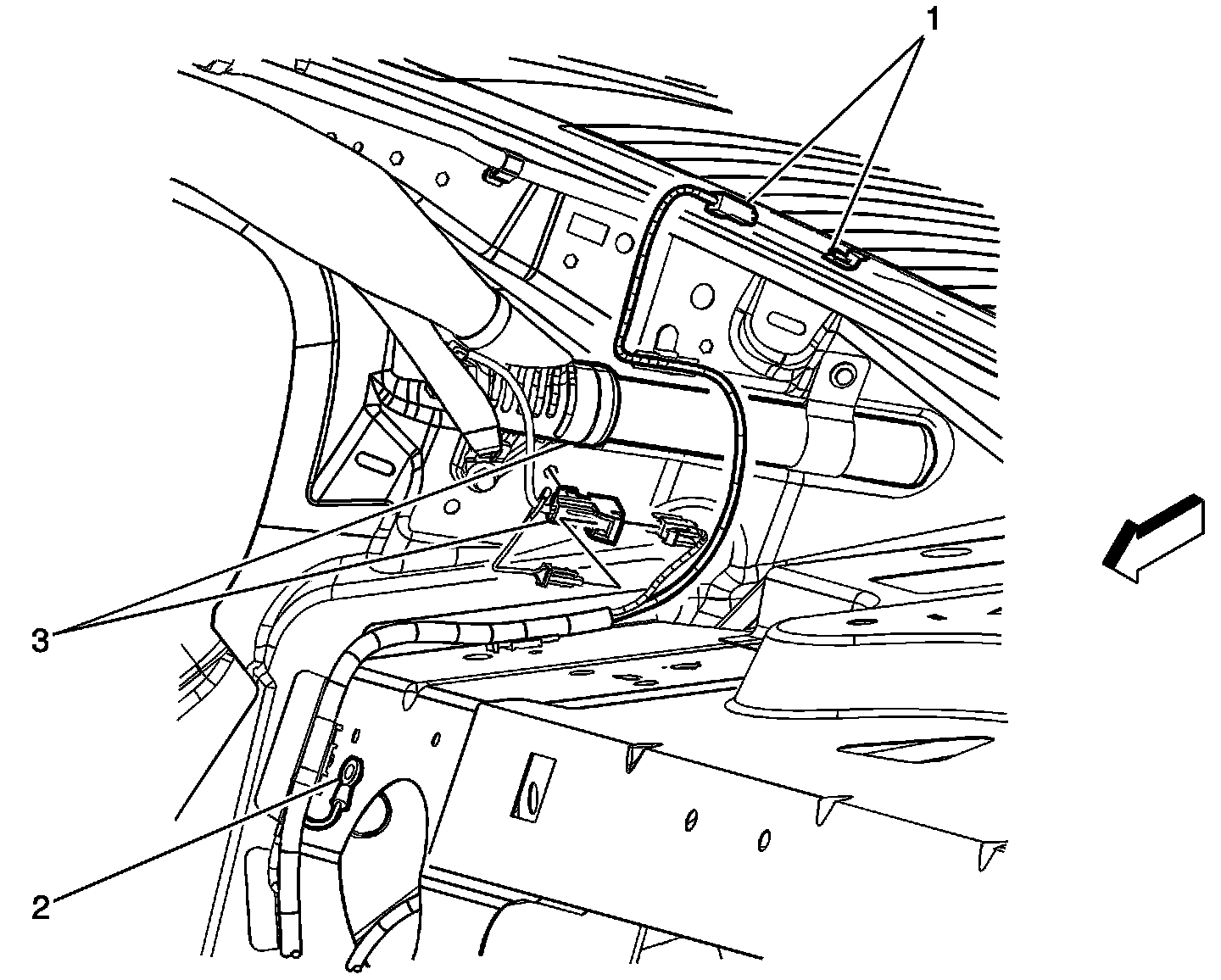

Right C-Pillar Components




1 - Rear Window Defogger Grid X2
2 - G301
3 - Inflatable Restraint Roof Rail Module - Right (AY0)

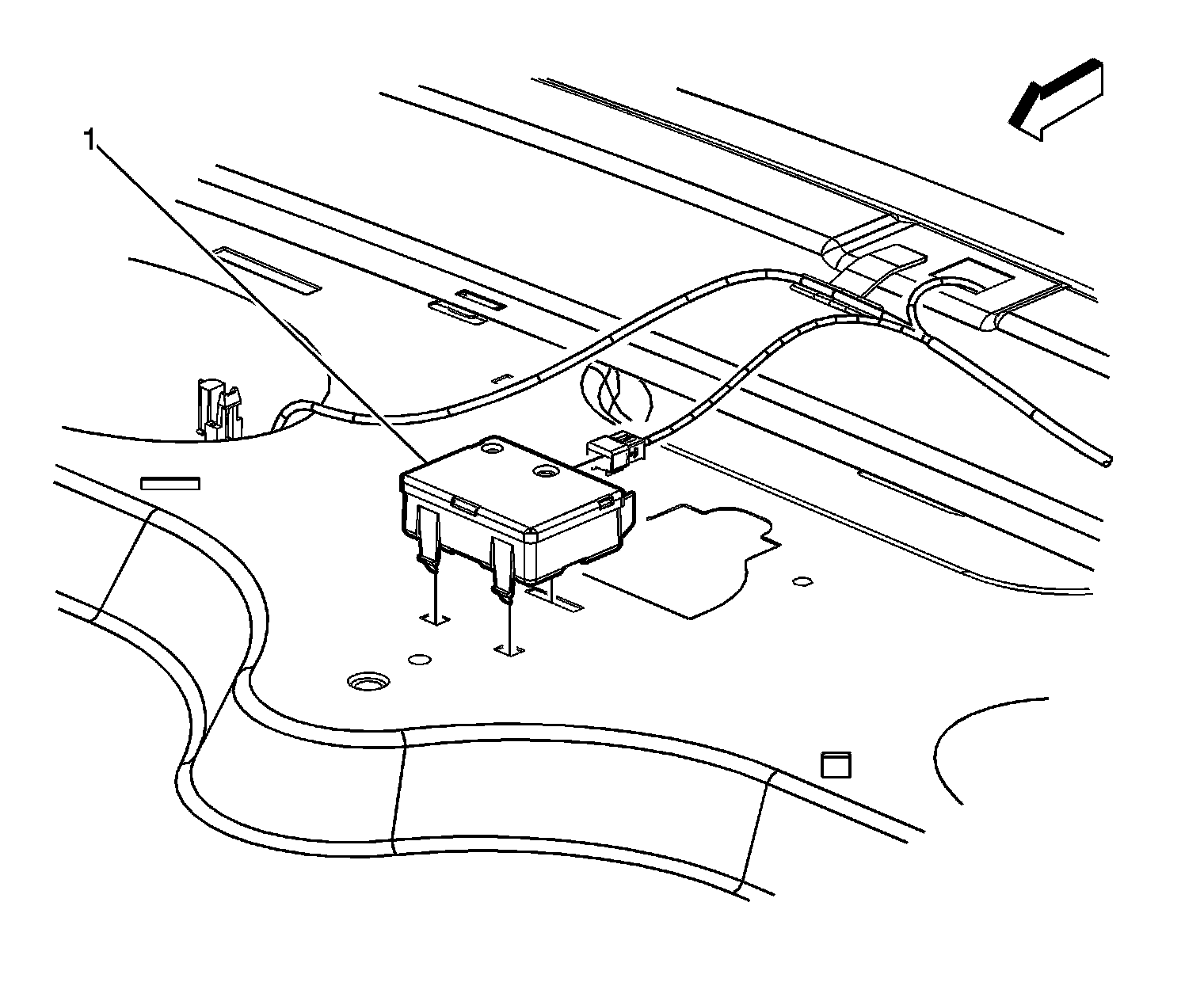

Remote Control Door Lock Receiver (RCDLR)




1 - Remote Control Door Lock Receiver (RCDLR)
