Power Steering Pump Seal: Service and Repair

Power Steering Pump Shaft Seal Replacement

Removal Procedure

1. If necessary, remove the power steering pump from the vehicle. Refer to Power Steering Pump Replacement (Service and Repair) .





Important: Protect the power steering pump drive shaft with the shim stock.

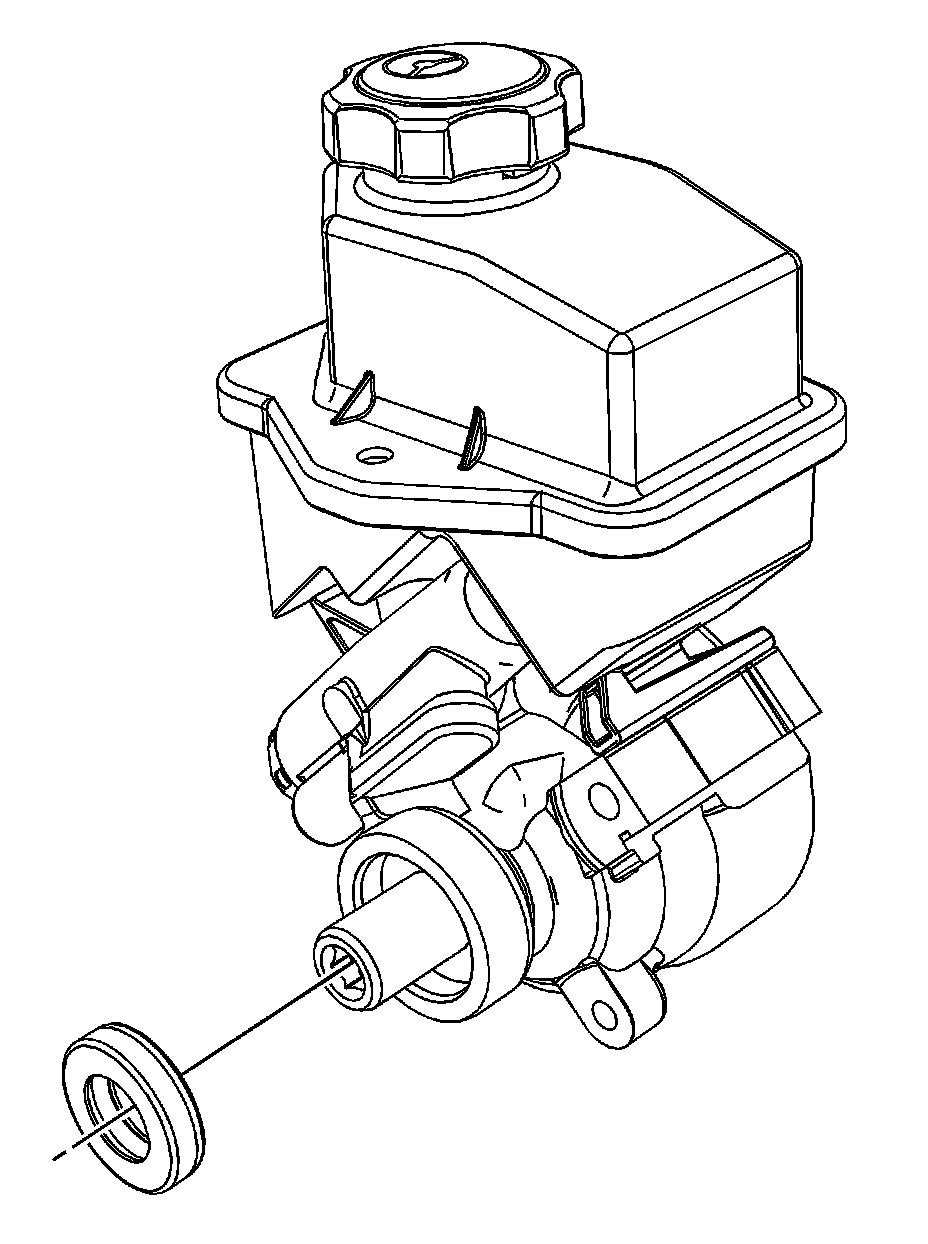

2. Use a small chisel in order to remove the seal.
Discard the seal.



Installation Procedure

1. Lubricate the new drive shaft seal using power steering fluid.




2. Use a deep socket to evenly press the new seal into the power steering pump housing.
3. If removed, install the power steering pump. Refer to Power Steering Pump Replacement (Service and Repair) .
