Automatic Transmission Oil Cooler Pipes Replacement (L61)

Automatic Transmission Oil Cooler Pipes Replacement (L61)

Removal Procedure

1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle (Service Intervals) .




2. Remove the left radiator air deflector retainers.
3. Remove the left radiator air deflector.




4. Unclip the transmission oil cooler pipe from the fan shroud.
5. Place a drain pan under the transmission oil cooler pipes.
6. Remove the transmission oil cooler pipes attachment nut from the transmission.




7. Remove both transmission oil cooler pipes from the transmission.
8. Remove the transmission oil cooler pipes from the radiator. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection (Service and Repair) .

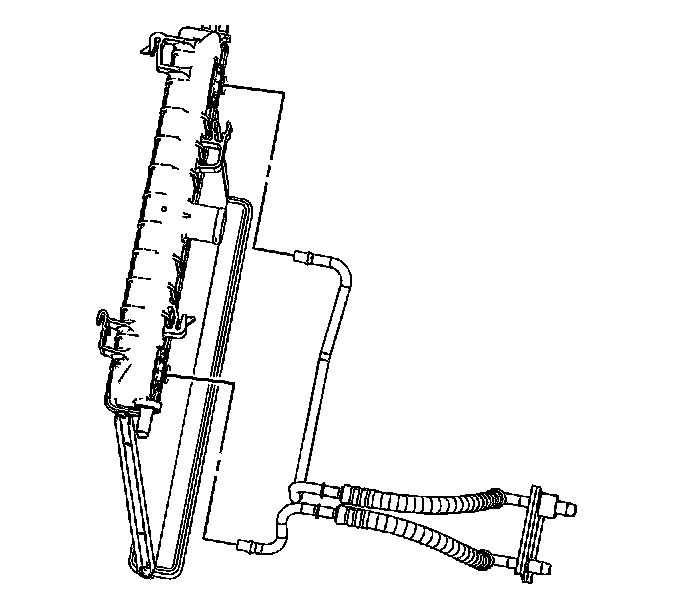

9. Remove the transmission oil cooler pipes.
10. Remove the transmission oil cooler pipes attachment stud from the transmission if damaged.



Installation Procedure

1. Install the transmission oil cooler pipes attachment stud to the transmission if removed.
Notice: Refer to Fastener Notice (Fastener Notice) .



Tighten the stud to 7 N.m (62 lb in).





2. Install the transmission oil cooler pipes.
3. Install the transmission oil cooler pipes to the radiator. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection (Service and Repair) .




4. Install both transmission oil cooler pipes to the transmission.
5. Install the transmission oil cooler pipes attachment nut to the transmission.

Tighten the nut to 7 N.m (62 lb in).

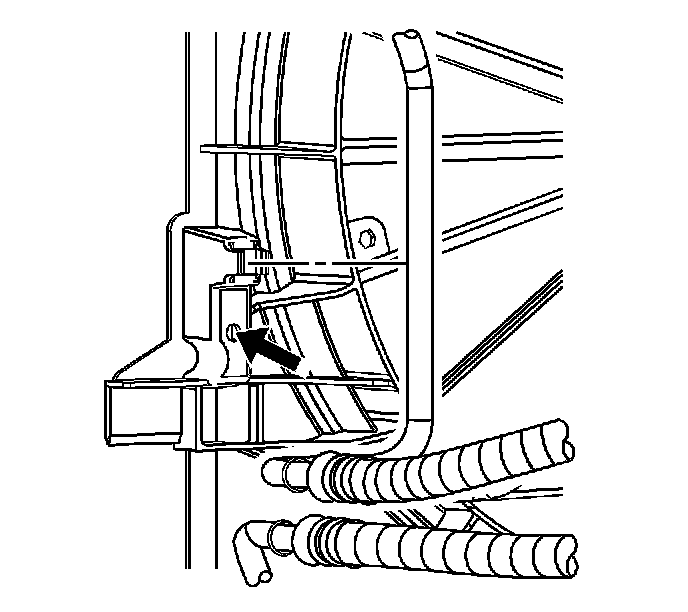

Important: Use the service clip P/N 15738800 in hole below the transmission oil cooler fan shroud integral clip, if damaged.


6. Clip the transmission oil cooler pipe to the fan shroud.





Important: Radiator air deflectors must be properly installed or reduced A/C and engine cooling system performance could occur.


7. Install the left radiator air deflector.
8. Install the left radiator air deflector retainers.
9. Lower the vehicle.
10. Inspect the transmission fluid level. Refer to Transmission Fluid Check (Testing and Inspection) .
