Shift Cable: Service and Repair

Floor Shift Control Cable Replacement

Removal Procedure





1. Remove the console. Refer to Console Replacement (Service and Repair) .

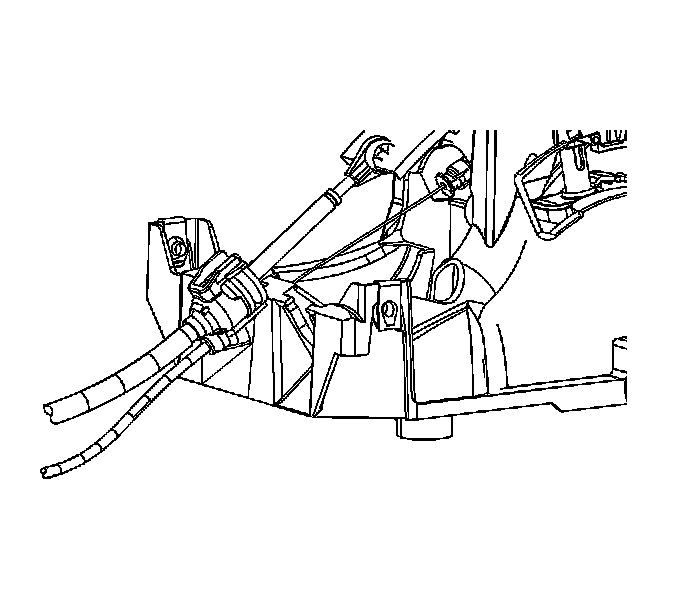

2. Press the tabs on the control cable and remove the cable from the control assembly.

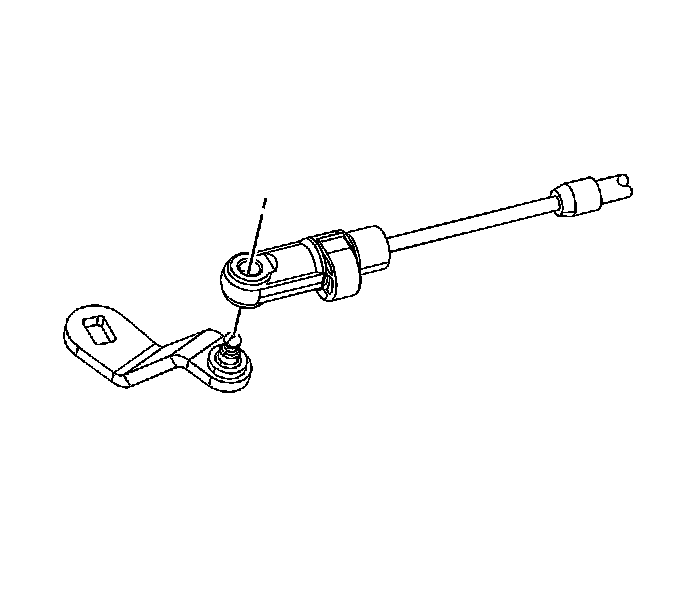

3. Disconnect the control cable from the transaxle range switch lever.

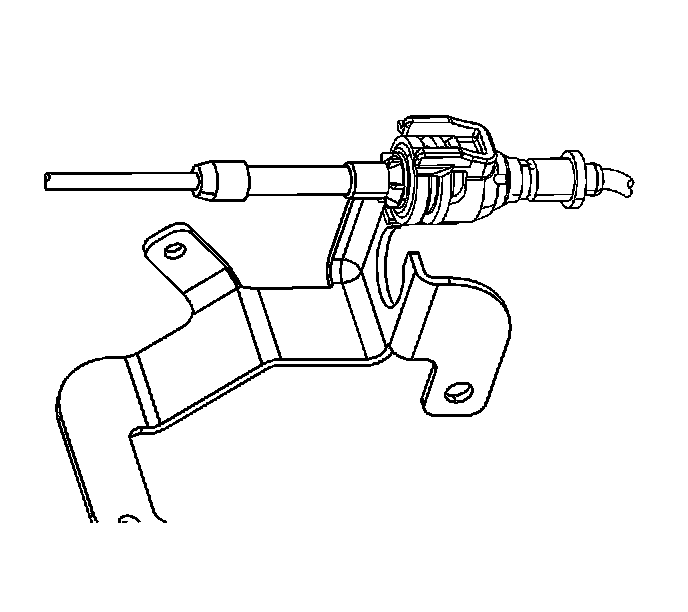

4. Press the 2 tabs on the control cable and remove the cable from the control cable bracket.

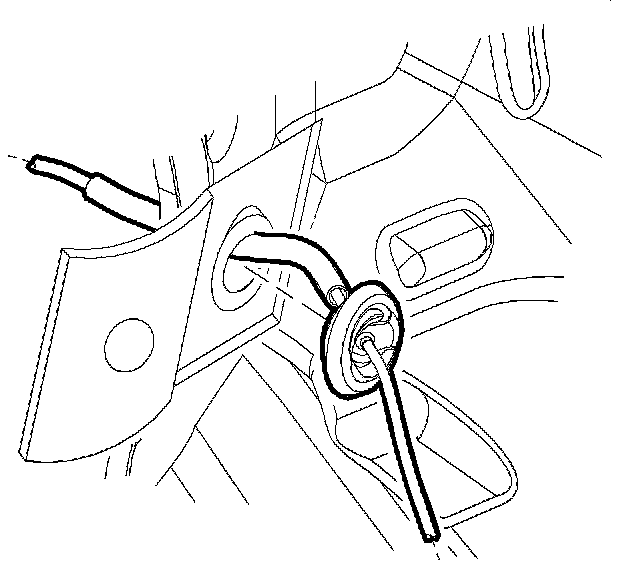

5. Remove the control cable grommet from the dash panel.
6. Remove the control cable from the vehicle.



Installation Procedure





1. Guide the control cable through the pass-through in the dash panel.
2. Secure the control cable grommet by pressing the cable into the pass-through hole in the dash panel.




3. Install the control cable into the transmission bracket, push down until the tabs lock the cable to the bracket.




4. Install the cable to the transmission range switch lever by pressing down until the cable snaps into place.




5. Connect the control cable end to the control assembly lever.
6. Connect the control cable to the pin on the control assembly.
7. Secure the control cable into the control assembly by pushing into place.
8. Install the console. Refer to Console Replacement (Service and Repair) .
9. Adjust the control cable assembly. Refer to Shift Control Cable Adjustment (Adjustments) .
