Home >> Chevrolet >> 2008 >> Malibu Classic V6-3.5L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Specifications >> Mechanical Specifications >> Fastener Tightening Specifications

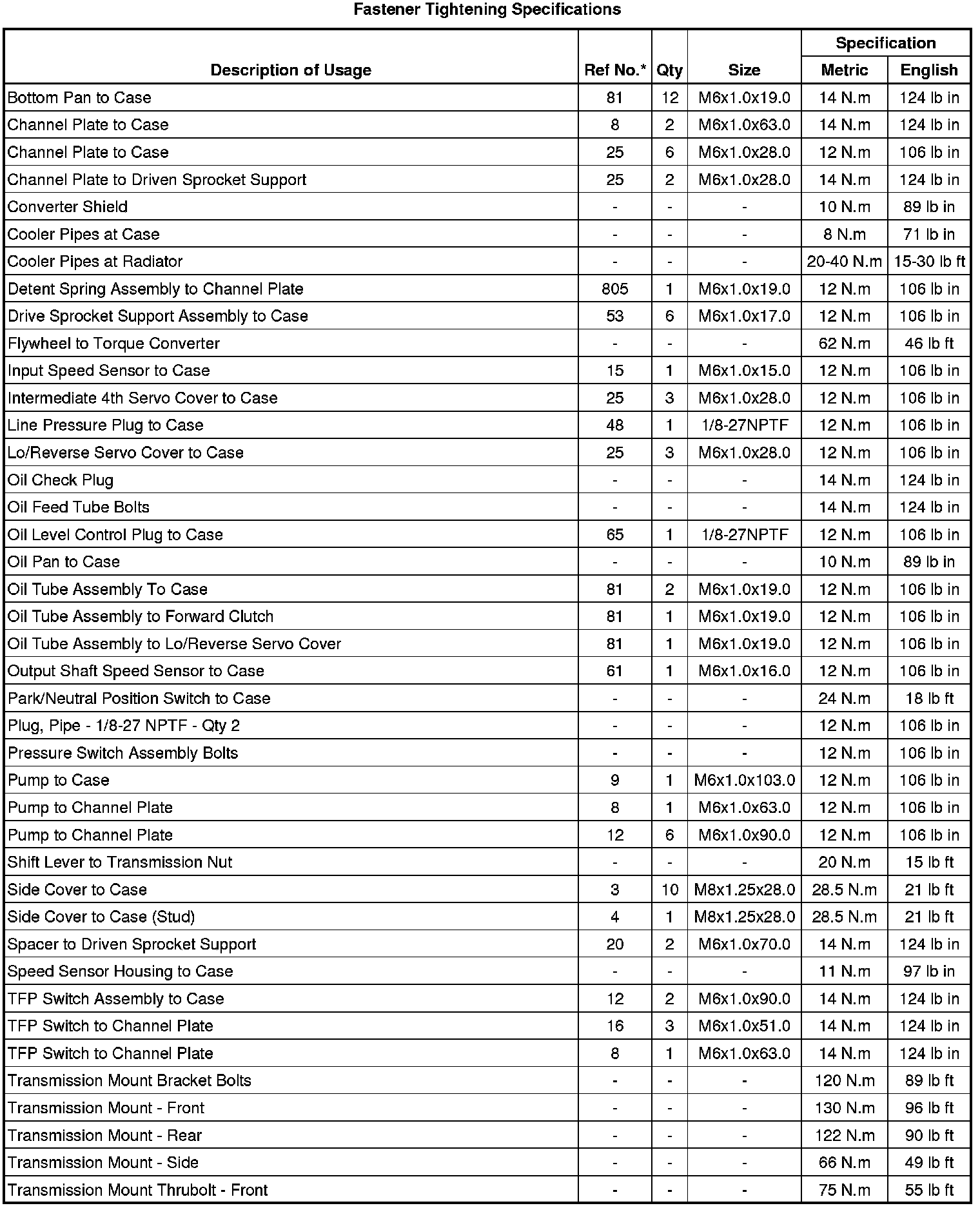

Fastener Tightening Specifications

Fastener Tightening Specifications

Flywheel Bolt
Automatic Transmission 70 Nm (52 lb ft.)
Oil Pan Bolts 12 N.m (9 lb ft)
